Kenmore
Wall Oven/Microwave Combo

Model # 6654438914 Official Kenmore microwave/electric built-in oven

Here are the diagrams and repair parts for Official Kenmore 6654438914 microwave/electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

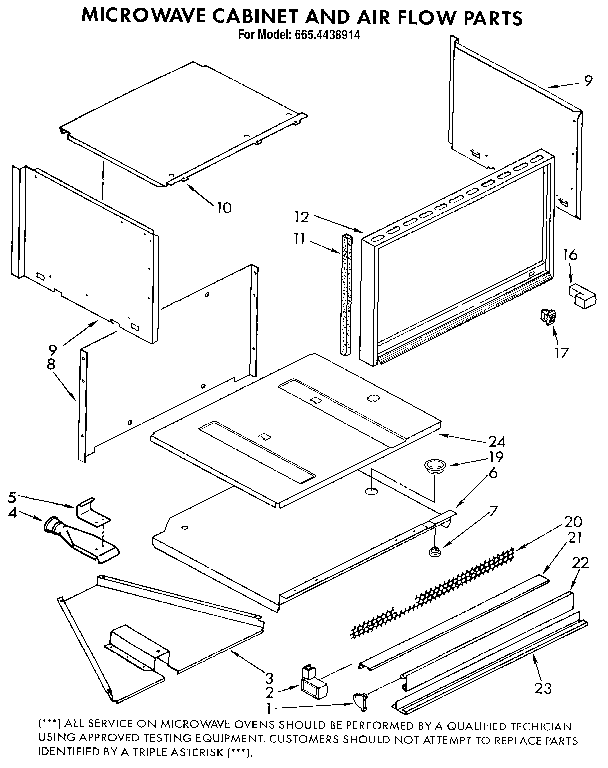

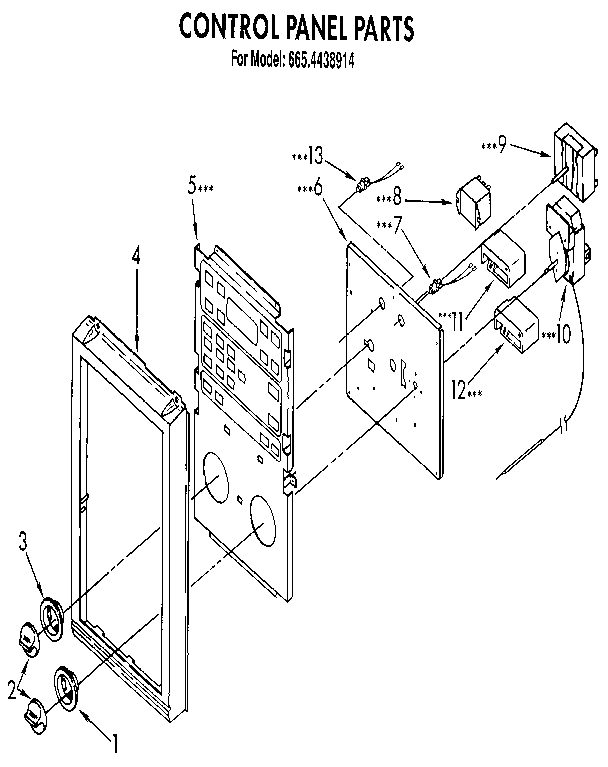

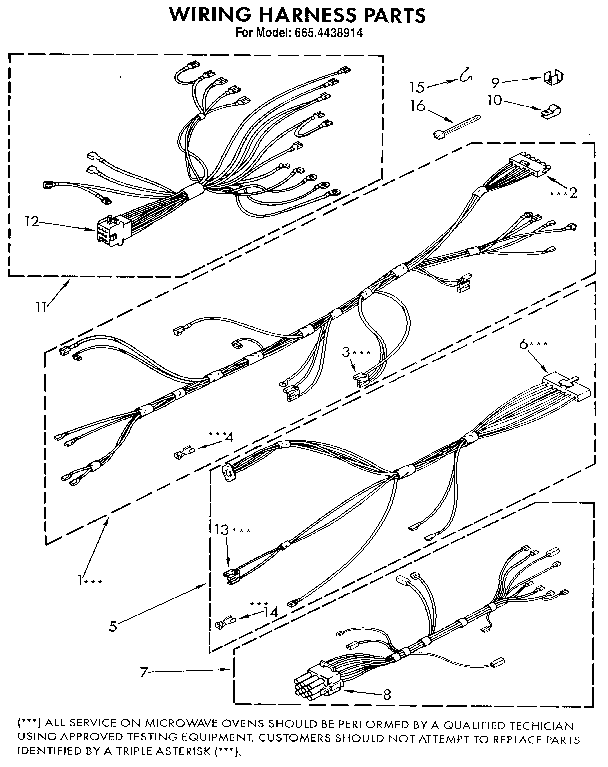

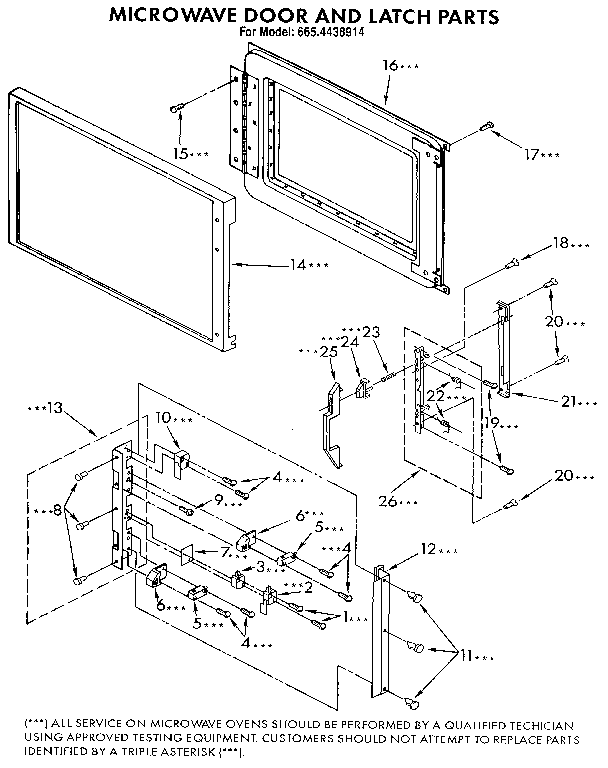

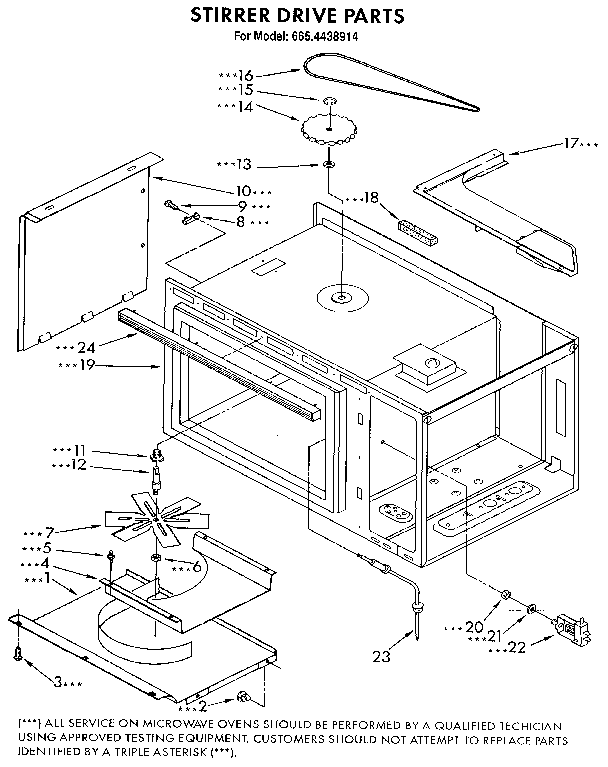

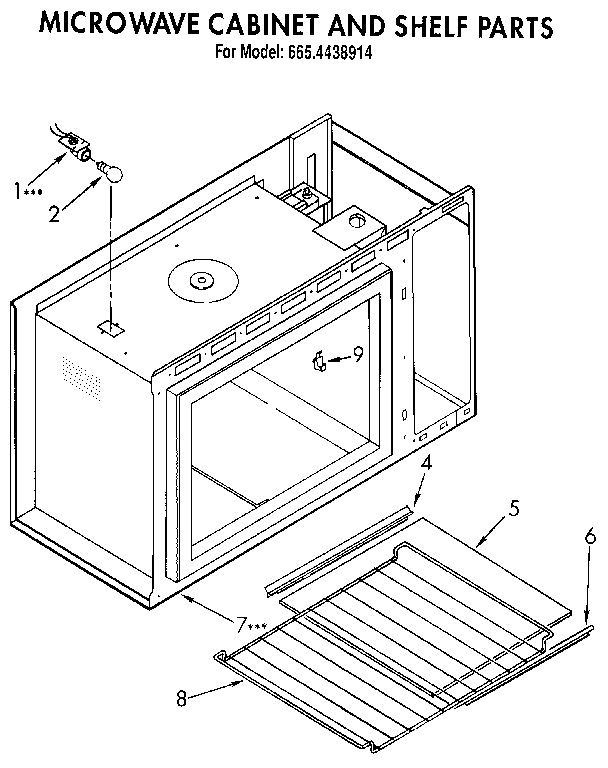

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 270 parts  |
Light Bulb 311255
#41

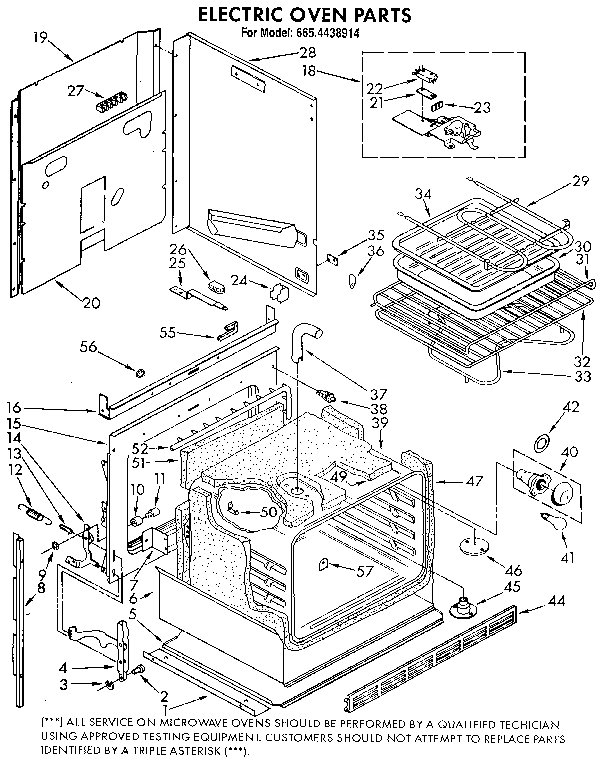

Electric oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Magnetron 311992
#12A

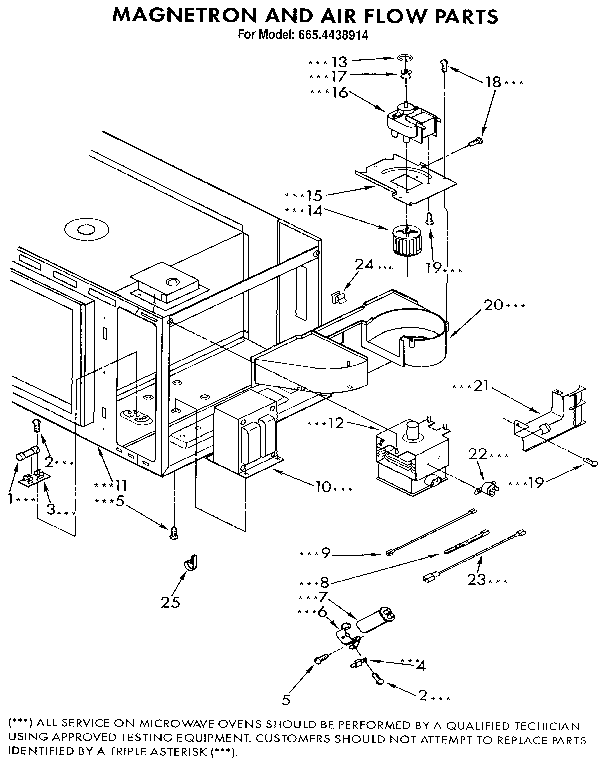

Magnetron and air flow diagram

Magnetron

Part #311992

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 313034
#12E

Magnetron and air flow diagram

Magnetron

Part #313034

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 311993
#12B

Magnetron and air flow diagram

Magnetron

Part #311993

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 311994
#12C

Magnetron and air flow diagram

Magnetron

Part #311994

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 311995
#12D

Magnetron and air flow diagram

Magnetron

Part #311995

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 660595
#12

Magnetron and air flow diagram

Magnetron

Part #660595

The manufacturer no longer makes this part, and there's no substitute part

Screw 3148107
Screw

Part #3148107

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 313638
Screw

Part #313638

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 313638. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 9416643
#19A

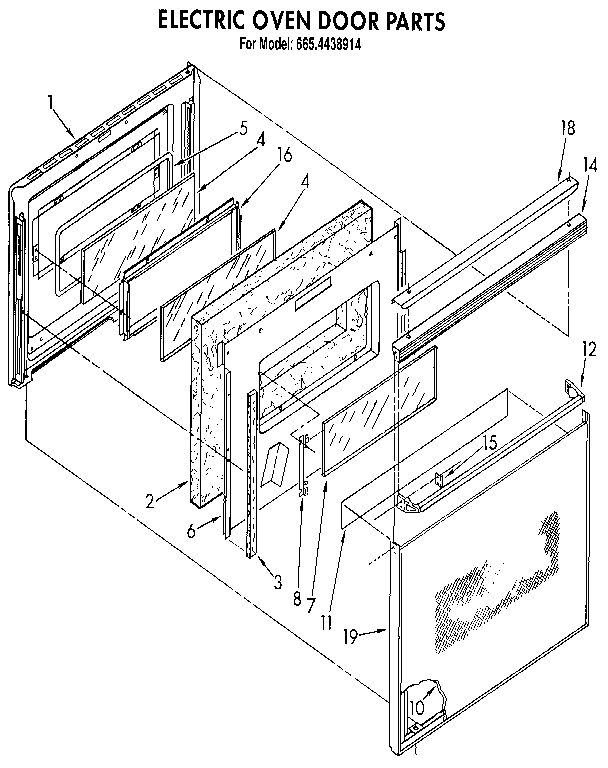

Electric oven door diagram

Screw

Part #9416643

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 9416643. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
