Whirlpool
Top-Mount Refrigerator

Model # ET16JMYSG02 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool ET16JMYSG02 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

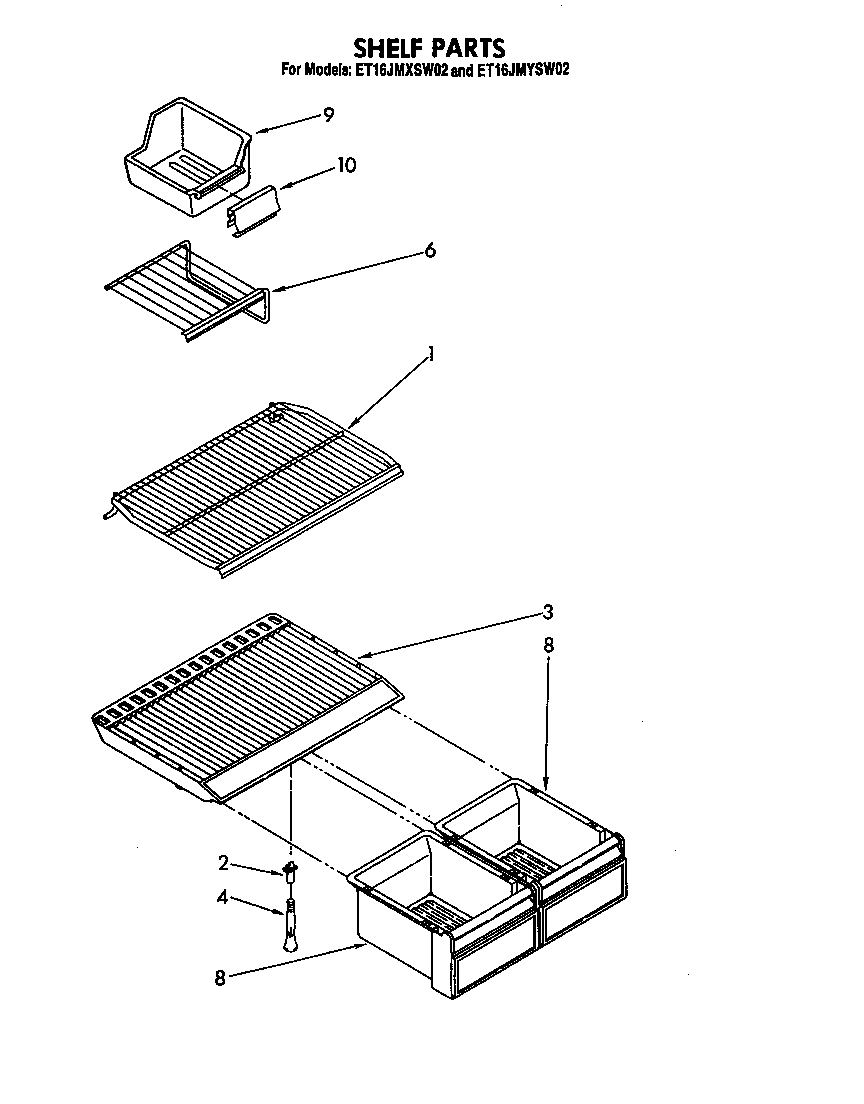

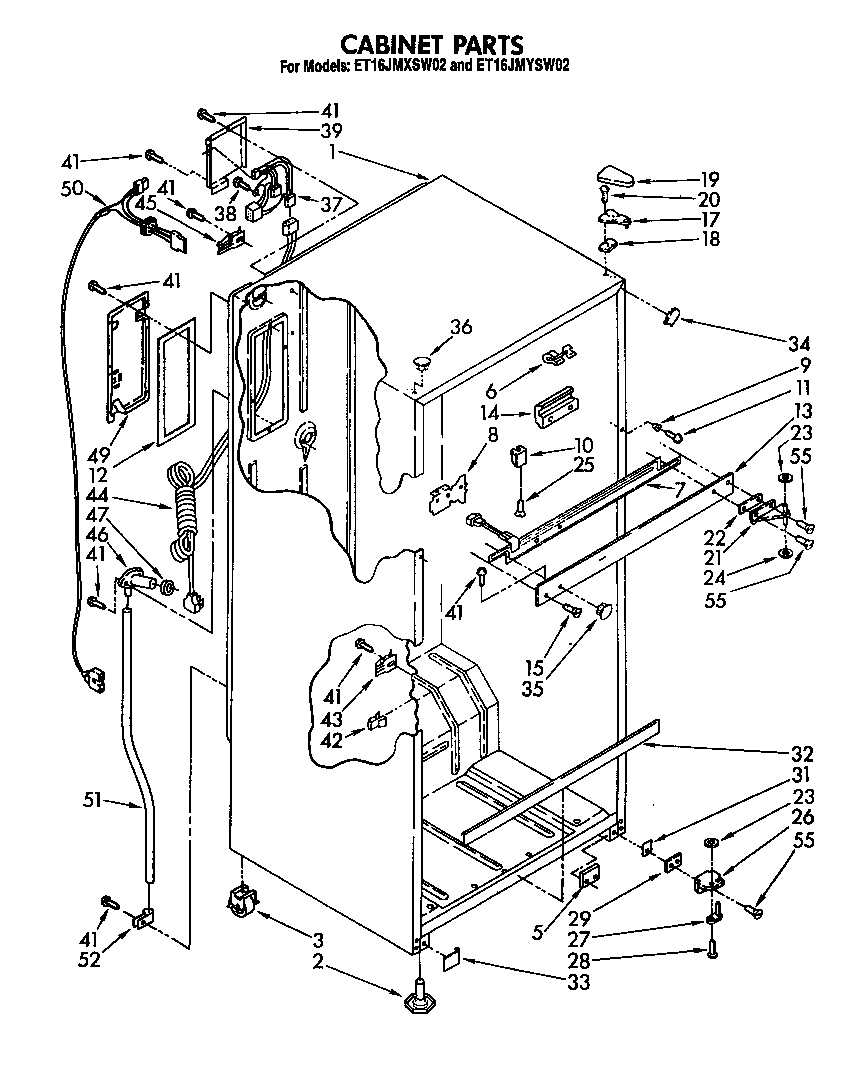

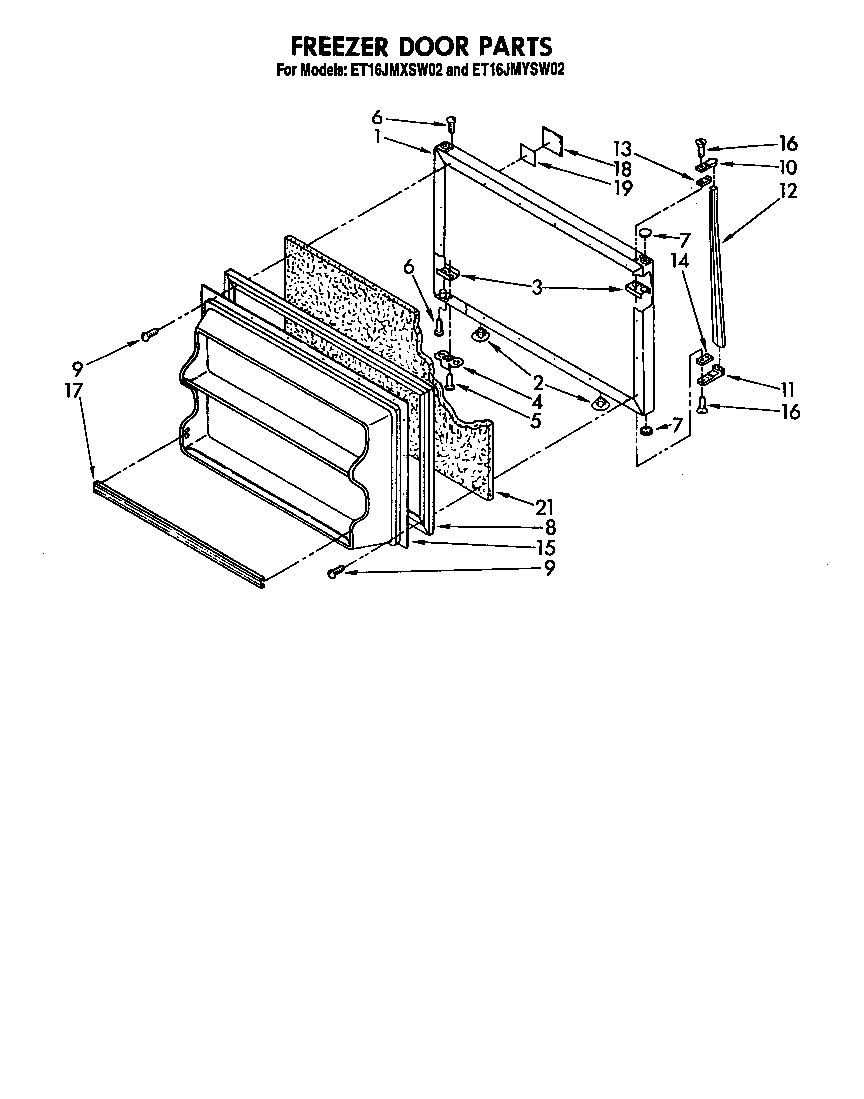

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 328 parts  |
Refrigerator Timer 850608
#4

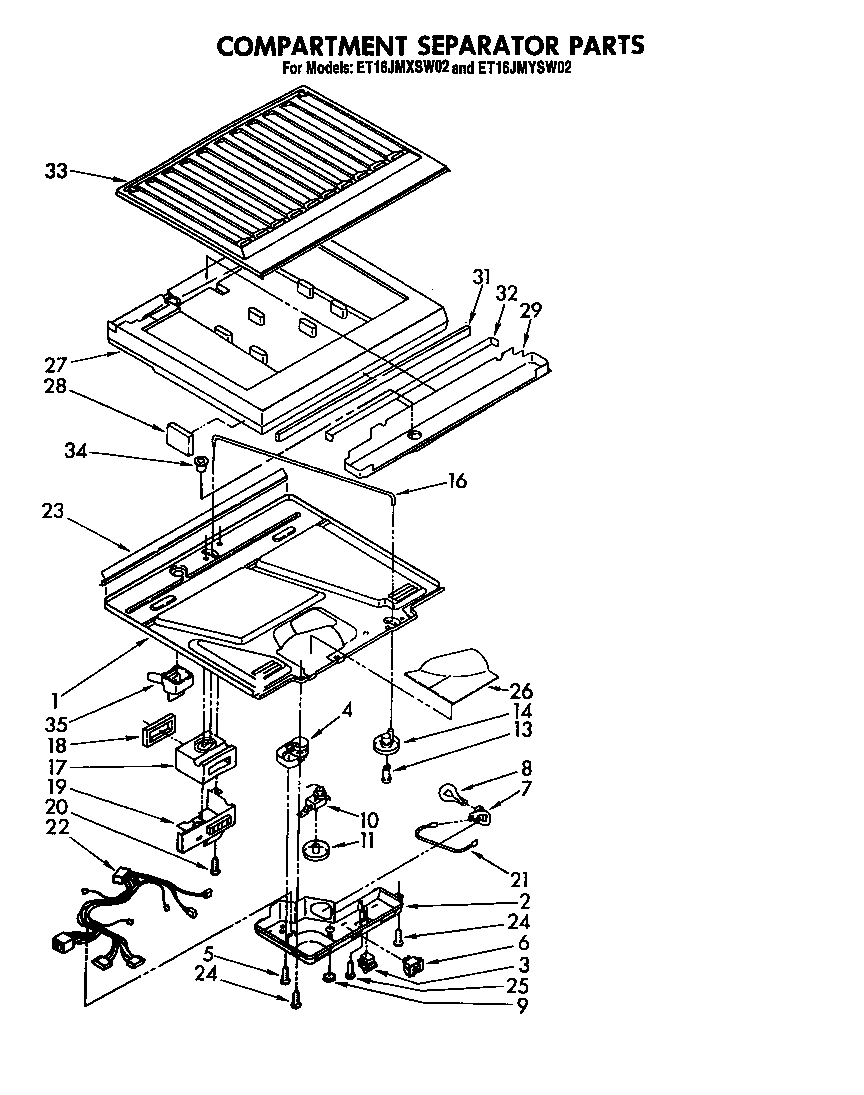

Compartment separator diagram

Refrigerator timer

Part #850608

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 850608. Substitute parts can look different from the original.
BEST SELLER
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Run Capacitor 1118581
#34

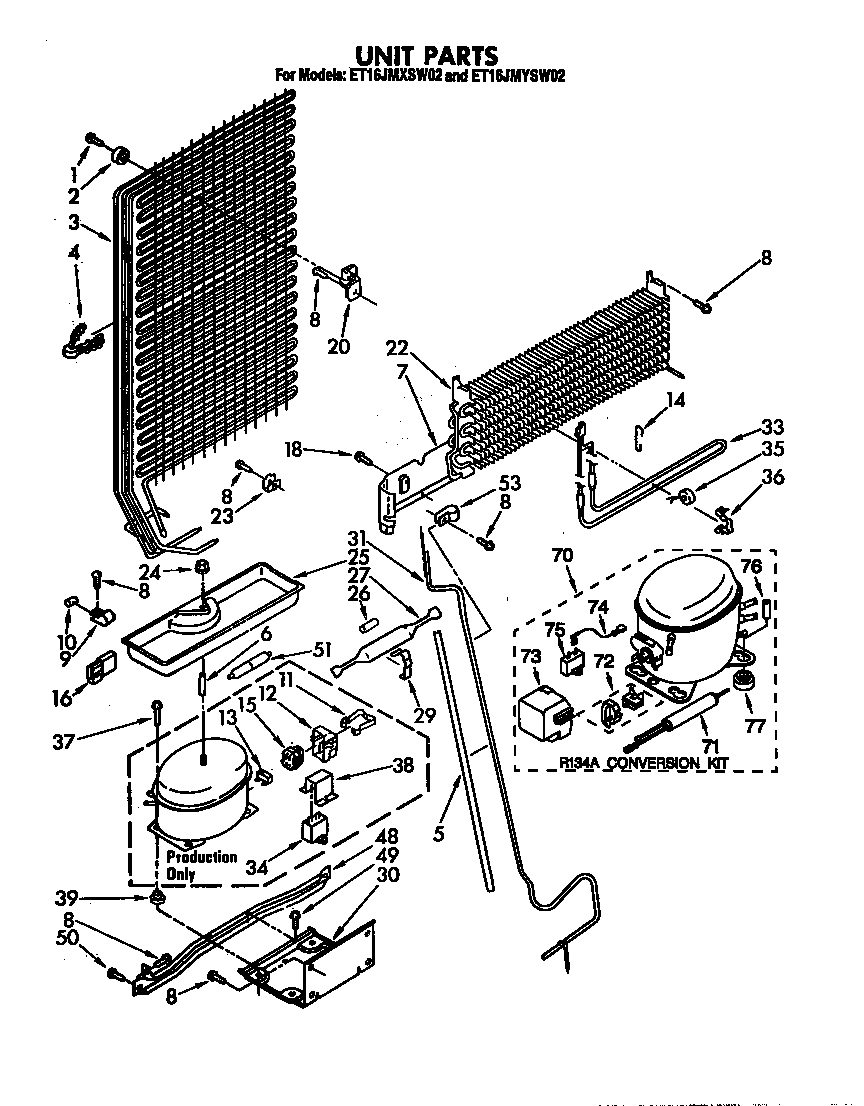

Unit diagram

Run capacitor

Part #1118581

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 1118581. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Refrigerator Water Tube 1108197
#7

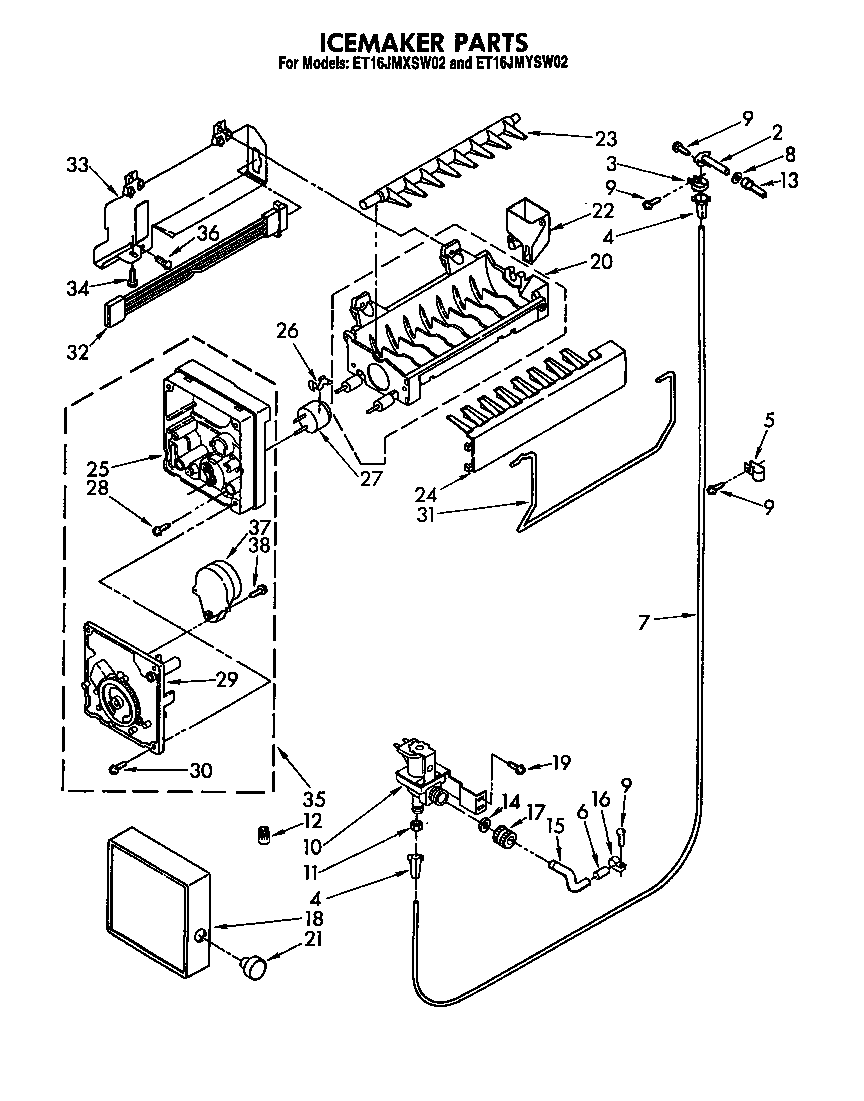

Icemaker diagram

Refrigerator water tube

Part #1108197

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 1108197. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Screw 487875
#17

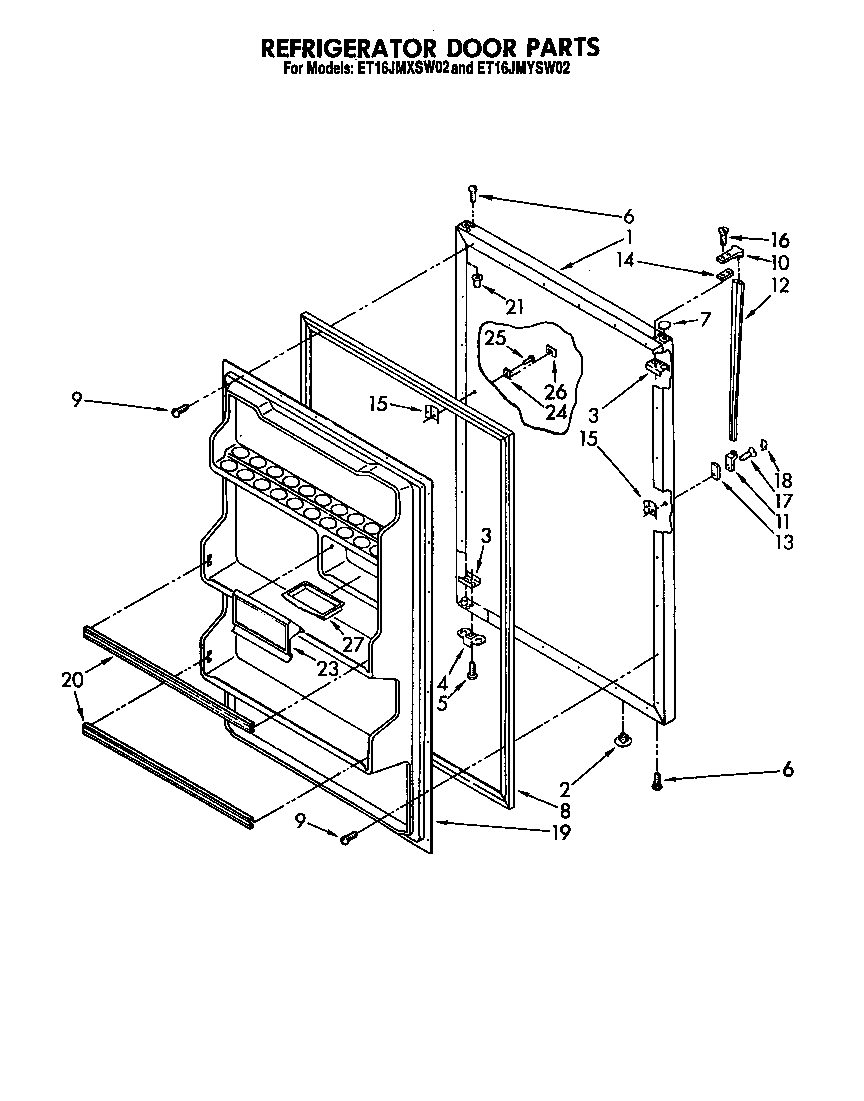

Refrigerator door diagram

Refrigerator screw

Part #487875

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487875. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 489084
Screw

Part #489084

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 489084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 487909
#25

Refrigerator door diagram

Screw

Part #487909

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487909. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764

#NI

All parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Appliance Silicone Lubricant 542638
Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Refrigerator Motor 946653
#16

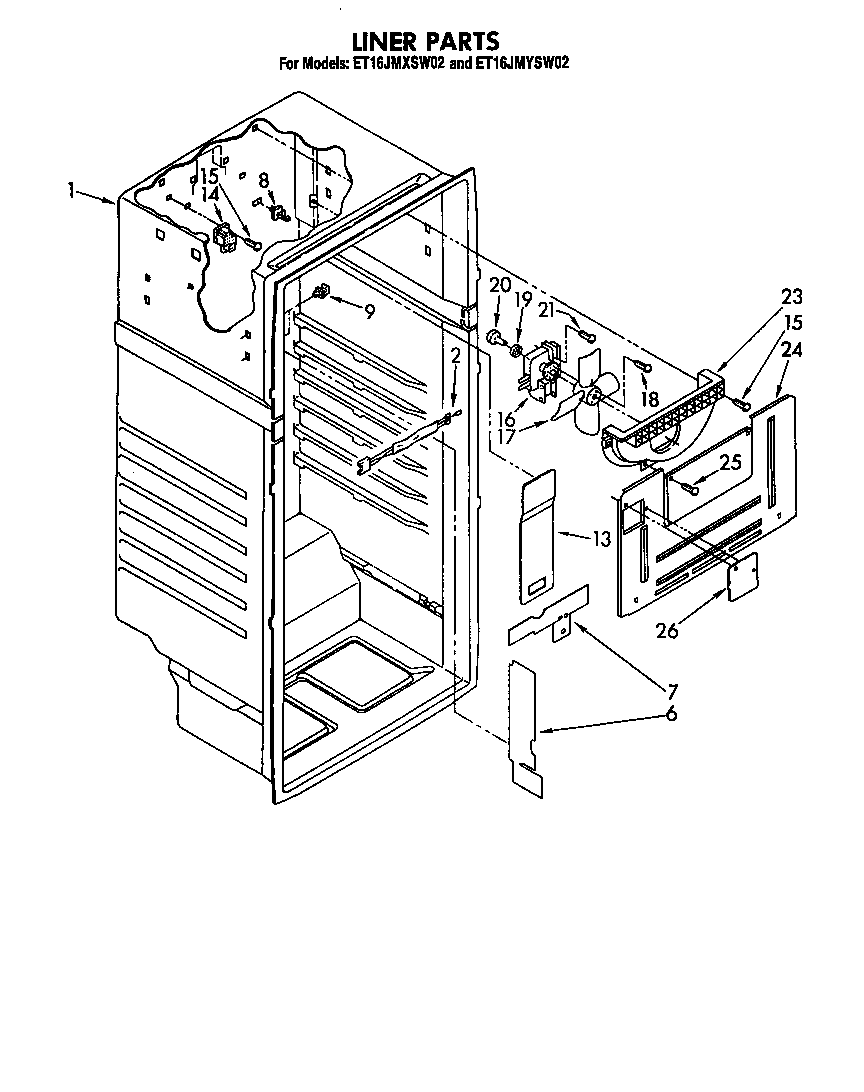

Liner diagram

Refrigerator motor

Part #946653

Replaced by #482731

?
Manufacturer substitution
This part replaces 946653. Substitute parts can look different from the original.
BEST SELLER
$57.45 |
9% OFF Phone Price : $63.45
In Stock
