Porter Cable
Power Grinder

Model # 7429 Official Porter Cable grinder

Here are the diagrams and repair parts for Official Porter Cable 7429 grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Housing 300586
#55

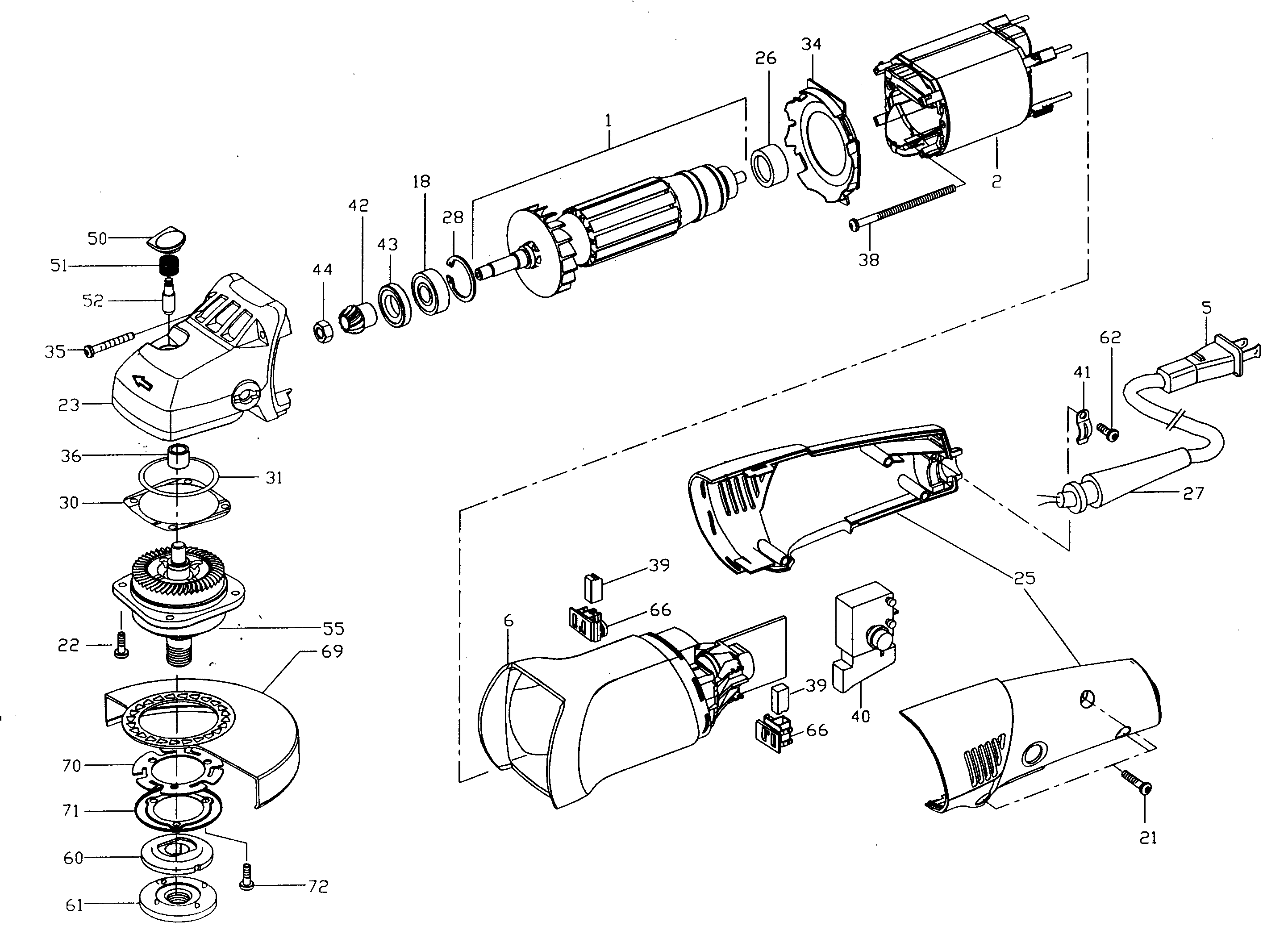

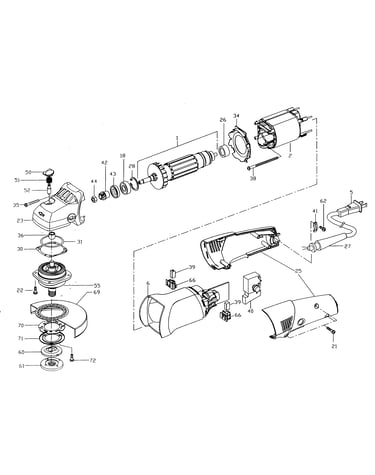

Grinder diagram

Housing

Part #300586

The manufacturer no longer makes this part, and there's no substitute part

Armature 299375
#1

Grinder diagram

Armature

Part #299375

The manufacturer no longer makes this part, and there's no substitute part

Cover 294462
#71

Grinder diagram

Cover

Part #294462

The manufacturer no longer makes this part, and there's no substitute part

Relief 293113
#27

Grinder diagram

Relief

Part #293113

The manufacturer no longer makes this part, and there's no substitute part

Screw 206245
#21

Grinder diagram

Screw

Part #206245

The manufacturer no longer makes this part, and there's no substitute part

Pinion 259190
#42

Grinder diagram

Pinion

Part #259190

The manufacturer no longer makes this part, and there's no substitute part

Baffle 293210
#34

Grinder diagram

Baffle

Part #293210

The manufacturer no longer makes this part, and there's no substitute part

Guard 294438
#69

Grinder diagram

Guard

Part #294438

The manufacturer no longer makes this part, and there's no substitute part

Nut 132330
#61

Grinder diagram

Nut

Part #132330

The manufacturer no longer makes this part, and there's no substitute part

Spring 296015
#51

Grinder diagram

Spring

Part #296015

The manufacturer no longer makes this part, and there's no substitute part
