Model # EF12F1900A Official ICP air handler

Here are the diagrams and repair parts for Official ICP EF12F1900A air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#13

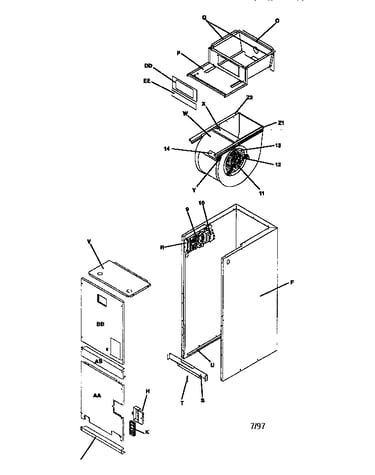

Blower coils diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Transformer 1082611
#10

Blower coils diagram

Transformer

Part #1082611

$101.35 |
11% OFF Phone Price : $113.35
In Stock
Clamp Capctr 1095020
#Y

Blower coils diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Plate 1084606
#DD

Blower coils diagram

Plate

Part #1084606

$35.67
In Stock
Mount Kit 1002801
#12

Blower coils diagram

Mount kit

Part #1002801

$39.00
In Stock
Central Air Conditioner Air Handler Blower Motor 1083045
#11

Blower coils diagram

Central air conditioner air handler blower motor

Part #1083045

$570.00
In Stock
Board 1082700
#9

Blower coils diagram

Board

Part #1082700

Replaced by #1085928

?
Manufacturer substitution
This part replaces 1082700. Substitute parts can look different from the original.
$196.53 |
6% OFF Phone Price : $208.53
In Stock
Cap Rnrd 1094956
#14

Blower coils diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Bracket 1082927
#S

Blower coils diagram

Bracket

Part #1082927

The manufacturer no longer makes this part, and there's no substitute part

Panel Blow 1082616
#X

Blower coils diagram

Panel blow

Part #1082616

The manufacturer no longer makes this part, and there's no substitute part
