Samsung
Microwave/Hood Combo

Model # SMH7178STD/XAA Official Samsung microwave

Here are the diagrams and repair parts for Official Samsung SMH7178STD-XAA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Microwave High-voltage Diode (replaces De91-70063a, De91-70063b, De91-70063e) DE91-70063D
#20

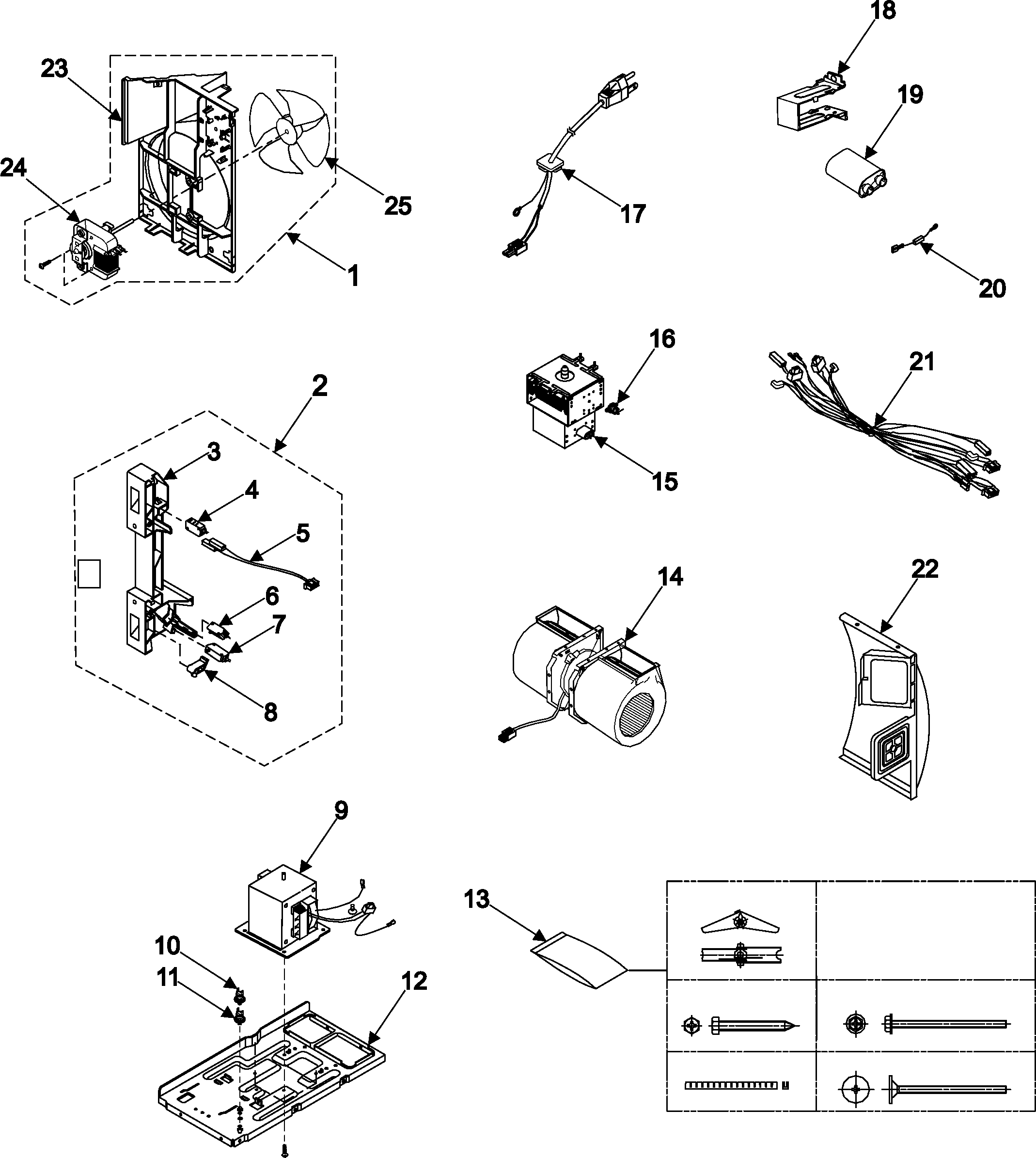

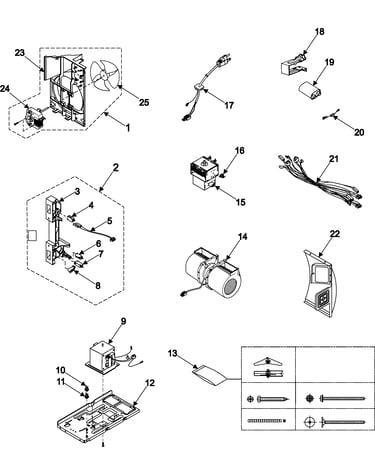

Internal control/latch asy/base diagram

Microwave high-voltage diode (replaces de91-70063a, de91-70063b, de91-70063e)

Part #DE91-70063D

BEST SELLER
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Microwave High-voltage Capacitor (replaces 2501-000258) 2501-001011
#19

Internal control/latch asy/base diagram

Microwave high-voltage capacitor (replaces 2501-000258)

Part #2501-001011

BEST SELLER
$55.81 |
10% OFF Phone Price : $61.81
In Stock
Microwave Door Latch DE64-00760A
#5

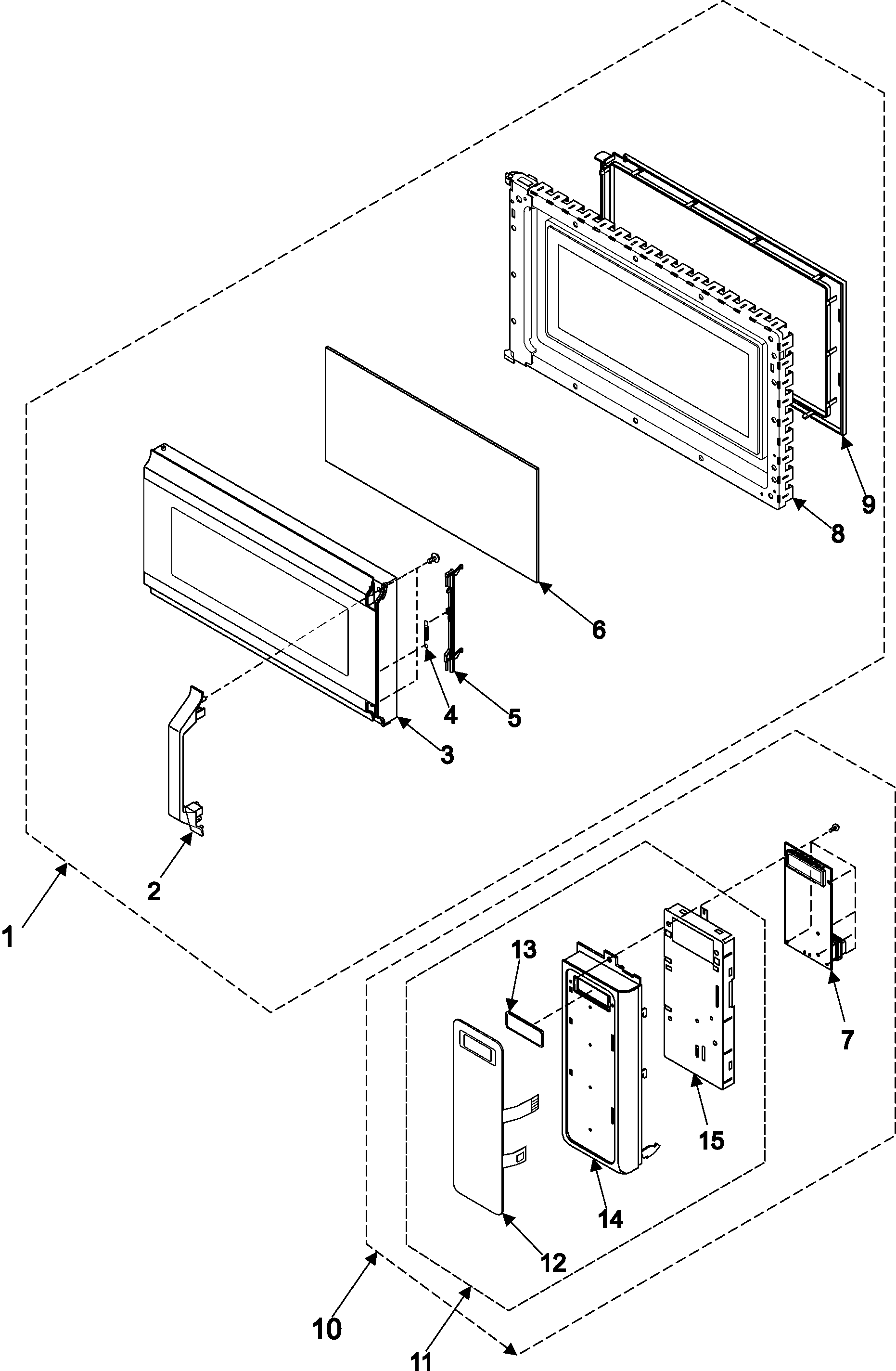

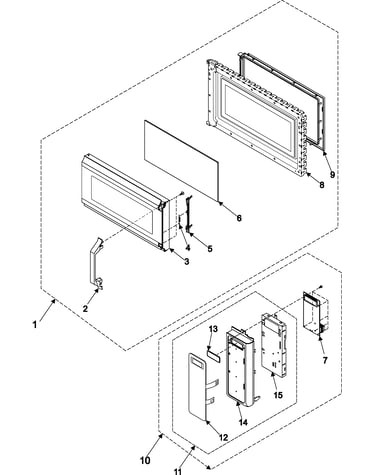

Control panel/door assembly diagram

Microwave door latch

Part #DE64-00760A

BEST SELLER
This item is not returnable
$21.83 |
22% OFF Phone Price : $27.83
Back Order
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$17.74 |
10% OFF Phone Price : $19.74
Back Order
Thermostat DE47-20007A
#16

Internal control/latch asy/base diagram

Thermostat

Part #DE47-20007A

Replaced by #DE47-20007B

?
Manufacturer substitution
This part replaces DE47-20007A. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Microwave Door Micro-switch 3405-001033
#6

Internal control/latch asy/base diagram

Microwave door micro-switch

Part #3405-001033

BEST SELLER
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Range Thermal Cut-off (replaces De47-20117a) DE47-20034A
#10

Internal control/latch asy/base diagram

Range thermal cut-off (replaces de47-20117a)

Part #DE47-20034A

BEST SELLER
$18.56 |
10% OFF Phone Price : $20.56
In Stock
Microwave Humidity Sensor (replaces De32-60013a) DE32-60011A
#10

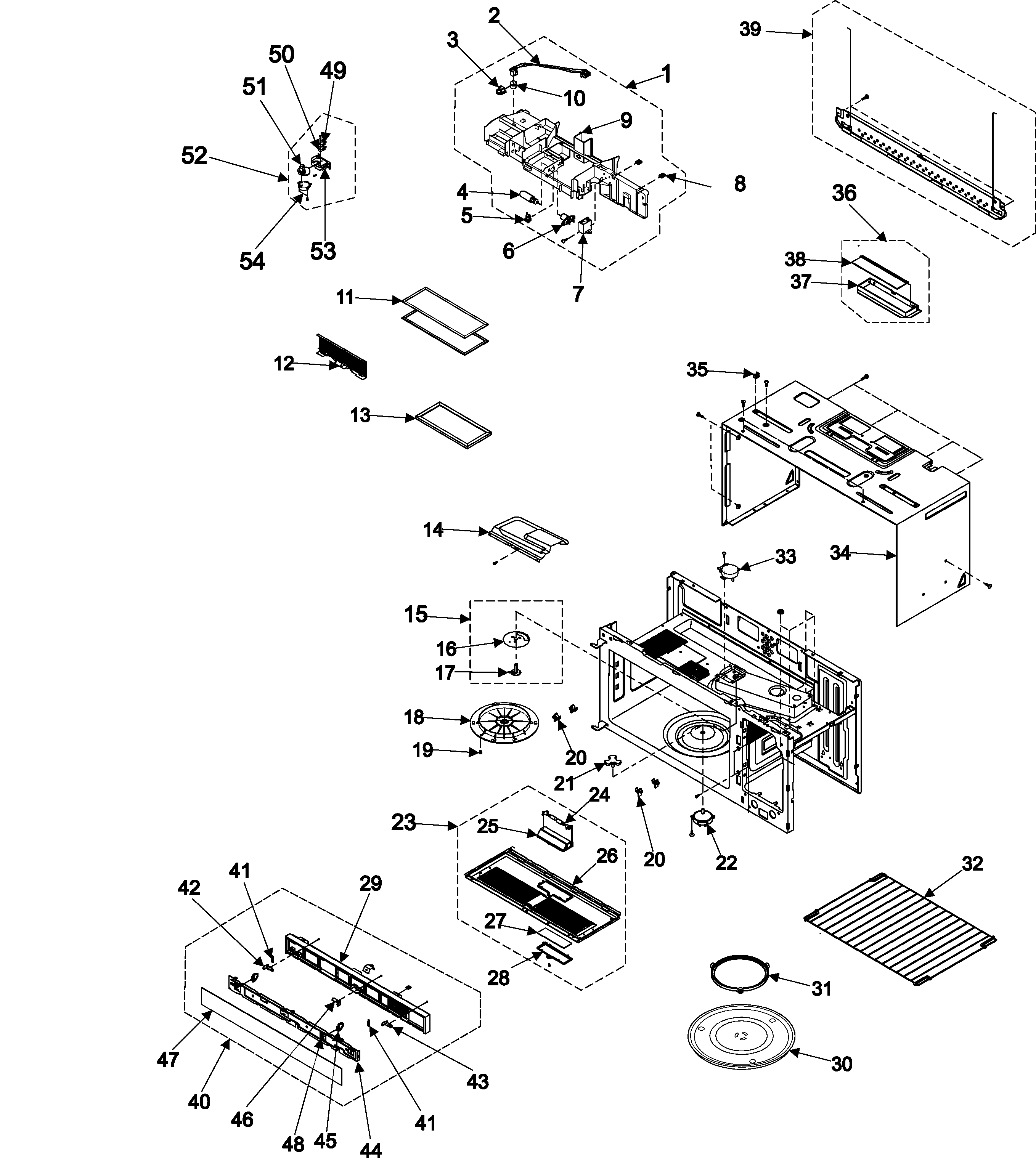

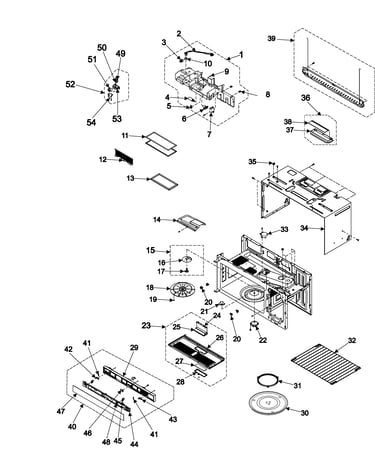

Body/cavity/elements diagram

Microwave humidity sensor (replaces de32-60013a)

Part #DE32-60011A

BEST SELLER
$69.73 |
8% OFF Phone Price : $75.73
In Stock
Microwave Turntable Motor DE31-10172A
#22

Body/cavity/elements diagram

Microwave turntable motor

Part #DE31-10172A

Replaced by #DE31-10172D

?
Manufacturer substitution
This part replaces DE31-10172A. Substitute parts can look different from the original.
$79.24
In Stock
Microwave Light Bulb (replaces De07-90015a) 4713-001013
Microwave light bulb (replaces de07-90015a)

Part #4713-001013

$16.00 |
11% OFF Phone Price : $18.00
In Stock
