Model # 91757560 Official Craftsman garden tractor

Here are the diagrams and repair parts for Official Craftsman 91757560 garden tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

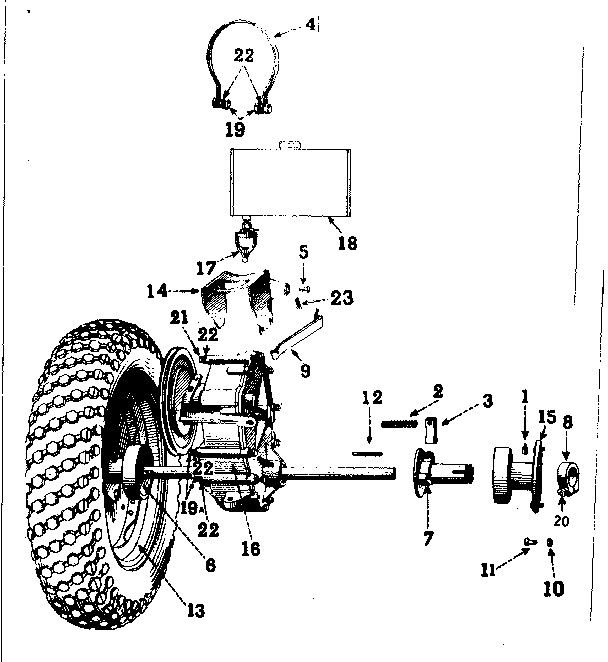

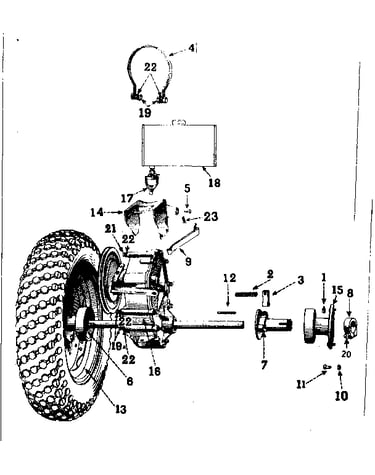

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Ball 7392M
#8

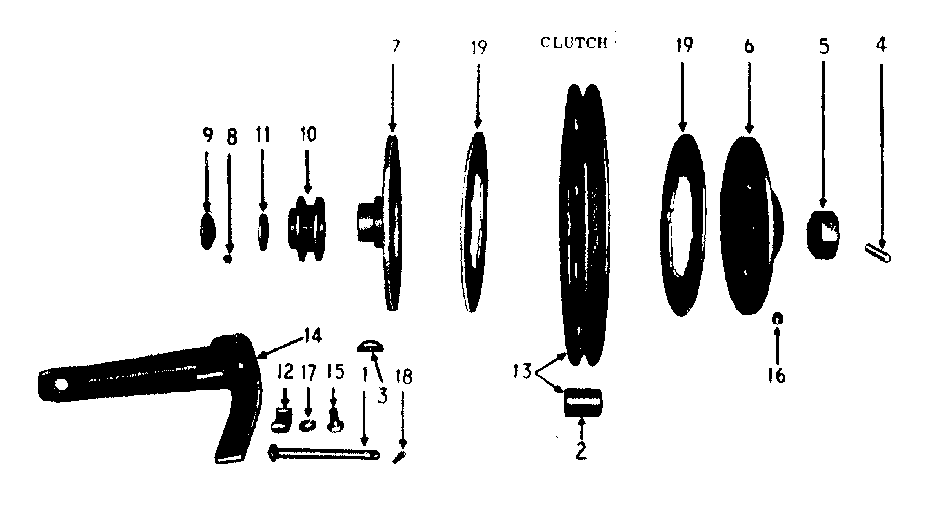

Clutch diagram

Ball

Part #7392M

Replaced by #532100482

?
Manufacturer substitution
This part replaces 7392M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Hitch Pin, 2-pack 4939M
#17

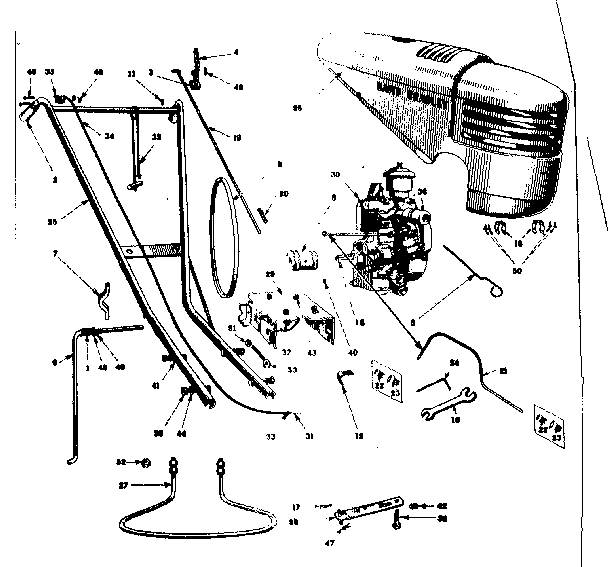

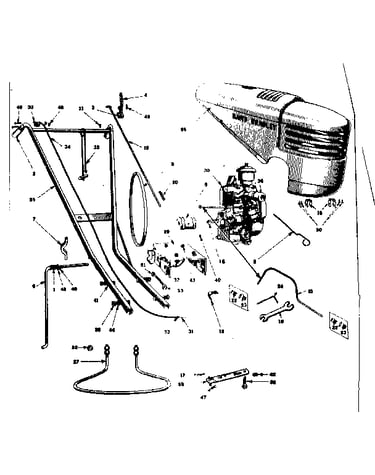

Engine and handle controls diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Cntrl Lvr As 290568
#35

Engine and handle controls diagram

Cntrl lvr as

Part #290568

Replaced by #691028

?
Manufacturer substitution
This part replaces 290568. Substitute parts can look different from the original.
$59.67
In Stock
Grip 2202M
#2

Engine and handle controls diagram

Grip

Part #2202M

The manufacturer no longer makes this part, and there's no substitute part

Bearing 4316M
#2

Clutch diagram

Bearing

Part #4316M

The manufacturer no longer makes this part, and there's no substitute part

Wrench 7755E
#24

Engine and handle controls diagram

Wrench

Part #7755E

The manufacturer no longer makes this part, and there's no substitute part

Groove Pin 4865M
#4

Clutch diagram

Groove pin

Part #4865M

The manufacturer no longer makes this part, and there's no substitute part

Spring 1543U
#1

Engine and handle controls diagram

Spring

Part #1543U

The manufacturer no longer makes this part, and there's no substitute part

Case Transmission 575PA4
#9

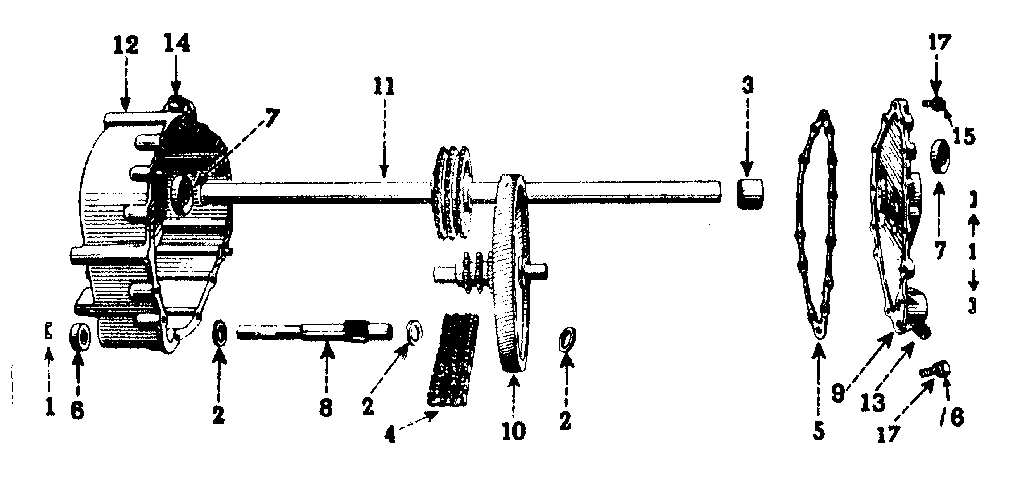

Transmission diagram

Case transmission

Part #575PA4

The manufacturer no longer makes this part, and there's no substitute part

Block 63426
#33

Engine and handle controls diagram

Block

Part #63426

The manufacturer no longer makes this part, and there's no substitute part
