Top-Mount Refrigerator

Model # GT1521NECW Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag GT1521NECW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

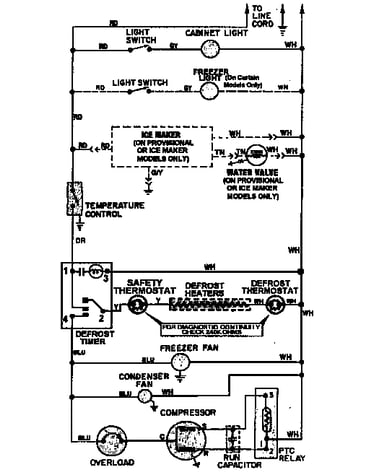

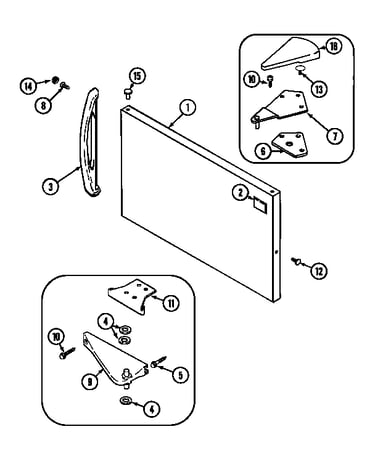

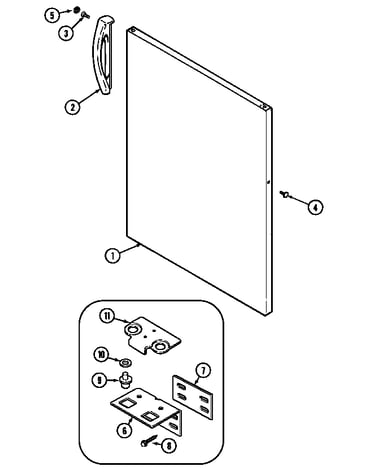

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

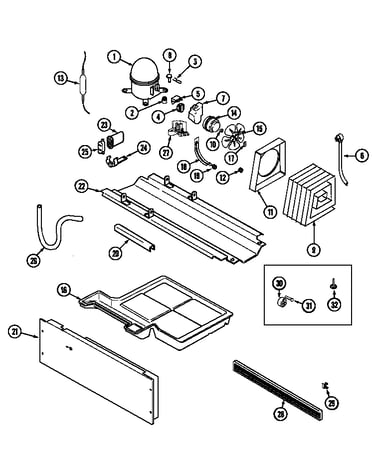

Compressor diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 66987-1
#8

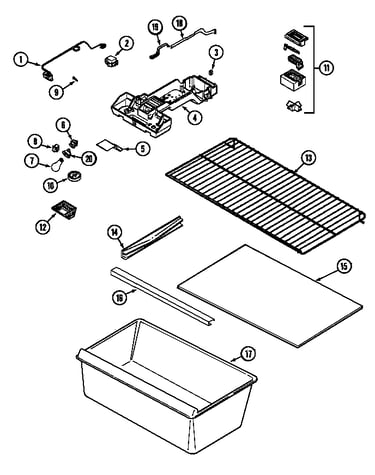

Fresh food compartment diagram

Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Screw 65275-49
#21A

Compressor diagram

Refrigerator screw

Part #65275-49

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 65275-49. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw 400017-35
#13A

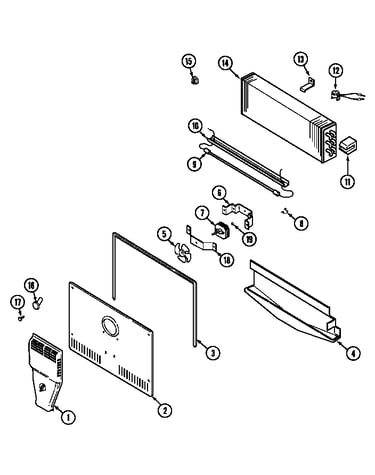

Freezer compartment diagram

Refrigerator screw

Part #400017-35

Replaced by #67006425

?
Manufacturer substitution
This part replaces 400017-35. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Thermostat 61001932
#12

Freezer compartment diagram

Refrigerator thermostat

Part #61001932

Replaced by #WP61005254

?
Manufacturer substitution
This part replaces 61001932. Substitute parts can look different from the original.
$59.34 |
9% OFF Phone Price : $65.34
In Stock
Refrigerator Condenser Blade 61001821
#15

Compressor diagram

Refrigerator condenser blade

Part #61001821

Replaced by #WP12587601

?
Manufacturer substitution
This part replaces 61001821. Substitute parts can look different from the original.
$62.33 |
9% OFF Phone Price : $68.33
In Stock
Refrigerator Shelf Trim 61001962
#3

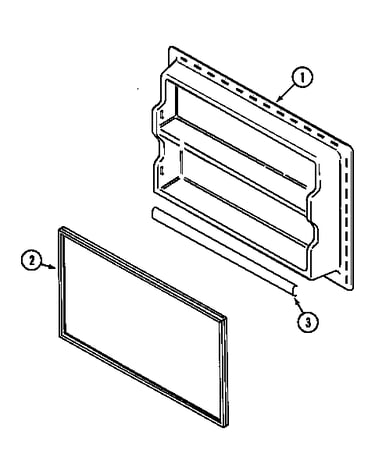

Freezer inner door diagram

Refrigerator shelf trim

Part #61001962

Replaced by #W11045462

?
Manufacturer substitution
This part replaces 61001962. Substitute parts can look different from the original.
$44.99 |
12% OFF Phone Price : $50.99
In Stock
Refrigerator Thermostat 61004831
#12B

Freezer compartment diagram

Refrigerator thermostat

Part #61004831

Replaced by #WP61002992

?
Manufacturer substitution
This part replaces 61004831. Substitute parts can look different from the original.
$61.92 |
9% OFF Phone Price : $67.92
In Stock
Refrigerator Shelf Trim 61001964
#5

Fresh food inner door diagram

Refrigerator shelf trim

Part #61001964

Replaced by #W11045462

?
Manufacturer substitution
This part replaces 61001964. Substitute parts can look different from the original.
$44.99 |
12% OFF Phone Price : $50.99
In Stock
Refrigerator Shelf Trim 61001965
Refrigerator shelf trim

Part #61001965

Replaced by #W11045462

?
Manufacturer substitution
This part replaces 61001965. Substitute parts can look different from the original.
$44.99 |
12% OFF Phone Price : $50.99
In Stock
