Model # 217590030 Official Craftsman 25-speed electric fishing motor

Here are the diagrams and repair parts for Official Craftsman 217590030 25-speed electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Oil Seal 26329
#52

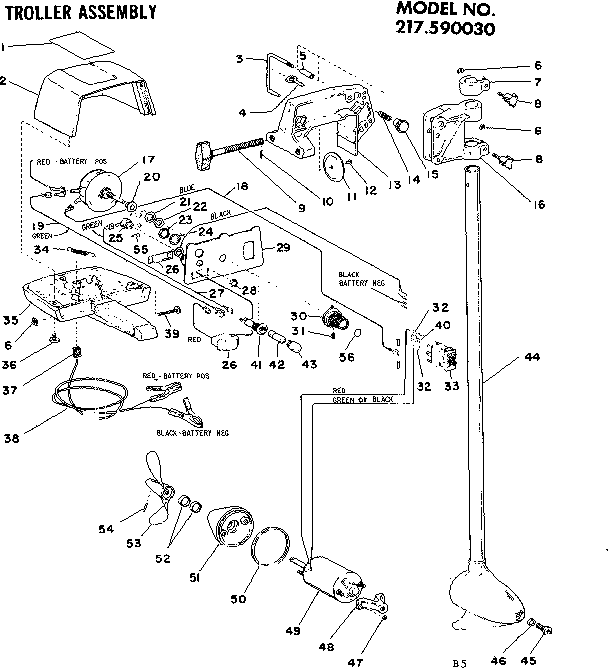

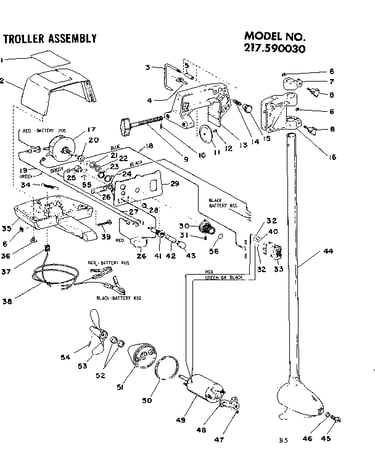

Troller assembly diagram

Oil seal

Part #26329

The manufacturer no longer makes this part, and there's no substitute part

Pin 7438
#5

Troller assembly diagram

Pin

Part #7438

The manufacturer no longer makes this part, and there's no substitute part

Screw 557
#39

Troller assembly diagram

Screw

Part #557

The manufacturer no longer makes this part, and there's no substitute part

Pad 66095
#12

Troller assembly diagram

Pad

Part #66095

The manufacturer no longer makes this part, and there's no substitute part

Knob 26405
#15

Troller assembly diagram

Knob

Part #26405

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 26658
#49

Troller assembly diagram

Motor assembly

Part #26658

The manufacturer no longer makes this part, and there's no substitute part

Bushing 26539
#37

Troller assembly diagram

Bushing

Part #26539

The manufacturer no longer makes this part, and there's no substitute part

Yoke 26630
#48

Troller assembly diagram

Yoke

Part #26630

The manufacturer no longer makes this part, and there's no substitute part

Indicator 76050
#27

Troller assembly diagram

Indicator

Part #76050

The manufacturer no longer makes this part, and there's no substitute part

Pin 26454
#4

Troller assembly diagram

Pin

Part #26454

The manufacturer no longer makes this part, and there's no substitute part
