Model # C7CDABS4RW32 Official GE coffee maker

Here are the diagrams and repair parts for Official GE C7CDABS4RW32 coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Filter Frame WC02X20407
#4

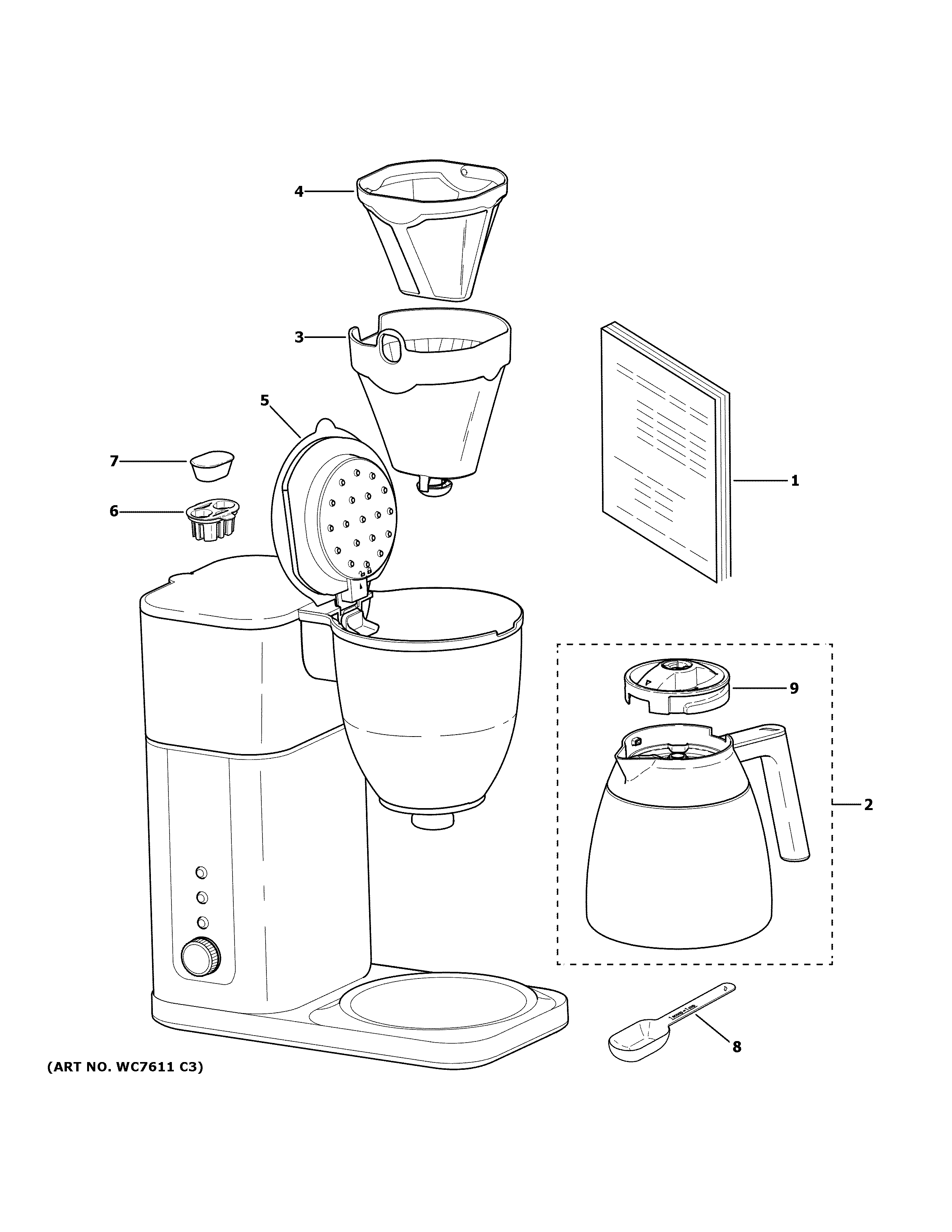

Coffee maker diagram

Filter frame

Part #WC02X20407

$24.00
In Stock
Matte White Carafe Lid WC02X20564
#9

Coffee maker diagram

Matte white carafe lid

Part #WC02X20564

$27.07
In Stock
Matte White Glass Carafe With Lid WC02X20563
#2

Coffee maker diagram

Matte white glass carafe with lid

Part #WC02X20563

$99.78
In Stock
Matte White Activated Carbon Holder WC02X20400
#6

Coffee maker diagram

Matte white activated carbon holder

Part #WC02X20400

This item is not returnable
$7.14
In Stock
Brew Basket Assembly WC02X20405
#3

Coffee maker diagram

Brew basket assembly

Part #WC02X20405

$13.51
In Stock
Matte White Shower Head WC02X20409
#5

Coffee maker diagram

Matte white shower head

Part #WC02X20409

$8.11
In Stock
Matte White Coffee Scoop WC02X20408
#8

Coffee maker diagram

Matte white coffee scoop

Part #WC02X20408

$7.71
In Stock
Activated Carbon WC02X20412
#7

Coffee maker diagram

Activated carbon

Part #WC02X20412

The manufacturer no longer makes this part, and there's no substitute part

Pm Quick Owners Manual 49-9000014
#1

Coffee maker diagram

Pm quick owners manual

Part #49-9000014

The manufacturer no longer makes this part, and there's no substitute part

Pm Owners Manual 49-9000019
#1

Coffee maker diagram

Pm owners manual

Part #49-9000019

The manufacturer no longer makes this part, and there's no substitute part
