GE
Central Air Conditioner

Model # A2B678CKASWA Official GE air conditioner

Here are the diagrams and repair parts for Official GE A2B678CKASWA air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |

Screw WZ4X288
#959

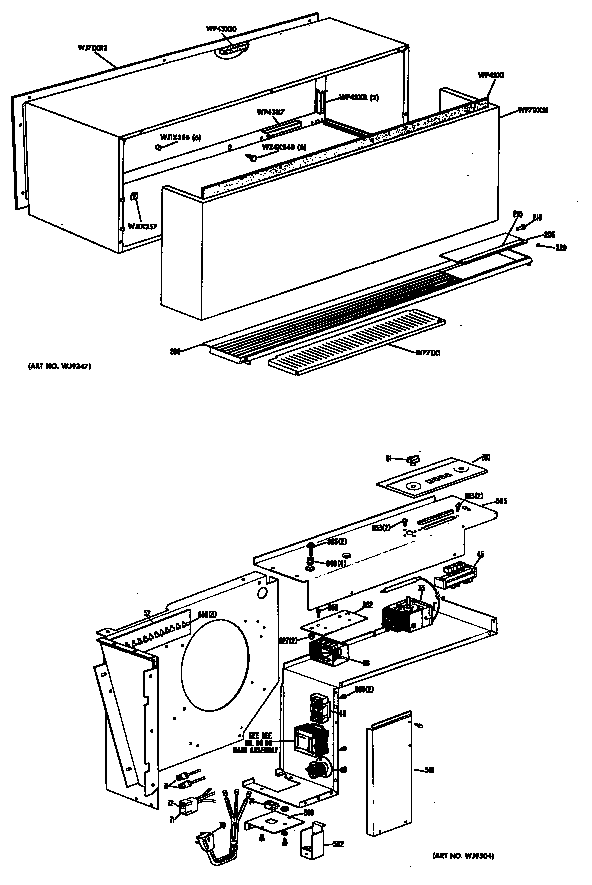

Cabinet diagram

Screw

Part #WZ4X288

This item is not returnable
In Stock
Screw WZ5X153
#983

Cabinet diagram

Screw

Part #WZ5X153

This item is not returnable
In Stock
Clip WJ3X87

#NI

All parts diagram

Clip

Part #WJ3X87

This item is not returnable
In Stock
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
In Stock
Condenser WJ88X159
#110

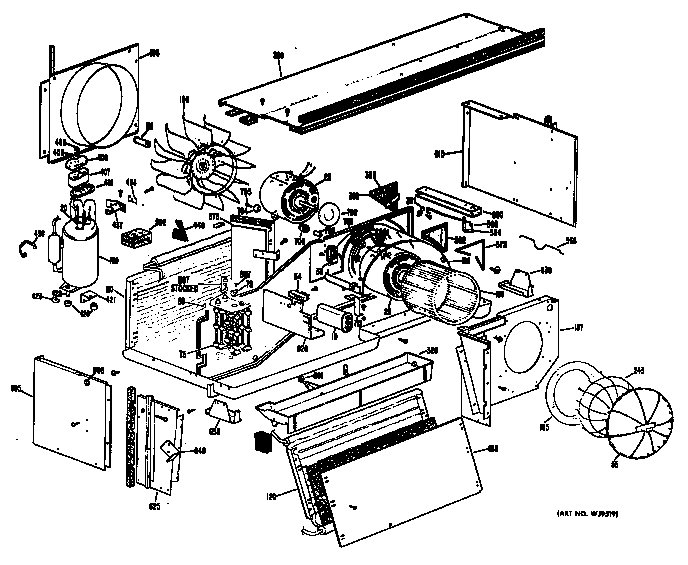

Chassis diagram

Condenser

Part #WJ88X159

In Stock
Evaporator Kit WP87X14
#120

Chassis diagram

Evaporator kit

Part #WP87X14

The manufacturer no longer makes this part, and there's no substitute part

Accumulatop Clamp WJ2X432
#436

Chassis diagram

Accumulatop clamp

Part #WJ2X432

The manufacturer no longer makes this part, and there's no substitute part

Adhesive - King Co#15-165 WJ84X31

#NI

All parts diagram

Adhesive - king co#15-165

Part #WJ84X31

The manufacturer no longer makes this part, and there's no substitute part

Sciew Motor Mounting WZ5X154
#703

Chassis diagram

Sciew motor mounting

Part #WZ5X154

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon WP7X03
#310

Cabinet diagram

Escutcheon

Part #WP7X03

The manufacturer no longer makes this part, and there's no substitute part
