Frigidaire
Electric Wall Oven

Model # FGEW2765PFE Official Frigidaire wall oven

Here are the diagrams and repair parts for Official Frigidaire FGEW2765PFE wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

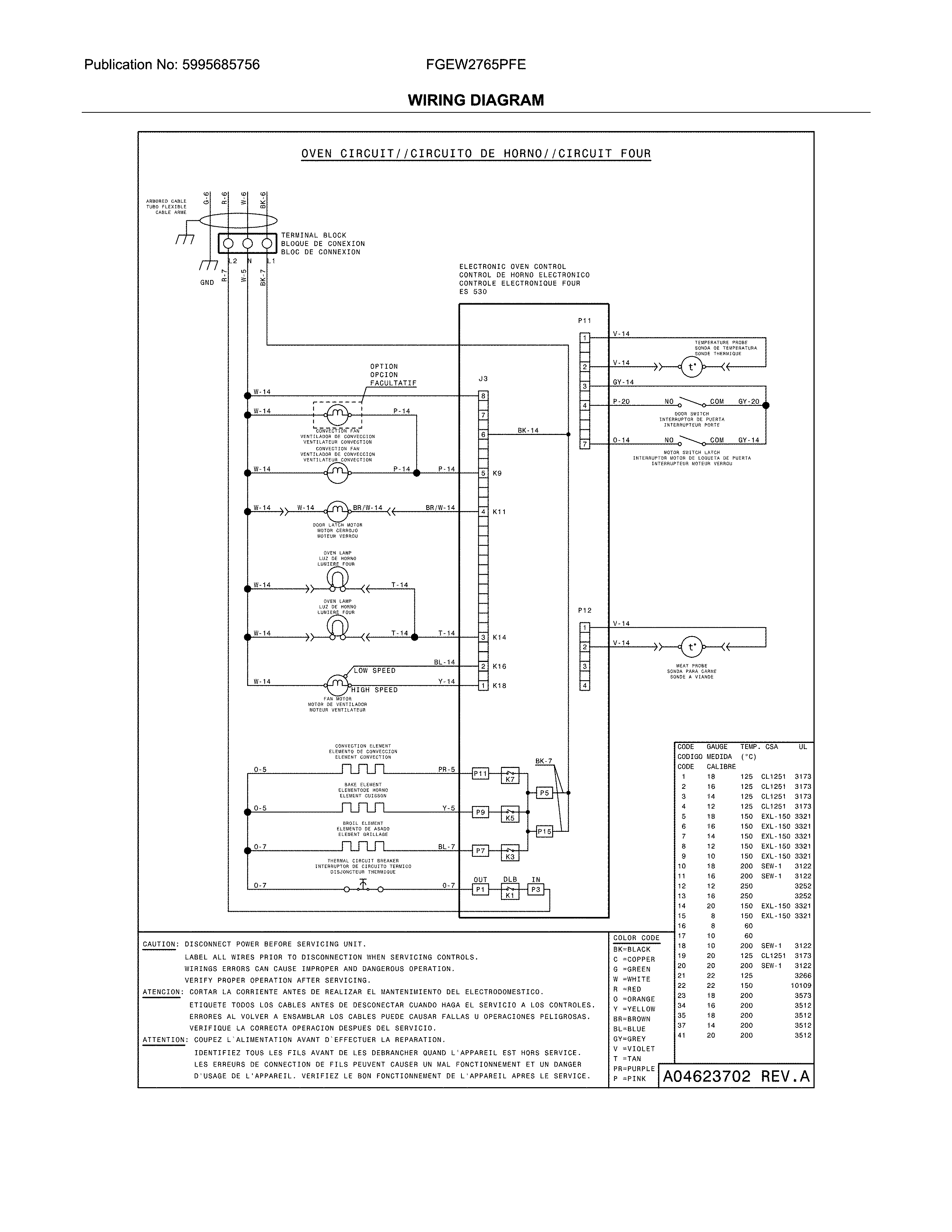

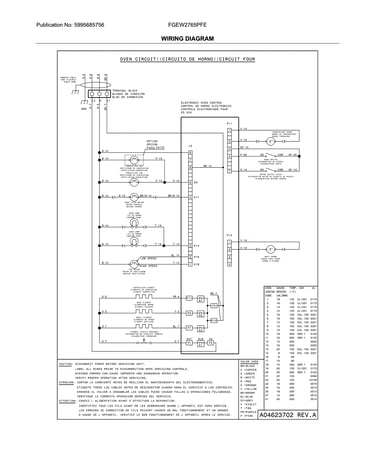

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

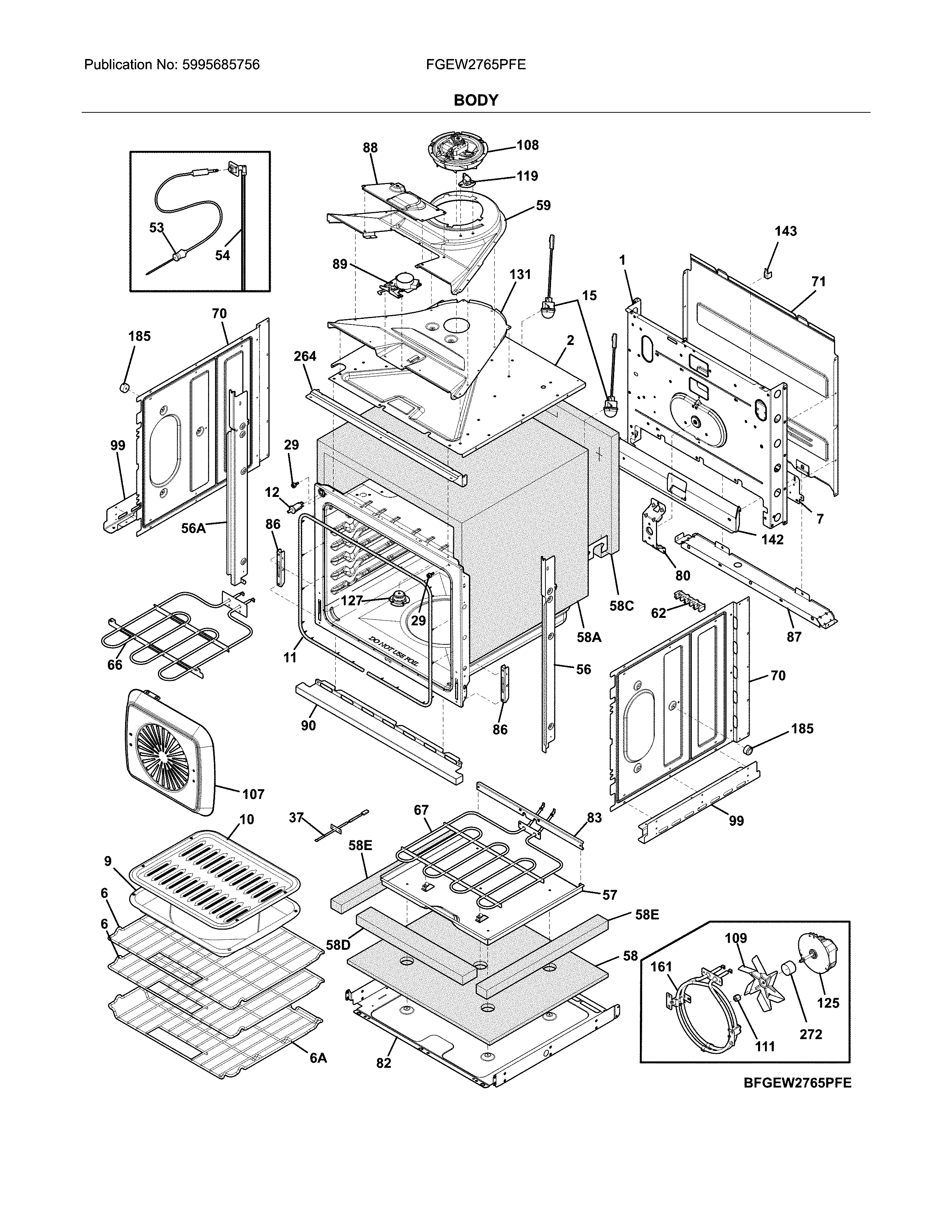

Body diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Range Control Panel Cooling Fan 318575612
#108

Body diagram

Range control panel cooling fan

Part #318575612

$167.94 |
7% OFF Phone Price : $179.94
In Stock
Range Oven Meat Probe Sensor (replaces 5304514885) 5304504202
#53

Body diagram

Range oven meat probe sensor (replaces 5304514885)

Part #5304504202

$89.51 |
6% OFF Phone Price : $95.51
In Stock
Range Oven Light Bulb (replaces 808564103) 318946500
#NI

Body diagram

Range oven light bulb (replaces 808564103)

Part #318946500

$38.98 |
13% OFF Phone Price : $44.98
In Stock
Range Door Light Switch 318394802
#12

Body diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Range Screw 316001003
#NI

Body diagram

Range screw

Part #316001003

Replaced by #316001017

?
Manufacturer substitution
This part replaces 316001003. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Ikea Range Screw 5304453707
#NI

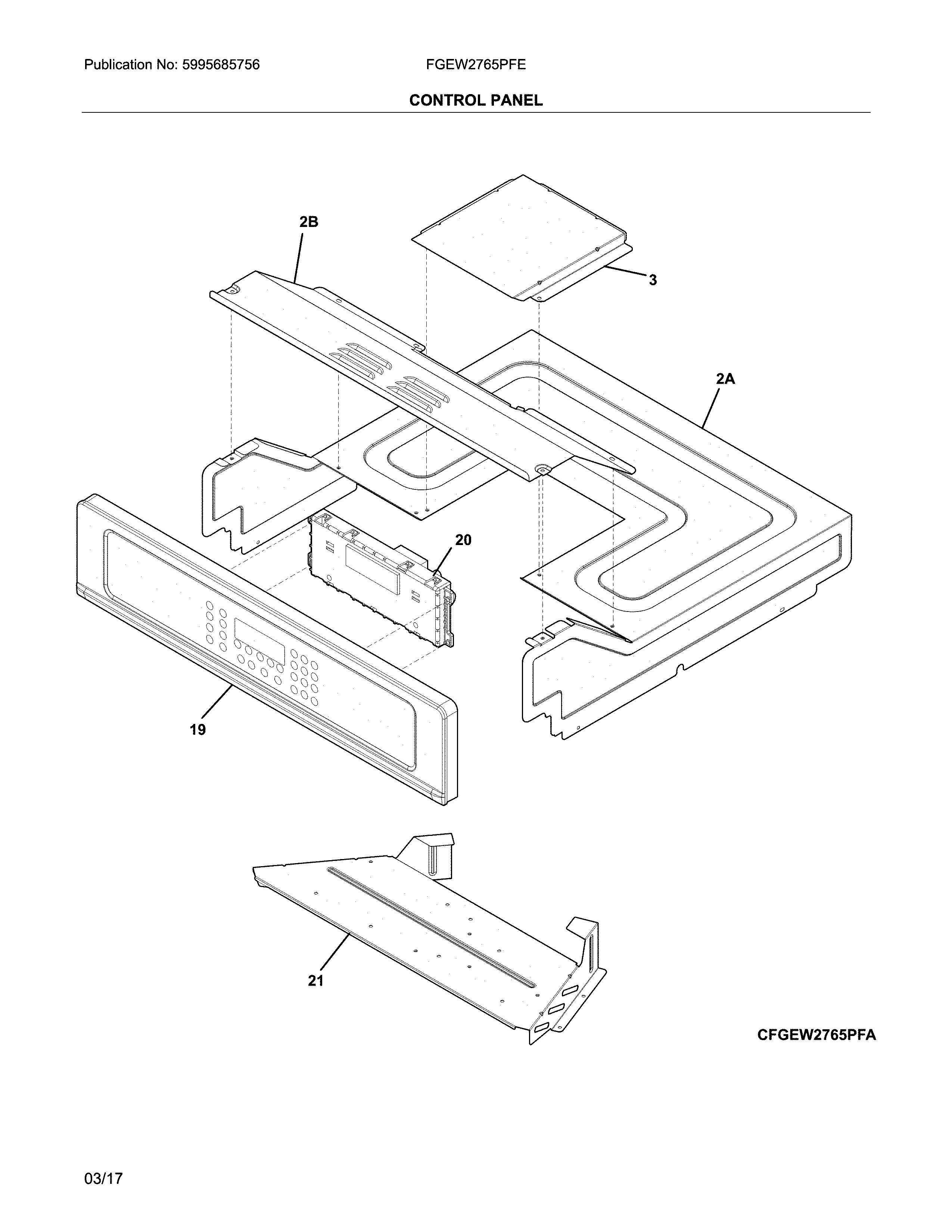

Control panel diagram

Ikea range screw

Part #5304453707

$14.69
In Stock
Range Broil Element 139028200
#66

Body diagram

Range broil element

Part #139028200

$73.39 |
8% OFF Phone Price : $79.39
In Stock
Range Convection Fan Motor 139008500
#125

Body diagram

Range convection fan motor

Part #139008500

$114.92 |
9% OFF Phone Price : $126.92
In Stock
Range Screw (replaces 5304471237) 316418900
Range screw (replaces 5304471237)

Part #316418900

This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
