Model # 6253487000 Official Kenmore water softener

Here are the diagrams and repair parts for Official Kenmore 6253487000 water softener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

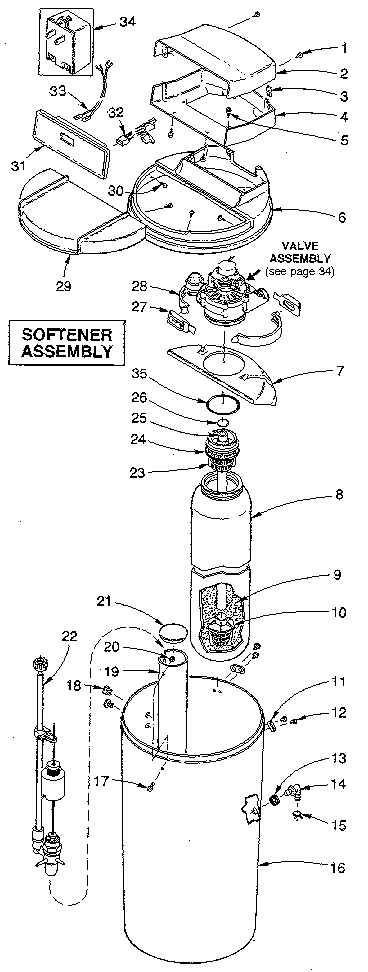

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Seal Kit 7092163

#NI

All parts diagram

Seal kit

Part #7092163

Replaced by #7129716

?
Manufacturer substitution
This part replaces 7092163. Substitute parts can look different from the original.
BEST SELLER
$45.68 |
12% OFF Phone Price : $51.68
In Stock
Rotor Seal 7081756
#95

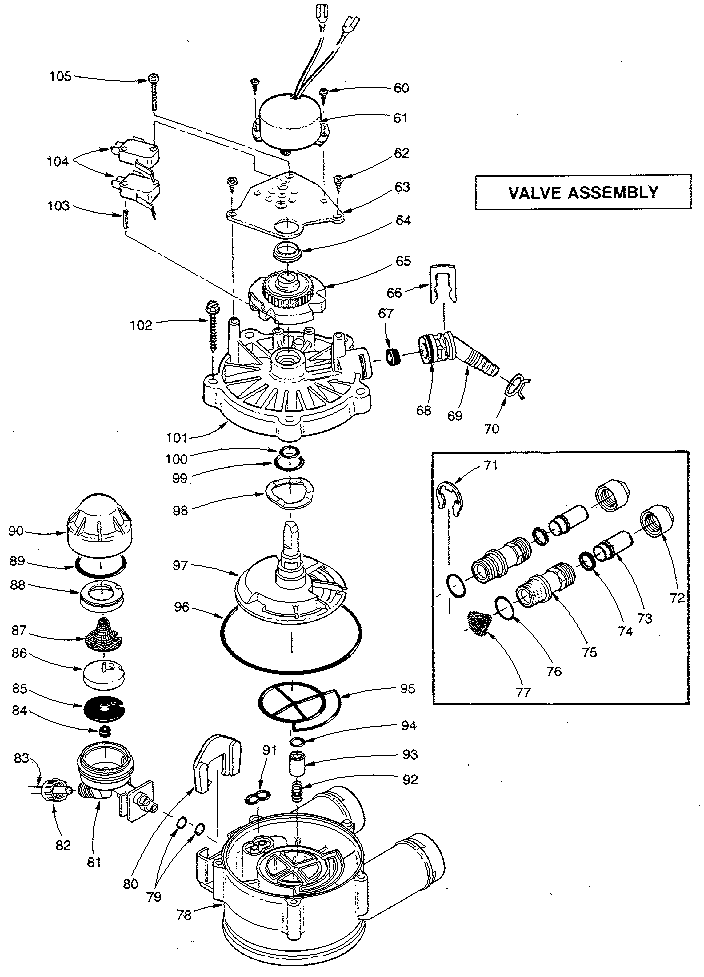

Valve assembly diagram

Rotor seal

Part #7081756

Replaced by #7129716

?
Manufacturer substitution
This part replaces 7081756. Substitute parts can look different from the original.
BEST SELLER
$45.68 |
12% OFF Phone Price : $51.68
In Stock
Rotor Disc 7088504
#97

Valve assembly diagram

Rotor disc

Part #7088504

Replaced by #7199232

?
Manufacturer substitution
This part replaces 7088504. Substitute parts can look different from the original.
BEST SELLER
$65.46 |
8% OFF Phone Price : $71.46
In Stock
Waterworks Water Softener Rotor Position Switch (replaces 7030705, 9001800, Ws21x10003) 7030713
#104

Valve assembly diagram

Waterworks water softener rotor position switch (replaces 7030705, 9001800, ws21x10003)

Part #7030713

BEST SELLER
$27.97 |
18% OFF Phone Price : $33.97
In Stock
Valve 7080611
#78

Valve assembly diagram

Valve

Part #7080611

Replaced by #7082053

?
Manufacturer substitution
This part replaces 7080611. Substitute parts can look different from the original.
BEST SELLER
$73.40 |
8% OFF Phone Price : $79.40
In Stock
Water Softener Ferrule Nut (replaces 7031450, Ws03x10017, Ws3x10017) 1202600
Water softener ferrule nut (replaces 7031450, ws03x10017, ws3x10017)

Part #1202600

BEST SELLER
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Clip 1205500
#71

Valve assembly diagram

Clip

Part #1205500

Replaced by #7116713

?
Manufacturer substitution
This part replaces 1205500. Substitute parts can look different from the original.
BEST SELLER
$19.26 |
9% OFF Phone Price : $21.26
In Stock
Float 516914
#39

Brine valve assembly diagram

Float

Part #516914

Replaced by #7097202

?
Manufacturer substitution
This part replaces 516914. Substitute parts can look different from the original.
This item is not returnable
$6.79 |
13% OFF Phone Price : $7.79
In Stock
O-ring 900041
#68

Valve assembly diagram

O-ring

Part #900041

Replaced by #7170327

?
Manufacturer substitution
This part replaces 900041. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Waterworks Water Softener Drain Hose Connector (replaces Ws22x10023) 7024160
#69

Valve assembly diagram

Waterworks water softener drain hose connector (replaces ws22x10023)

Part #7024160

This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
