Frigidaire
Top-Mount Refrigerator

Model # FFTR1814WW0 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFTR1814WW0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

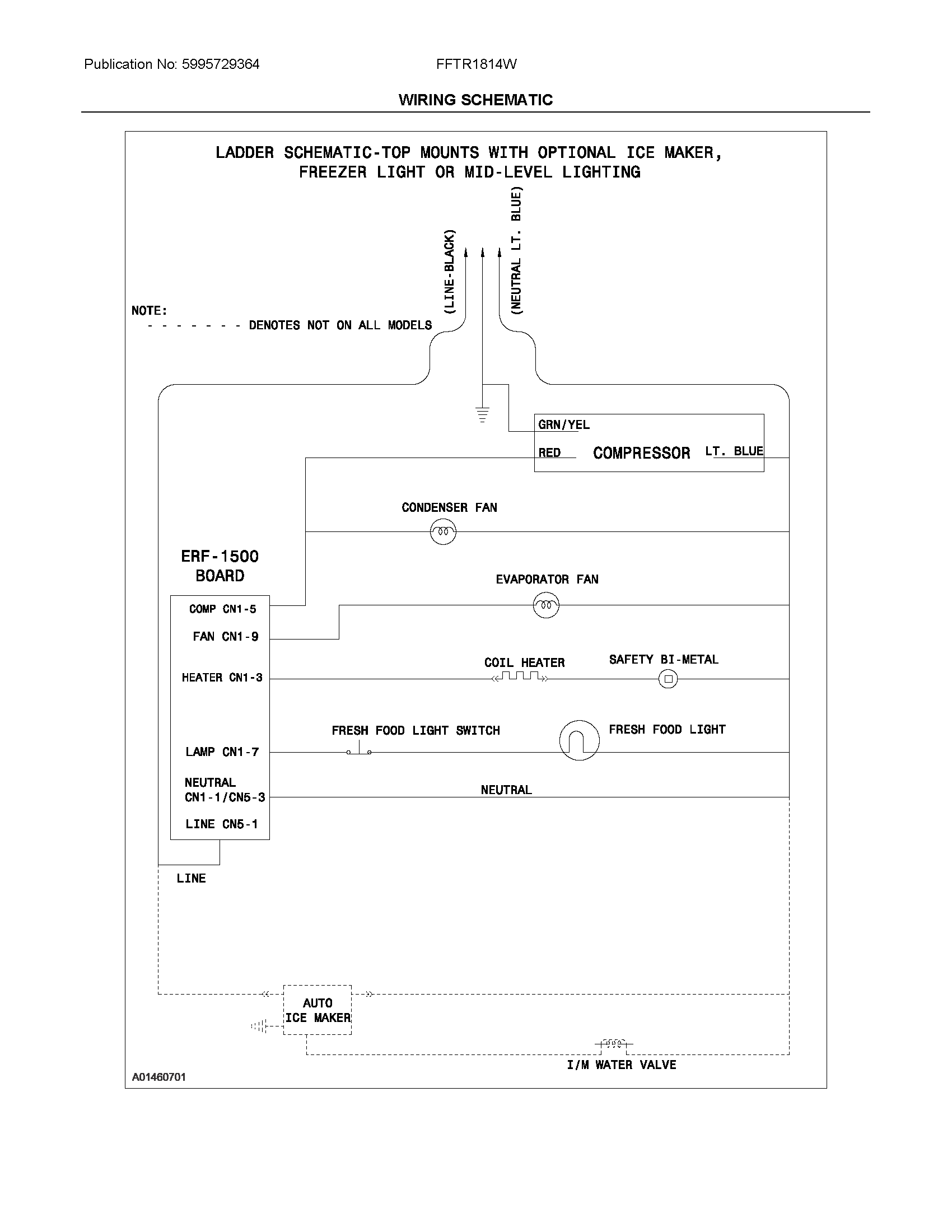

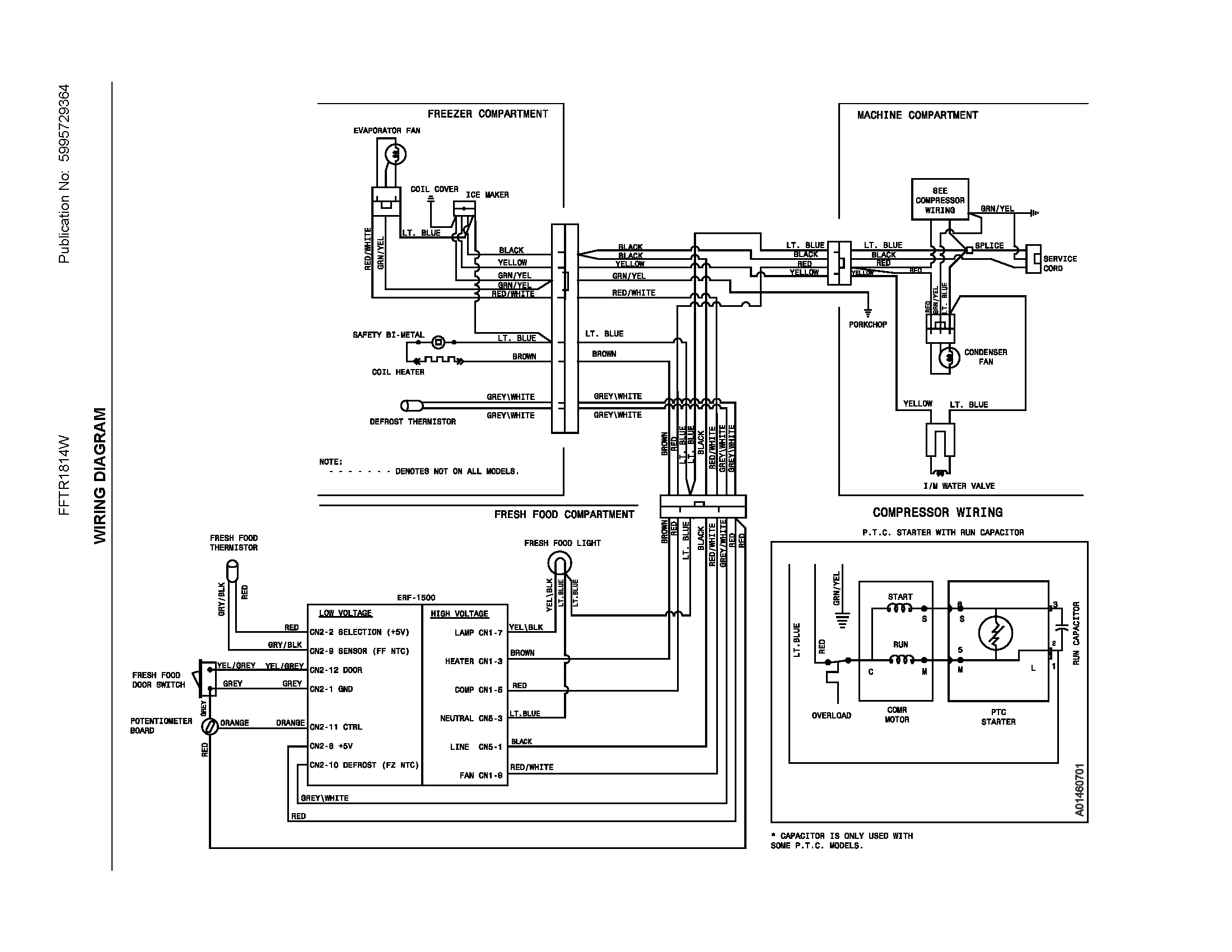

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Refrigerator Defrost Timer 5304522331
#19

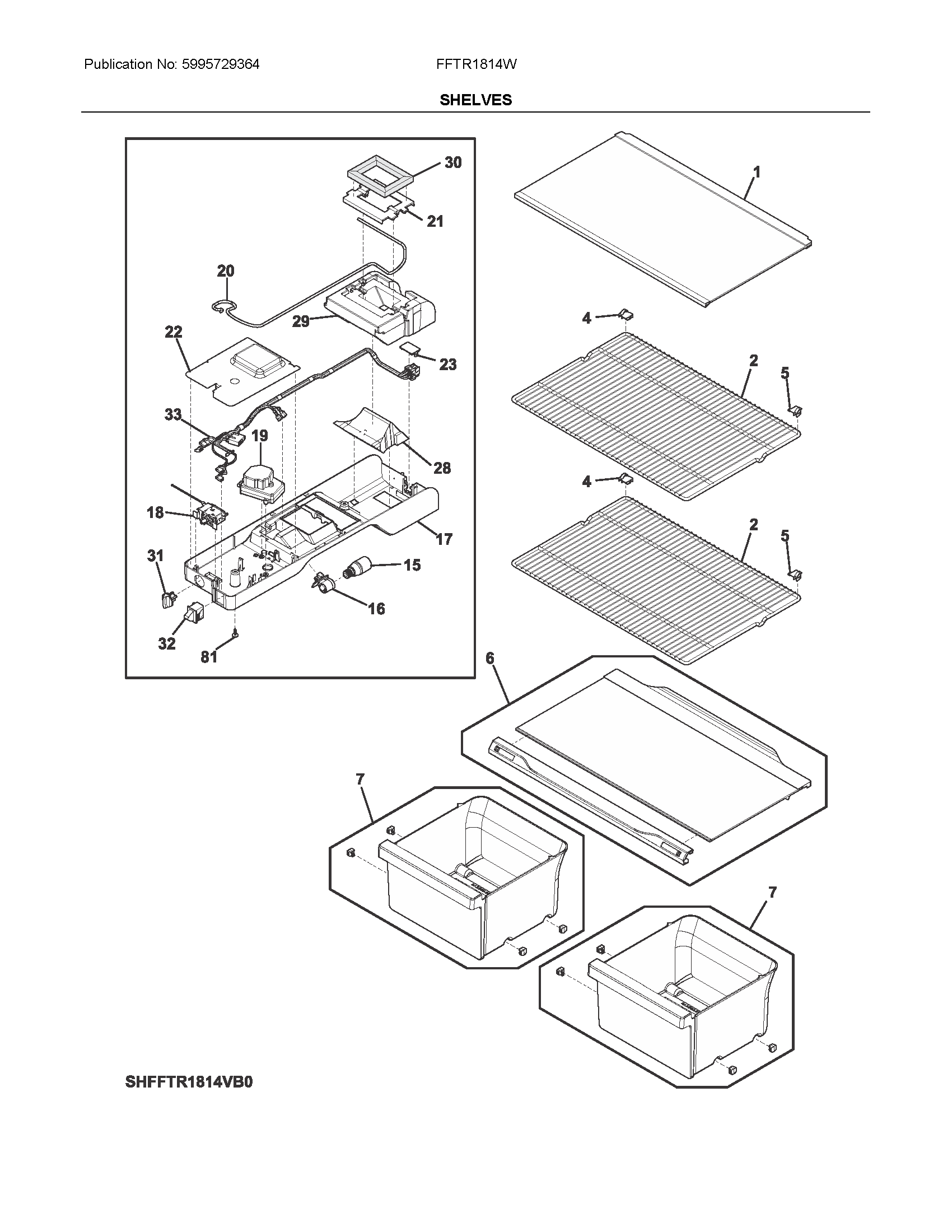

Shelves diagram

Refrigerator defrost timer

Part #5304522331

Replaced by #5304526183

?
Manufacturer substitution
This part replaces 5304522331. Substitute parts can look different from the original.
BEST SELLER
$82.73
In Stock
Refrigerator Filter Dryer 5304522277
#10

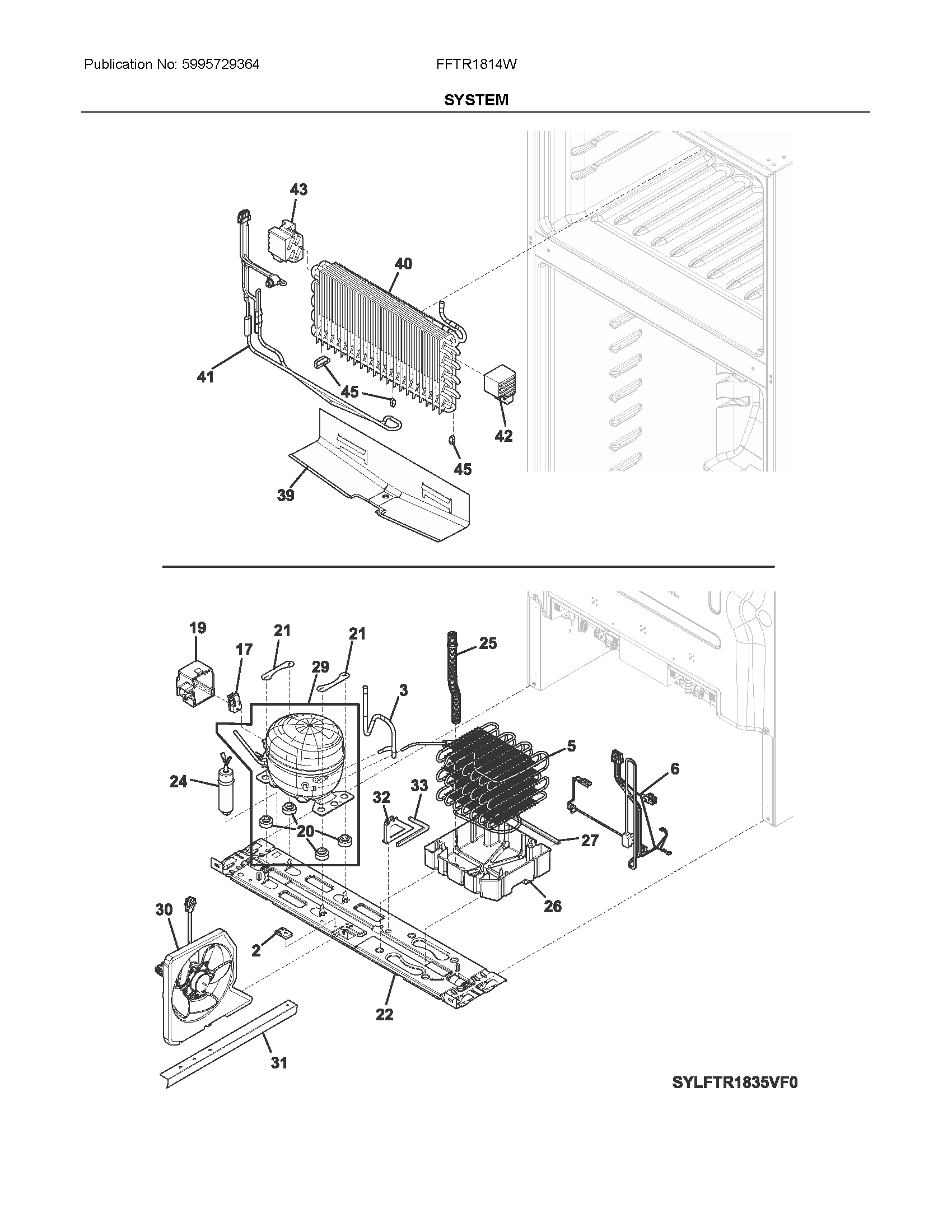

System diagram

Refrigerator filter dryer

Part #5304522277

BEST SELLER
$18.89 |
10% OFF Phone Price : $20.89
In Stock
Refrigerator Temperature Control Thermostat 5304522330
#18

Shelves diagram

Refrigerator temperature control thermostat

Part #5304522330

BEST SELLER
$58.06 |
9% OFF Phone Price : $64.06
In Stock
Electrolux Refrigerator Condenser Fan Blade (replaces 241639501) 241639502
#61

System diagram

Electrolux refrigerator condenser fan blade (replaces 241639501)

Part #241639502

BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigerator Evaporator Fan Motor 242077704
#16

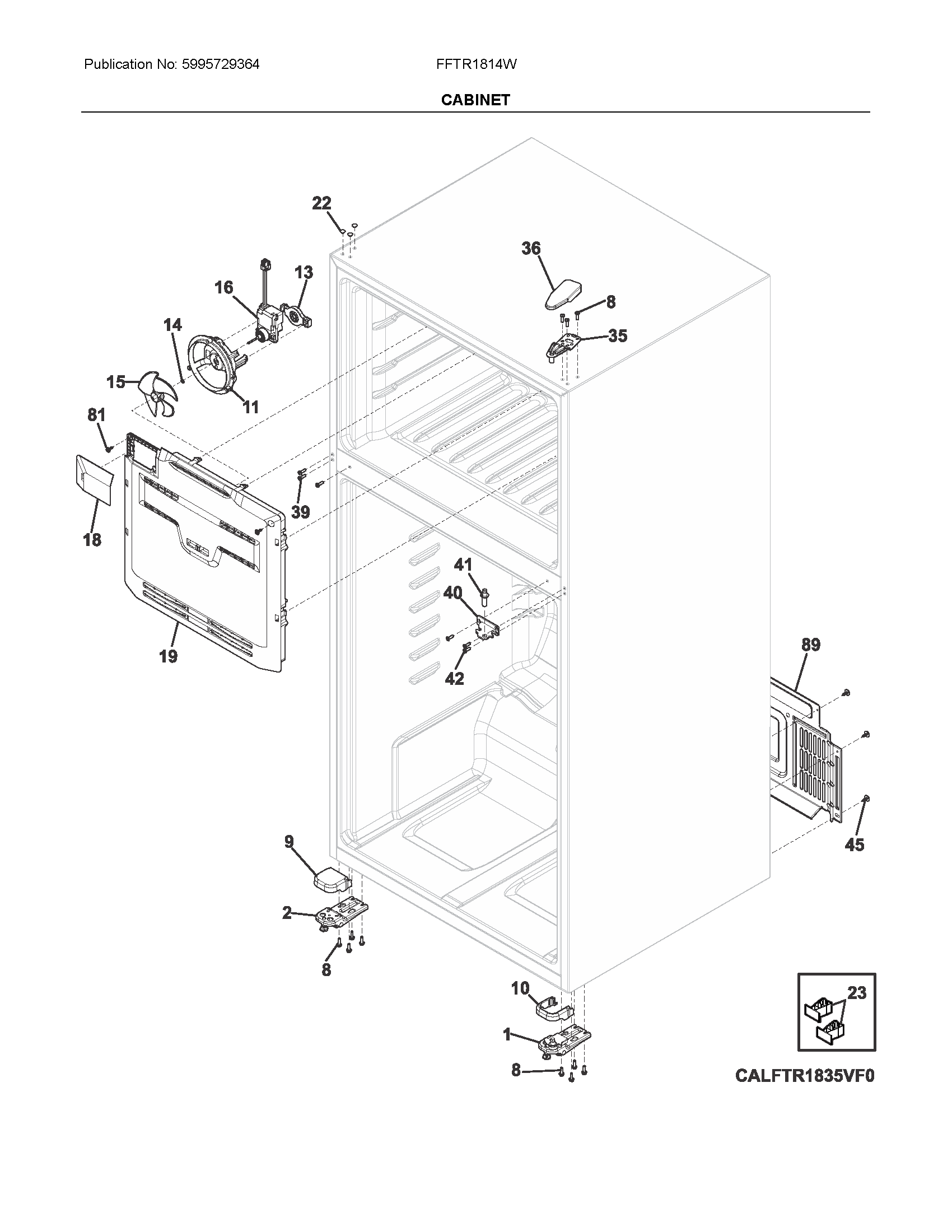

Cabinet diagram

Refrigerator evaporator fan motor

Part #242077704

Replaced by #5304530651

?
Manufacturer substitution
This part replaces 242077704. Substitute parts can look different from the original.
BEST SELLER
$92.48 |
6% OFF Phone Price : $98.48
In Stock
Compressor,assembly ,th1114 5304522339
#29

System diagram

Compressor,assembly ,th1114

Part #5304522339

Replaced by #5304519758

?
Manufacturer substitution
This part replaces 5304522339. Substitute parts can look different from the original.
BEST SELLER
$352.64
In Stock
Assy-evaporator & Compts Br 5304529495
#40

System diagram

Assy-evaporator & compts br

Part #5304529495

BEST SELLER
$133.52
In Stock
Refrigerator Compressor Overload And Start Relay 5304522267
#17

System diagram

Refrigerator compressor overload and start relay

Part #5304522267

BEST SELLER
$28.68 |
17% OFF Phone Price : $34.68
In Stock
Refrigerator Freezer Door Gasket 5304528904

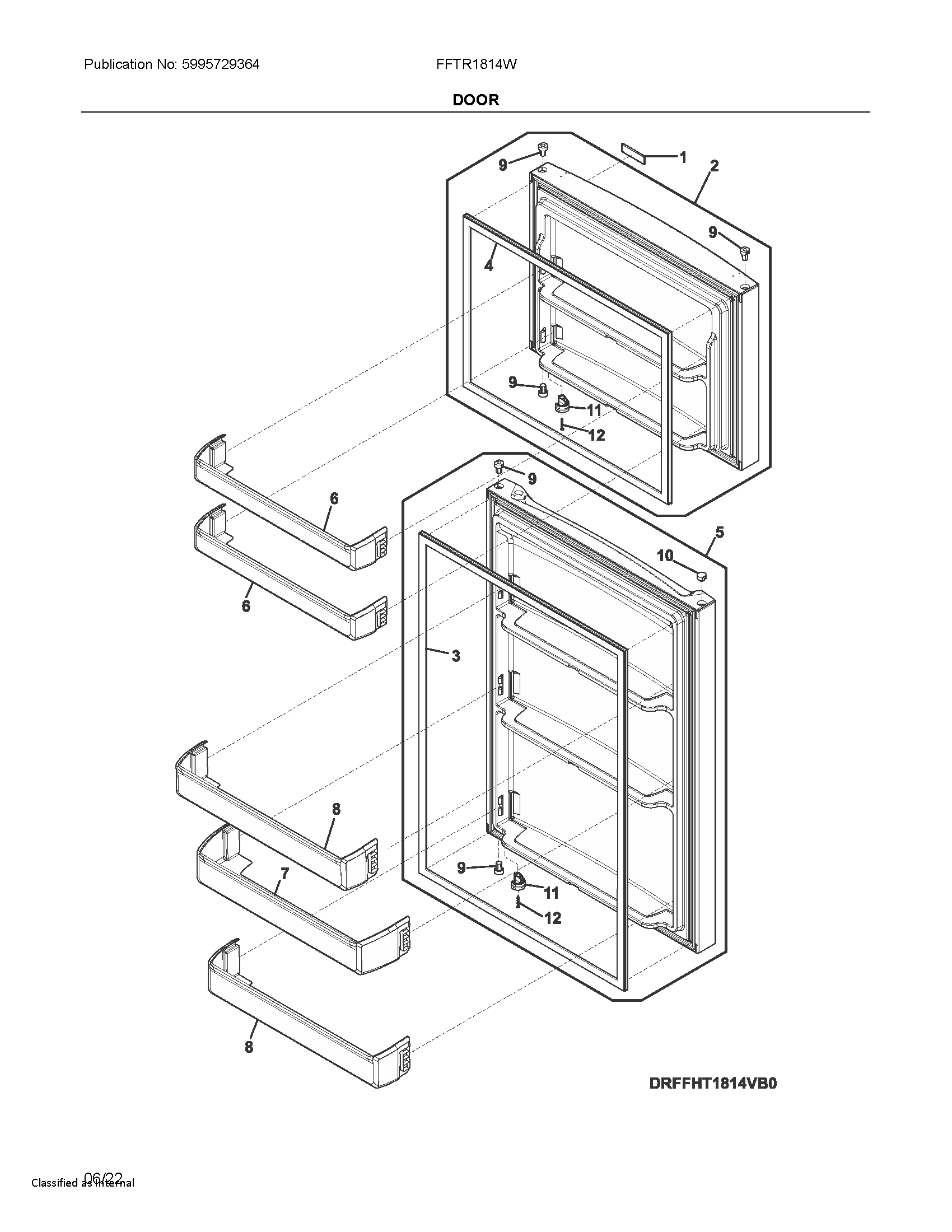

#4

Doors diagram

Refrigerator freezer door gasket

Part #5304528904

BEST SELLER
$126.38
In Stock
Condenser,dynamic 5304519669
#5

System diagram

Condenser,dynamic

Part #5304519669

Replaced by #5304530007

?
Manufacturer substitution
This part replaces 5304519669. Substitute parts can look different from the original.
BEST SELLER
$73.31
In Stock
