Model # FFC20K1CW1 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFC20K1CW1 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Filter Drier 216634500
#4

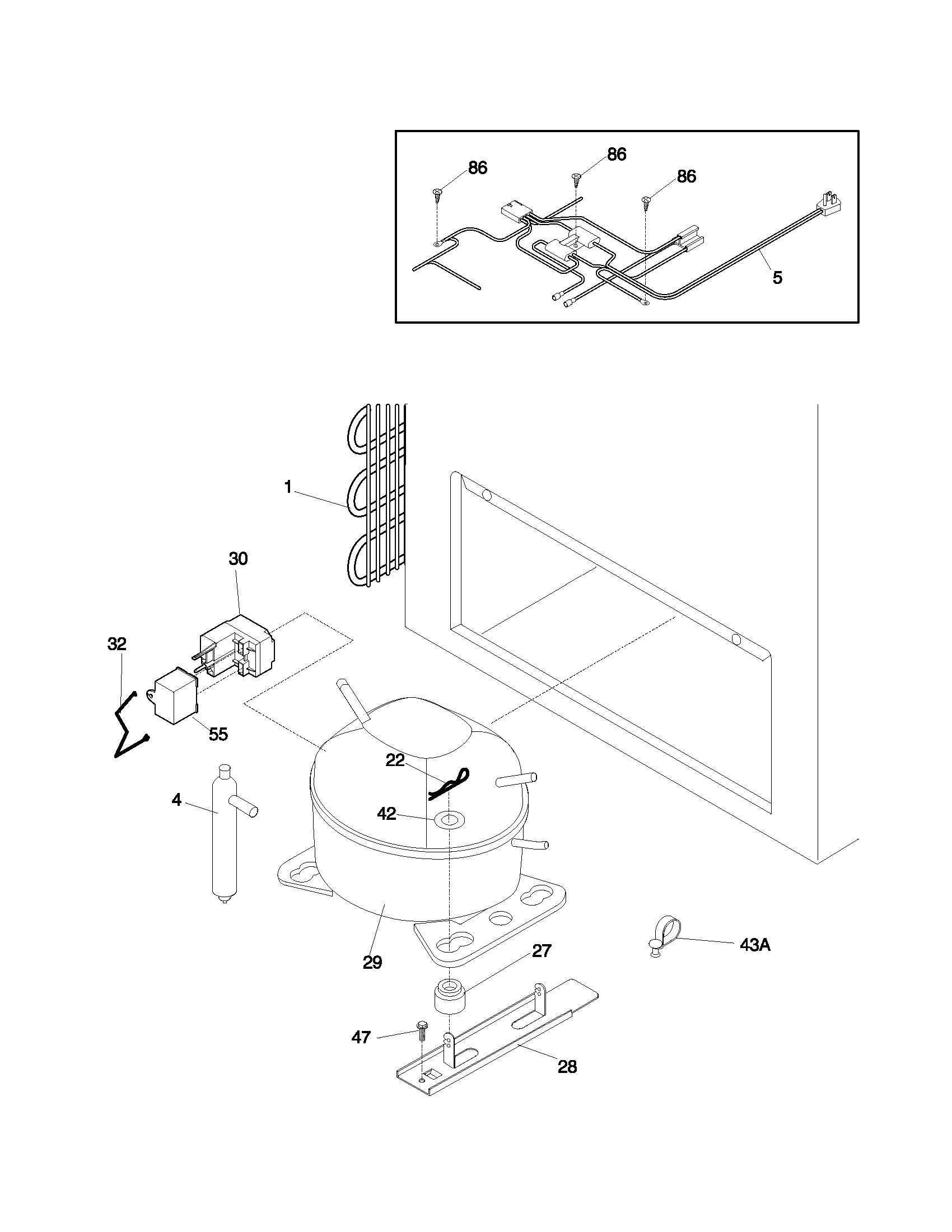

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Door Switch (replaces 216998000, 7216822900) 216822900
#14

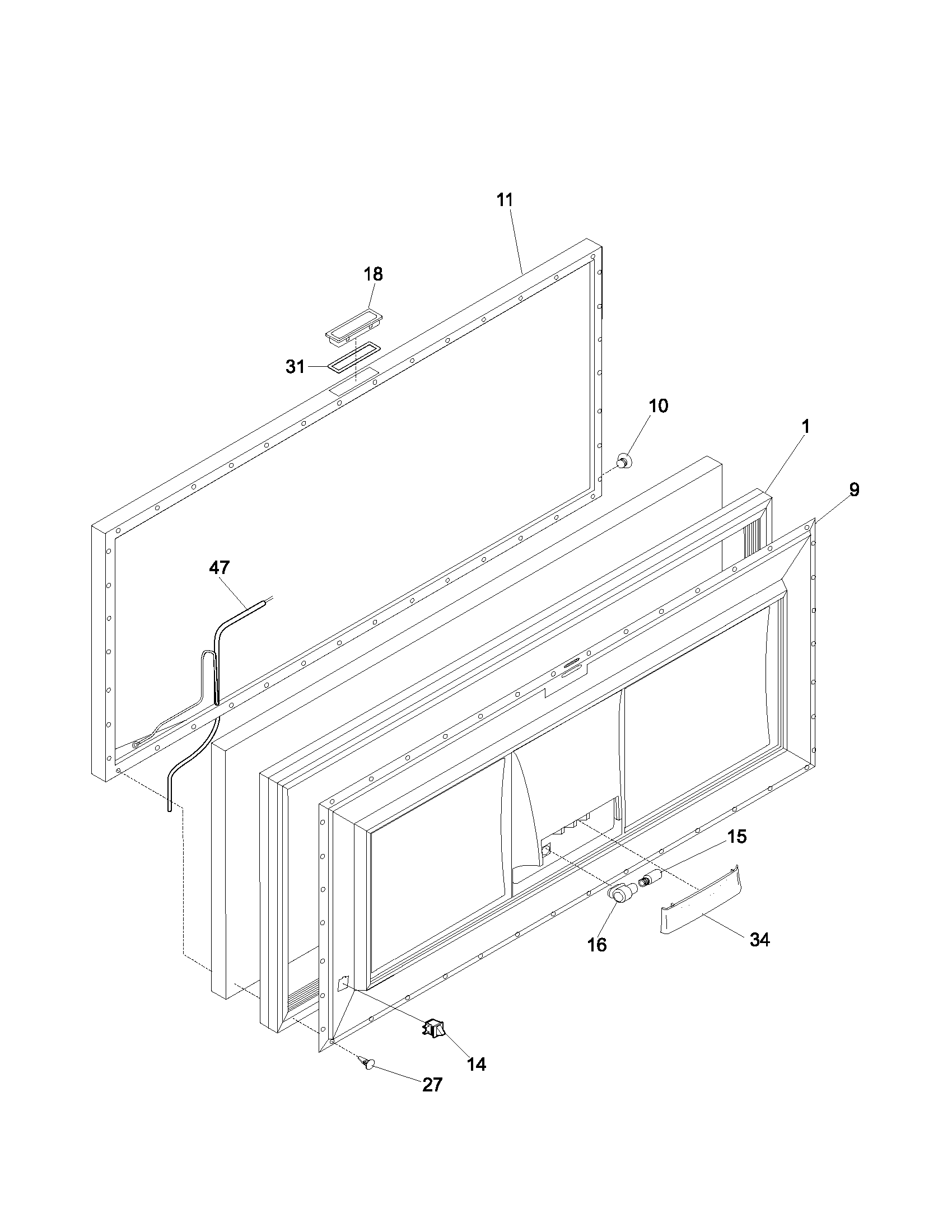

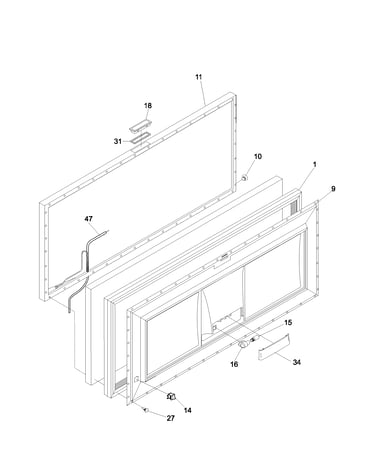

Door diagram

Freezer door switch (replaces 216998000, 7216822900)

Part #216822900

BEST SELLER
$52.89 |
10% OFF Phone Price : $58.89
In Stock
Freezer Drain Plug (replaces 5306593887) 216502600
#3

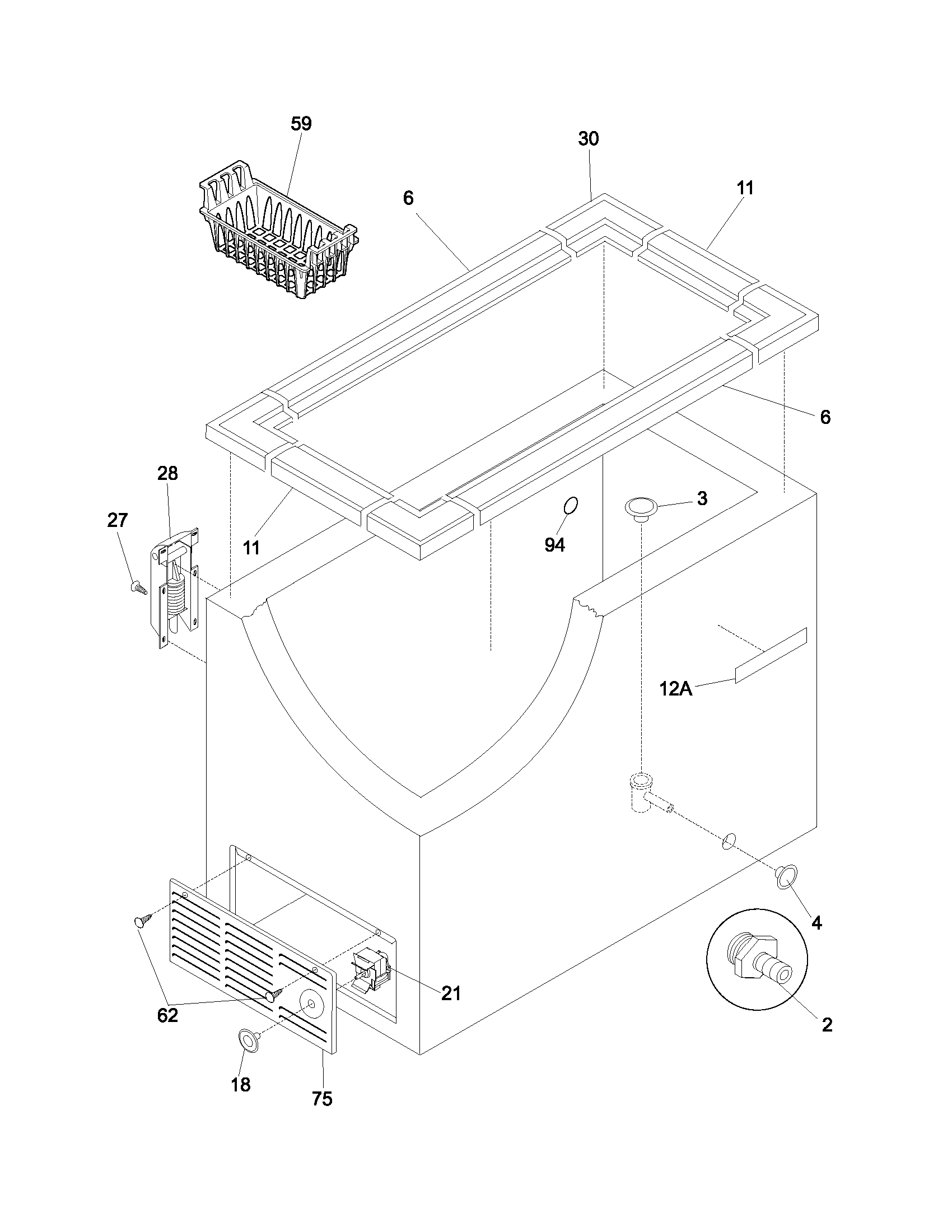

Cabinet diagram
