Kenmore
Side-By-Side Refrigerator

Model # 79558816900 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79558816900 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

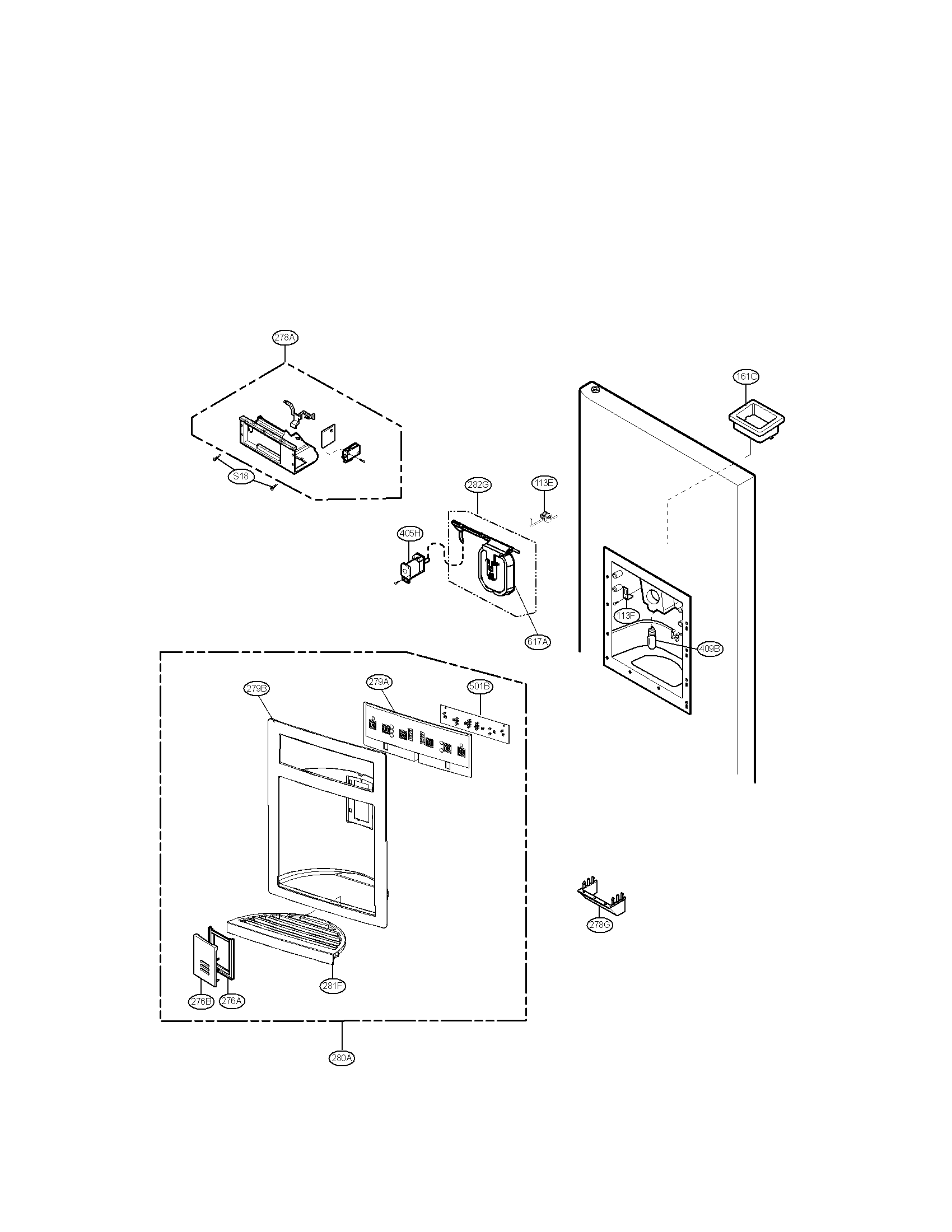

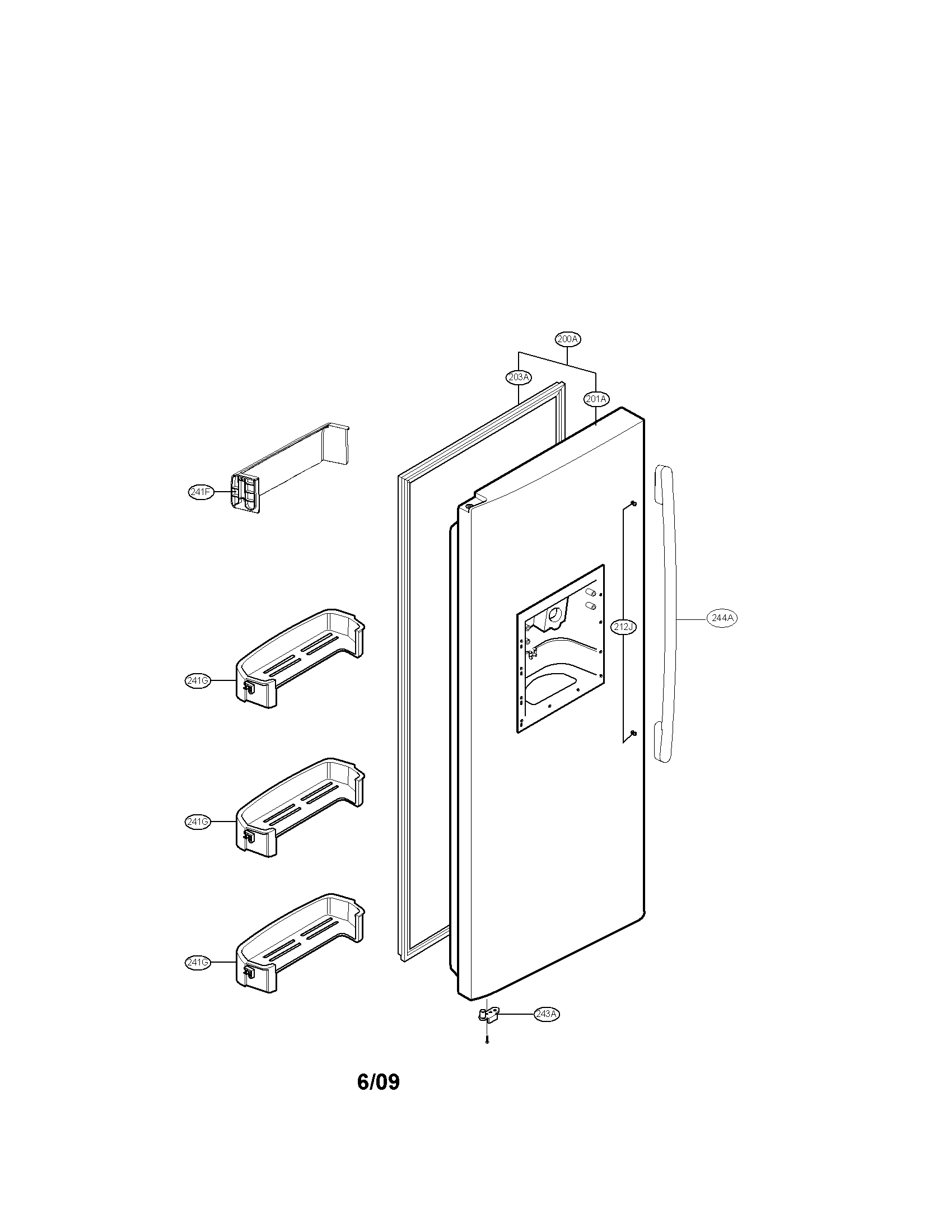

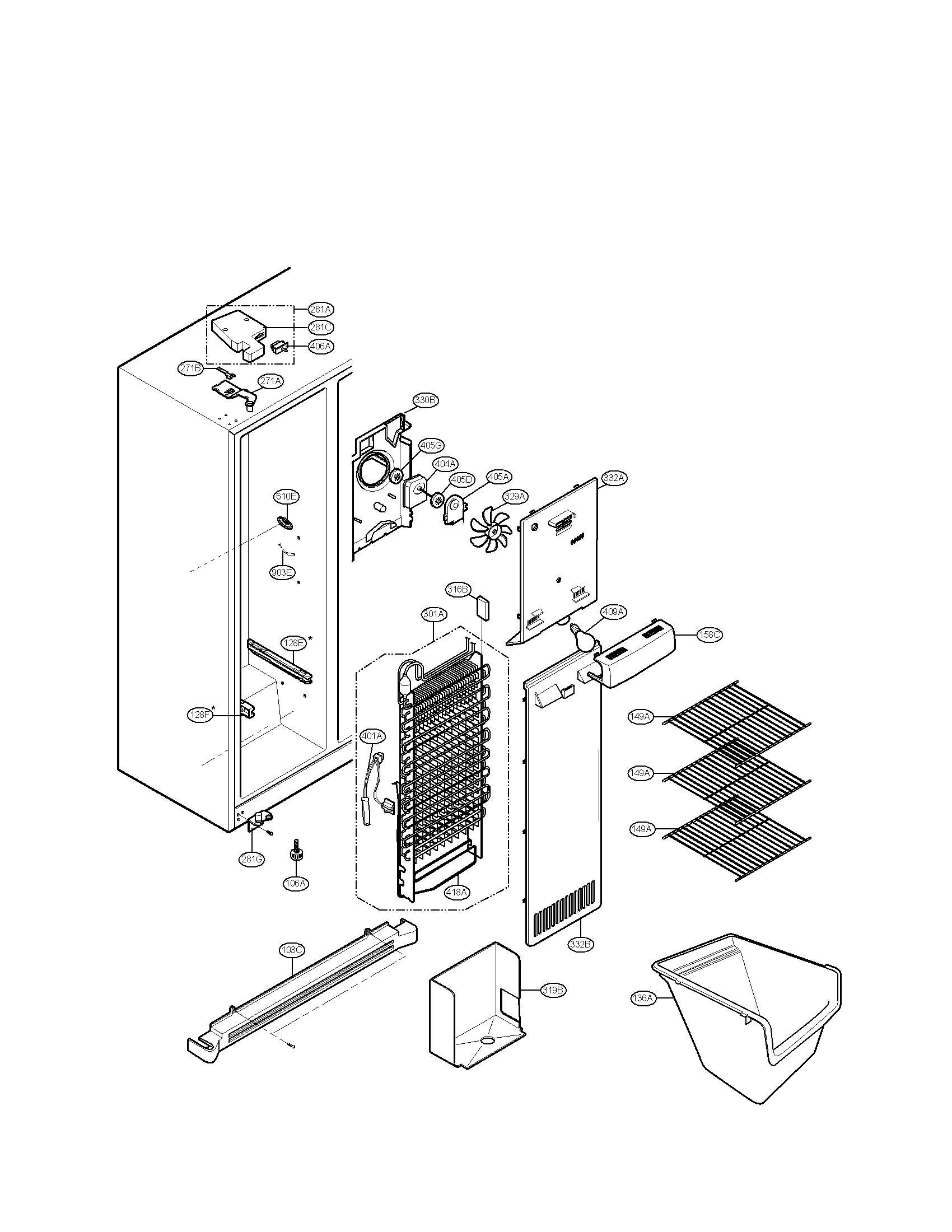

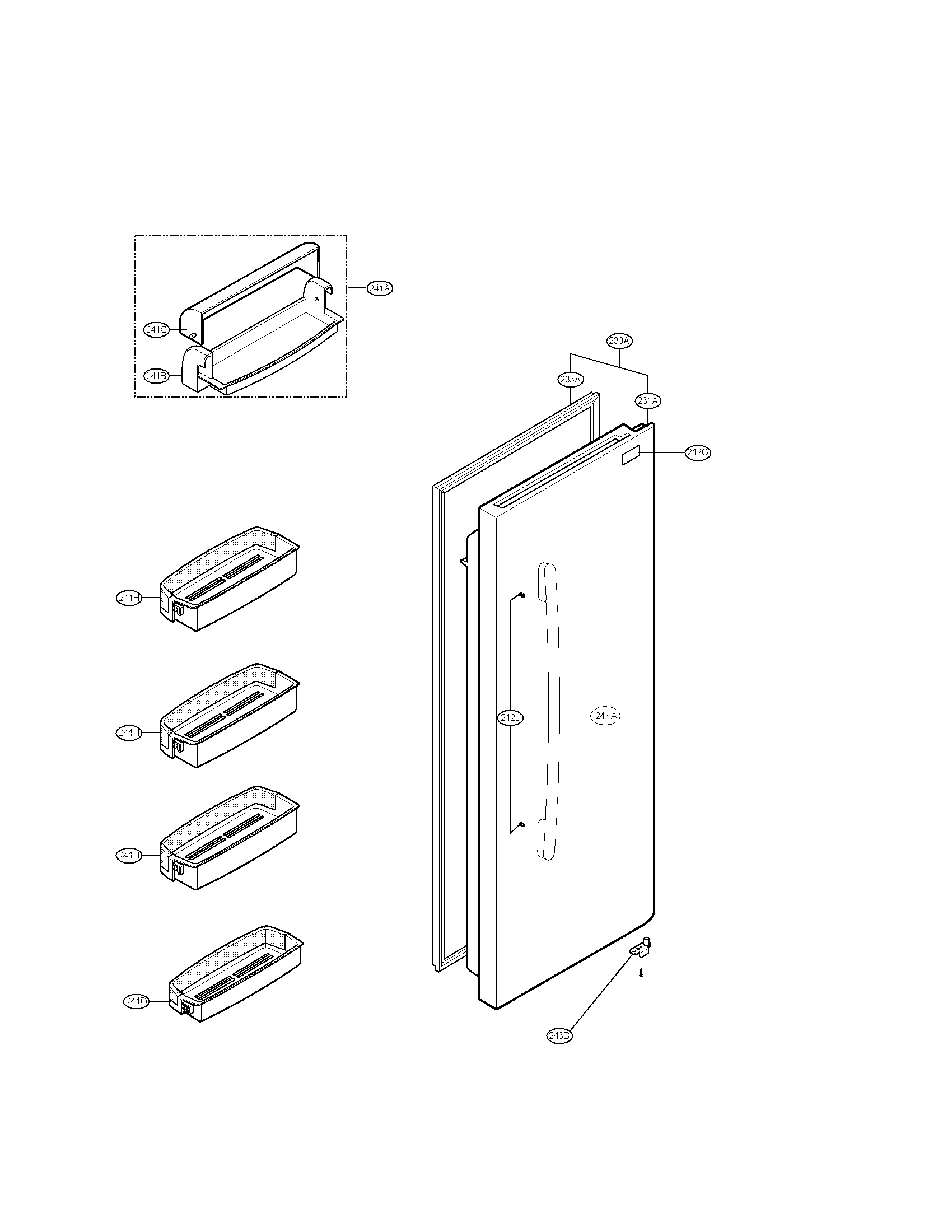

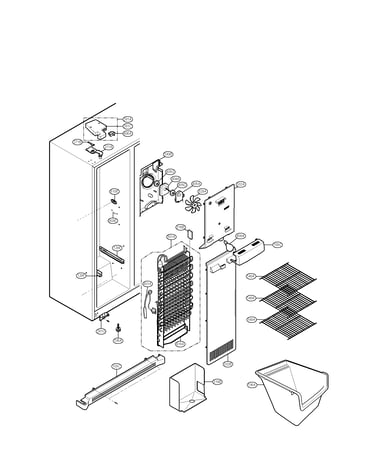

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Refrigerator Drier Assembly 5851JJ2002F
#317A

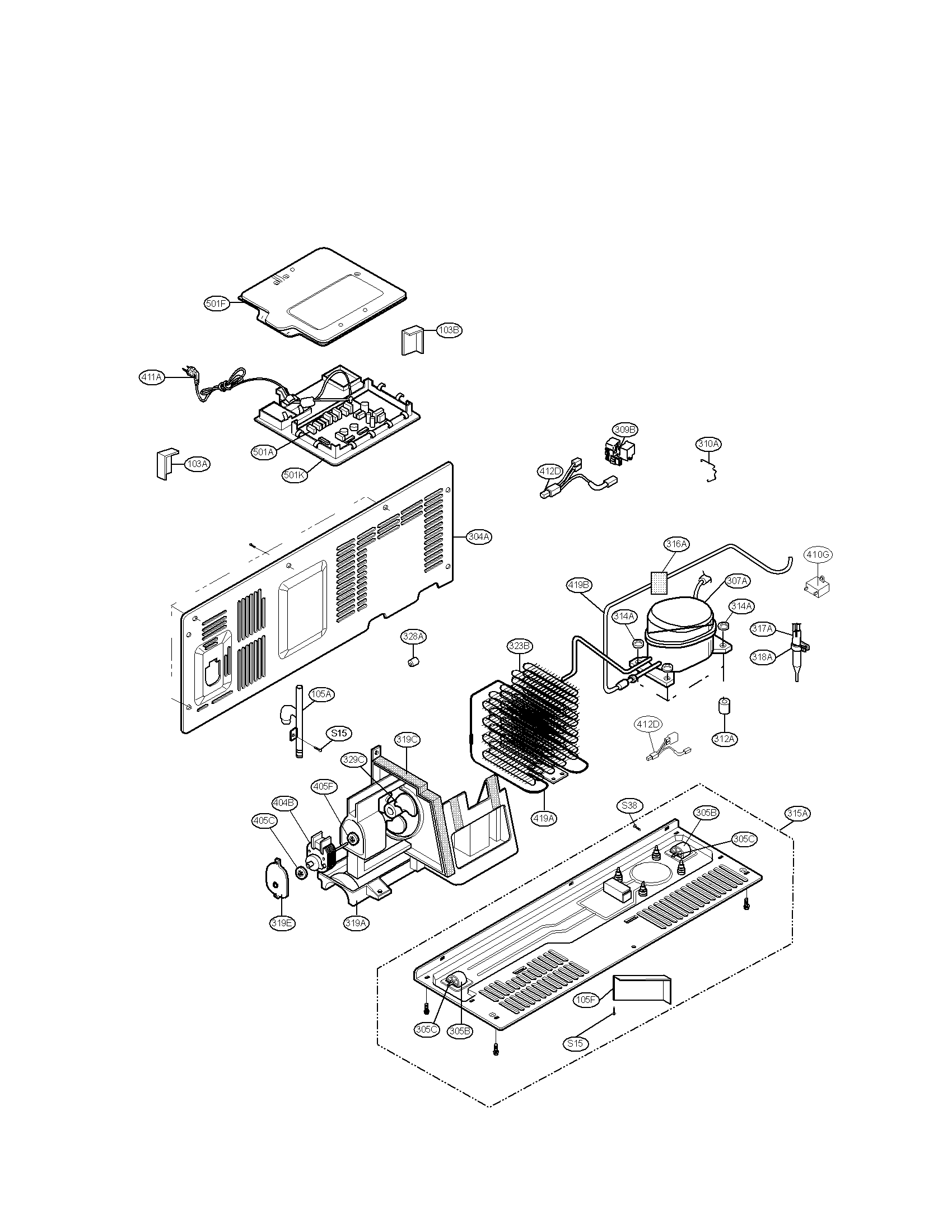

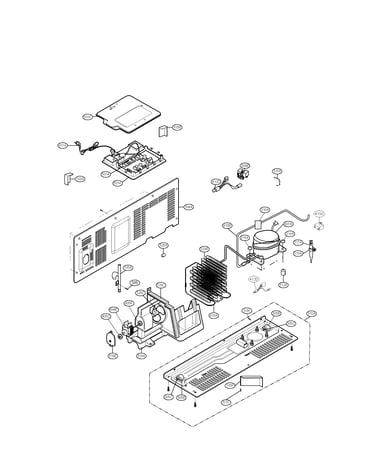

Mechanical parts diagram

Refrigerator drier assembly

Part #5851JJ2002F

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JJ2002F. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Genuine Kenmore Refrigerator Water Filter 9890
#611A

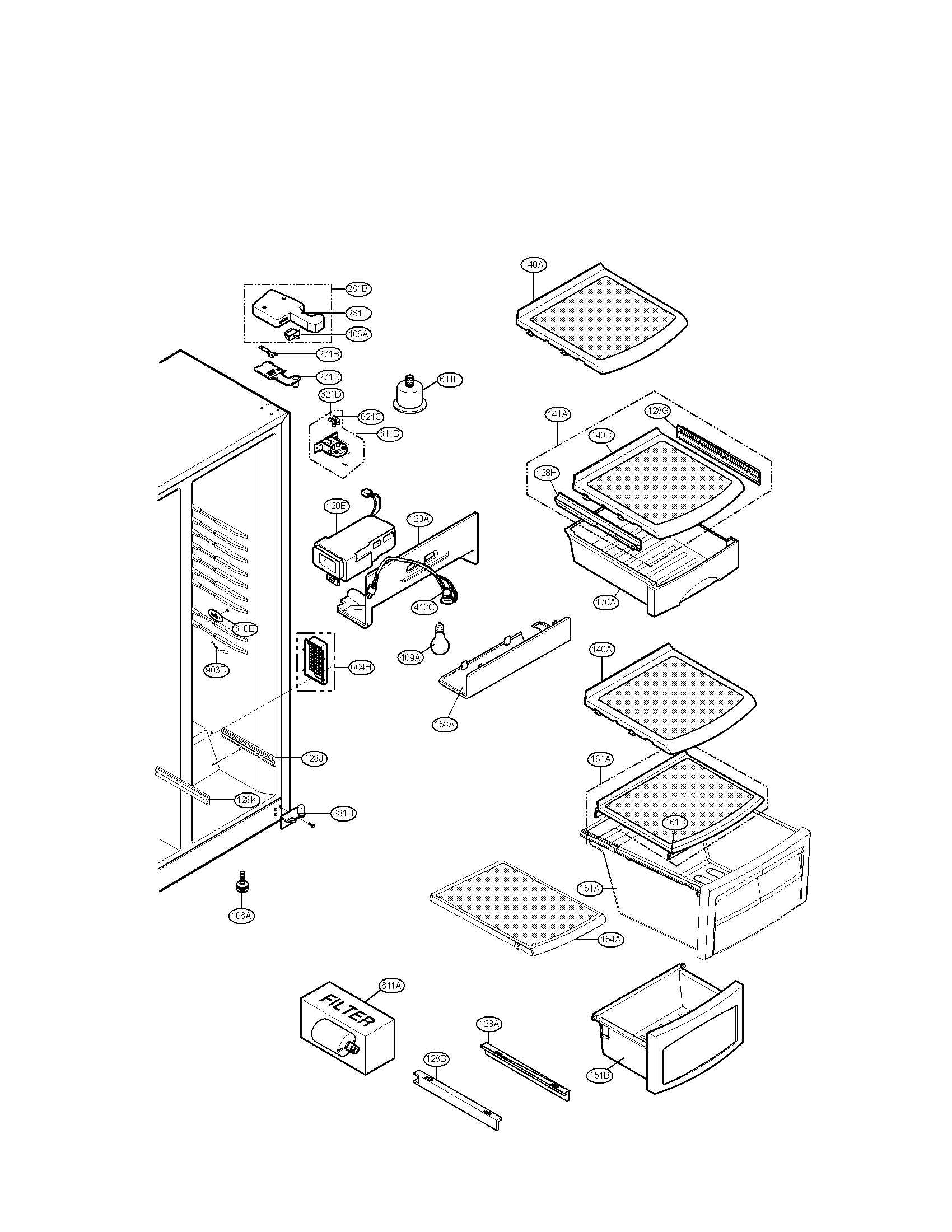

Refrigerator compartment diagram

Genuine kenmore refrigerator water filter

Part #9890

Replaced by #ADQ72910902

?
Manufacturer substitution
This part replaces 9890. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$54.99
In Stock
Refrigerator Water Tubing 5210JA3004U
#616F

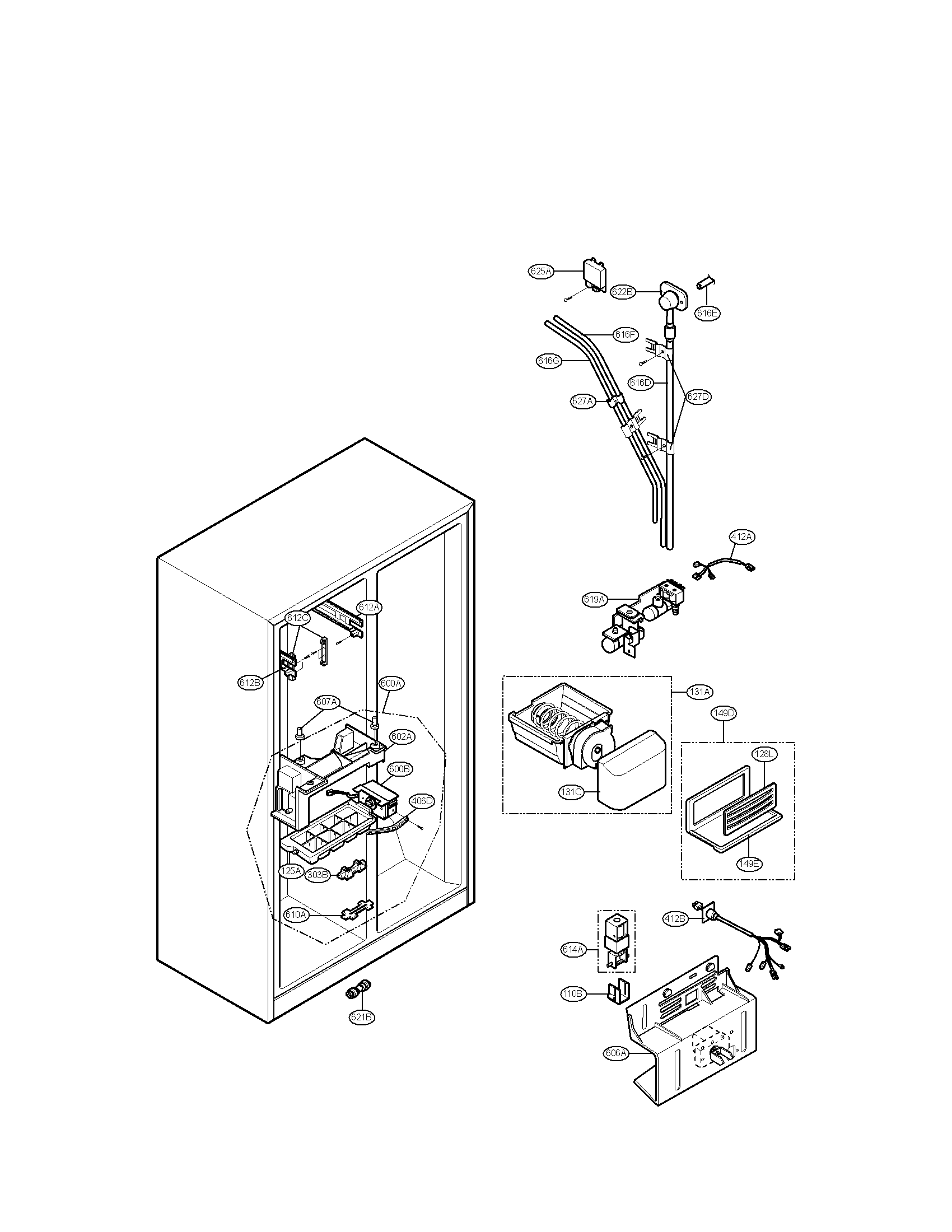

Ice and water parts diagram
