Radial Arm Saw

Model # 33-893 Official Delta 12" radial arm saw

Here are the diagrams and repair parts for Official Delta 33-893 12" radial arm saw, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for33-893 Power Tools

  • Screw 901-03-010-0770
    #185

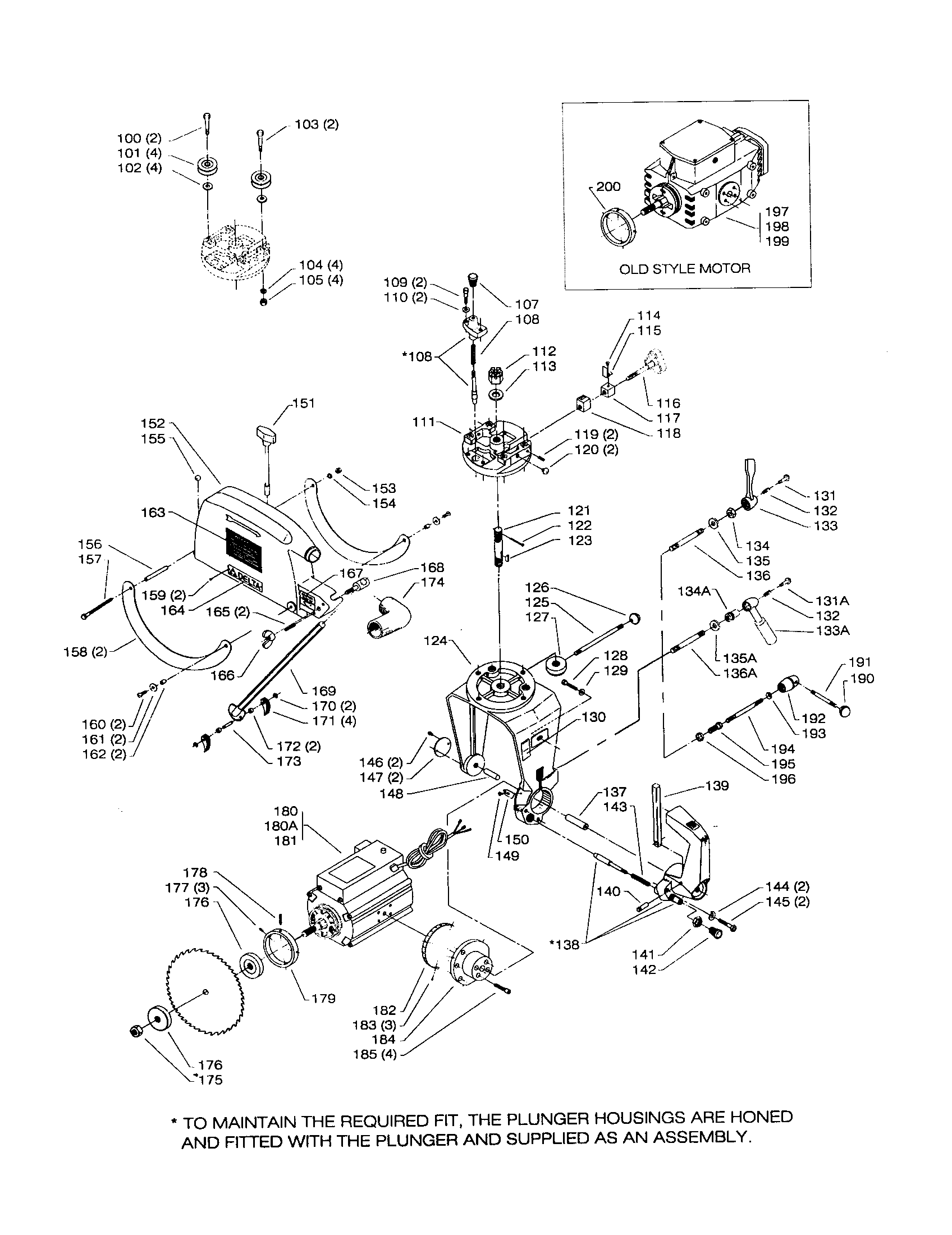

    Yoke, handle and motor diagram

    Screw

    Part #901-03-010-0770

    The manufacturer no longer makes this part, and there's no substitute part

  • Plug 961-01-010-7499
    #32

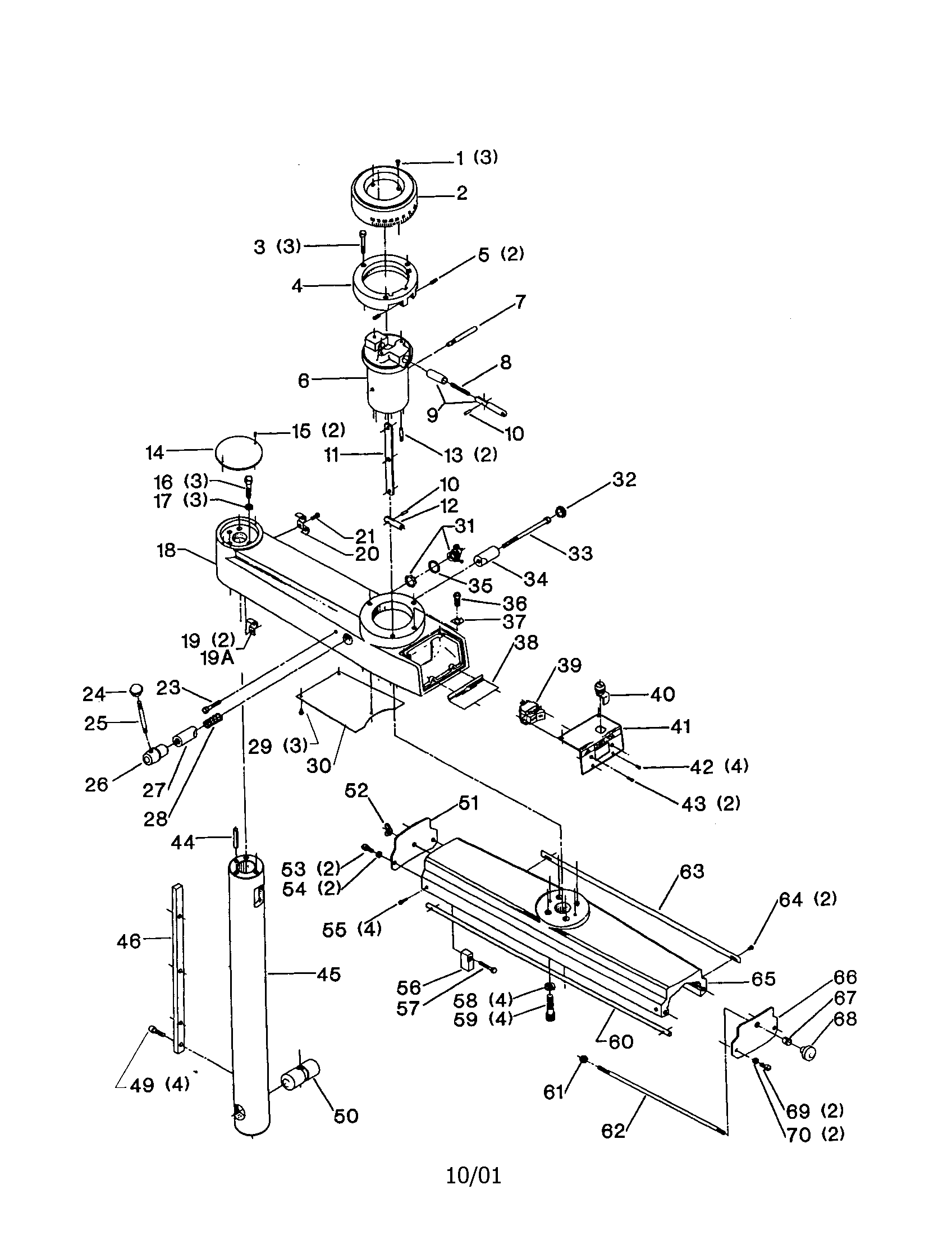

    Support and guide diagram

    Plug

    Part #961-01-010-7499

    The manufacturer no longer makes this part, and there's no substitute part

  • Arbor Nut 424-12-079-0007
    #175

    Yoke, handle and motor diagram

    Arbor nut

    Part #424-12-079-0007

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 901-03-010-0224
    #302

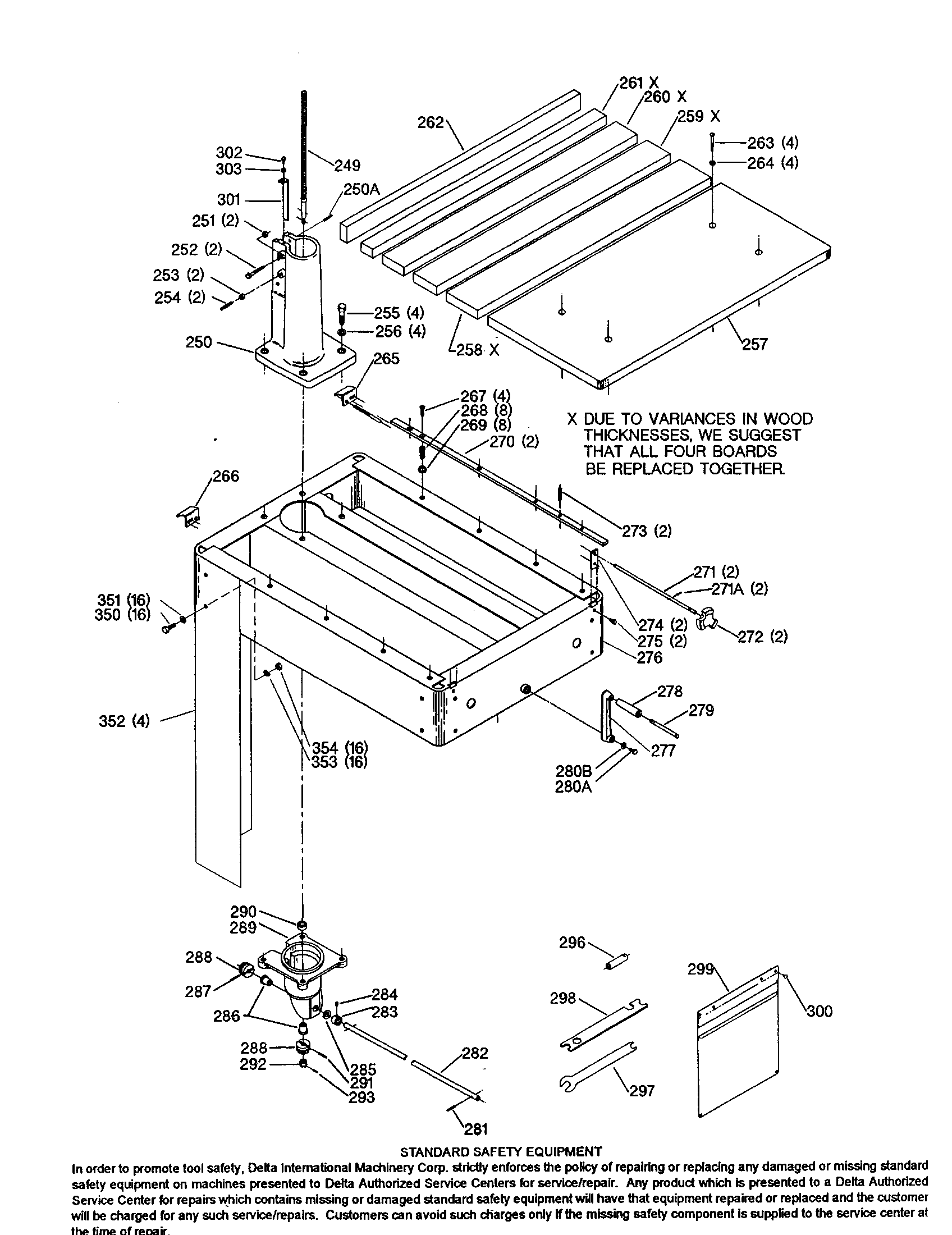

    Base and front board diagram

    Screw

    Part #901-03-010-0224

    The manufacturer no longer makes this part, and there's no substitute part

  • Insulator 438-01-011-0036
    #39

    Support and guide diagram

    Insulator

    Part #438-01-011-0036

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer 904-01-031-2925
    #135

    Yoke, handle and motor diagram

    Washer

    Part #904-01-031-2925

    The manufacturer no longer makes this part, and there's no substitute part

  • 3/32 X 1/2" Spring Pin 905-01-010-2717
    3/32 x 1/2" spring pin

    Part #905-01-010-2717

    The manufacturer no longer makes this part, and there's no substitute part

  • Pointer 951-01-021-7019
    #38

    Support and guide diagram

    Pointer

    Part #951-01-021-7019

    The manufacturer no longer makes this part, and there's no substitute part

  • Yoke (early Models Only) (see Service Note B) 424-02-102-0008
    #124A

    Yoke, handle and motor diagram

    Yoke (early models only) (see service note b)

    Part #424-02-102-0008

    The manufacturer no longer makes this part, and there's no substitute part

  • 3/8-16 Wing Nut 902-04-010-1404
    #166

    Yoke, handle and motor diagram

    3/8-16 wing nut

    Part #902-04-010-1404

    The manufacturer no longer makes this part, and there's no substitute part
