Model # DGU09516 Official Coleman Evcon furnace - dgu series
Here are the diagrams and repair parts for Official Coleman Evcon DGU09516 furnace - dgu series, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
DGU09516 Furnace - DGU Series
#17

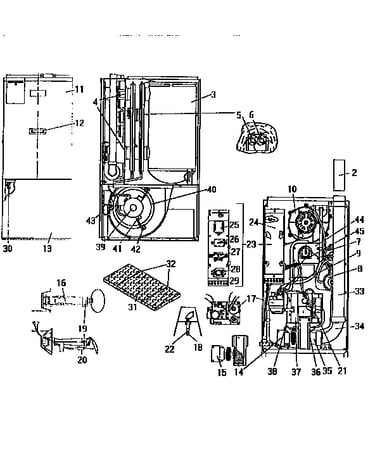

Functional replacement parts diagram
Gas valve
Part #2900-326P
The manufacturer no longer makes this part, and there's no substitute part
#41
Functional replacement parts diagram
Motor clamp
Part #8680-6391
The manufacturer no longer makes this part, and there's no substitute part
#18G
Functional replacement parts diagram
Orifice
Part #9951-1101
The manufacturer no longer makes this part, and there's no substitute part
#3B
Functional replacement parts diagram
Heat exchange
Part #2970A5751
The manufacturer no longer makes this part, and there's no substitute part
#6
Functional replacement parts diagram
Fan switch
Part #2940-3161
The manufacturer no longer makes this part, and there's no substitute part
#28
Functional replacement parts diagram
Sequencer
Part #2940-3571
The manufacturer no longer makes this part, and there's no substitute part
#25
Functional replacement parts diagram
Relay
Part #2940-3551
The manufacturer no longer makes this part, and there's no substitute part
#3C
Functional replacement parts diagram
Heat exchange
Part #2985A5751
The manufacturer no longer makes this part, and there's no substitute part
#4
Functional replacement parts diagram
Gasket package
Part #2940A3011
The manufacturer no longer makes this part, and there's no substitute part
#8
Functional replacement parts diagram
Press switch
Part #2900-315P
The manufacturer no longer makes this part, and there's no substitute part
