Model # SHE4AM15UC/05 Official Bosch dishwasher
Here are the diagrams and repair parts for Official Bosch SHE4AM15UC/05 dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
By Part

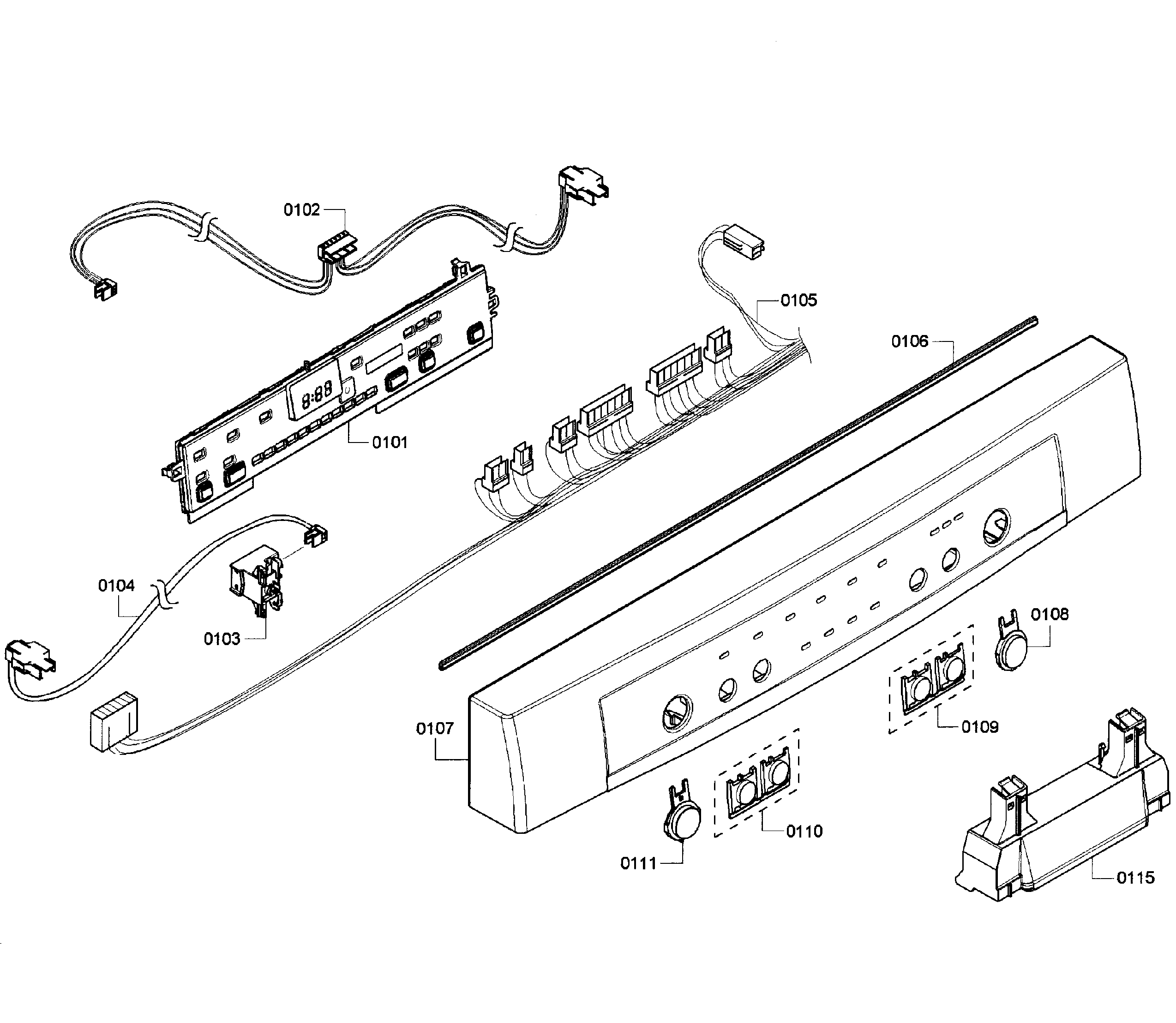

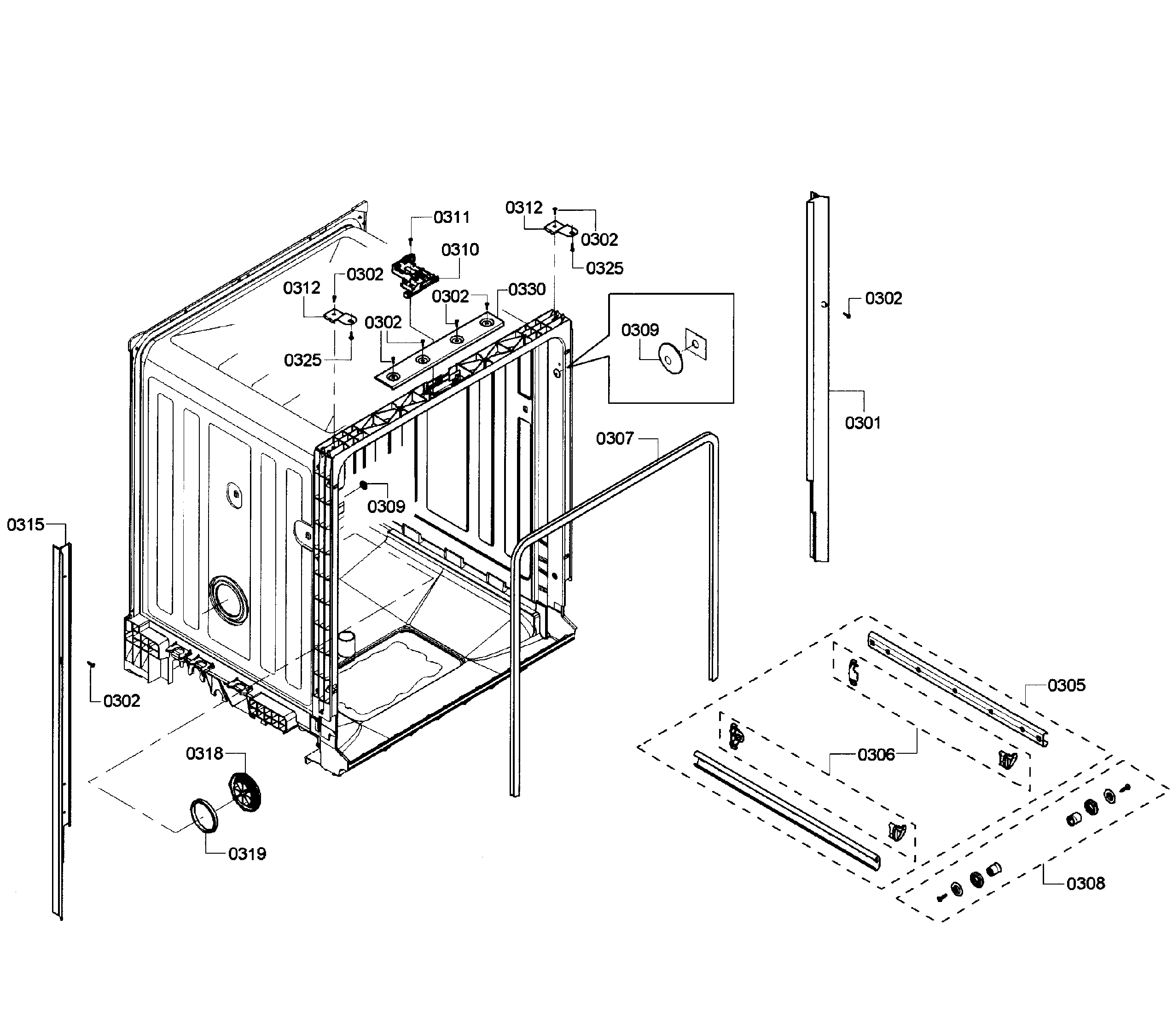

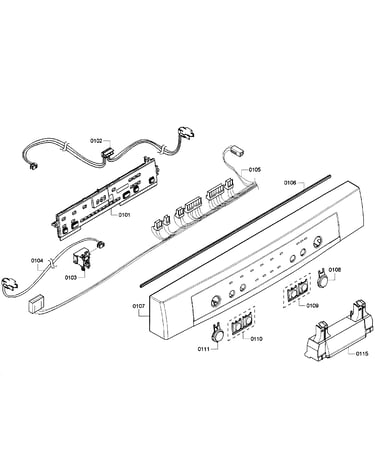

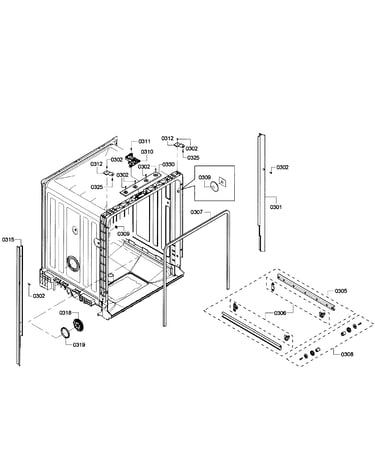

SELECT DIAGRAM
Browse Parts forSHE4AM15UC/05 Dishwasher
- #412

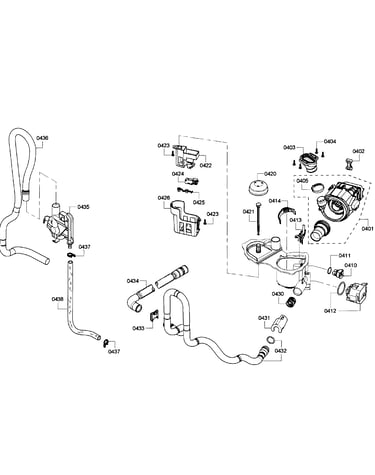

Pump assy diagram
Drain pumpPart #611332
Replaced by #00611332
?Manufacturer substitutionThis part replaces 611332. Substitute parts can look different from the original.$56.76 |10% OFF Phone Price : $62.76In Stock - #405
Pump assy diagram
Hose clampPart #172272
Replaced by #00172272
?Manufacturer substitutionThis part replaces 172272. Substitute parts can look different from the original.$28.11 |18% OFF Phone Price : $34.11In Stock - #215

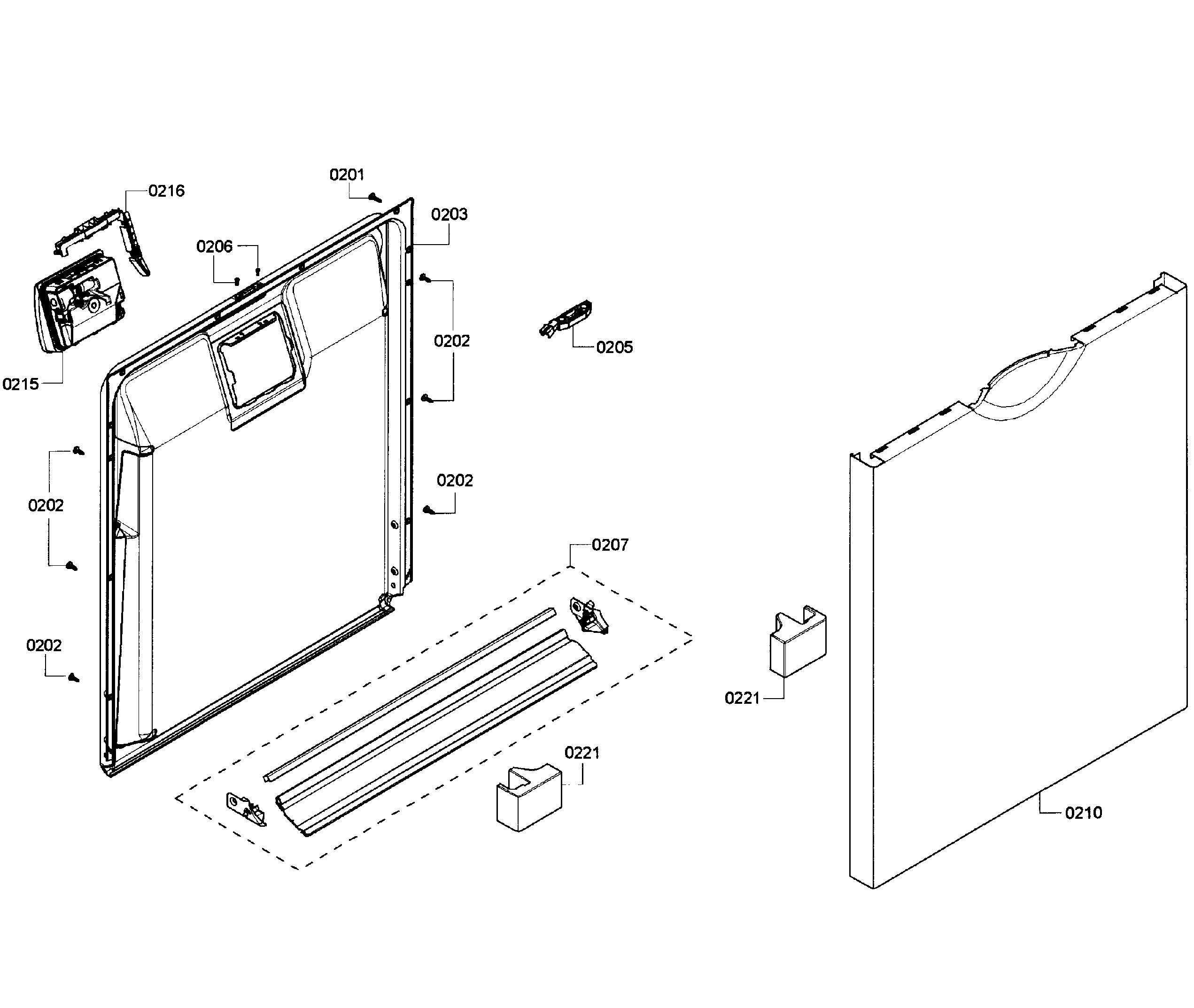

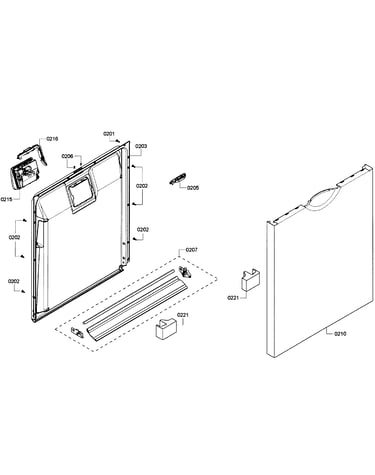

Door assy diagram
Dishwasher dispenser assemblyPart #645208
Replaced by #00645208
?Manufacturer substitutionThis part replaces 645208. Substitute parts can look different from the original.$80.03 |7% OFF Phone Price : $86.03In Stock - #434
Pump assy diagram
Dishwasher drain hosePart #668108
Replaced by #00668108
?Manufacturer substitutionThis part replaces 668108. Substitute parts can look different from the original.$37.99 |14% OFF Phone Price : $43.99In Stock - #432
Pump assy diagram
Dishwasher drain hosePart #645149
Replaced by #00645149
?Manufacturer substitutionThis part replaces 645149. Substitute parts can look different from the original.This item is not returnable$24.09 |20% OFF Phone Price : $30.09In Stock - #510

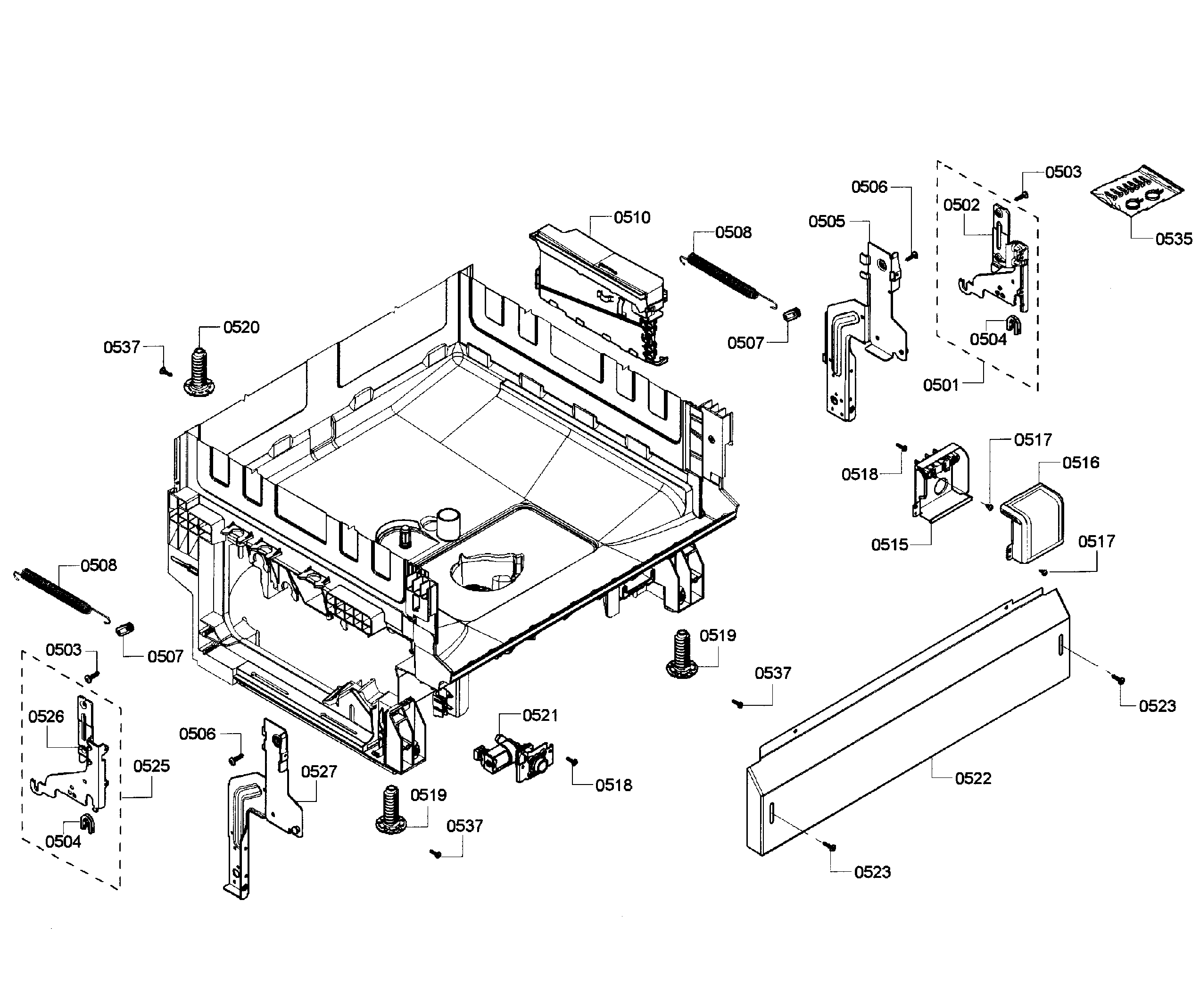

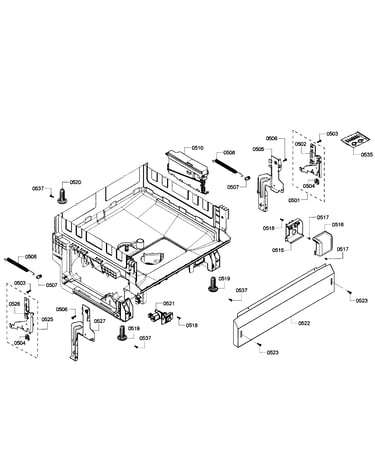

Base assy diagram
Dishwasher electronic control boardPart #701523
The manufacturer no longer makes this part, and there's no substitute part
- #521
Base assy diagram
Dishwasher water inlet valvePart #607335
Replaced by #00607335
?Manufacturer substitutionThis part replaces 607335. Substitute parts can look different from the original.$54.62 |10% OFF Phone Price : $60.62In Stock - #603

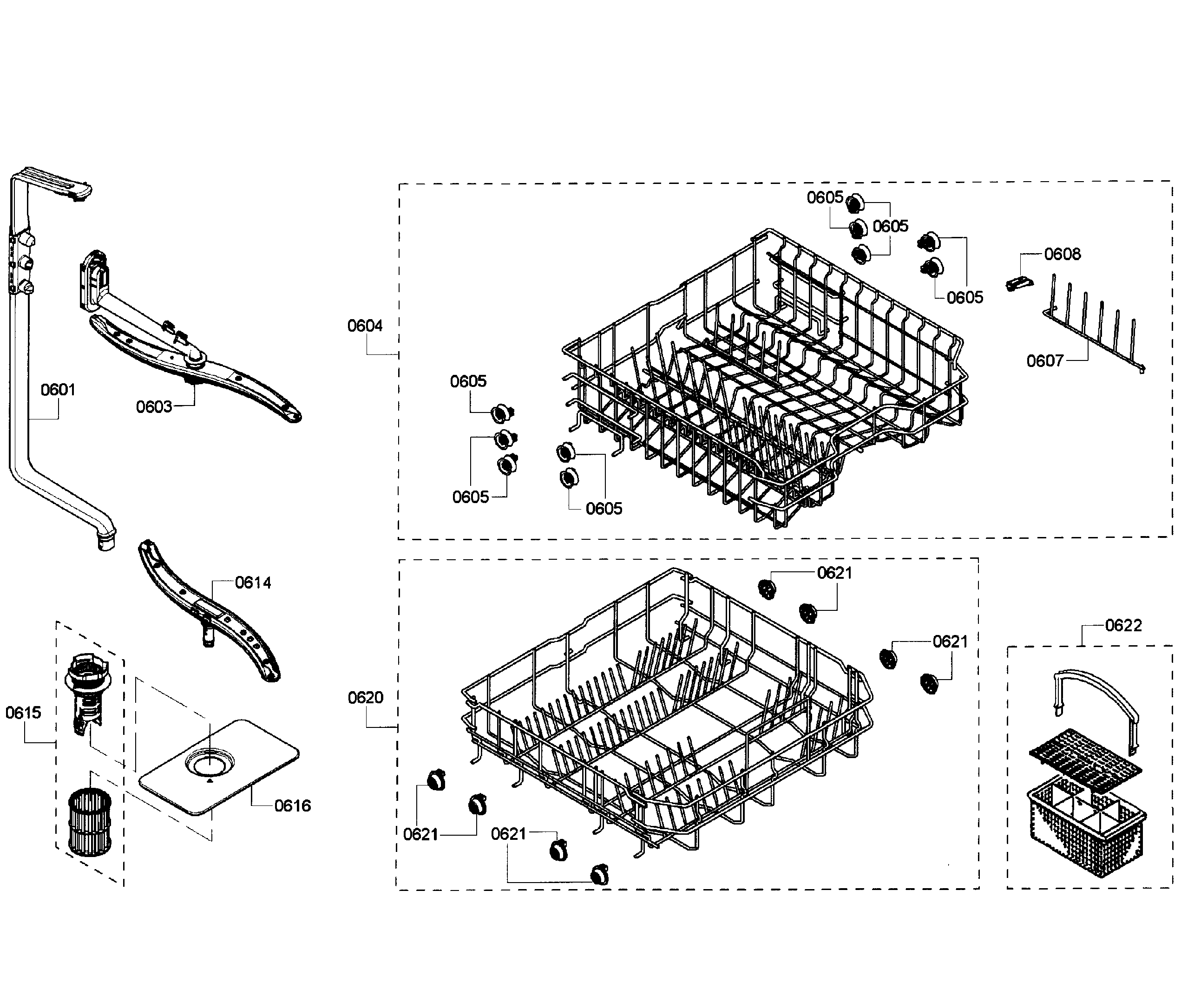

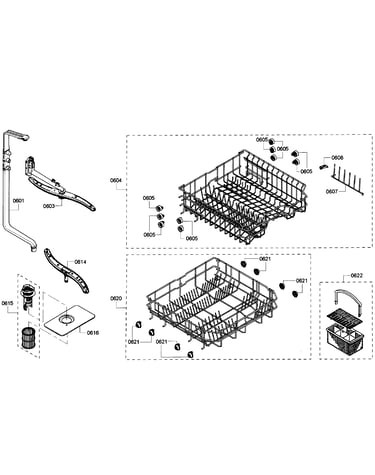

Baskets diagram
Dishwasher spray armPart #668385
Replaced by #00668385
?Manufacturer substitutionThis part replaces 668385. Substitute parts can look different from the original.$38.99 |13% OFF Phone Price : $44.99In Stock - #605
Baskets diagram
Wheel (gray)Part #611666
Replaced by #00611666
?Manufacturer substitutionThis part replaces 611666. Substitute parts can look different from the original.$13.00 |13% OFF Phone Price : $15.00In Stock - #430
Pump assy diagram
ValvePart #611320
Replaced by #00611320
?Manufacturer substitutionThis part replaces 611320. Substitute parts can look different from the original.This item is not returnable$24.20 |20% OFF Phone Price : $30.20In Stock
Most common symptoms to help you fix your dishwashers
Choose a symptom to see related dishwasher repairs.
Main causes: broken door spring, damaged or broken door hinge…
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, contro…
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…
Main cause: damaged rack height adjuster…
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…
