Model # 308770340 Official Sears hexagon screen house

Here are the diagrams and repair parts for Official Sears 308770340 hexagon screen house, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 5 of 5 parts |

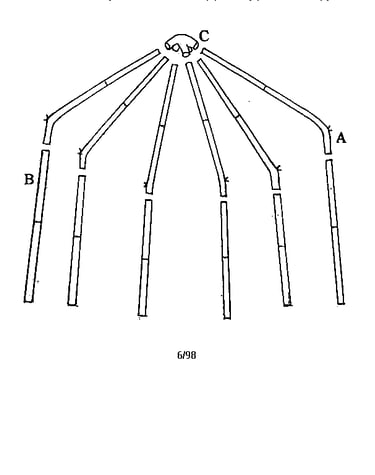

Frame assembly diagram

Roof,pole

Part #97-0059B

The manufacturer no longer makes this part, and there's no substitute part

Frame assembly diagram

3 yds. no. 7 nylon zipper with two double pull sliders

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Frame assembly diagram

Frame

Part #57703400BS

The manufacturer no longer makes this part, and there's no substitute part

Frame assembly diagram

Hub

Part #97-0061

The manufacturer no longer makes this part, and there's no substitute part

Frame assembly diagram

Tent pole

Part #97-0060B

The manufacturer no longer makes this part, and there's no substitute part
