Built-In Microwave

Model # MCEB01 Official Thermador built-in microwave

Here are the diagrams and repair parts for Official Thermador MCEB01 built-in microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
MCEB01 Microwaves
Power Supply 643049
#210

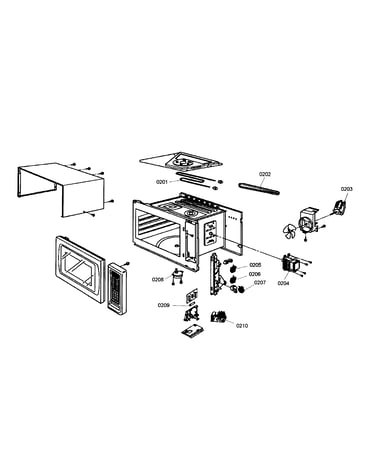

Inside parts diagram

Power supply

Part #643049

Replaced by #00641857

?
Manufacturer substitution
This part replaces 643049. Substitute parts can look different from the original.
This item is not returnable
$399.16
$12.00 OFF Phone Price : $411.16
In Stock
Magnetron 643064
#204

Inside parts diagram

Magnetron

Part #643064

The manufacturer no longer makes this part, and there's no substitute part

Fuse 608377
#209

Inside parts diagram

Fuse

Part #608377

Replaced by #00608377

?
Manufacturer substitution
This part replaces 608377. Substitute parts can look different from the original.
In Stock
Switch 415826
#206

Inside parts diagram

Switch

Part #415826

Replaced by #00415826

?
Manufacturer substitution
This part replaces 415826. Substitute parts can look different from the original.
$43.58
12% OFF Phone Price : $49.58
In Stock
Door 664338
#402

Door assy diagram

Door

Part #664338

Replaced by #00664338

?
Manufacturer substitution
This part replaces 664338. Substitute parts can look different from the original.
In Stock
Circuit Pcb 643067
#302

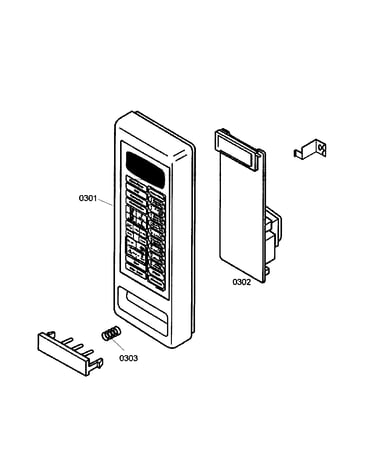

Control panel diagram

Circuit pcb

Part #643067

Replaced by #00643067

?
Manufacturer substitution
This part replaces 643067. Substitute parts can look different from the original.
This item is not returnable
$286.71
$12.00 OFF Phone Price : $298.71
In Stock
Spring 031379
#303

Control panel diagram

Spring

Part #031379

Replaced by #00031379

?
Manufacturer substitution
This part replaces 031379. Substitute parts can look different from the original.
In Stock
Spring 029817
#403

Door assy diagram

Spring

Part #029817

Replaced by #00029817

?
Manufacturer substitution
This part replaces 029817. Substitute parts can look different from the original.
In Stock
Door Panel 643065
#407

Door assy diagram

Door panel

Part #643065

Replaced by #00643065

?
Manufacturer substitution
This part replaces 643065. Substitute parts can look different from the original.
In Stock
Latch 607665
#104

Outside view diagram

Latch

Part #607665

Replaced by #00607665

?
Manufacturer substitution
This part replaces 607665. Substitute parts can look different from the original.
In Stock
