Weider
Weight System

Model # 831153990 Official Weider platinum xp600 weight system

Here are the diagrams and repair parts for Official Weider 831153990 platinum xp600 weight system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |

Weight System Weight Bumper (replaces 103805, 114798, 185746, 235133, 235563) 208378
#28

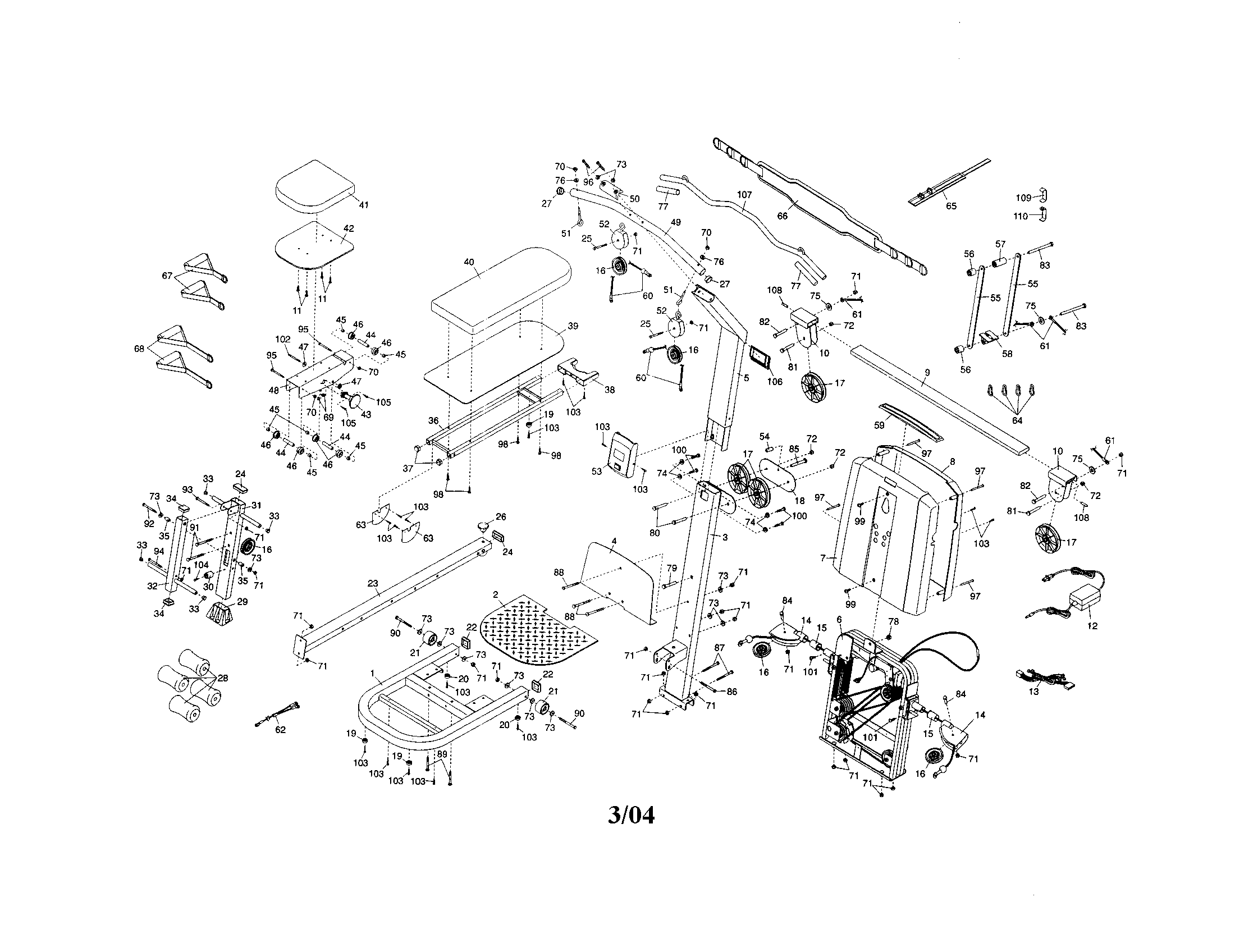

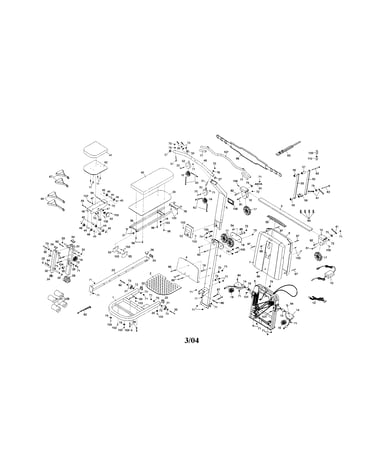

Weight system diagram

Weight system weight bumper (replaces 103805, 114798, 185746, 235133, 235563)

Part #208378

This item is not returnable
$5.39
16% OFF Phone Price : $6.39
In Stock
Hook,snap,bl 115383
#64

Weight system diagram

Hook,snap,bl

Part #115383

Replaced by #103087

?
Manufacturer substitution
This part replaces 115383. Substitute parts can look different from the original.
This item is not returnable
$4.19
19% OFF Phone Price : $5.19
In Stock
Nut,hex Nyl 121050
#71

Weight system diagram

Nut,hex nyl

Part #121050

Replaced by #148710

?
Manufacturer substitution
This part replaces 121050. Substitute parts can look different from the original.
This item is not returnable
In Stock
Puly,rnd,arp 212177

#(NI)

All parts diagram

Puly,rnd,arp

Part #212177

In Stock
Bolt 194527
#98

Weight system diagram

Bolt

Part #194527

This item is not returnable
In Stock
Bkt,puly,piv 208273
#14

Weight system diagram

Bkt,puly,piv

Part #208273

In Stock
Screw,sbhs,b 204592
#87

Weight system diagram

Screw,sbhs,b

Part #204592

This item is not returnable
In Stock
Bkt,puly,w/h 208296
#52

Weight system diagram

Bkt,puly,w/h

Part #208296

This item is not returnable
In Stock
Healthrider Exercise Equipment Hex Nut 153265
#78

Weight system diagram

Healthrider exercise equipment hex nut

Part #153265

This item is not returnable
In Stock
Puly,rnd,arp 212172

#(NI)

All parts diagram

Puly,rnd,arp

Part #212172

In Stock
