Samsung
Washer

Model # WF338AAW/XAA-01 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF338AAW-XAA-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

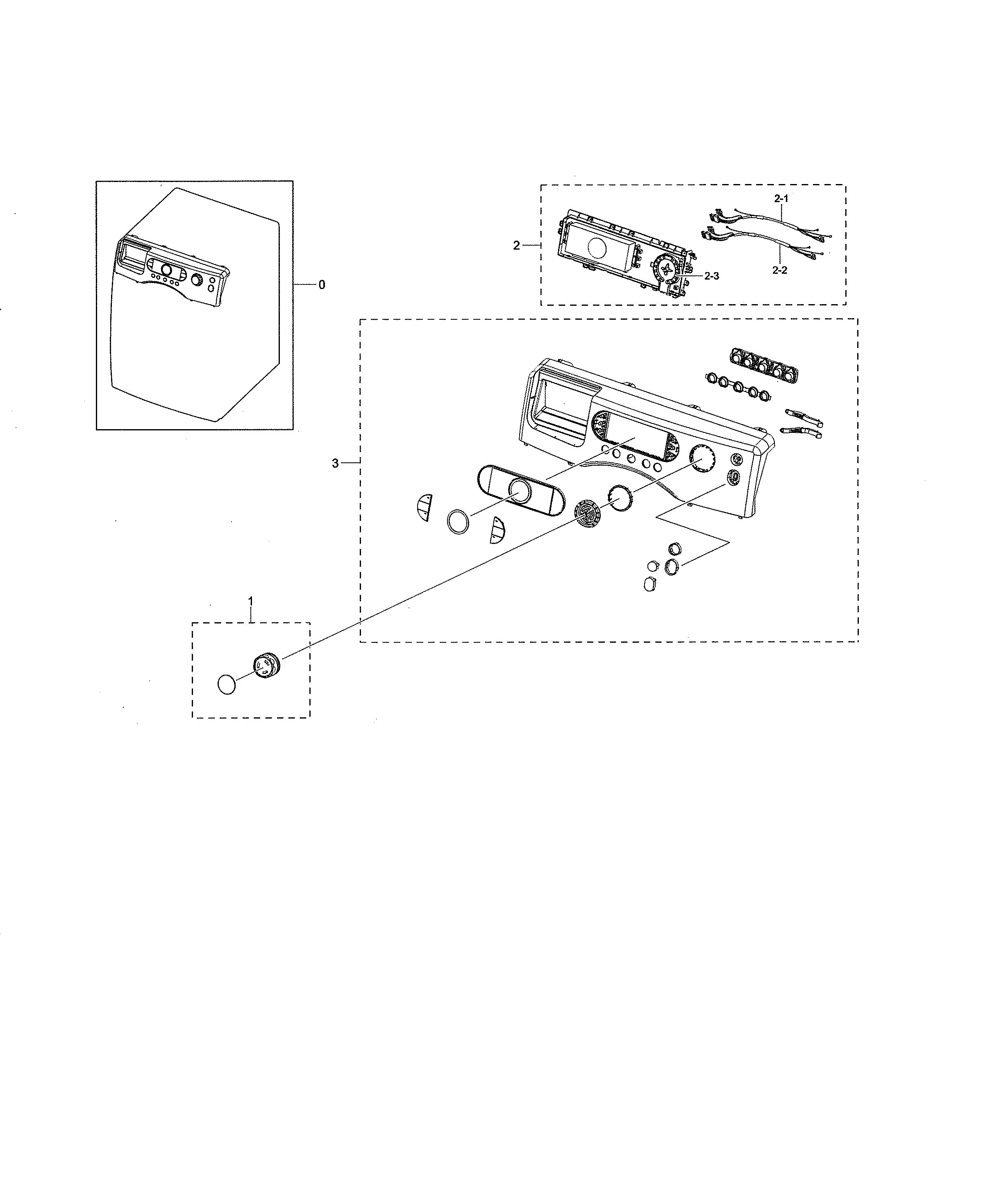

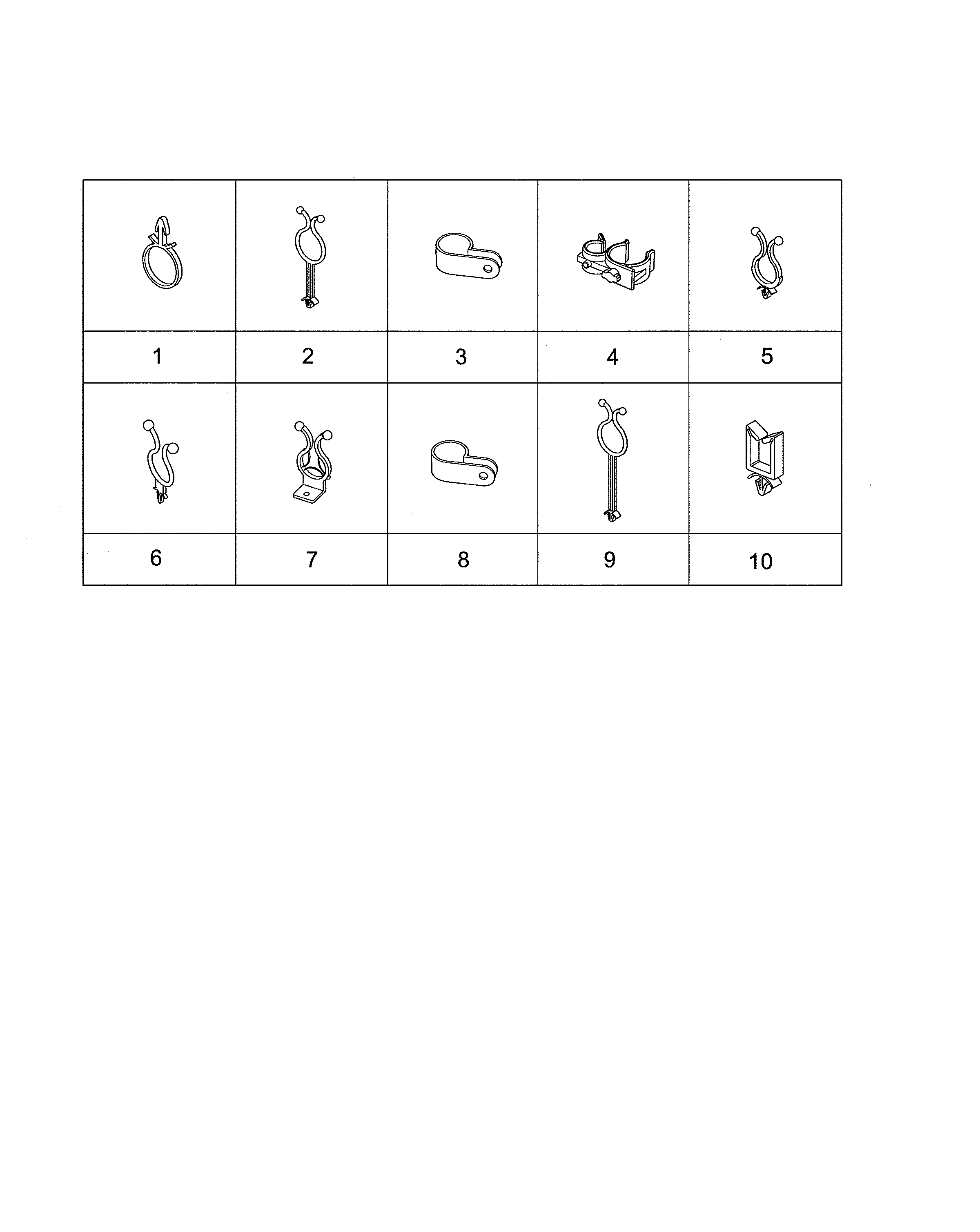

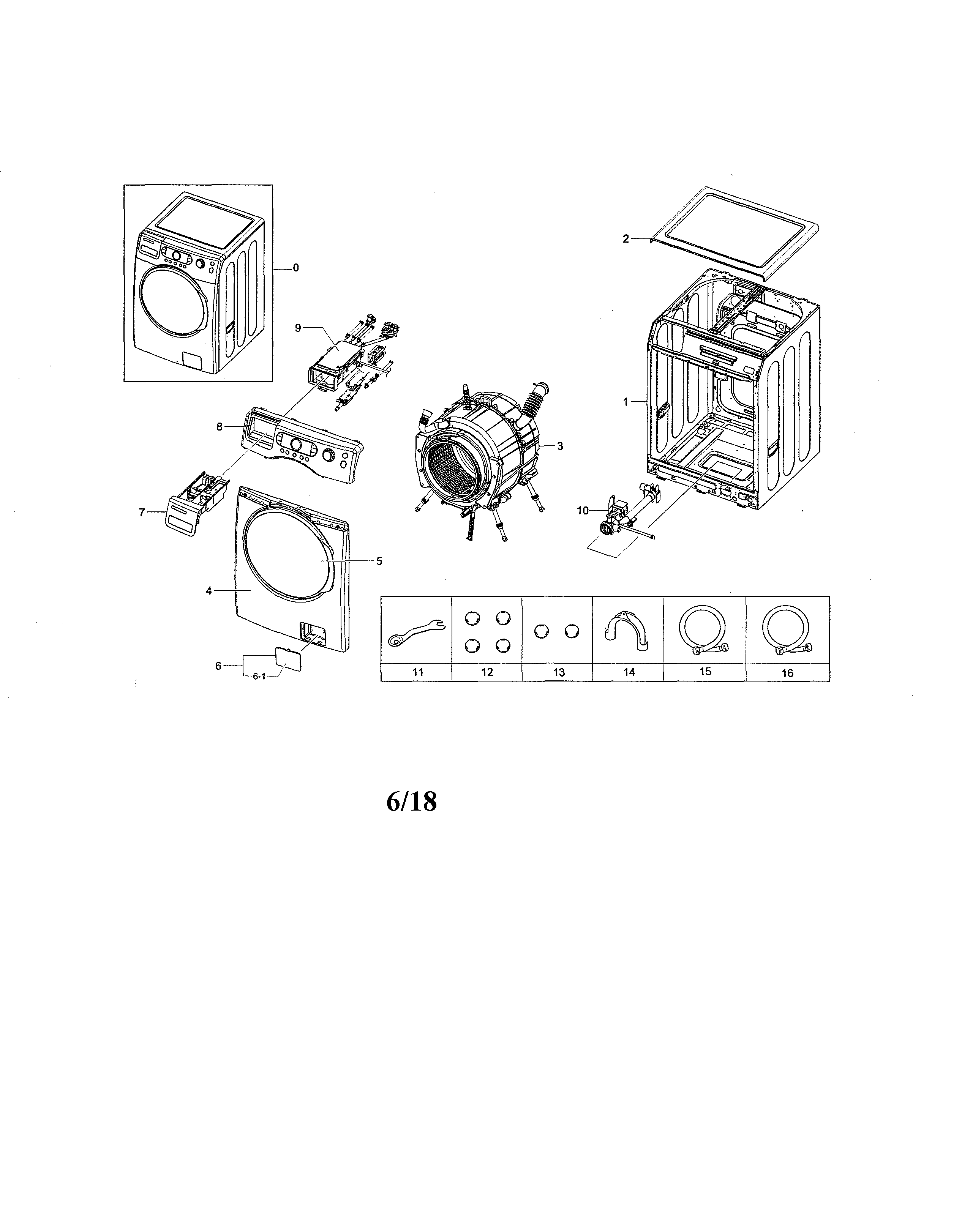

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Washer Drain Pump (replaces Dc31-00016a) DC31-00054A
#9-2

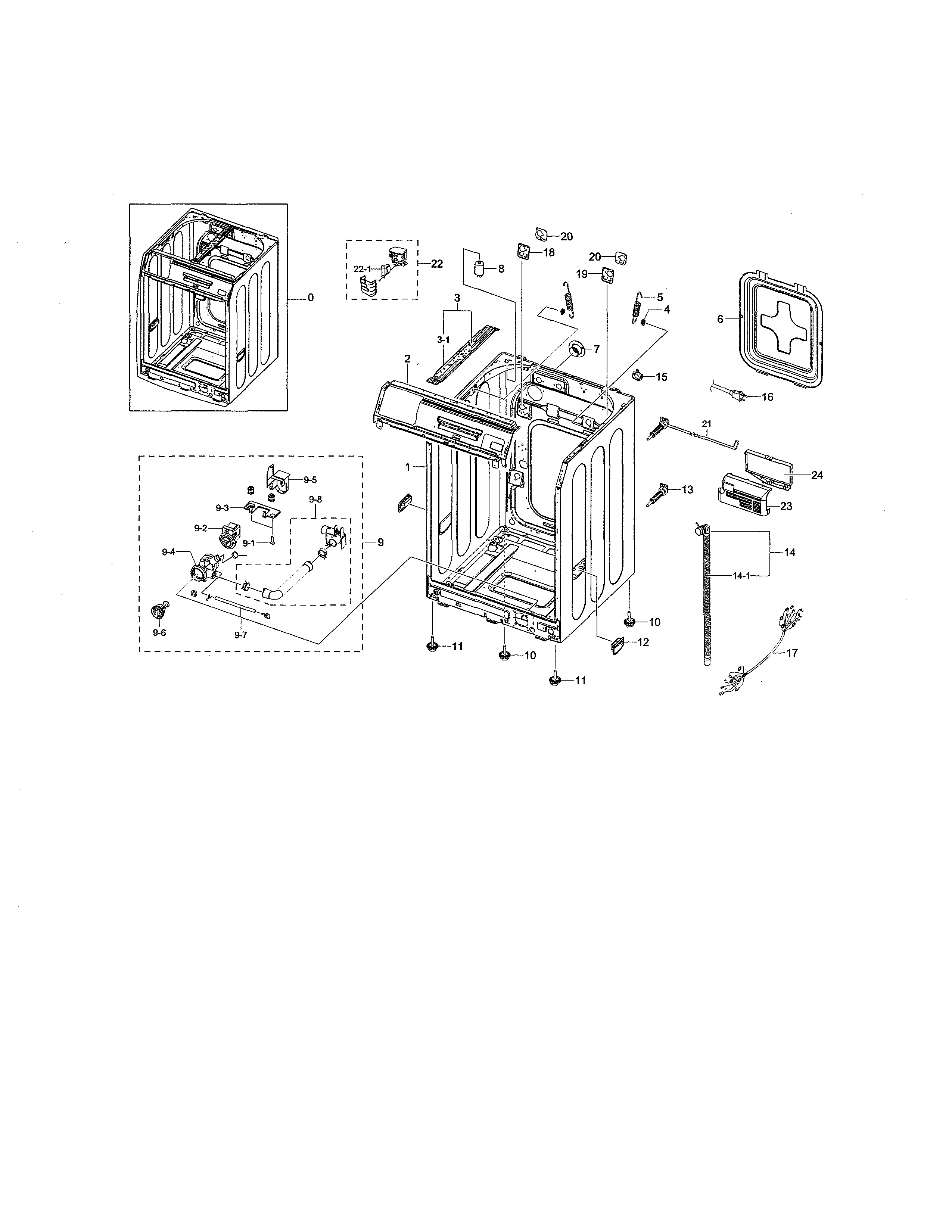

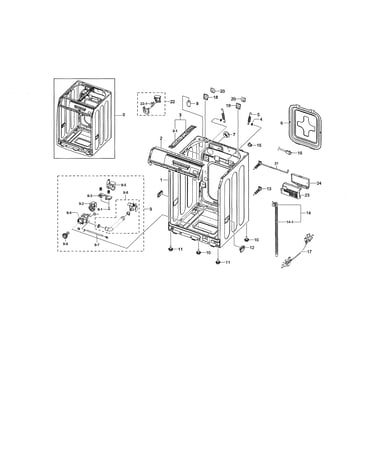

Frame & cover diagram

Washer drain pump (replaces dc31-00016a)

Part #DC31-00054A

BEST SELLER
$131.97 |
8% OFF Phone Price : $143.97
In Stock
Washer Water Inlet Valve (replaces Dc62-30314h) DC62-30314K
#5

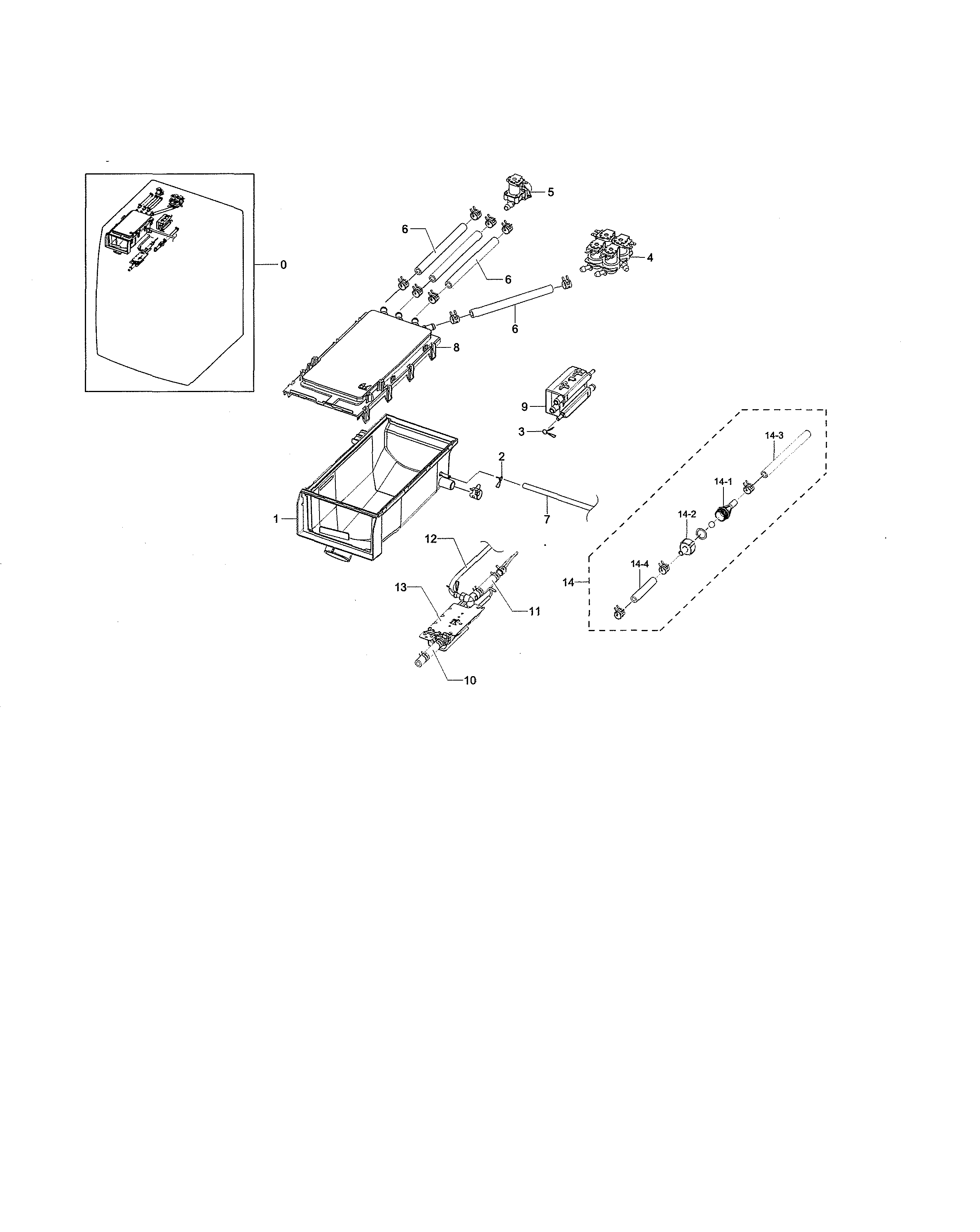

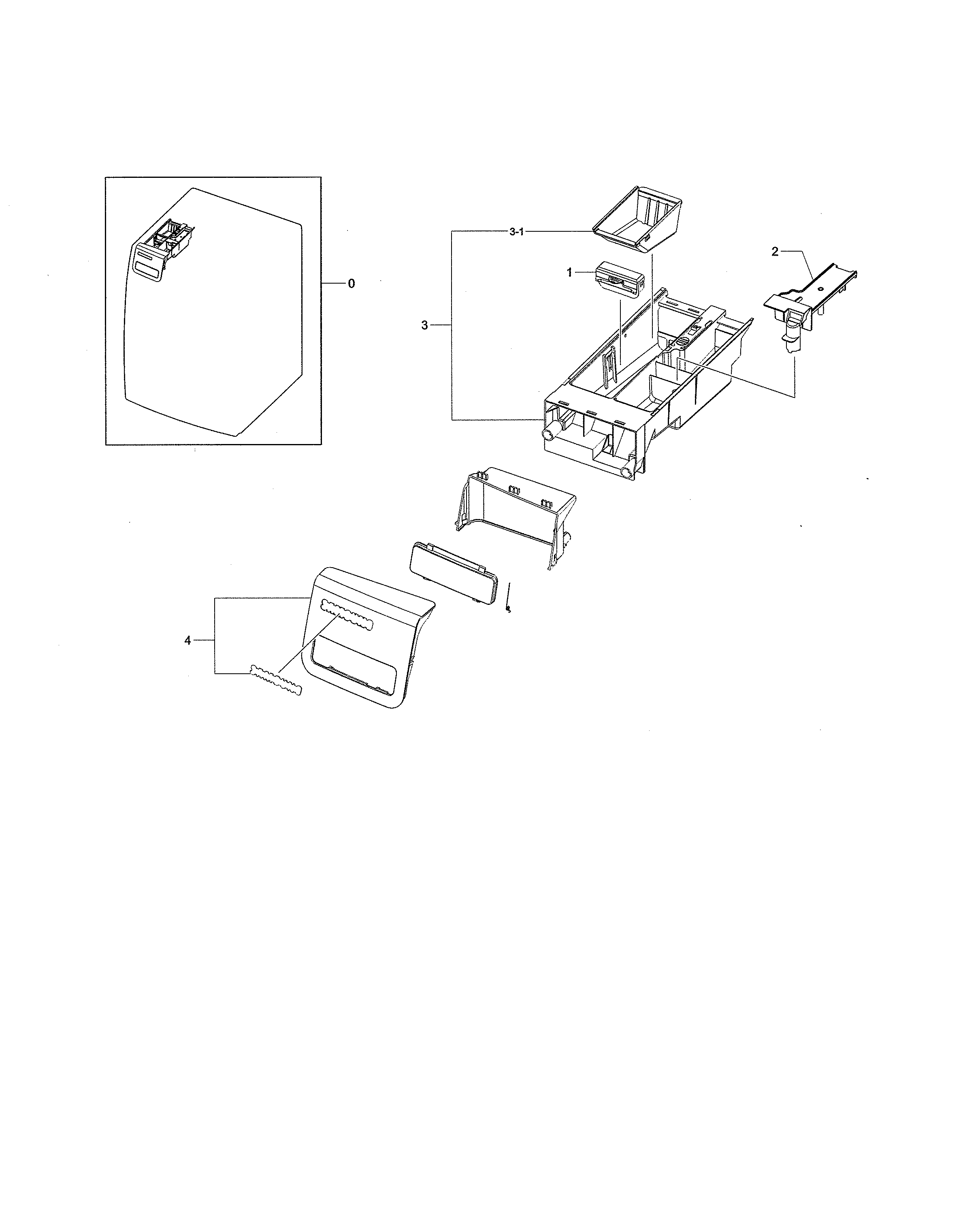

Drawer housing diagram

Washer water inlet valve (replaces dc62-30314h)

Part #DC62-30314K

BEST SELLER
$61.69 |
9% OFF Phone Price : $67.69
In Stock
Washer Door Boot Spring Clamp DC97-04973B
#12

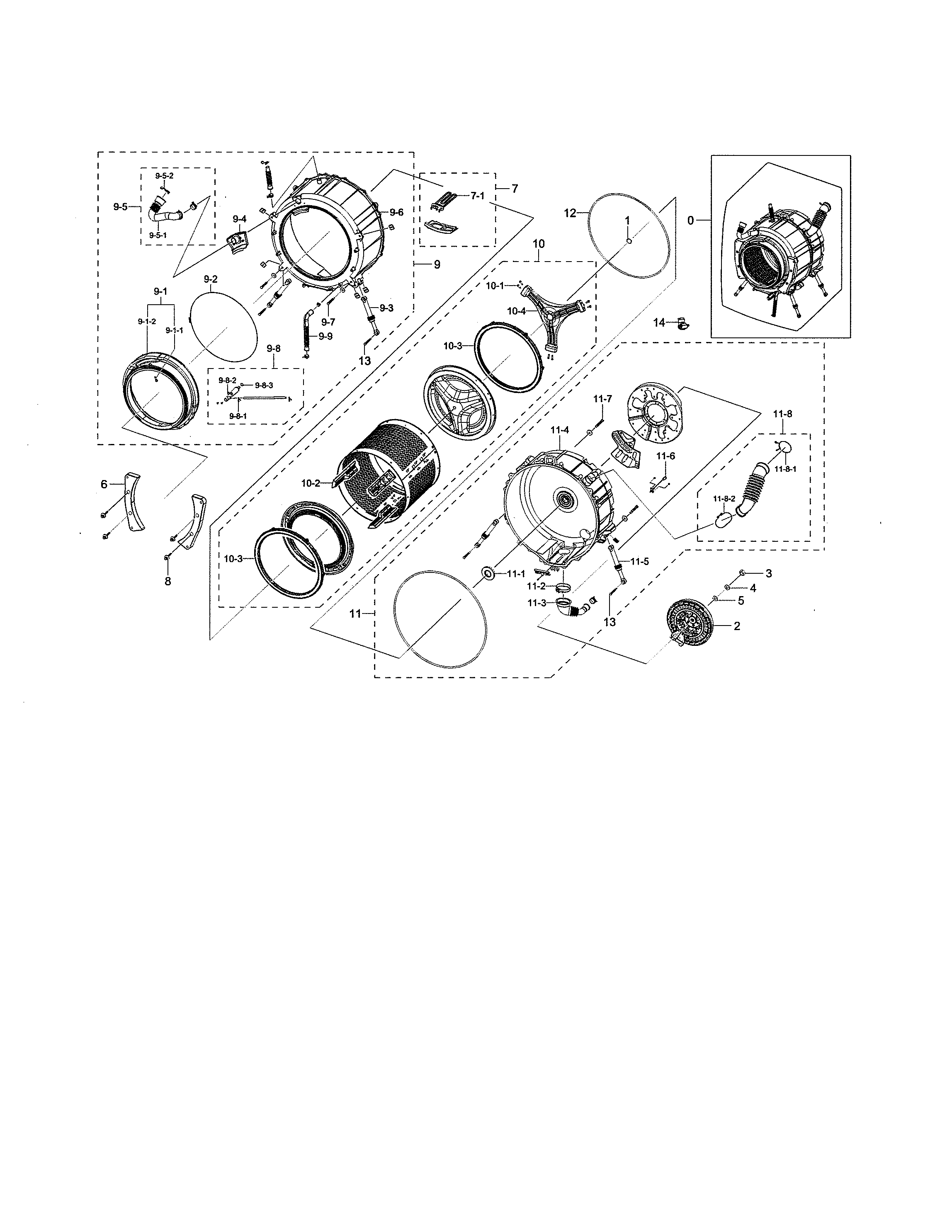

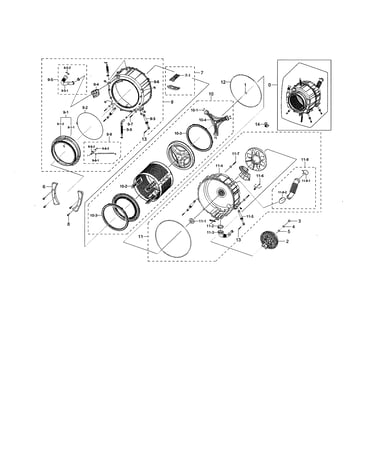

Tub & drum diagram

Washer door boot spring clamp

Part #DC97-04973B

BEST SELLER
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Washer Bolt (replaces 6011-001491) DC60-40137A
#10-1

Tub & drum diagram

Washer bolt (replaces 6011-001491)

Part #DC60-40137A

BEST SELLER
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Washer Rear Tub Gasket DC62-00156A
#11-1

Tub & drum diagram

Washer rear tub gasket

Part #DC62-00156A

BEST SELLER
This item is not returnable
$29.71 |
17% OFF Phone Price : $35.71
In Stock
Washer Door Boot Spring Clamp DC97-04981D
#9-2

Tub & drum diagram

Washer door boot spring clamp

Part #DC97-04981D

BEST SELLER
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Door Latch DC66-00375A
#1-11

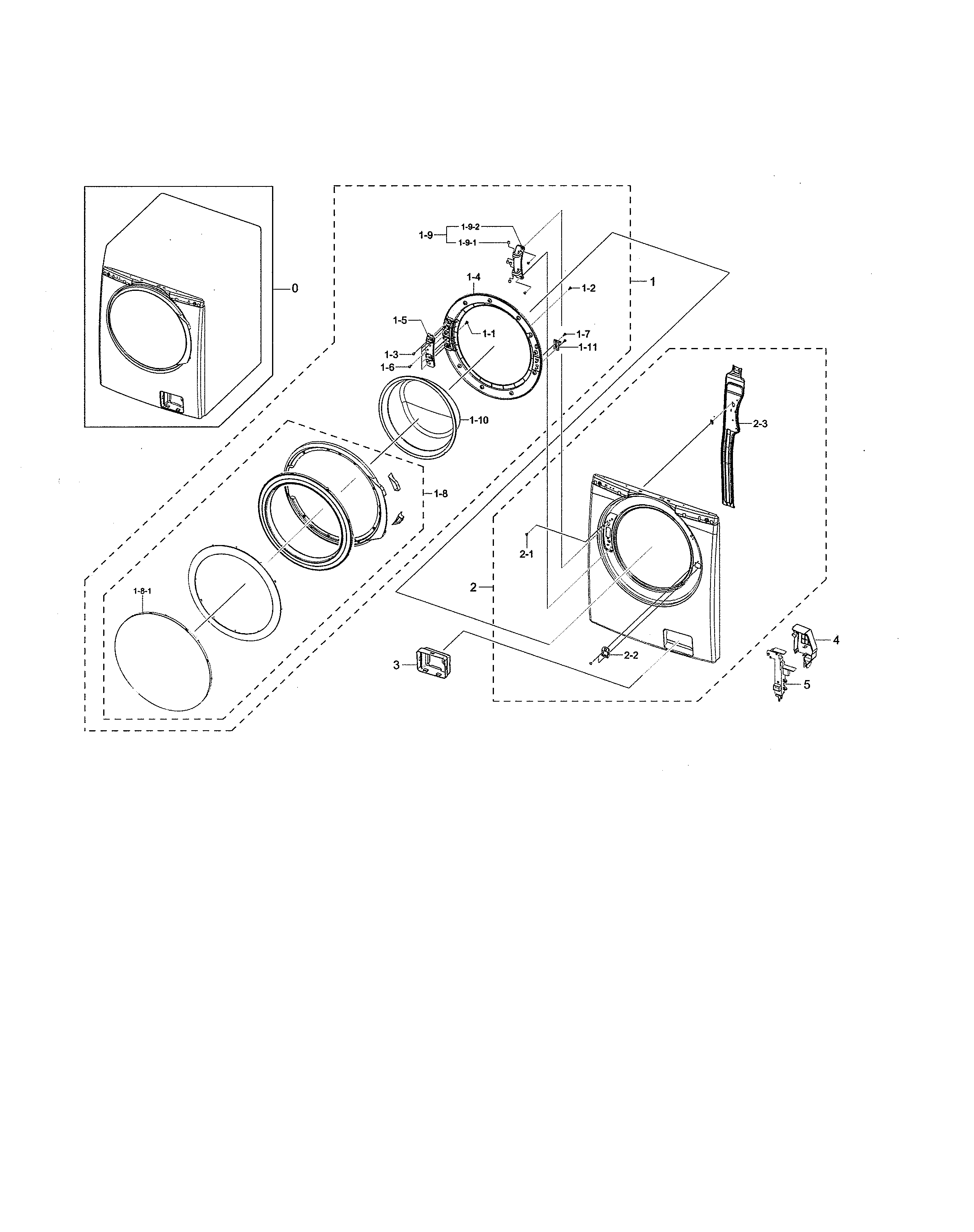

Front frame & door diagram

Door latch

Part #DC66-00375A

BEST SELLER
$38.09
In Stock
Washer Drain Hose (replaces Dc67-00330c) DC97-15273A
#14

Frame & cover diagram

Washer drain hose (replaces dc67-00330c)

Part #DC97-15273A

$46.43 |
11% OFF Phone Price : $52.43
In Stock
Kenmore Washer Suspension Spring Bracket DC61-02432A
#4

Frame & cover diagram

Kenmore washer suspension spring bracket

Part #DC61-02432A

This item is not returnable
$2.17
In Stock
Door Glass DC64-00504A
#1-10

Front frame & door diagram

Door glass

Part #DC64-00504A

Replaced by #DC64-00504C

?
Manufacturer substitution
This part replaces DC64-00504A. Substitute parts can look different from the original.
$148.03 |
7% OFF Phone Price : $160.03
In Stock
