Roper
Top-Mount Refrigerator

Model # RT21LMXKT00 Official Roper refrigerator

Here are the diagrams and repair parts for Official Roper RT21LMXKT00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

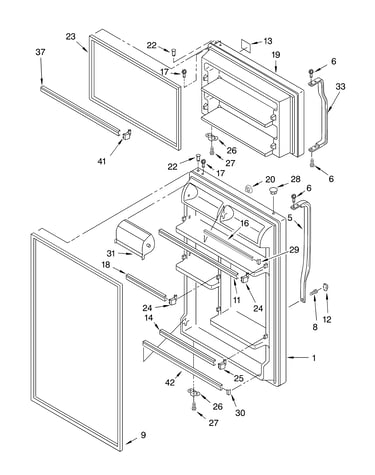

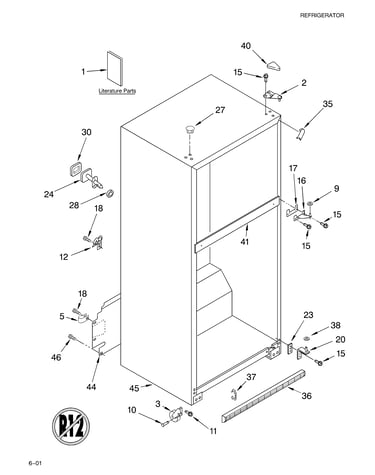

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 210 parts  |
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#100

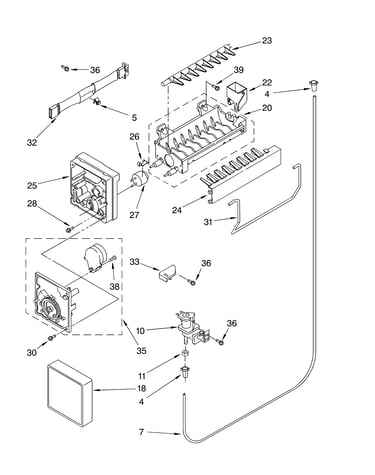

Icemaker diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Refrigerator Light Switch 1118894
#19

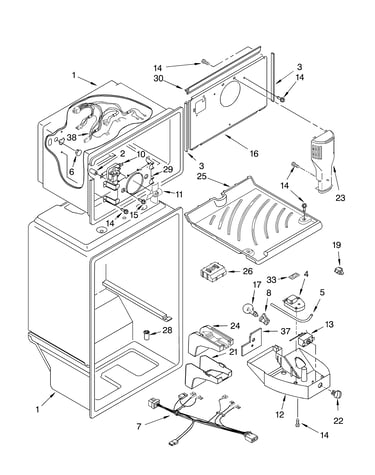

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Defrost Timer 2188376
#4

Liner diagram

Refrigerator defrost timer

Part #2188376

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 2188376. Substitute parts can look different from the original.
BEST SELLER
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Drier-tue 2199167
#29

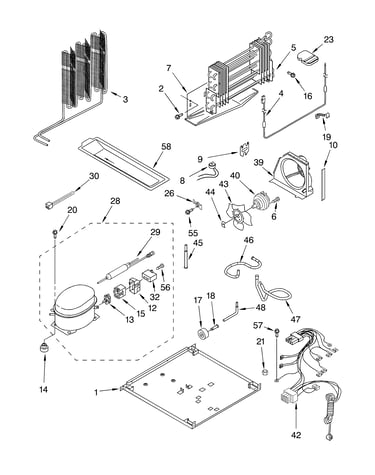

Unit diagram

Drier-tue

Part #2199167

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2199167. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Dryer Tube 4387019
#29A

Unit diagram

Refrigerator dryer tube

Part #4387019

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Water Tube 2181943
#7

Icemaker diagram

Refrigerator water tube

Part #2181943

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 2181943. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Refrigerator Crisper Pan 2201023
#24

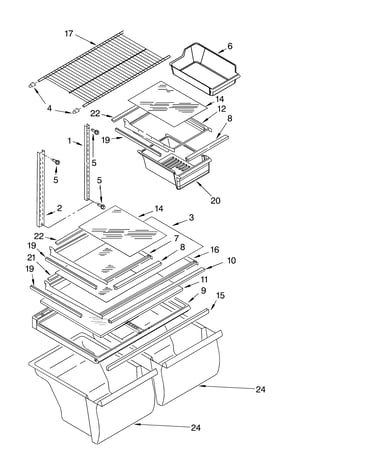

Shelf/optional diagram

Refrigerator crisper pan

Part #2201023

Replaced by #W10854037

?
Manufacturer substitution
This part replaces 2201023. Substitute parts can look different from the original.
BEST SELLER
$79.65 |
7% OFF Phone Price : $85.65
In Stock
Refrigerator Defrost Bi-metal 2182380
#8

Unit diagram

Refrigerator defrost bi-metal

Part #2182380

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 2182380. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Refrigerator Compressor 2216049
#28

Unit diagram

Refrigerator compressor

Part #2216049

Replaced by #W10309988

?
Manufacturer substitution
This part replaces 2216049. Substitute parts can look different from the original.
BEST SELLER
$285.83 |
6% OFF Was : $304.56
In Stock
Refrigerator Inlet Valve 2182104
#10

Icemaker diagram

Refrigerator inlet valve

Part #2182104

Replaced by #WP2315576

?
Manufacturer substitution
This part replaces 2182104. Substitute parts can look different from the original.
BEST SELLER
$46.01 |
12% OFF Phone Price : $52.01
In Stock
