GE
Side-By-Side Refrigerator

Model # TFT30PRBAWW Official GE refrigerator - b series

Here are the diagrams and repair parts for Official GE TFT30PRBAWW refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

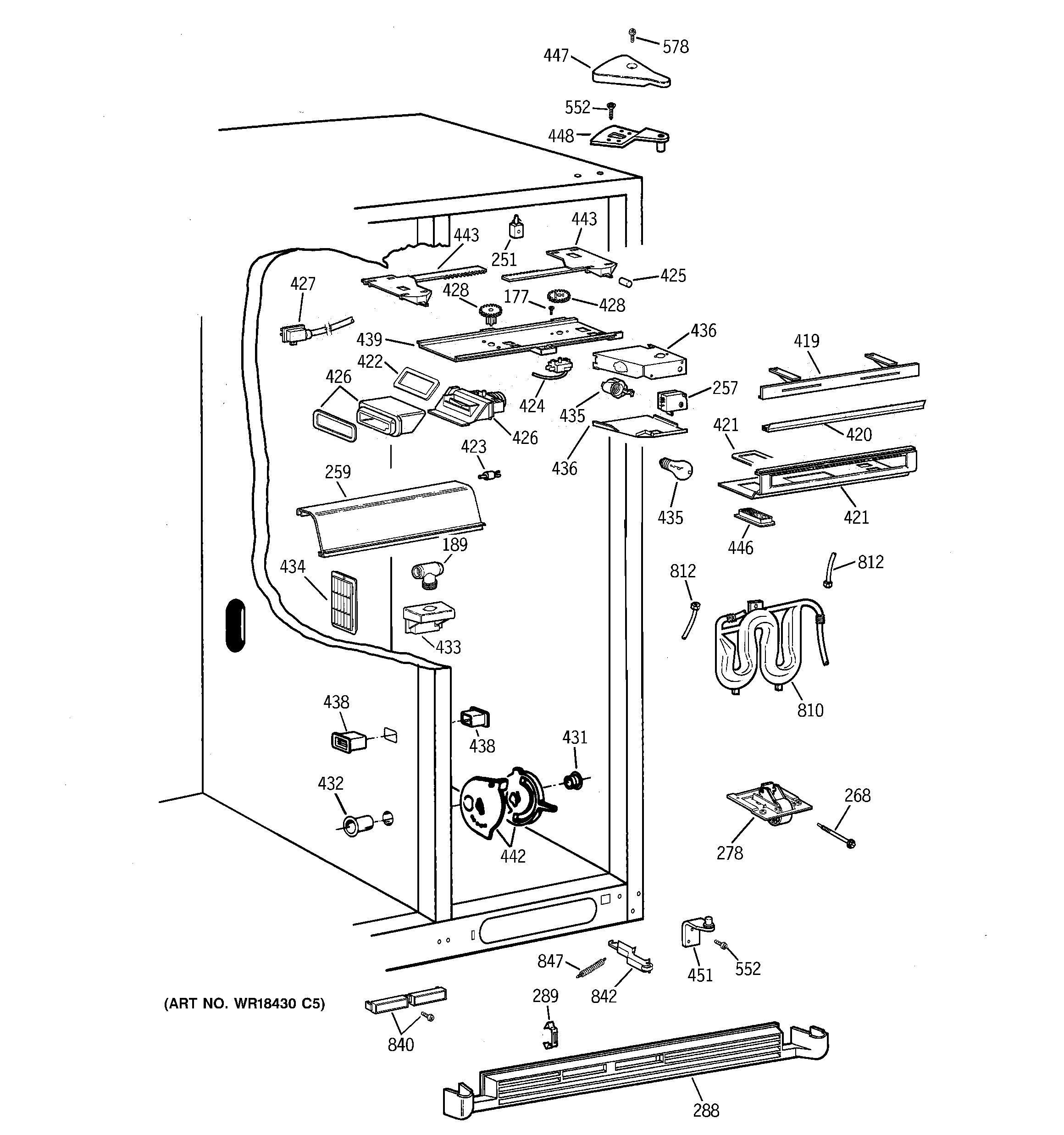

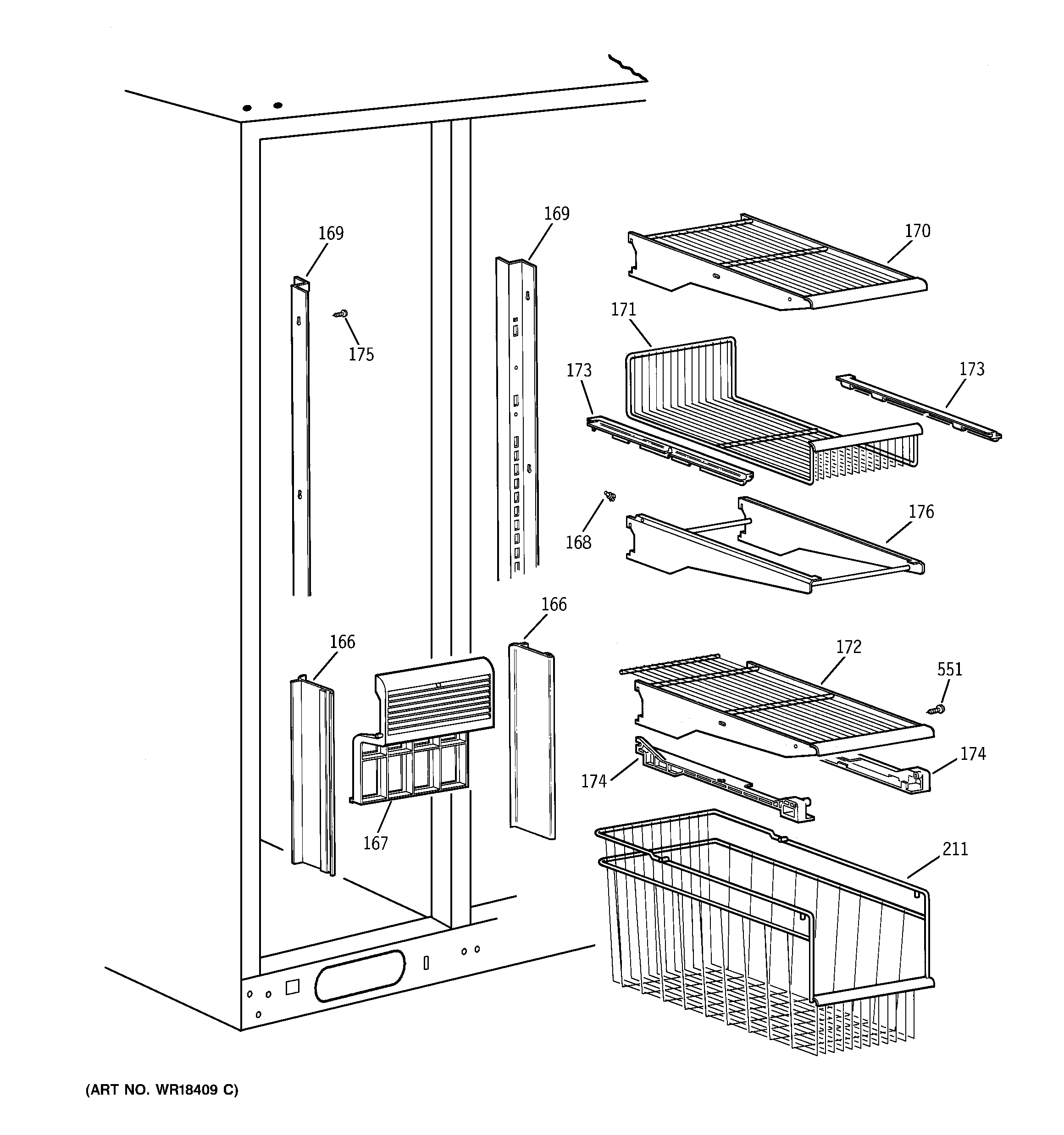

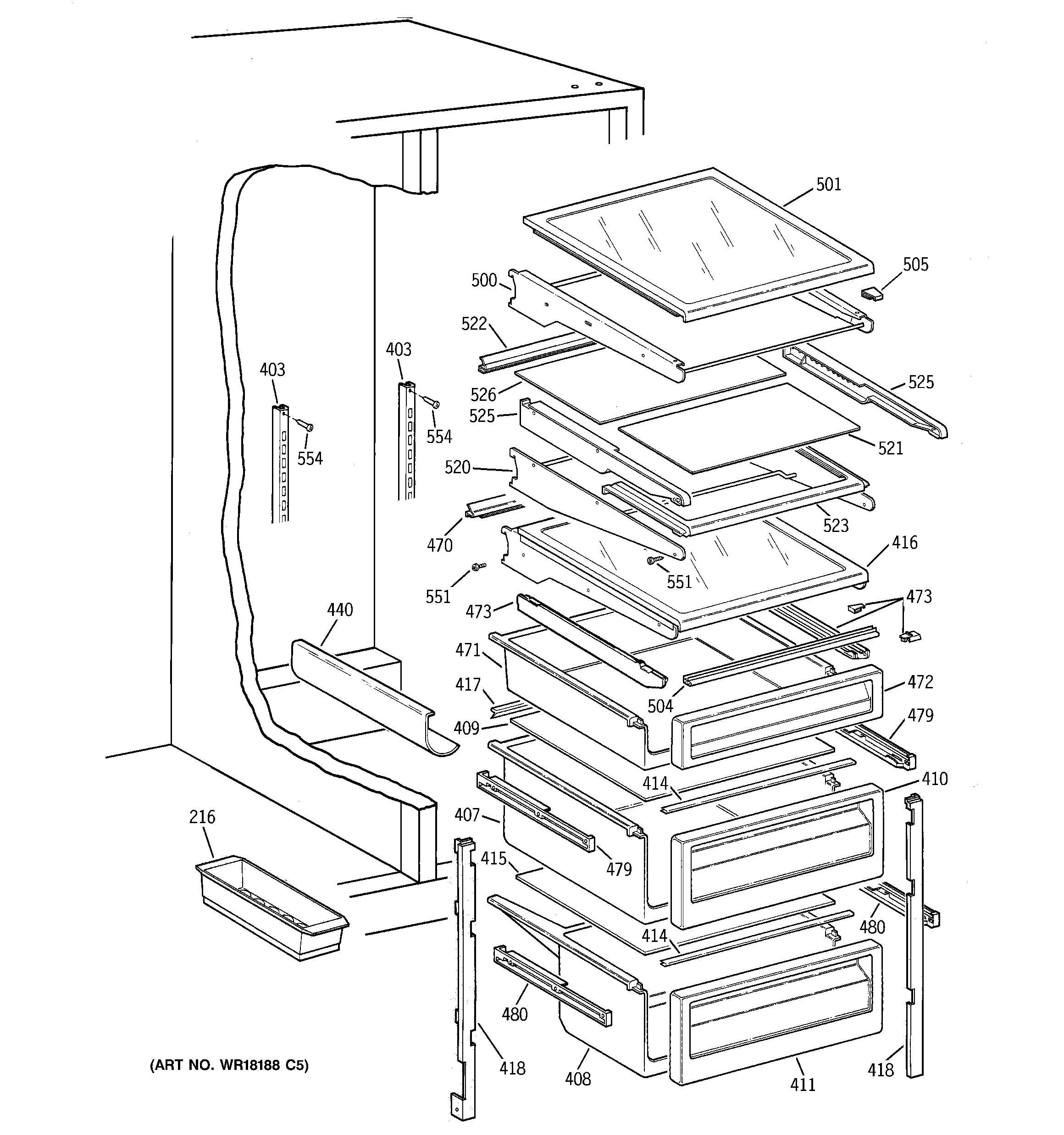

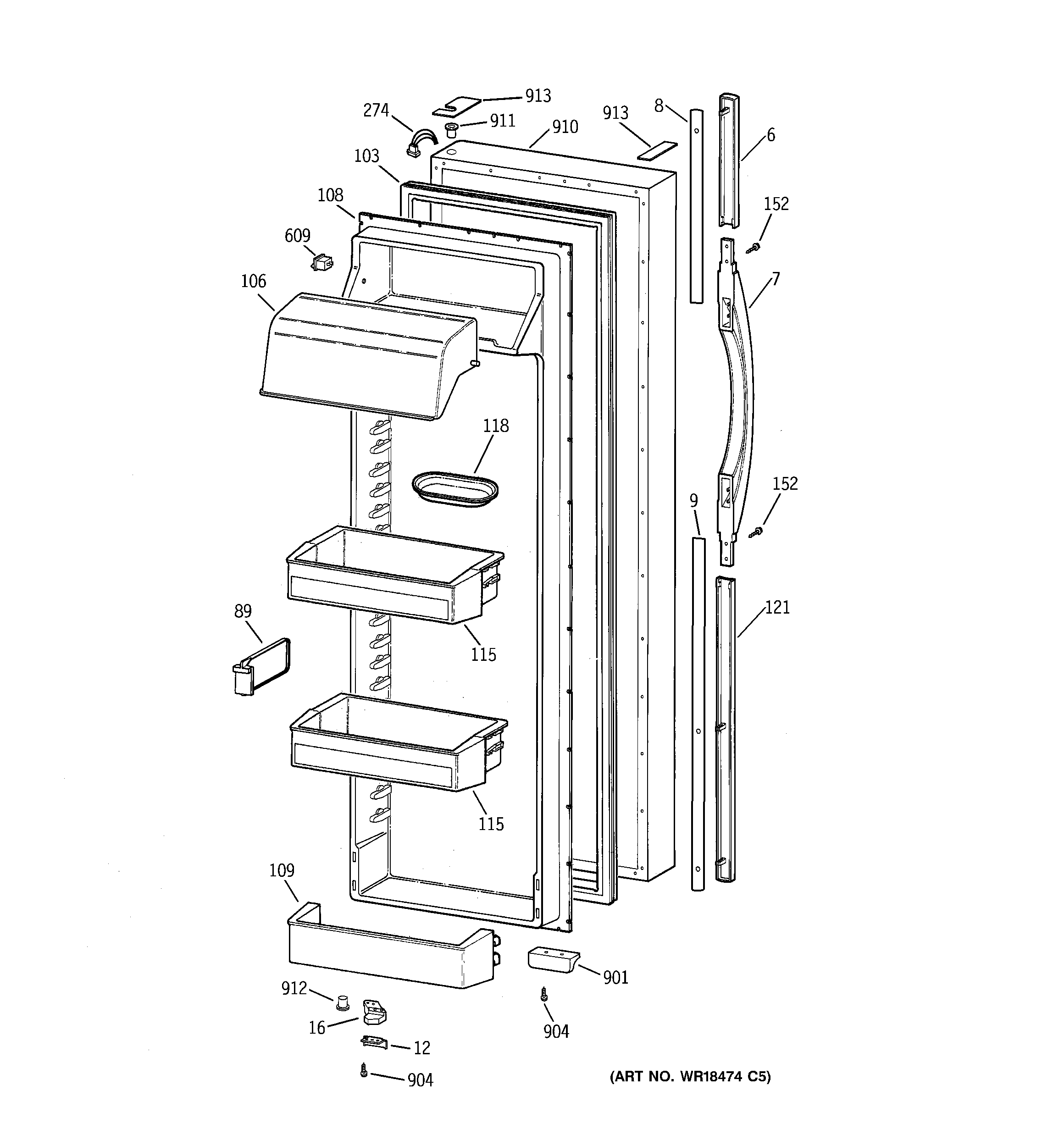

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 336 parts  |
Icemaker Crescent WR30X0328
#820

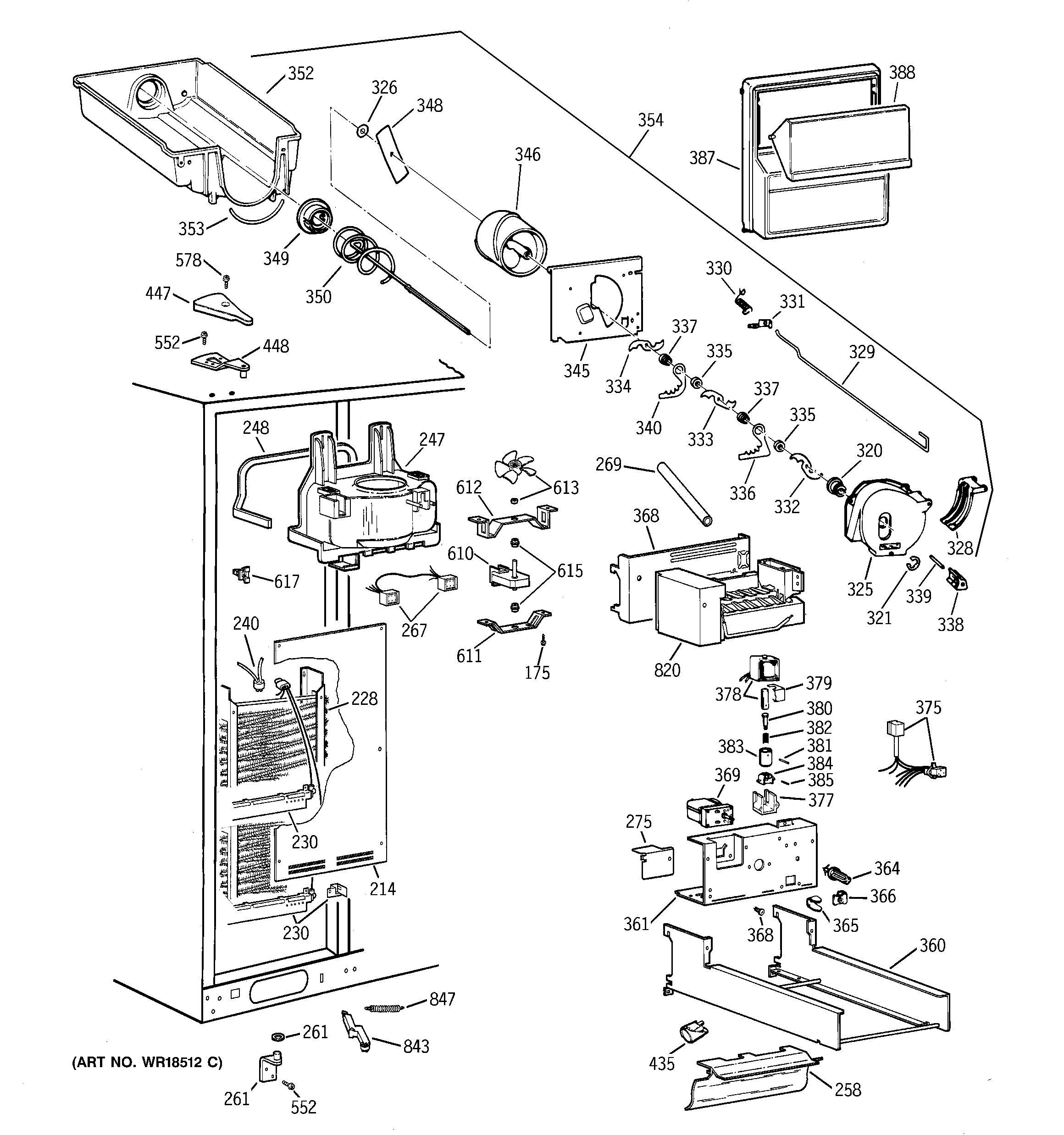

Freezer section diagram

Icemaker crescent

Part #WR30X0328

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X0328. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Dryer Filter WR86X0096
#740

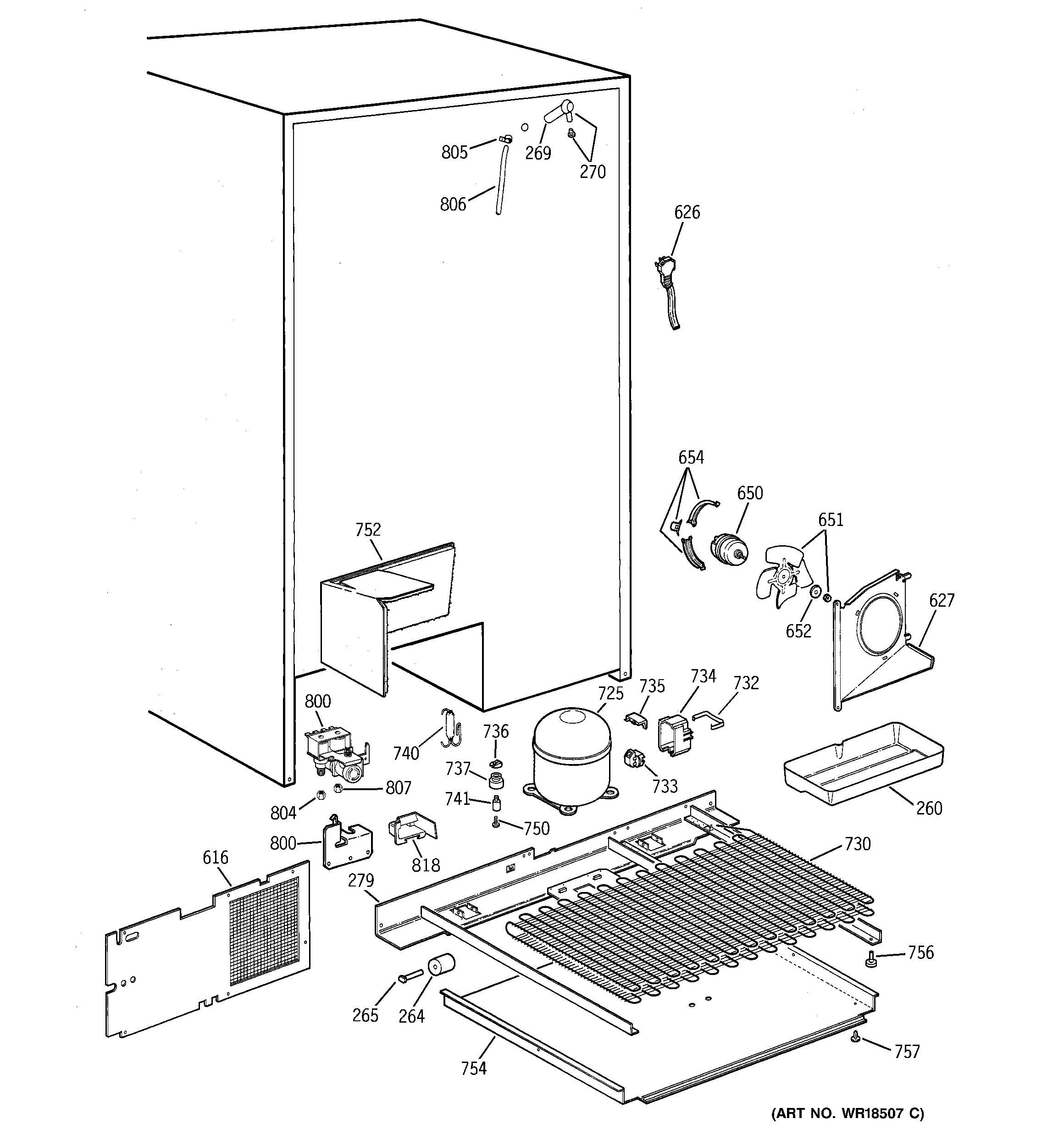

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Connector WR02X10067
#80

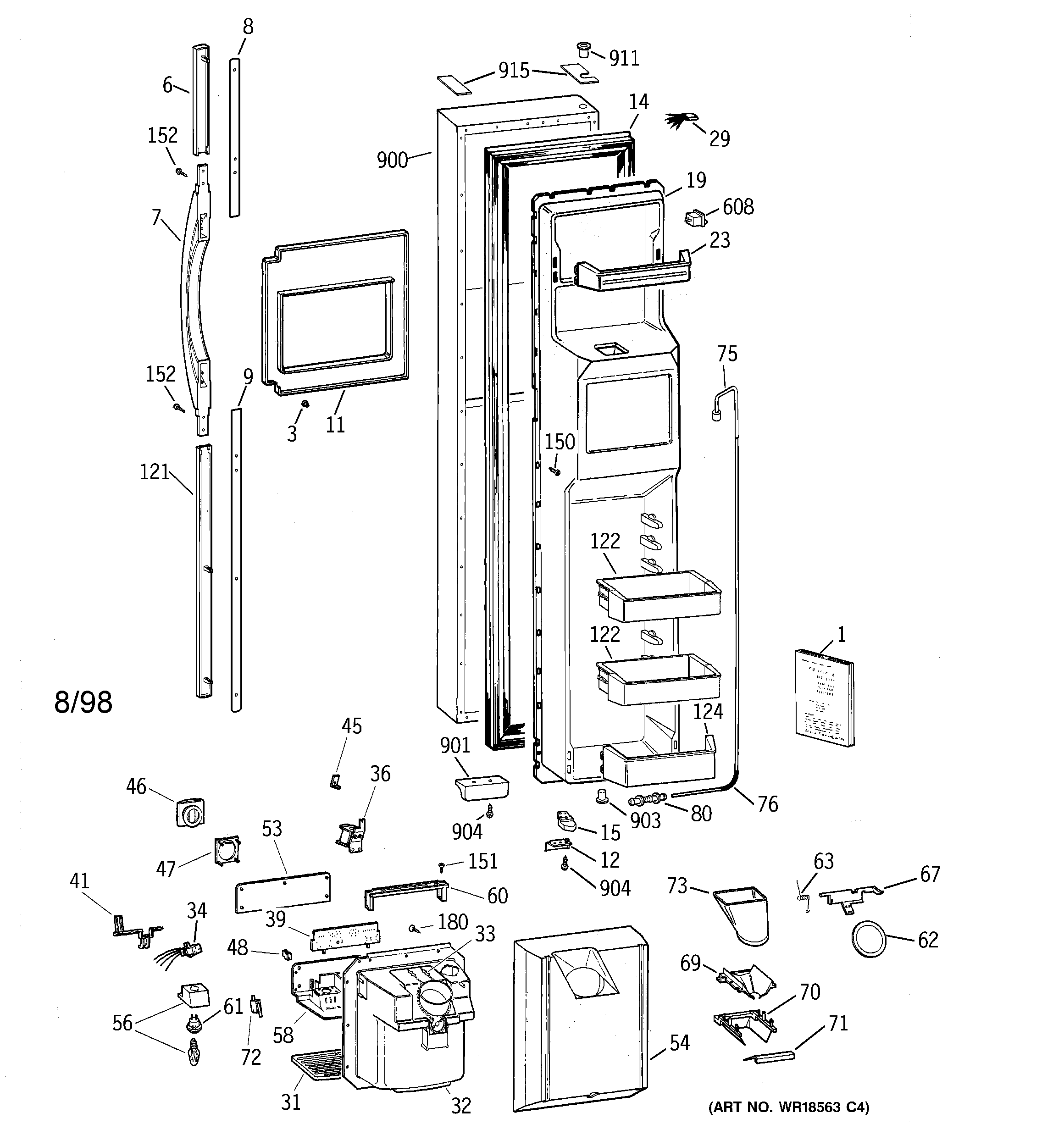

Freezer door diagram

Refrigerator connector

Part #WR02X10067

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X10067. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Nut & Union WR02X4048
#807

Unit parts diagram

Nut & union

Part #WR02X4048

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X4048. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Dr Reces Asm WR17X3093
#62

Freezer door diagram

Dr reces asm

Part #WR17X3093

Replaced by #WR17X11653

?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Refrigerator Solenoid Arm Assembly WR62X0058
#378

Freezer section diagram

Refrigerator solenoid arm assembly

Part #WR62X0058

Replaced by #WR62X23154

?
Manufacturer substitution
This part replaces WR62X0058. Substitute parts can look different from the original.
BEST SELLER
$91.44 |
6% OFF Phone Price : $97.44
In Stock
Refrigerator Water Valve WR57X0111
#800

Unit parts diagram

Refrigerator water valve

Part #WR57X0111

Replaced by #WR57X10051

?
Manufacturer substitution
This part replaces WR57X0111. Substitute parts can look different from the original.
BEST SELLER
$51.14 |
11% OFF Phone Price : $57.14
In Stock
Refrigerator Water Valve Bracket WR02X10105
#800

Unit parts diagram

Refrigerator water valve bracket

Part #WR02X10105

Replaced by #WR57X10051

?
Manufacturer substitution
This part replaces WR02X10105. Substitute parts can look different from the original.
BEST SELLER
$51.14 |
11% OFF Phone Price : $57.14
In Stock
Condenser Motor WR60X10010
#650

Unit parts diagram

Condenser motor

Part #WR60X10010

Replaced by #WR60X187

?
Manufacturer substitution
This part replaces WR60X10010. Substitute parts can look different from the original.
BEST SELLER
$207.94 |
5% OFF Phone Price : $219.94
In Stock
