Model # 137273350 Official Craftsman 15" drill press

Here are the diagrams and repair parts for Official Craftsman 137273350 15" drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Bearing 2001ZZ6202
#84

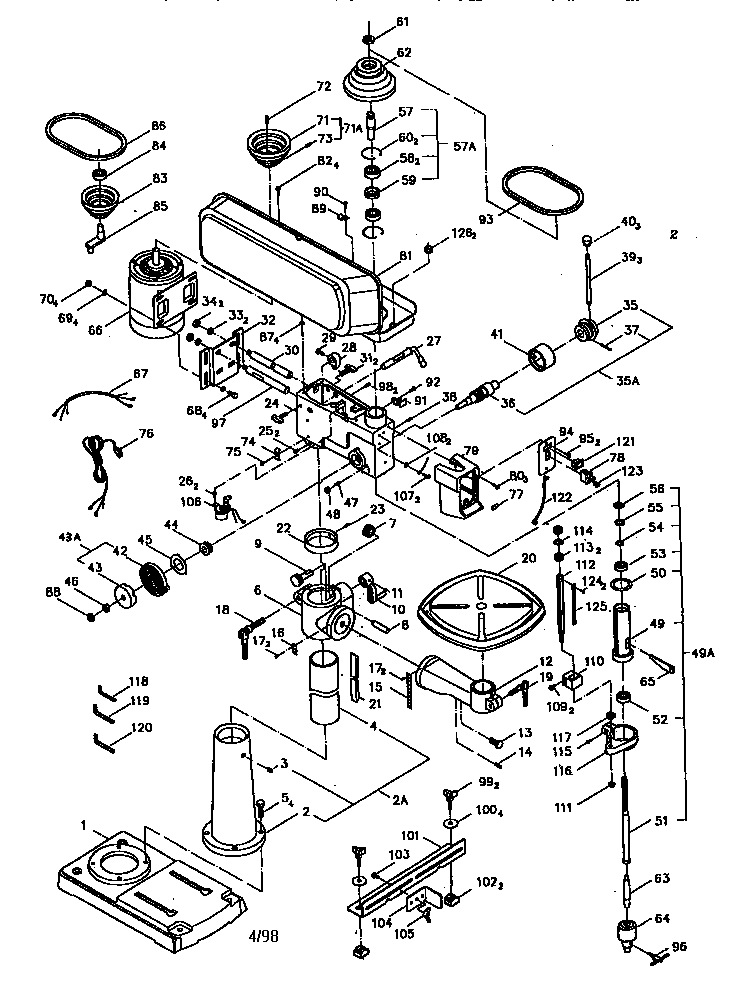

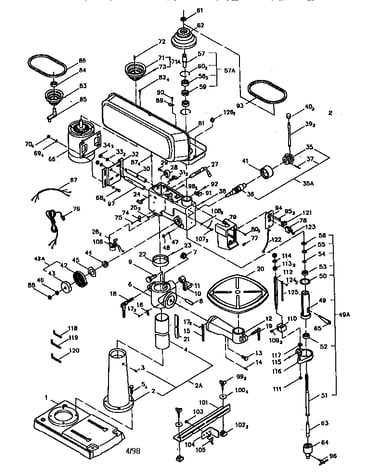

Unit parts diagram

Bearing

Part #2001ZZ6202

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2672BBDA40
#103

Unit parts diagram

Bolt

Part #2672BBDA40

The manufacturer no longer makes this part, and there's no substitute part

Switch 2898DB7G06
#78

Unit parts diagram

Switch

Part #2898DB7G06

The manufacturer no longer makes this part, and there's no substitute part

Plate 10838301
#102

Unit parts diagram

Plate

Part #10838301

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 2806555808
#122

Unit parts diagram

Lead wire

Part #2806555808

The manufacturer no longer makes this part, and there's no substitute part

Table 10602138
#20

Unit parts diagram

Table

Part #10602138

The manufacturer no longer makes this part, and there's no substitute part

Chuck 2135CNQ103
#64

Unit parts diagram

Chuck

Part #2135CNQ103

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Table Bracket Pinion Gear 10600702
#7

Unit parts diagram

Drill press table bracket pinion gear

Part #10600702

The manufacturer no longer makes this part, and there's no substitute part

M Hex Nut 2701FBD112
#34

Unit parts diagram

M hex nut

Part #2701FBD112

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Crank Handle 10602001
#19

Unit parts diagram

Drill press crank handle

Part #10602001

The manufacturer no longer makes this part, and there's no substitute part
