Kenmore
Canister Vacuum

Model # 1162543081 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162543081 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Spring (silver) 706024
#34

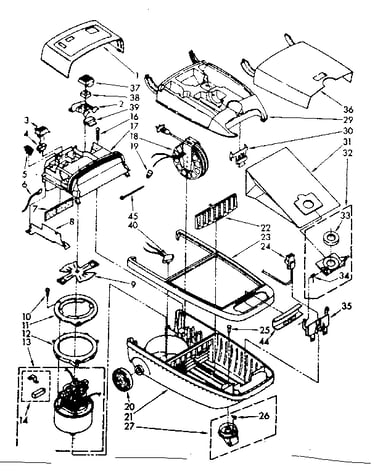

Vacuum cleaner parts diagram

Spring (silver)

Part #706024

The manufacturer no longer makes this part, and there's no substitute part

Cover 743352
#11

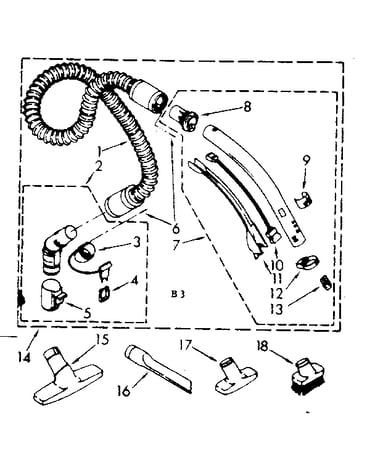

Hose and attachment parts diagram

Cover

Part #743352

The manufacturer no longer makes this part, and there's no substitute part

Lead 747315
#6A

Vacuum cleaner parts diagram

Lead

Part #747315

The manufacturer no longer makes this part, and there's no substitute part

Wheel 706007
#20

Vacuum cleaner parts diagram

Wheel

Part #706007

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster 706003
#27

Vacuum cleaner parts diagram

Vacuum caster

Part #706003

The manufacturer no longer makes this part, and there's no substitute part

Release 706019
#30

Vacuum cleaner parts diagram

Release

Part #706019

The manufacturer no longer makes this part, and there's no substitute part

Motor 705314
#13

Vacuum cleaner parts diagram

Motor

Part #705314

The manufacturer no longer makes this part, and there's no substitute part

Motor 700688
#18

Vacuum cleaner parts diagram

Motor

Part #700688

The manufacturer no longer makes this part, and there's no substitute part

Switch 706763
#40

Vacuum cleaner parts diagram

Switch

Part #706763

The manufacturer no longer makes this part, and there's no substitute part

Parts List LIT748072

#NI

All parts diagram

Parts list

Part #LIT748072

The manufacturer no longer makes this part, and there's no substitute part
