Model # 6KCDS250V1 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid 6KCDS250V1 garbage disposal, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for6KCDS250V1 Garbage Disposal

  • Mounting Gasket 4211334
    #14

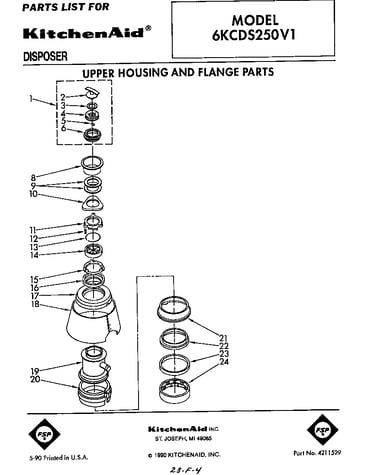

    Upper housing and flange diagram

    Mounting gasket

    Part #4211334

    Replaced by #WP4211334

    ?
    Manufacturer substitution
    This part replaces 4211334. Substitute parts can look different from the original.
    5 (1)
    This item is not returnable
    $22.59 |
    21% OFF Phone Price : $28.59
    In Stock
  • Retaining Ring 4211357
    #5

    Upper housing and flange diagram

    Retaining ring

    Part #4211357

    The manufacturer no longer makes this part, and there's no substitute part

  • Trim, Shell Assembly 4211536
    #16

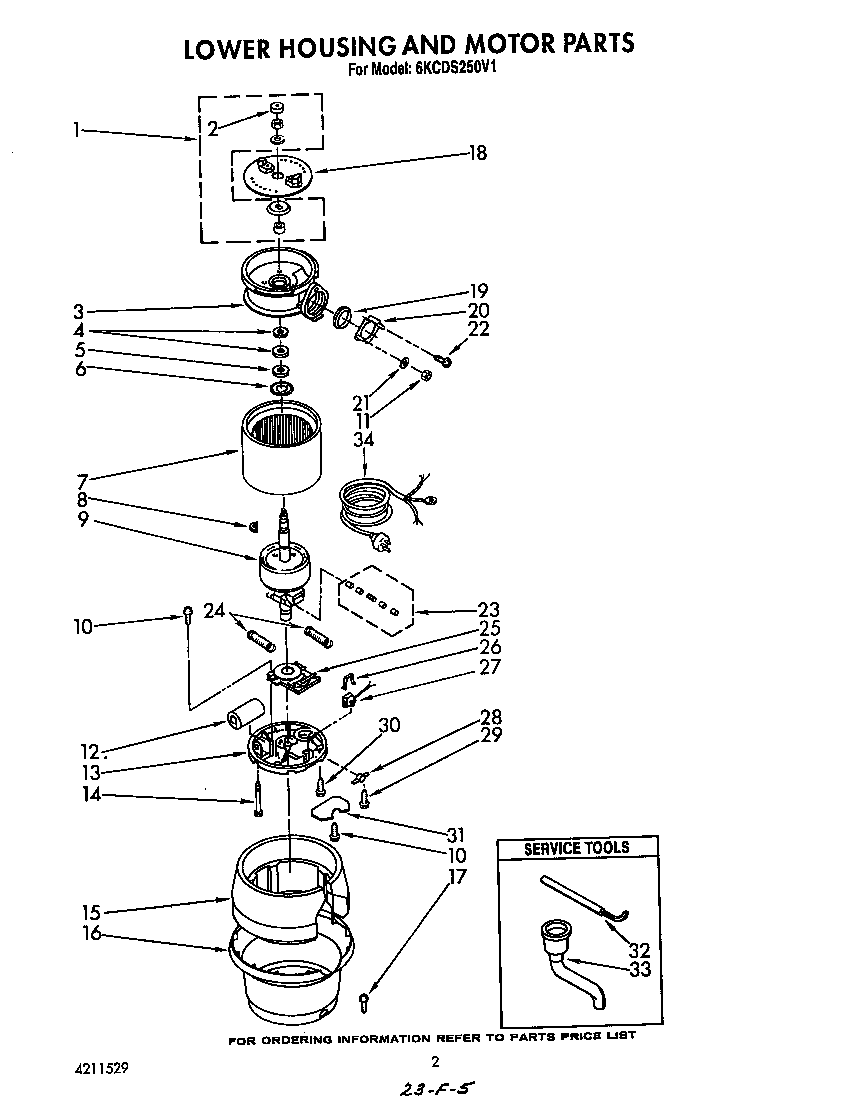

    Lower housing and motor diagram

    Trim, shell assembly

    Part #4211536

    The manufacturer no longer makes this part, and there's no substitute part

  • Kit, Sleeve & Seal (includes Plug, Nut, Washer, Slinger,and Sleeve) 4211311
    #1

    Lower housing and motor diagram

    Kit, sleeve & seal (includes plug, nut, washer, slinger,and sleeve)

    Part #4211311

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw, Backup 4211305
    #12

    Upper housing and flange diagram

    Screw, backup

    Part #4211305

    The manufacturer no longer makes this part, and there's no substitute part

  • End Bell Assembly (upper) 4211492
    #3

    Lower housing and motor diagram

    End bell assembly (upper)

    Part #4211492

    The manufacturer no longer makes this part, and there's no substitute part

  • Rotor & Shaft Assembly (includes Illus. No. 24) 4211534
    #9

    Lower housing and motor diagram

    Rotor & shaft assembly (includes illus. no. 24)

    Part #4211534

    The manufacturer no longer makes this part, and there's no substitute part

  • Tapping Screw 4211395
    #17

    Lower housing and motor diagram

    Tapping screw

    Part #4211395

    The manufacturer no longer makes this part, and there's no substitute part

  • Band, Trim Assembly 4211361
    #18

    Upper housing and flange diagram

    Band, trim assembly

    Part #4211361

    The manufacturer no longer makes this part, and there's no substitute part

  • Adapter 4211455
    #20

    Lower housing and motor diagram

    Adapter

    Part #4211455

    The manufacturer no longer makes this part, and there's no substitute part
