Kenmore
Side-By-Side Refrigerator

Model # 10650289010 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 10650289010 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

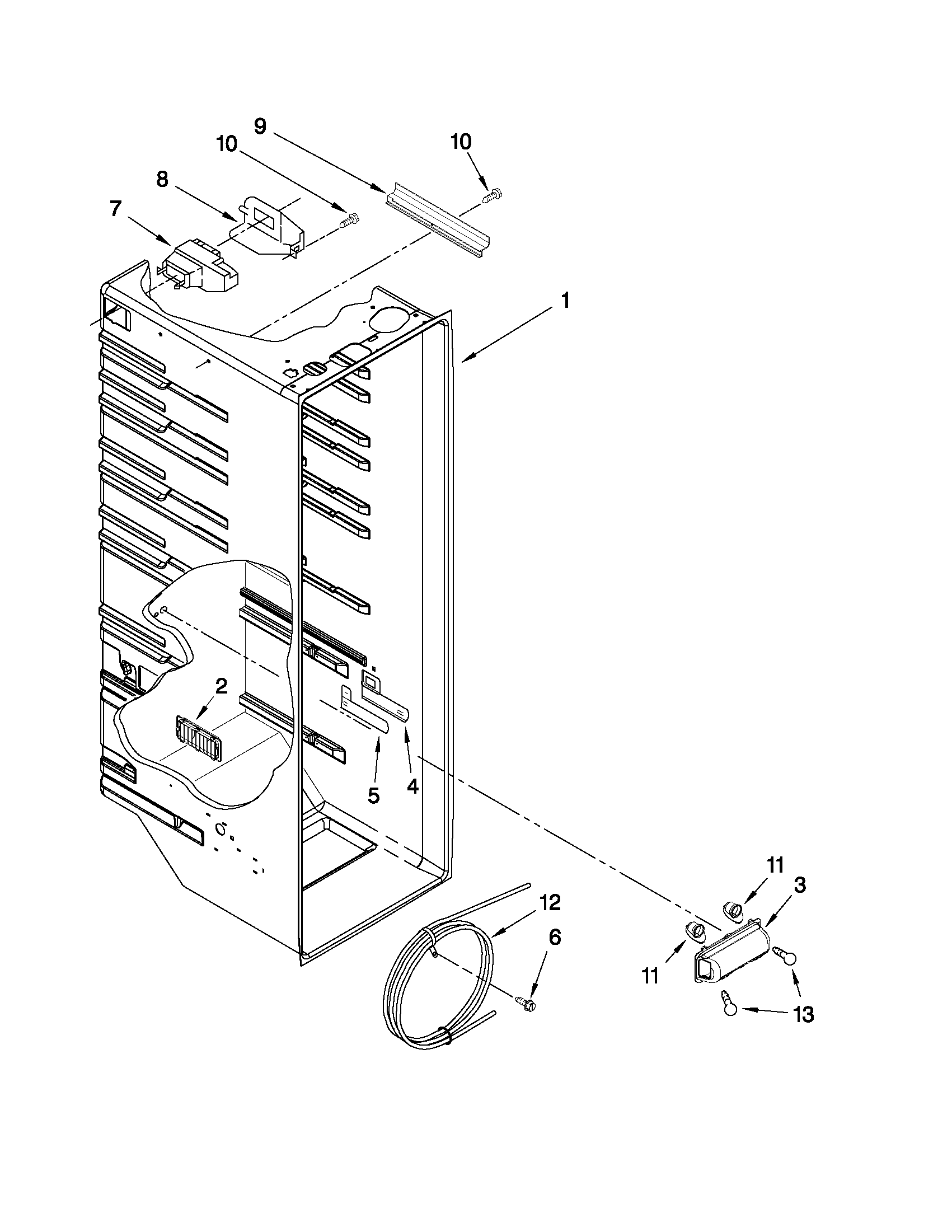

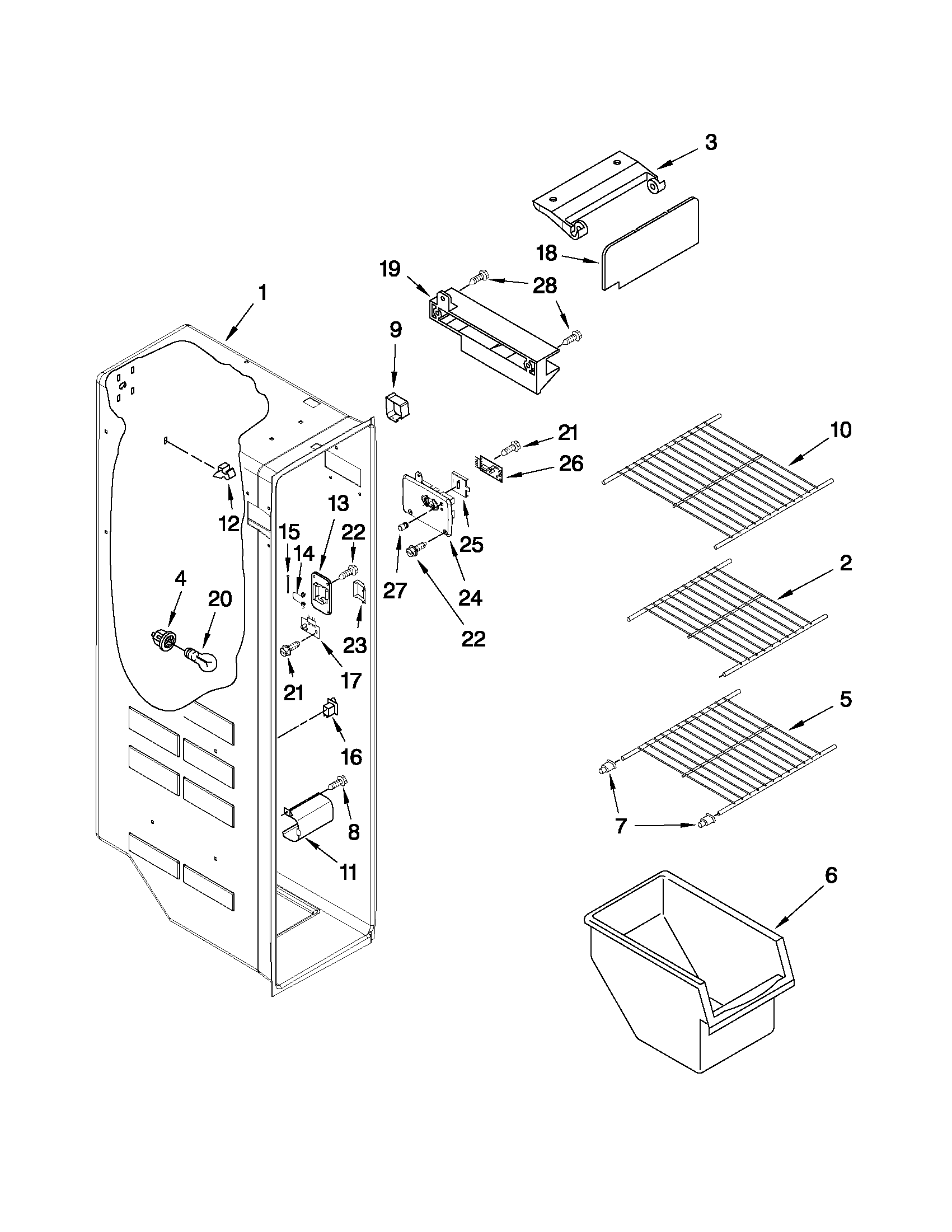

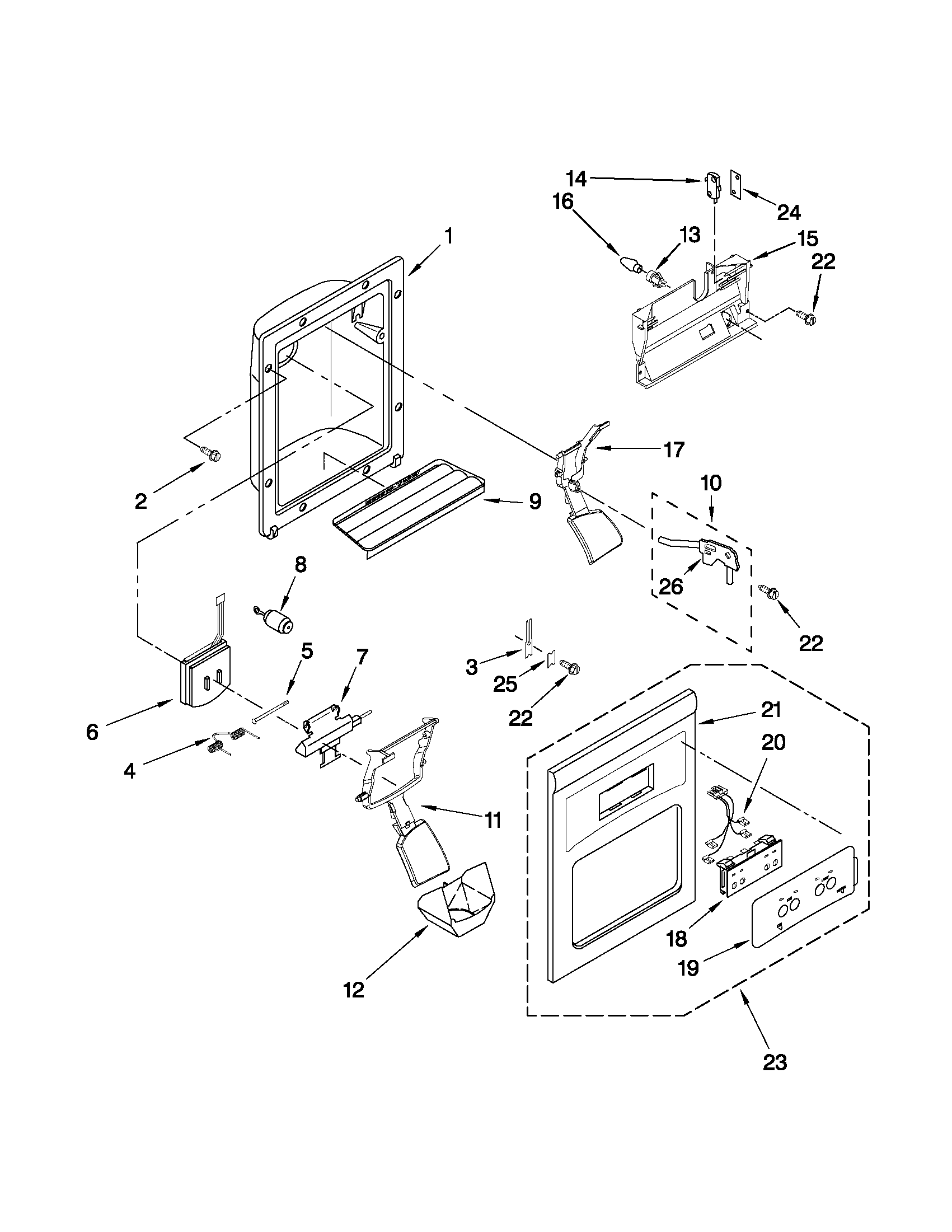

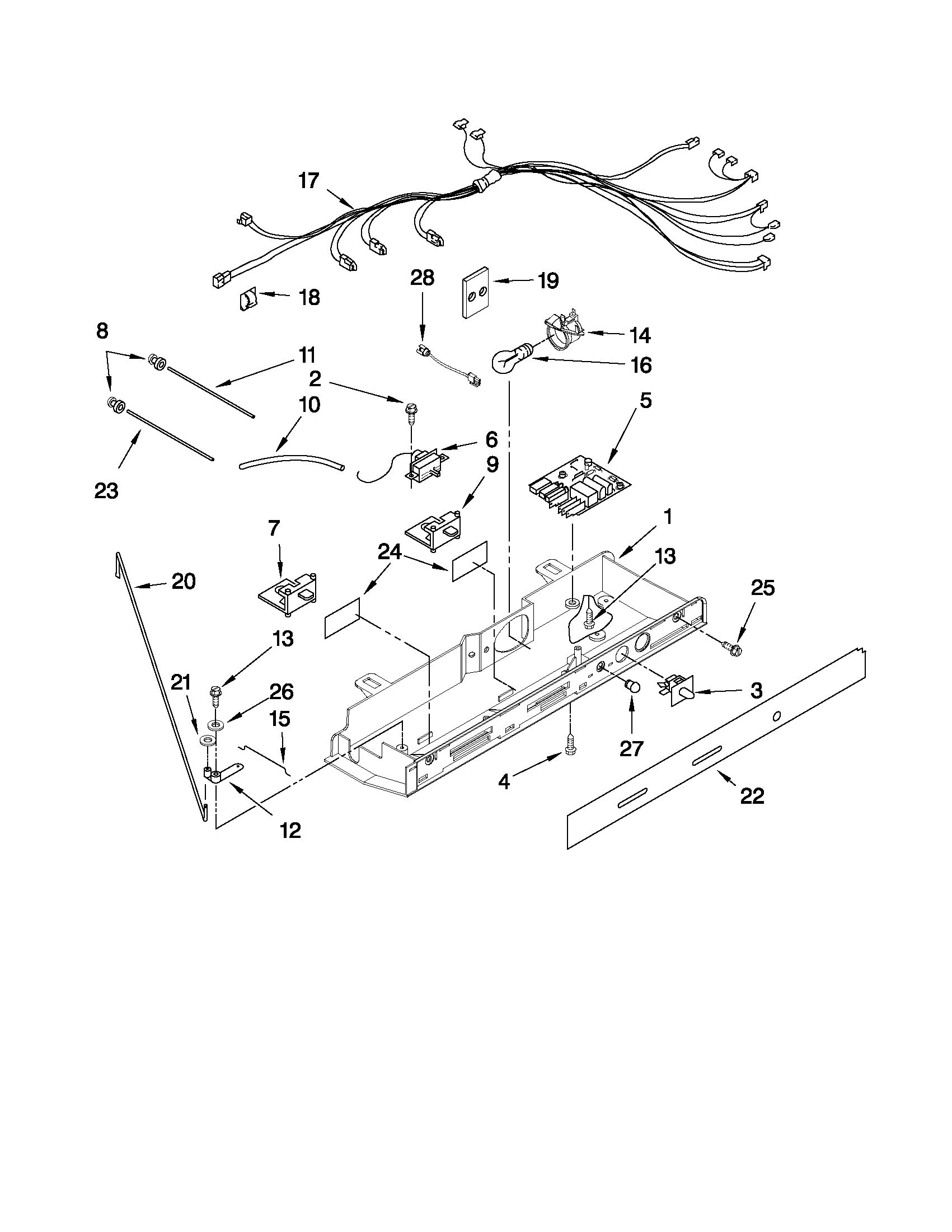

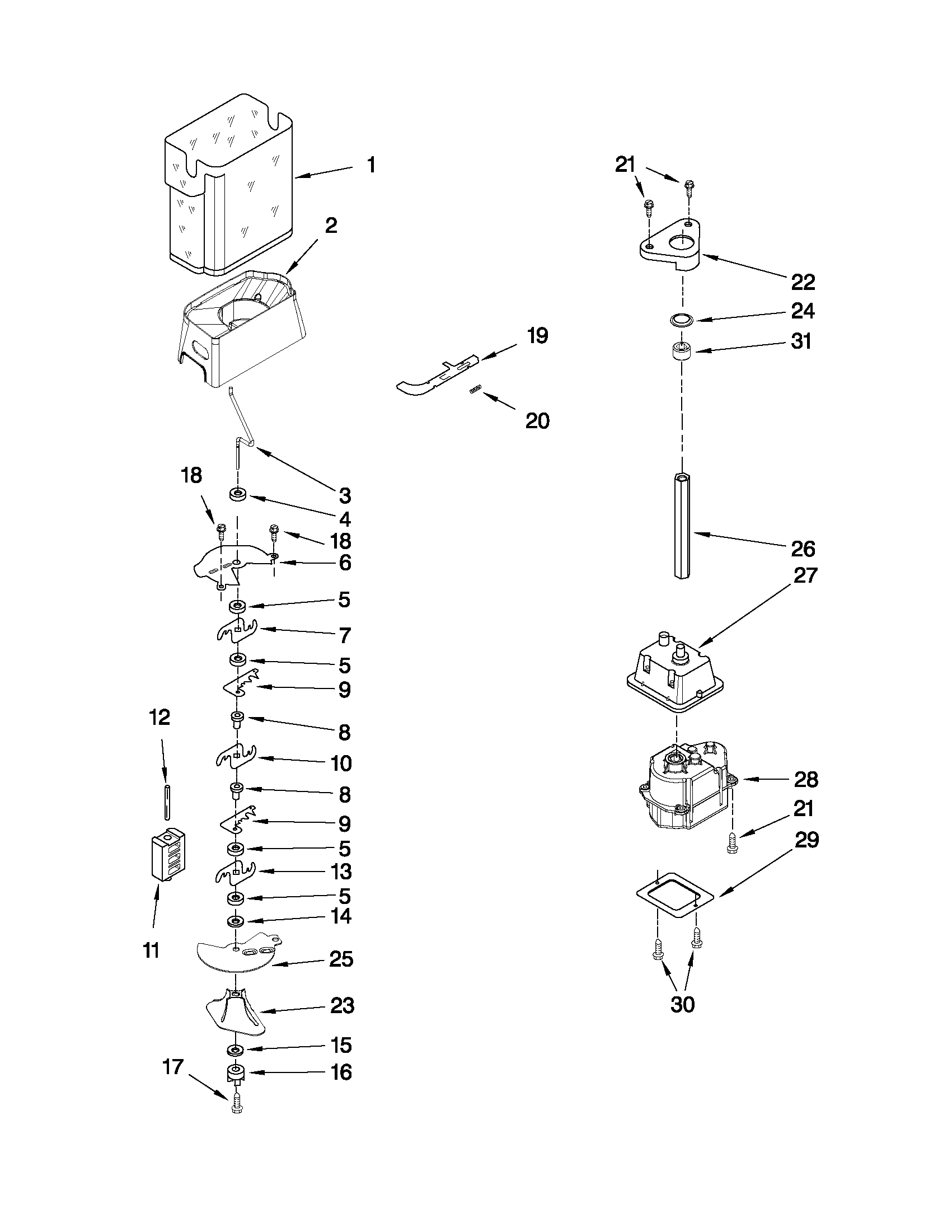

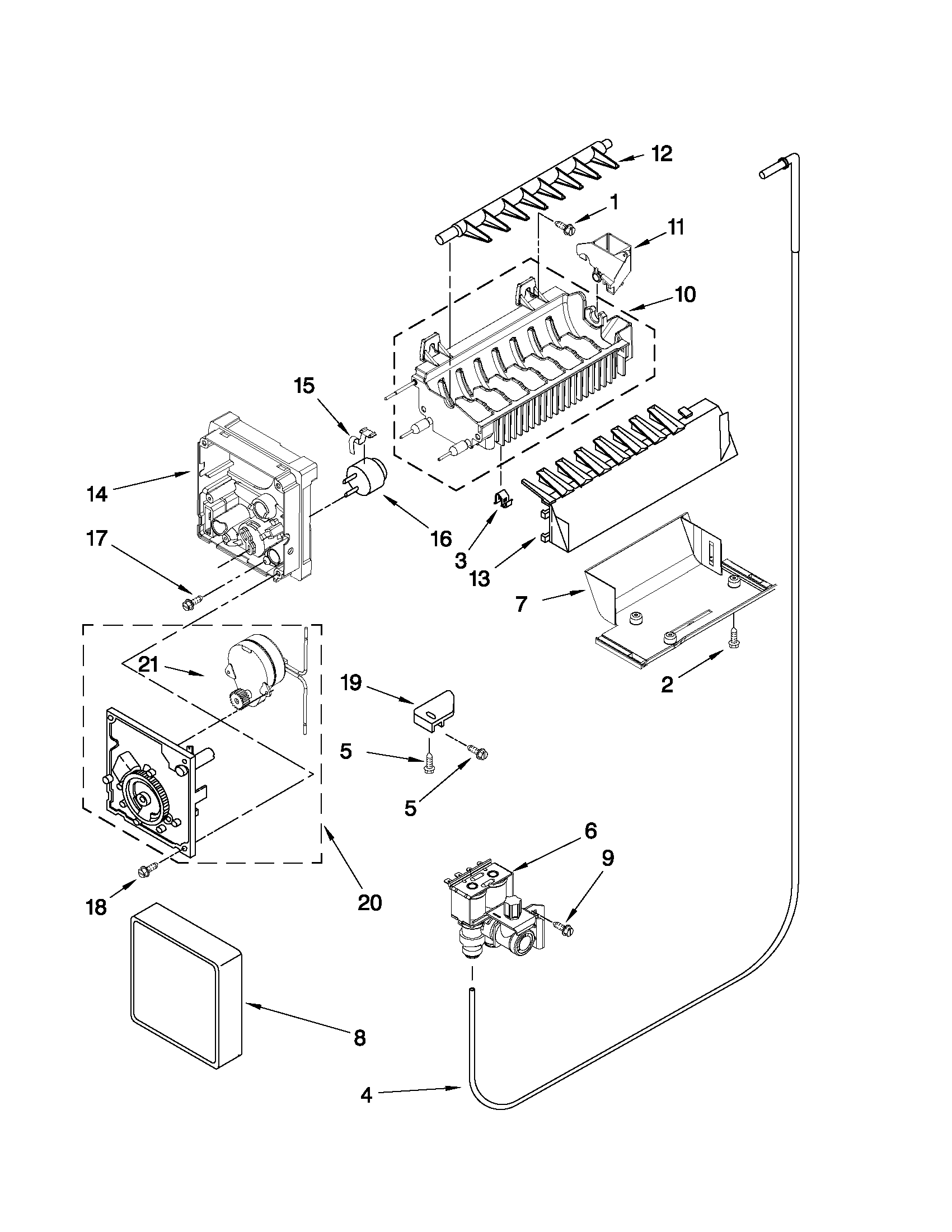

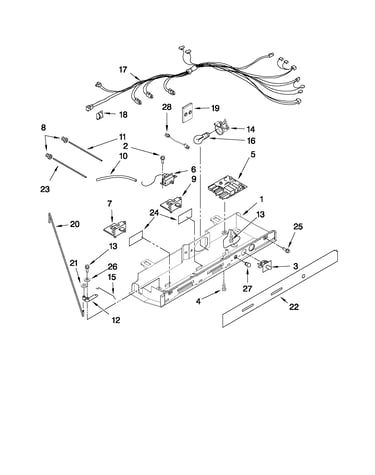

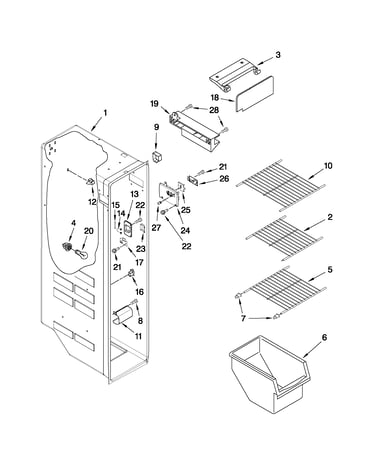

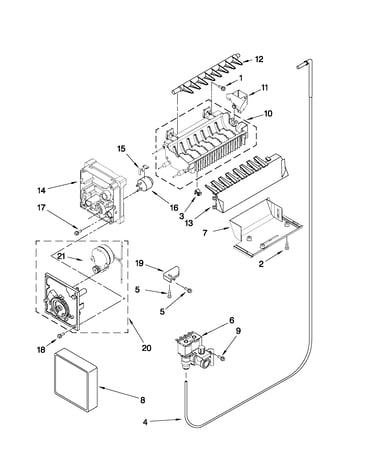

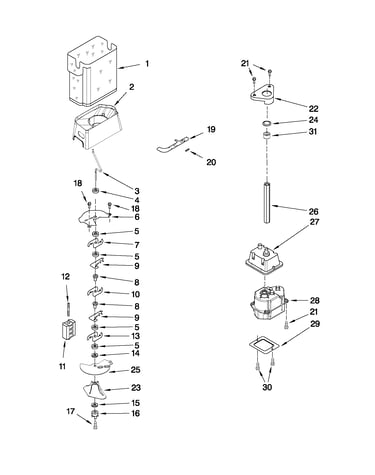

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 316 parts  |
Genuine Kenmore Refrigerator Water Filter 9030
#33

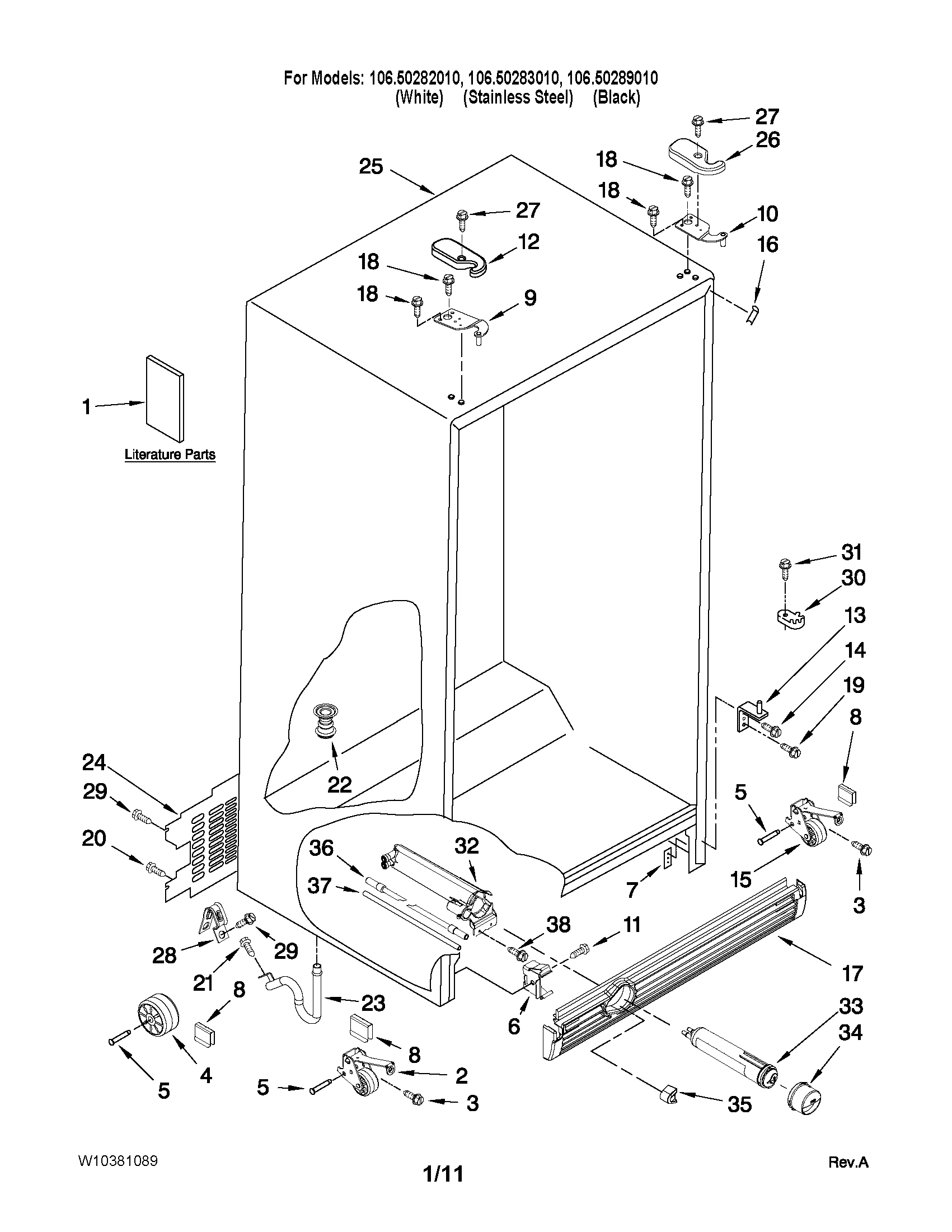

Cabinet parts diagram

Genuine kenmore refrigerator water filter

Part #9030

Replaced by #EDR3RXD1

?
Manufacturer substitution
This part replaces 9030. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Drier Tube W10177049
#21

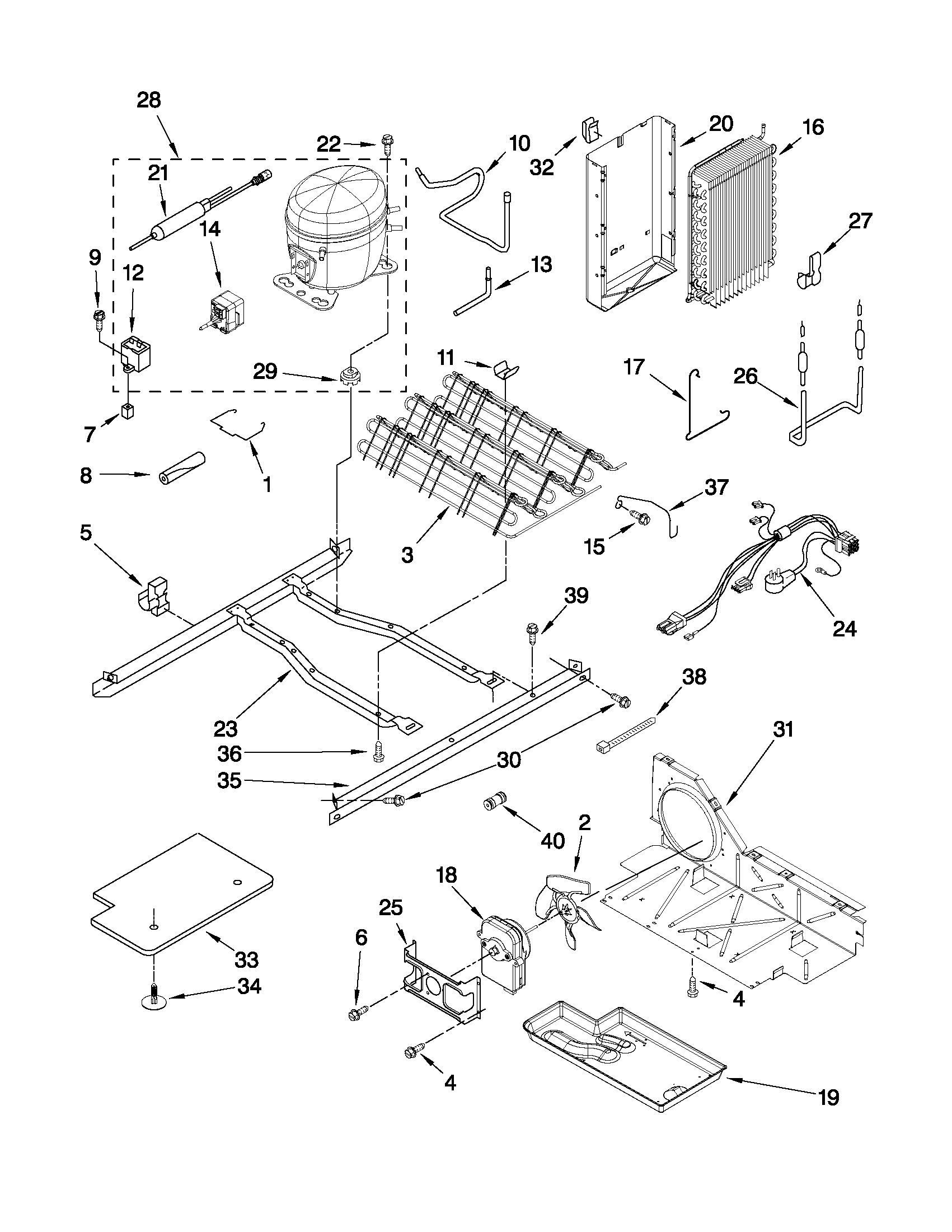

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Uv Filter Dryer W10143759
#21A

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Crisper Pan 2188652
#4

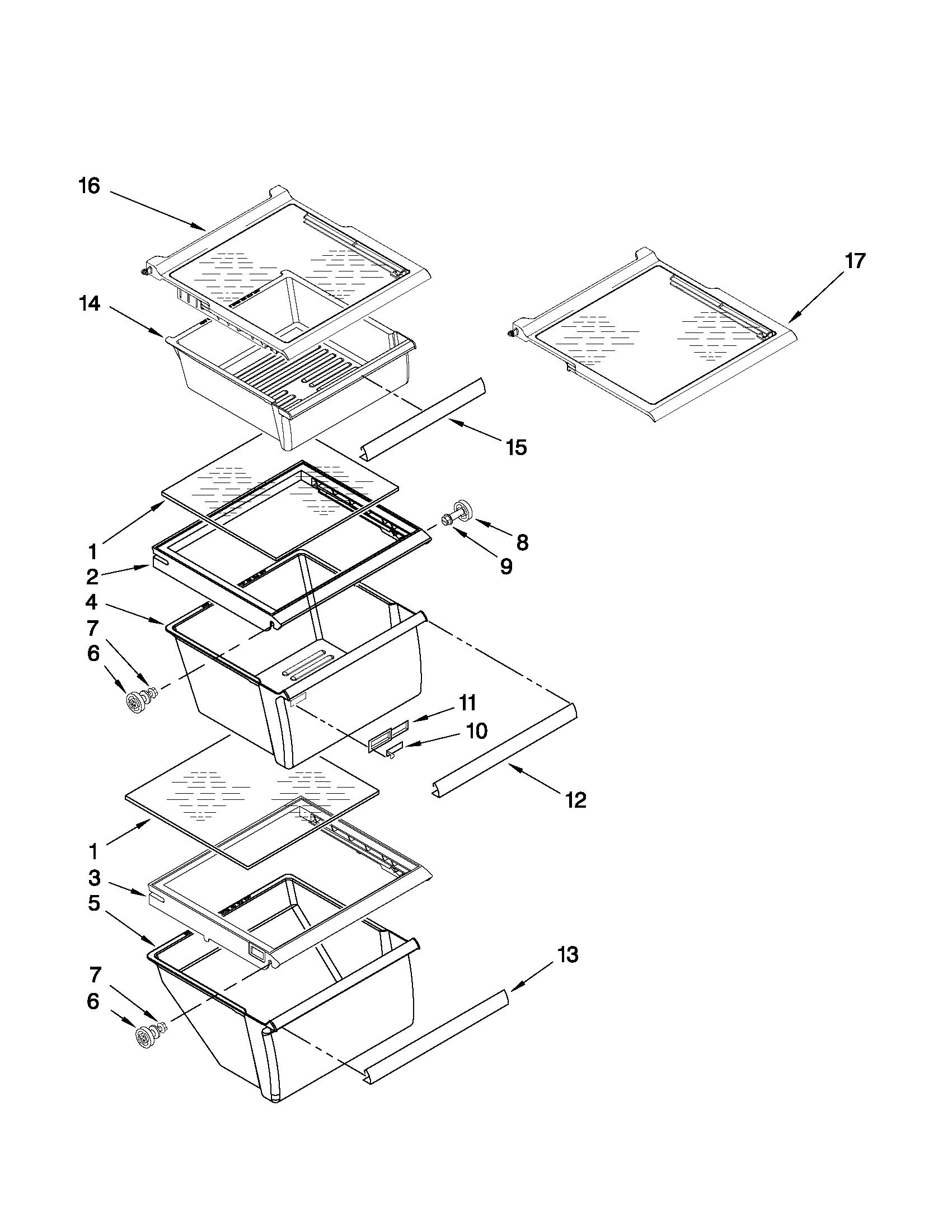

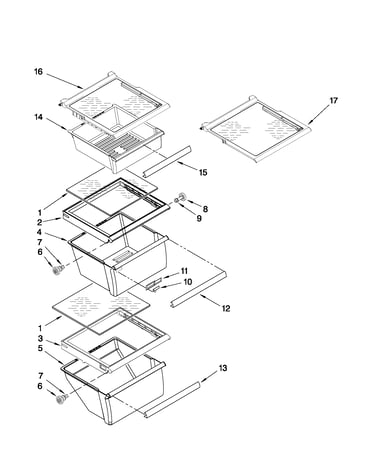

Refrigerator shelf parts diagram

Refrigerator crisper pan

Part #2188652

Replaced by #WP2188656

?
Manufacturer substitution
This part replaces 2188652. Substitute parts can look different from the original.
BEST SELLER
$73.14 |
8% OFF Phone Price : $79.14
In Stock
Refrigerator Defrost Bi-metal Thermostat W10225581
#4

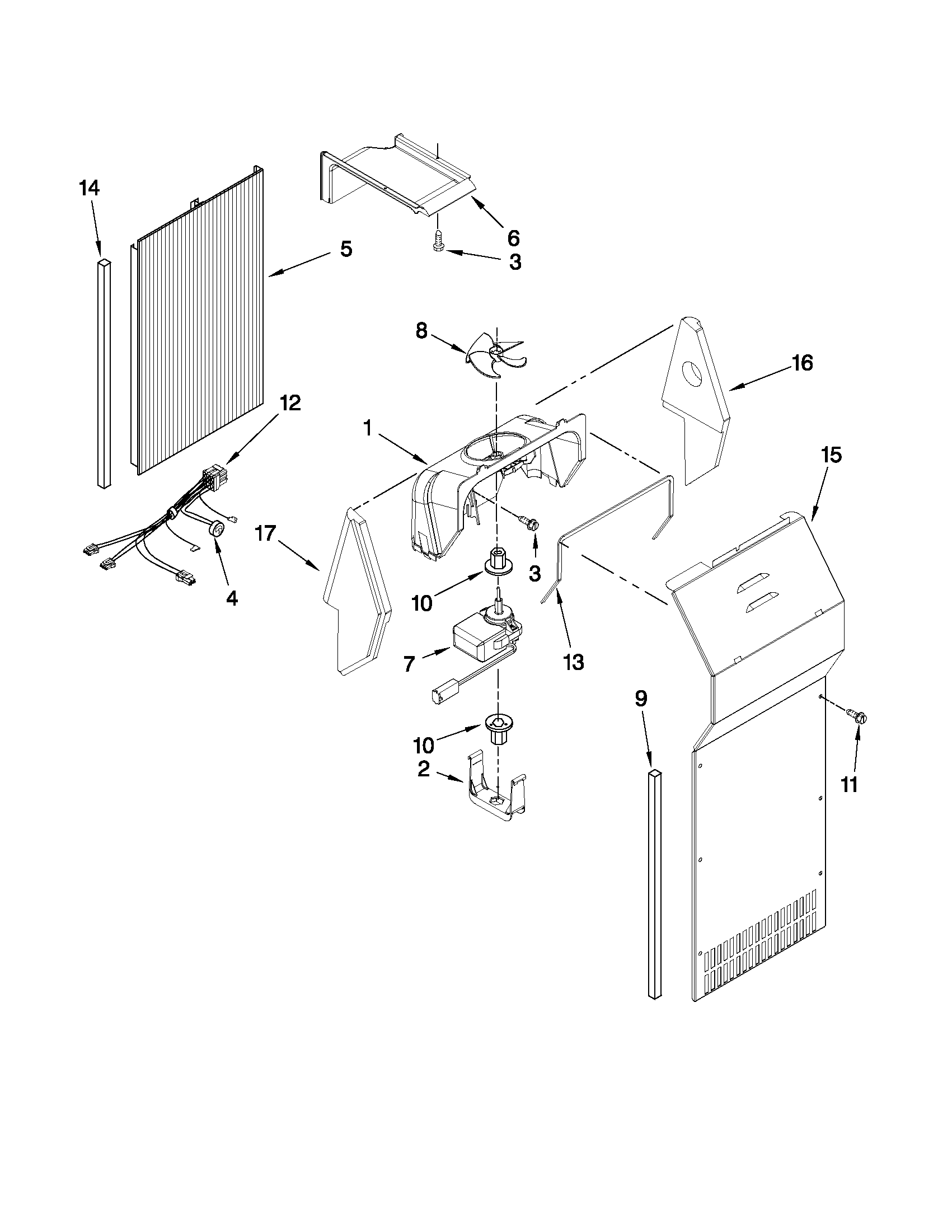

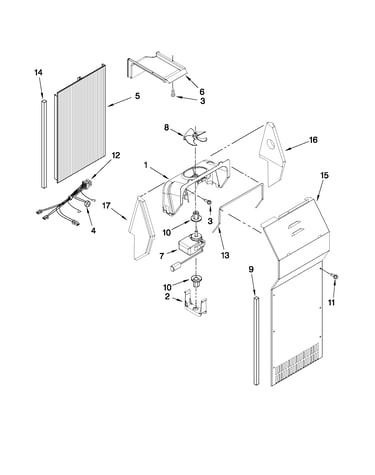

Air flow parts diagram

Refrigerator defrost bi-metal thermostat

Part #W10225581

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces W10225581. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Refrigerator Door Cam (black) 2182178
#8

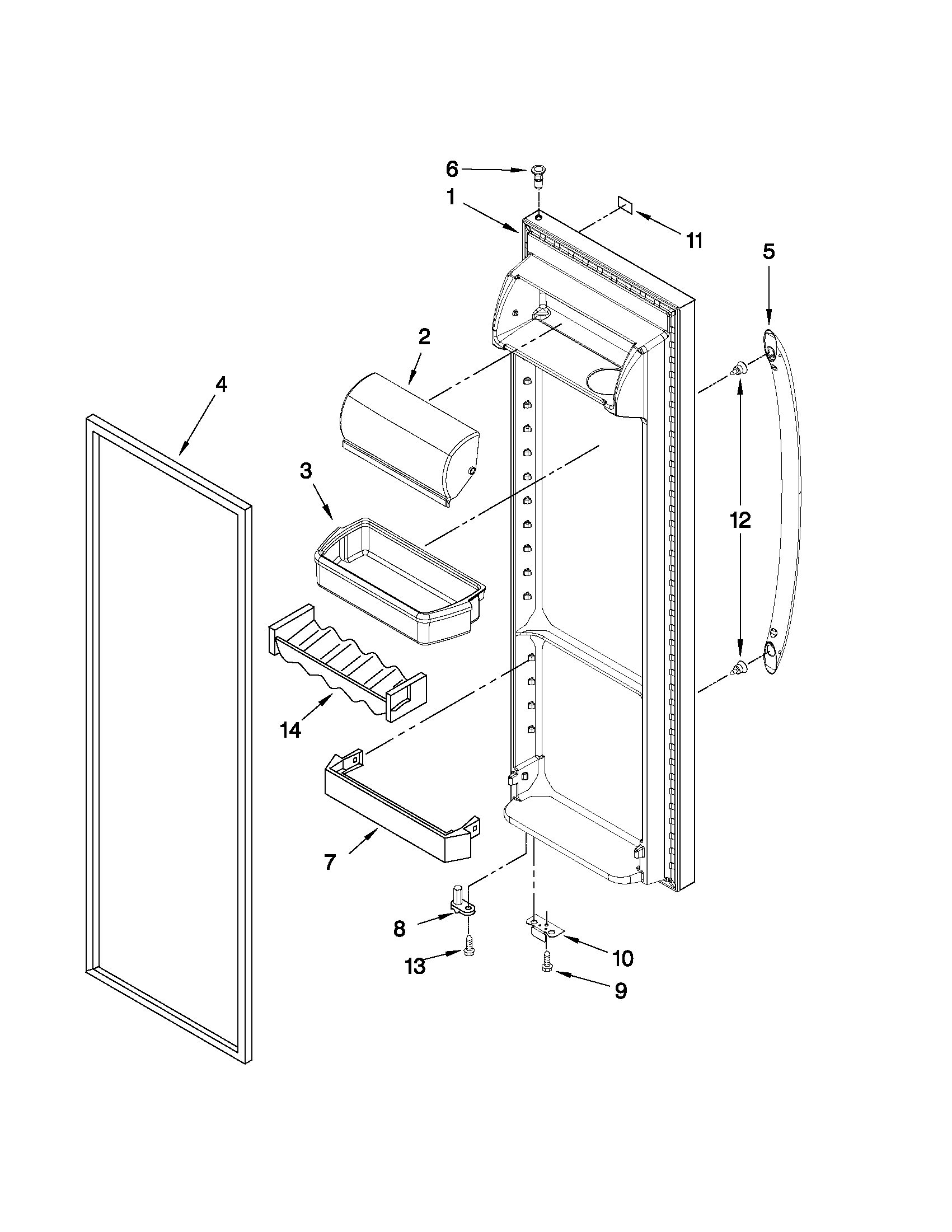

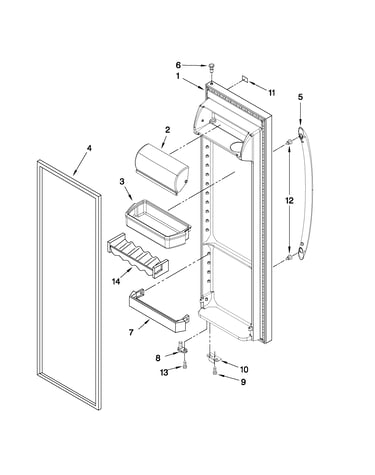

Refrigerator door parts diagram

Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Refrigerator Door Closer Cam 2182179
#12

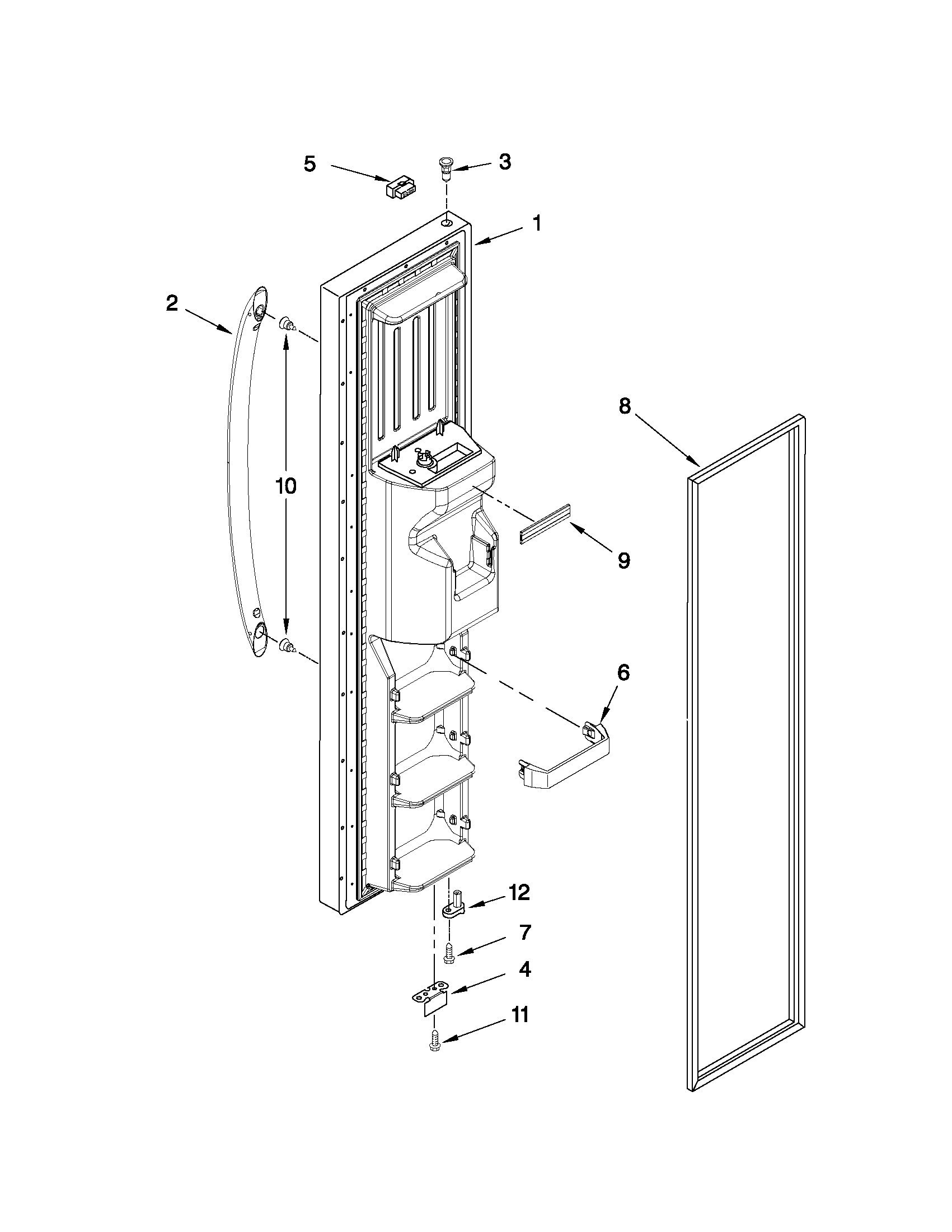

Freezer door parts diagram

Refrigerator door closer cam

Part #2182179

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182179. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Refrigerator Light Bulb W10311505
Refrigerator light bulb

Part #W10311505

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10311505. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Meat Pan 2188654
#5

Refrigerator shelf parts diagram

Refrigerator meat pan

Part #2188654

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2188654. Substitute parts can look different from the original.
BEST SELLER
$56.14 |
10% OFF Phone Price : $62.14
In Stock
Refrigerator Door Bin W10321304
#3

Refrigerator door parts diagram

Refrigerator door bin

Part #W10321304

Replaced by #WPW10321304

?
Manufacturer substitution
This part replaces W10321304. Substitute parts can look different from the original.
BEST SELLER
$36.51 |
14% OFF Phone Price : $42.51
In Stock
