Drill/Driver

Model # 6226DWE Official Makita 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Makita 6226DWE 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
6226DWE Power Tools
Chng Lever 125091-1
#1

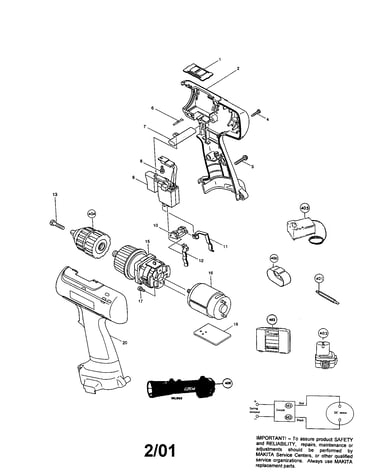

3/8" cordless driver drill diagram

Chng lever

Part #125091-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 911143-2
#5

3/8" cordless driver drill diagram

Screw

Part #911143-2

The manufacturer no longer makes this part, and there's no substitute part

Switch 651989-1
#9

3/8" cordless driver drill diagram

Switch

Part #651989-1

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 125087-2
#15

3/8" cordless driver drill diagram

Gear assembly

Part #125087-2

The manufacturer no longer makes this part, and there's no substitute part

Spring 232182-2
#6

3/8" cordless driver drill diagram

Spring

Part #232182-2

The manufacturer no longer makes this part, and there's no substitute part

Screw 266130-9
#4

3/8" cordless driver drill diagram

Screw

Part #266130-9

The manufacturer no longer makes this part, and there's no substitute part

Chuck 763132-1
#404

3/8" cordless driver drill diagram

Chuck

Part #763132-1

The manufacturer no longer makes this part, and there's no substitute part

Drill Flashlight ML903
#406

3/8" cordless driver drill diagram

Drill flashlight

Part #ML903

The manufacturer no longer makes this part, and there's no substitute part

Screw 911003-8
Screw

Part #911003-8

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 192638-6
#403

3/8" cordless driver drill diagram

Battery pack

Part #192638-6

The manufacturer no longer makes this part, and there's no substitute part
