Amana
Countertop Microwave

Model # D1200 Official Amana microwave

Here are the diagrams and repair parts for Official Amana D1200 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Screw, Bracket Mounting M1D212
#37B

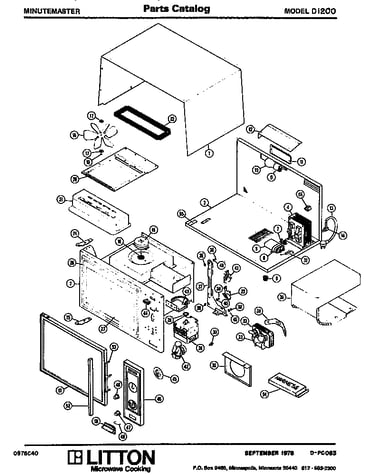

Microwave parts diagram

Screw, bracket mounting

Part #M1D212

The manufacturer no longer makes this part, and there's no substitute part

Timer Dial M6D146
#45

Microwave parts diagram

Timer dial

Part #M6D146

The manufacturer no longer makes this part, and there's no substitute part

Support Plate M2D172
#55

Microwave parts diagram

Support plate

Part #M2D172

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Duct, Cavity M65D105
#21

Microwave parts diagram

Exhaust duct, cavity

Part #M65D105

The manufacturer no longer makes this part, and there's no substitute part

Insert Bearing (round) M2D176
#40

Microwave parts diagram

Insert bearing (round)

Part #M2D176

The manufacturer no longer makes this part, and there's no substitute part

Capacitor M10D38
#5

Microwave parts diagram

Capacitor

Part #M10D38

The manufacturer no longer makes this part, and there's no substitute part

Timer Knob M6D145
#47

Microwave parts diagram

Timer knob

Part #M6D145

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer - Capacitor Grounding M1D57
#13D

Microwave parts diagram

Lock washer - capacitor grounding

Part #M1D57

The manufacturer no longer makes this part, and there's no substitute part

R. F. Gasket M2D152
#16

Microwave parts diagram

R. f. gasket

Part #M2D152

The manufacturer no longer makes this part, and there's no substitute part

Pin, Roller Mounting M1D373
#2C

Microwave parts diagram

Pin, roller mounting

Part #M1D373

The manufacturer no longer makes this part, and there's no substitute part
