Here are the diagrams and repair parts for Official Kenmore 867840351 230-v packaged terminal air conditioner, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts for867840351 230-V Packaged Terminal Air Conditioner

#10

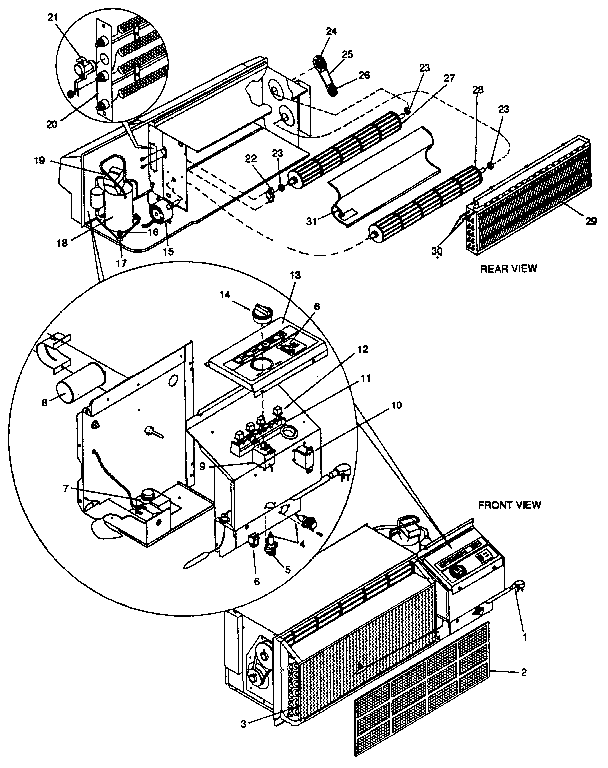

Functional diagram
Relay
Part #43205003
Replaced by #90-384
?
Manufacturer substitution
This part replaces 43205003. Substitute parts can look different from the original.
$25.39
In Stock
Qty
#19
Non functional diagram
Plate ctl bo
Part #1058427
The manufacturer no longer makes this part, and there's no substitute part
#12
Non functional diagram
Cvr blwr acs
Part #1059049
The manufacturer no longer makes this part, and there's no substitute part
#21
Non functional diagram
Cntl bx asy
Part #1058436
The manufacturer no longer makes this part, and there's no substitute part
#13
Non functional diagram
Scroll blwr
Part #1058350
The manufacturer no longer makes this part, and there's no substitute part
#23
Functional diagram
Isolator bea
Part #1058987
The manufacturer no longer makes this part, and there's no substitute part
#11
Non functional diagram
Blwr husing
Part #1058386
The manufacturer no longer makes this part, and there's no substitute part
#4
Non functional diagram
Clip
Part #1058518
The manufacturer no longer makes this part, and there's no substitute part
#1
Non functional diagram
Control door
Part #1058430
The manufacturer no longer makes this part, and there's no substitute part
#20
Non functional diagram
Wall divider
Part #1060842
The manufacturer no longer makes this part, and there's no substitute part
