Model # LT800LXW1 Official White-Westinghouse tumble action washer - lw31289020

Here are the diagrams and repair parts for Official White-Westinghouse LT800LXW1 tumble action washer - lw31289020, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

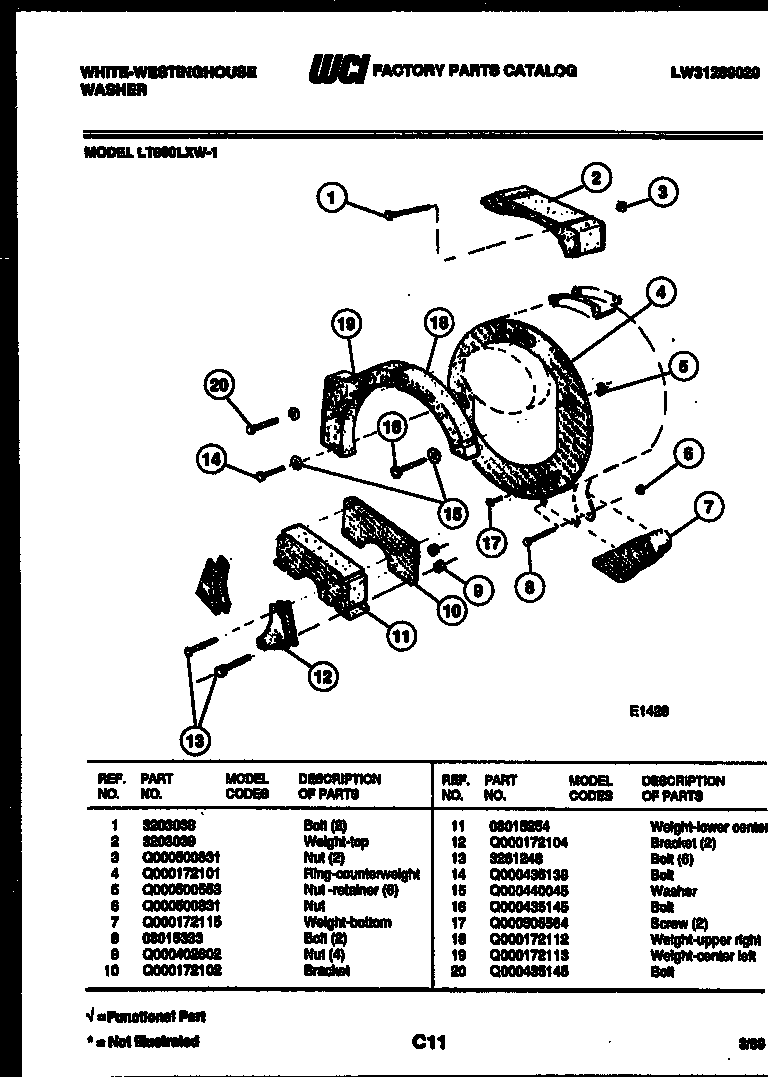

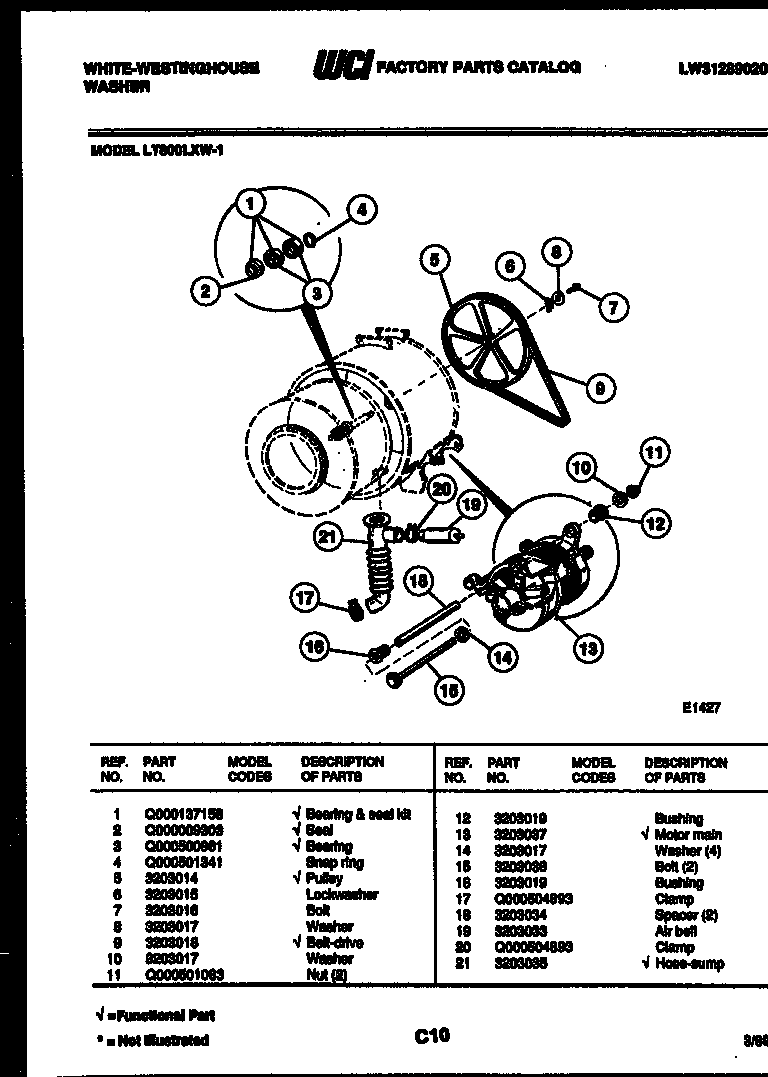

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Bracket 3202984
#10

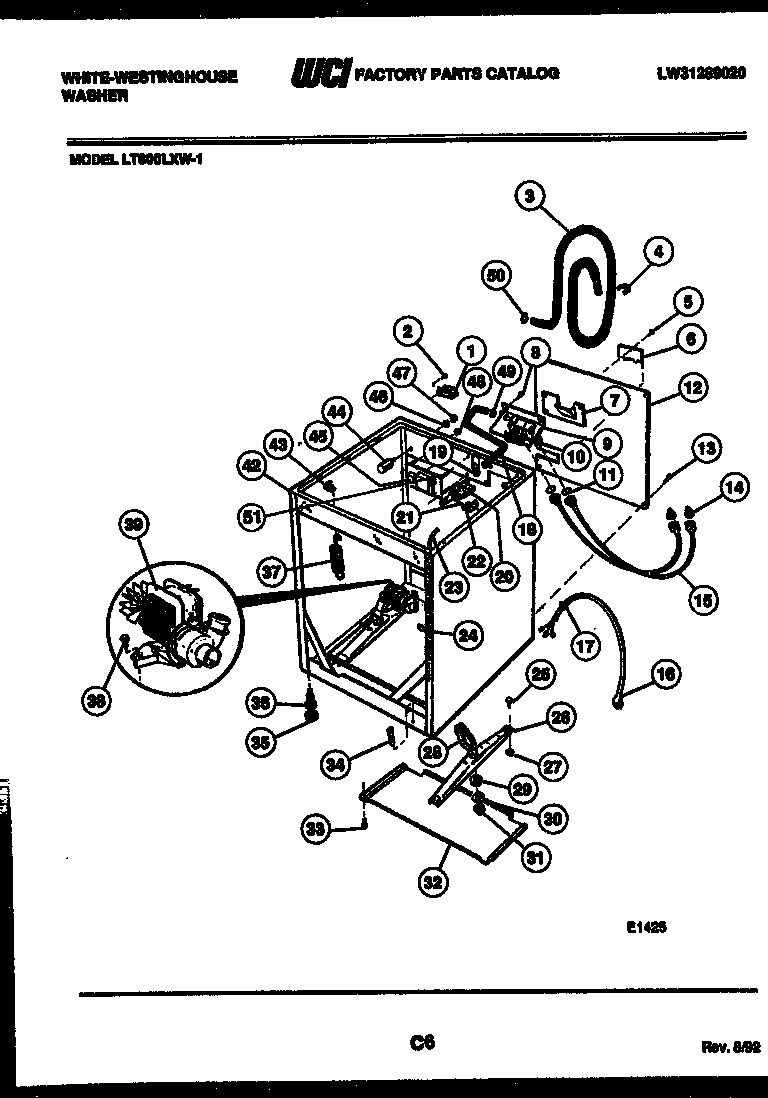

Cabinet parts diagram

Bracket

Part #3202984

Replaced by #134190200

?
Manufacturer substitution
This part replaces 3202984. Substitute parts can look different from the original.
$125.33 |
9% OFF Phone Price : $137.33
In Stock
Screw 3281066
#9

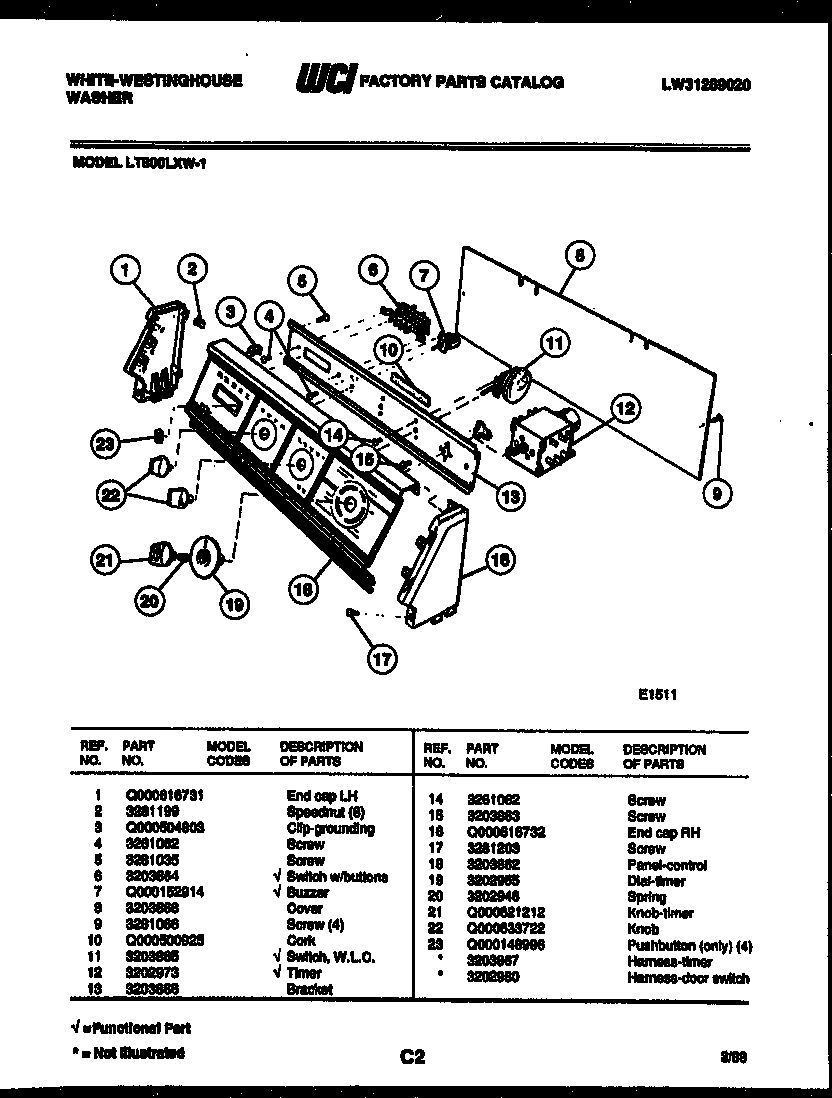

Console and control parts diagram

Screw

Part #3281066

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 3281066. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Hose 3202994
#23

Cabinet parts diagram

Hose

Part #3202994

Replaced by #5304401845

?
Manufacturer substitution
This part replaces 3202994. Substitute parts can look different from the original.
$49.98 |
11% OFF Phone Price : $55.98
In Stock
Inlet Hose F140162-000
#15

Cabinet parts diagram

Inlet hose

Part #F140162-000

Replaced by #5303912532

?
Manufacturer substitution
This part replaces F140162-000. Substitute parts can look different from the original.
$67.57 |
8% OFF Phone Price : $73.57
In Stock
Cover 3202982
#6

Cabinet parts diagram

Cover

Part #3202982

This item is not returnable
$2.99
In Stock

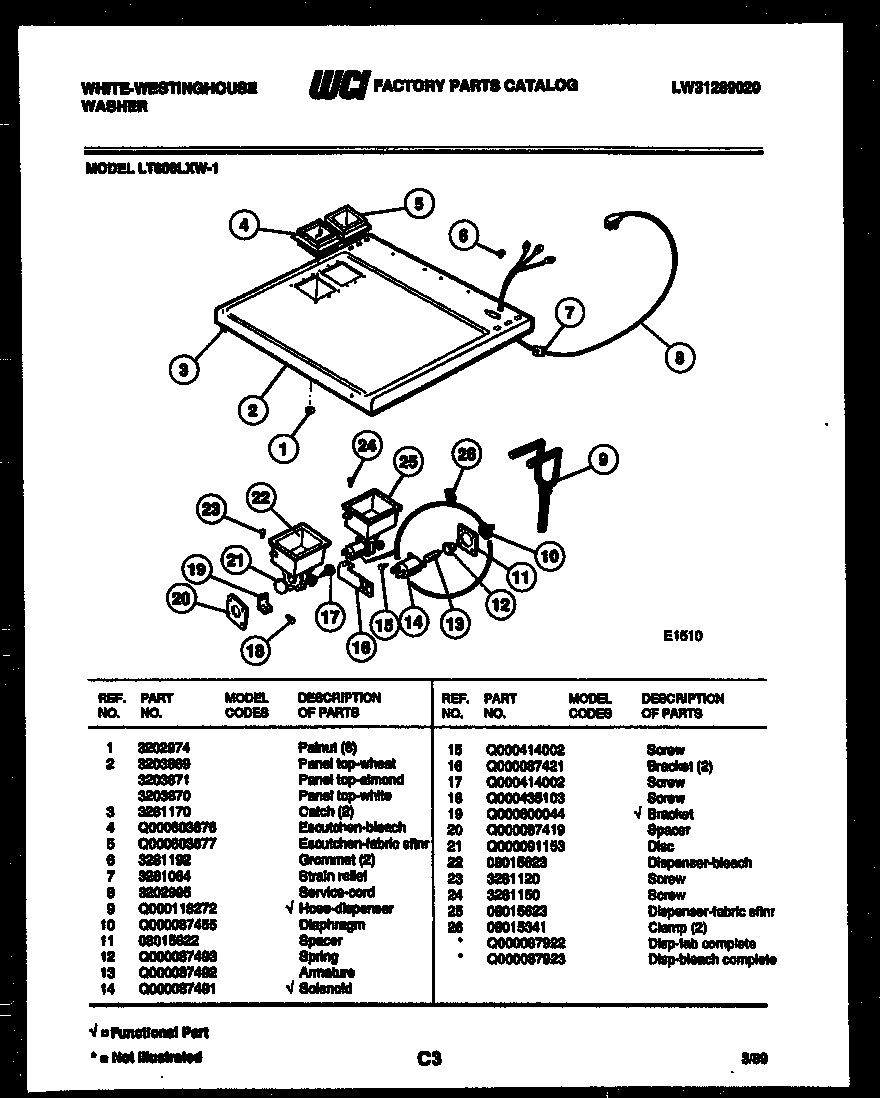

Screw Q000414002
Screw

Part #Q000414002

This item is not returnable
$4.99
In Stock
Washer Retainer Clip 3203010
#8

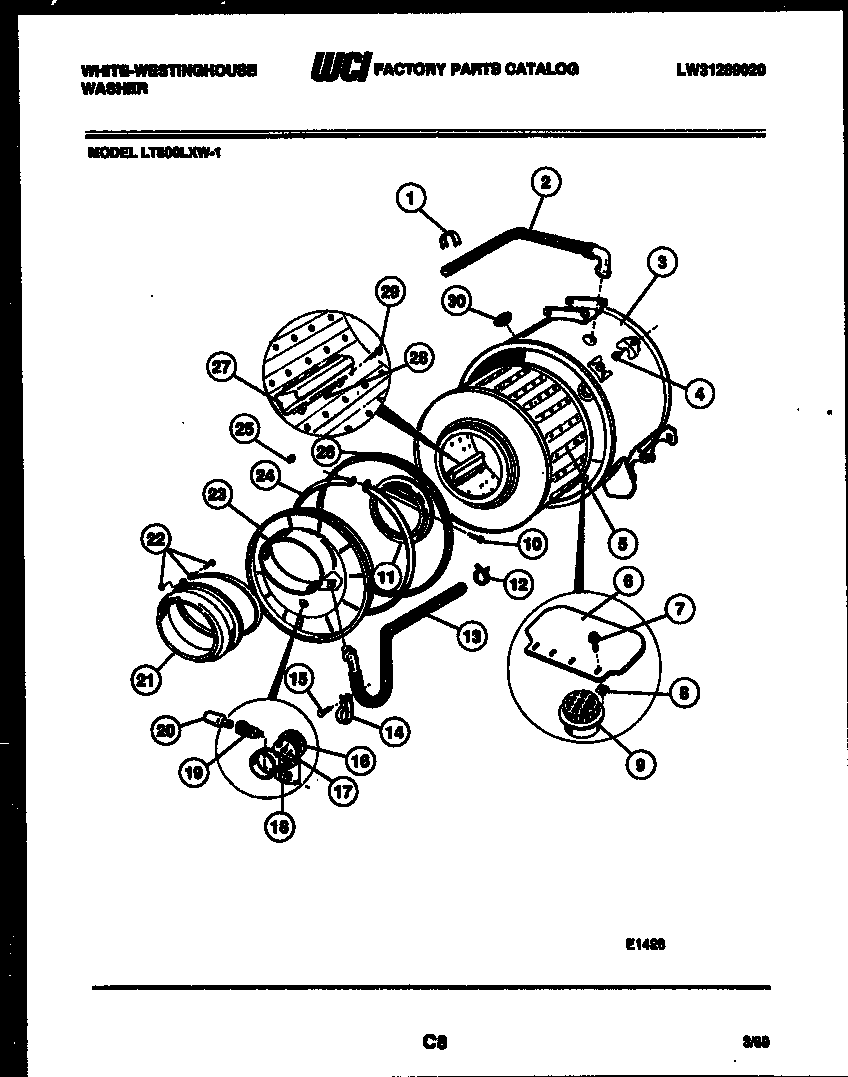

Tub and component parts diagram

Washer retainer clip

Part #3203010

$14.69
In Stock
Speed Nut 3261100
#28

Tub and component parts diagram

Speed nut

Part #3261100

This item is not returnable
$2.26
In Stock
Washer Q000019801
#14

Cabinet parts diagram

Washer

Part #Q000019801

Replaced by #5300019801

?
Manufacturer substitution
This part replaces Q000019801. Substitute parts can look different from the original.
This item is not returnable
$2.49
In Stock
Screw C000505617
#29

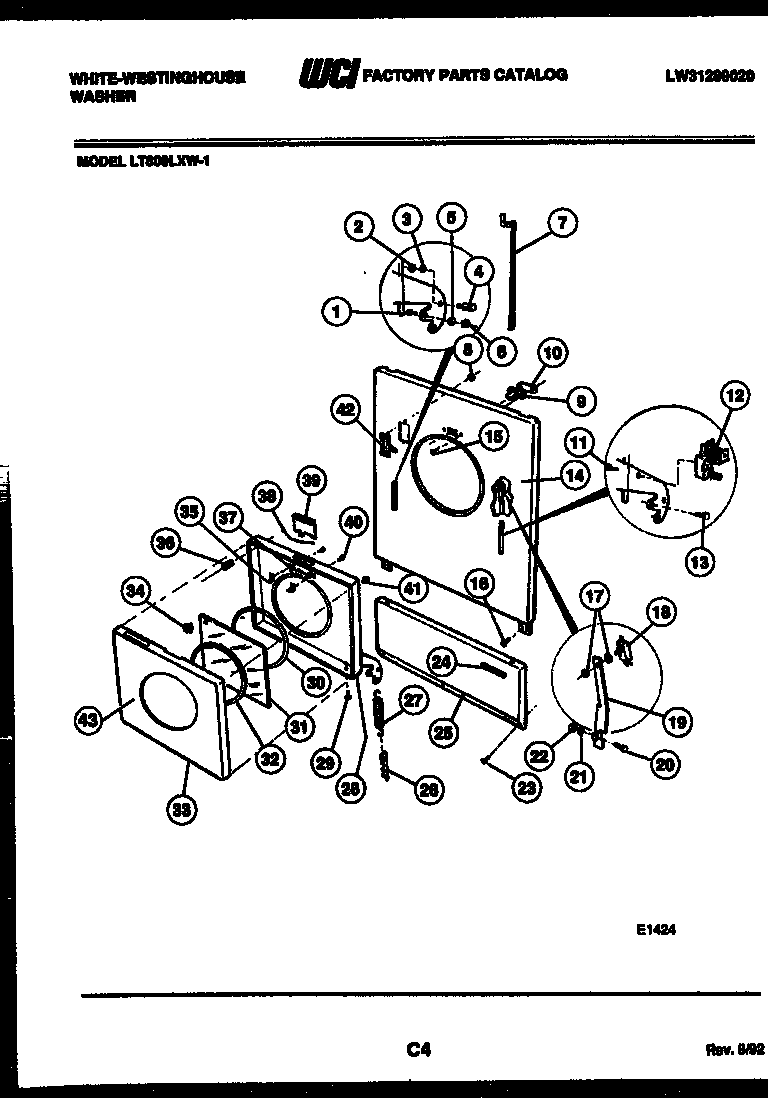

Door parts diagram

Screw

Part #C000505617

Replaced by #5300806967

?
Manufacturer substitution
This part replaces C000505617. Substitute parts can look different from the original.
This item is not returnable
$2.72
In Stock
