Model # 259700 TO 259799 (0102) Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 259700-TO-259799-0102 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

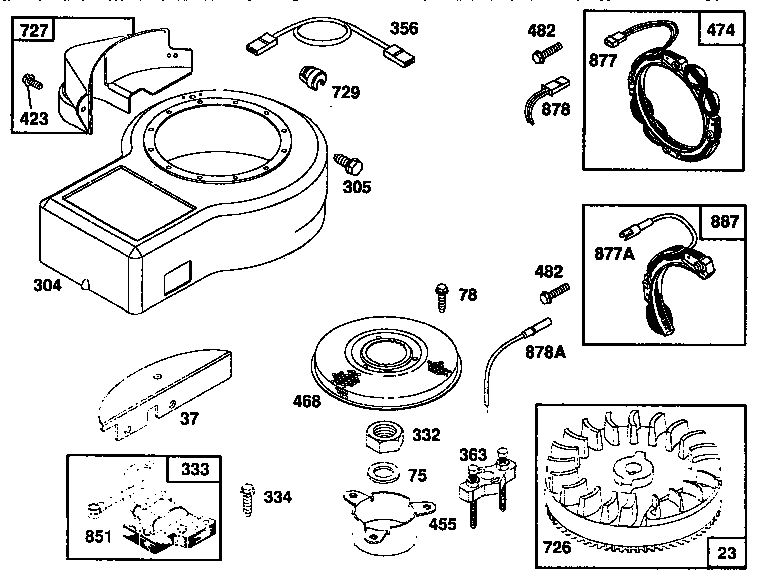

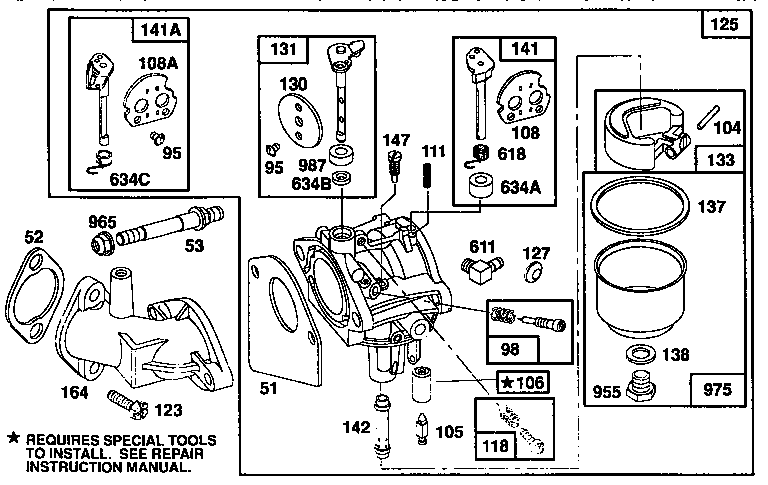

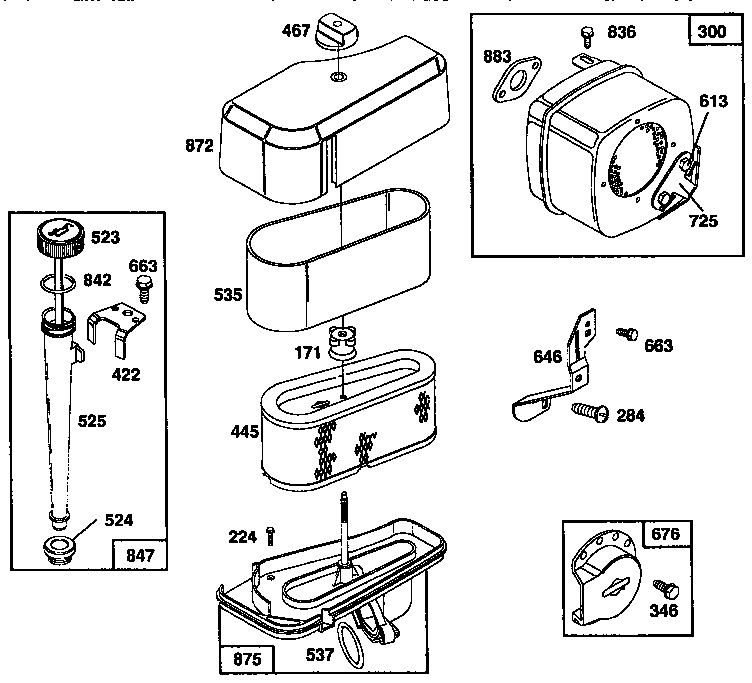

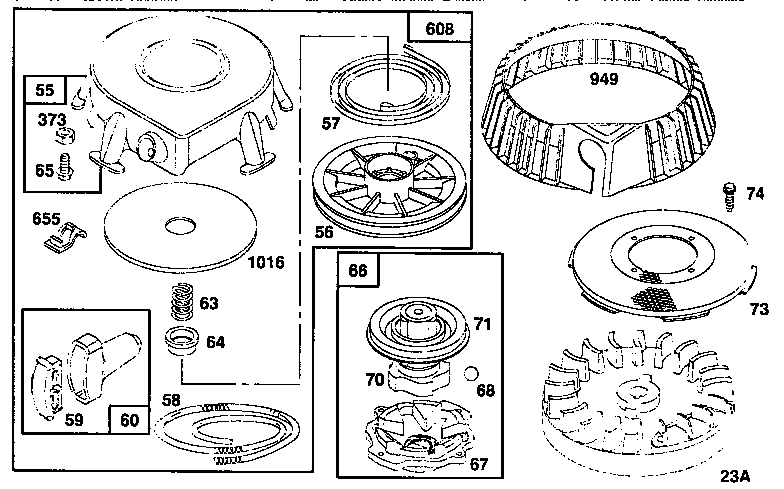

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |
Fuel Filter (red) 298090
#240

Fuel tank diagram

Fuel filter (red)

Part #298090

Replaced by #298090S

?
Manufacturer substitution
This part replaces 298090. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Key 222698
#24

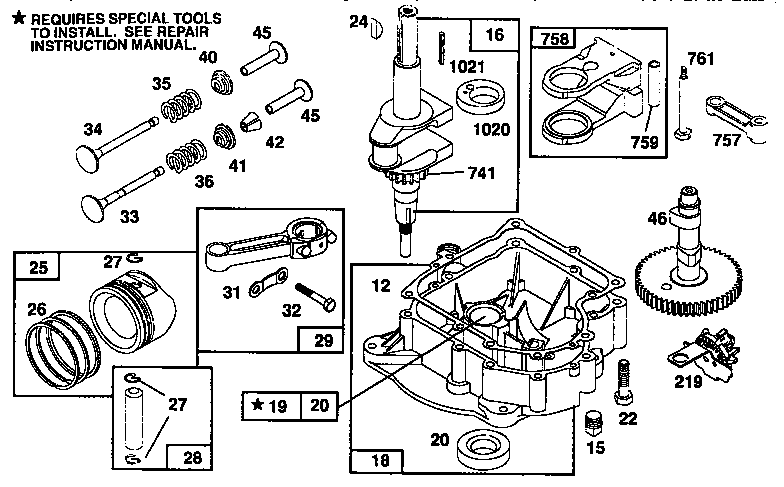

Crankshaft diagram

Key

Part #222698

Replaced by #222698S

?
Manufacturer substitution
This part replaces 222698. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.29 |
23% OFF Phone Price : $4.29
In Stock
Elec12vstrt 394805
#309A

Motor and drive assembly diagram

Elec12vstrt

Part #394805

Replaced by #795121

?
Manufacturer substitution
This part replaces 394805. Substitute parts can look different from the original.
BEST SELLER
$165.53 |
7% OFF Phone Price : $177.53
In Stock
Motor 399169
#309B

Motor and drive assembly diagram

Motor

Part #399169

Replaced by #795121

?
Manufacturer substitution
This part replaces 399169. Substitute parts can look different from the original.
BEST SELLER
$165.53 |
7% OFF Phone Price : $177.53
In Stock
Elbow Spacer Plug 66538
#635

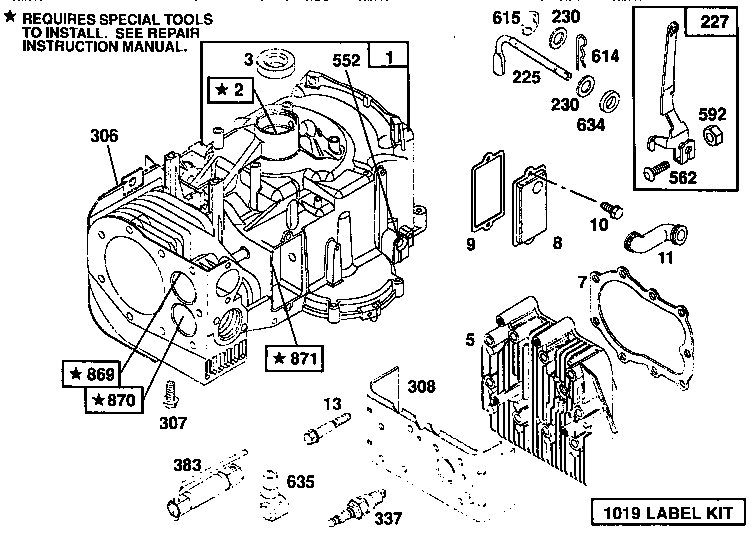

Cylinder assembly diagram

Elbow spacer plug

Part #66538

Replaced by #66538S

?
Manufacturer substitution
This part replaces 66538. Substitute parts can look different from the original.
This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Gasket 281106
Gasket

Part #281106

Replaced by #691917

?
Manufacturer substitution
This part replaces 281106. Substitute parts can look different from the original.
This item is not returnable
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Oil Seal 391086
Oil seal

Part #391086

Replaced by #391086S

?
Manufacturer substitution
This part replaces 391086. Substitute parts can look different from the original.
This item is not returnable
$9.69 |
9% OFF Phone Price : $10.69
In Stock
Switch 396847
#621

Governor parts diagram

Switch

Part #396847

Replaced by #692310

?
Manufacturer substitution
This part replaces 396847. Substitute parts can look different from the original.
This item is not returnable
$9.89 |
9% OFF Phone Price : $10.89
In Stock
Plate 493896
#222A

Governor parts diagram

Plate

Part #493896

Replaced by #597209

?
Manufacturer substitution
This part replaces 493896. Substitute parts can look different from the original.
$64.34 |
9% OFF Phone Price : $70.34
In Stock
Spring 262785
#232

Governor parts diagram

Spring

Part #262785

Replaced by #691842

?
Manufacturer substitution
This part replaces 262785. Substitute parts can look different from the original.
This item is not returnable
$19.09 |
9% OFF Phone Price : $21.09
In Stock
