Craftsman
Grass Catcher Attachment

Model # 80005 Official Craftsman leaf'n grass catcher

Here are the diagrams and repair parts for Official Craftsman 80005 leaf'n grass catcher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Lh Spprt Rod 102-52-01035
#4A

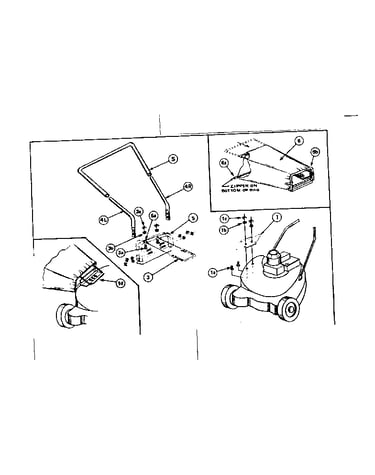

Replacement parts diagram

Lh spprt rod

Part #102-52-01035

The manufacturer no longer makes this part, and there's no substitute part

Deck Bracket 102-51-01820
#1

Replacement parts diagram

Deck bracket

Part #102-51-01820

The manufacturer no longer makes this part, and there's no substitute part

Replacement Bag 102-02-80005
#6

Replacement parts diagram

Replacement bag

Part #102-02-80005

The manufacturer no longer makes this part, and there's no substitute part

Hardware Bag 102-04-01820

#NI

All parts diagram

Hardware bag

Part #102-04-01820

The manufacturer no longer makes this part, and there's no substitute part

Rh Spprt Rd 102-53-01035
#4B

Replacement parts diagram

Rh spprt rd

Part #102-53-01035

The manufacturer no longer makes this part, and there's no substitute part

Tubular Frame 102-54-01035
#2

Replacement parts diagram

Tubular frame

Part #102-54-01035

The manufacturer no longer makes this part, and there's no substitute part

Chute Bracket 102-03-01822
#5

Replacement parts diagram

Chute bracket

Part #102-03-01822

The manufacturer no longer makes this part, and there's no substitute part
