Model # AZ90E12D5CW1 Official GE room air conditioner
Here are the diagrams and repair parts for Official GE AZ90E12D5CW1 room air conditioner, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
AZ90E12D5CW1 Room Air Conditioner
#40

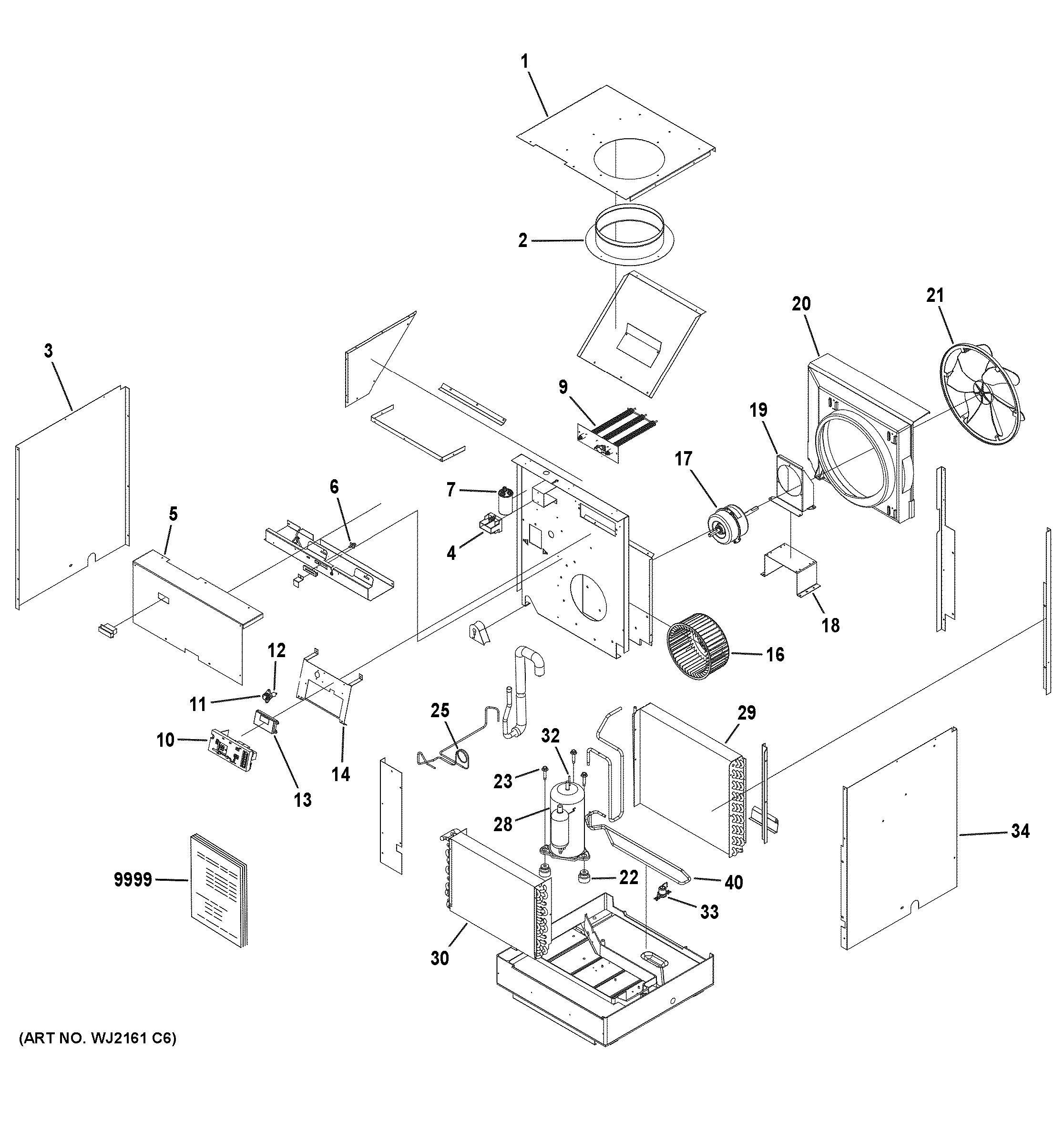

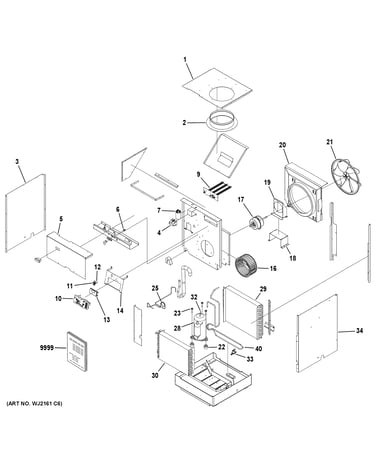

Vertical zoneline diagram
Sump tube
Part #WP53X24843
$71.18
In Stock
#6
Vertical zoneline diagram
Vent slide
Part #WP71X21961
$15.74
In Stock
#18
Vertical zoneline diagram
Motor riser
Part #WP01X21953
$34.67
In Stock
#10
Vertical zoneline diagram
Main board
Part #WP26X21951
$307.29
In Stock
#19
Vertical zoneline diagram
Motor mount
Part #WP01X21952
$25.80
In Stock
#25
Vertical zoneline diagram
Cap tube assembly
Part #WP53X24846
$88.64
In Stock
#13
Vertical zoneline diagram
Display board and jumper
Part #WP26X21942
$83.76
In Stock
#30
Vertical zoneline diagram
Indoor coil
Part #WP88X21948
$358.87
In Stock
#14
Vertical zoneline diagram
Control bracket
Part #WP65X21940
$43.53
In Stock
#28
Vertical zoneline diagram
Compressor and electricals
Part #WP98X21967
$578.35
In Stock
