Kenmore
Room Air Conditioner

Model # 58075121500 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075121500 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Room Air Conditioner Accordion Filler, Left 4959AR3402C
#1-E

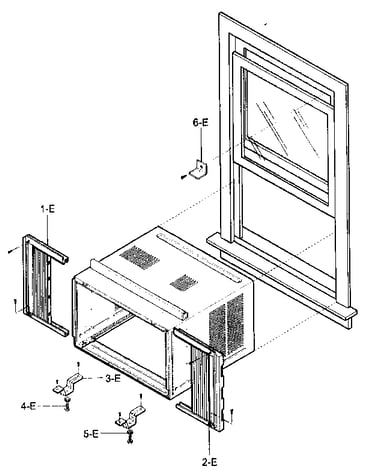

Installation kit assy diagram

Room air conditioner accordion filler, left

Part #4959AR3402C

Replaced by #3127A20074Y

?
Manufacturer substitution
This part replaces 4959AR3402C. Substitute parts can look different from the original.
$43.87 |
12% OFF Phone Price : $49.87
In Stock
Room Air Conditioner Accordion Filler, Right 4959AR3402D
#2-E

Installation kit assy diagram

Room air conditioner accordion filler, right

Part #4959AR3402D

Replaced by #3127A20074Y

?
Manufacturer substitution
This part replaces 4959AR3402D. Substitute parts can look different from the original.
$43.87 |
12% OFF Phone Price : $49.87
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#5-C

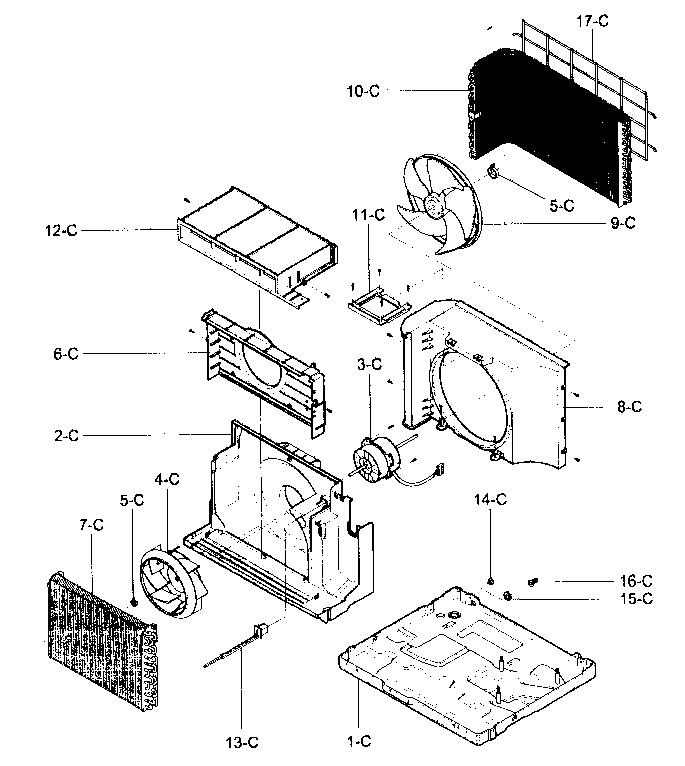

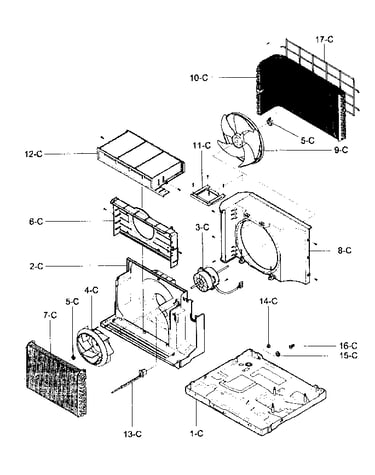

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Drain Pipe 3H02773A
#16-C

Air handling/cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Bushing 4830AR4335A
#1-D

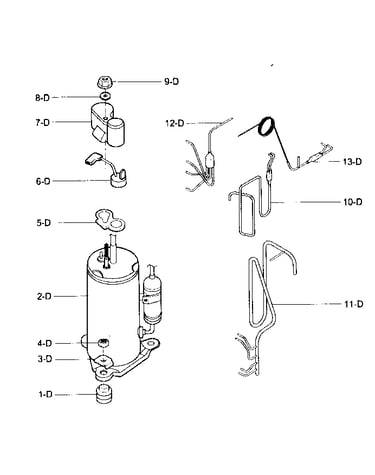

Compressor parts diagram

Bushing

Part #4830AR4335A

This item is not returnable
$4.51
In Stock
Friedrich Evaporator Tube 5211A20388K
#12-D

Compressor parts diagram

Friedrich evaporator tube

Part #5211A20388K

$52.40
In Stock
Friedrich Brace 4800A30002D
#11-C

Air handling/cycle parts diagram

Friedrich brace

Part #4800A30002D

$10.60
In Stock
Lg Air Guide 5238A20010A
#12-C

Air handling/cycle parts diagram

Lg air guide

Part #5238A20010A

$23.07
In Stock
Room Air Conditioner Louver (replaces 4758a20041b) 4758A10009B
#6-A

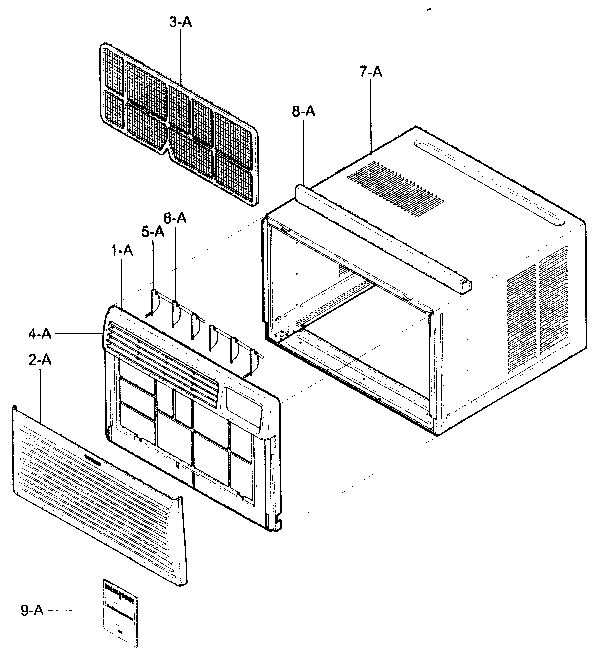

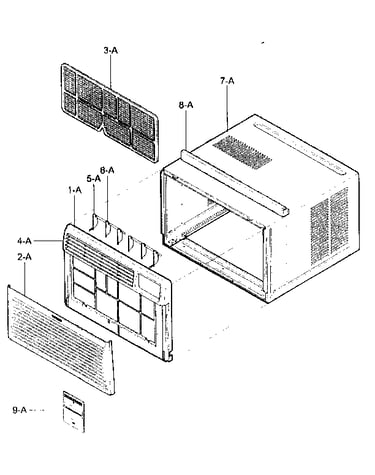

Cabinet/front grille assy diagram

Room air conditioner louver (replaces 4758a20041b)

Part #4758A10009B

This item is not returnable
$4.51
In Stock
Goldstar Room Air Conditioner Electronic Control Wiring Harness 6631A30003A
#11-B

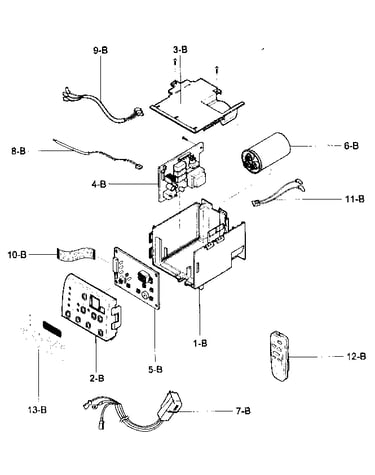

Control box assy diagram

Goldstar room air conditioner electronic control wiring harness

Part #6631A30003A

This item is not returnable
$7.00
In Stock
