Model # WSRE5260DCWW Official GE washer

Here are the diagrams and repair parts for Official GE WSRE5260DCWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Hub Nut WH02X1193
#325

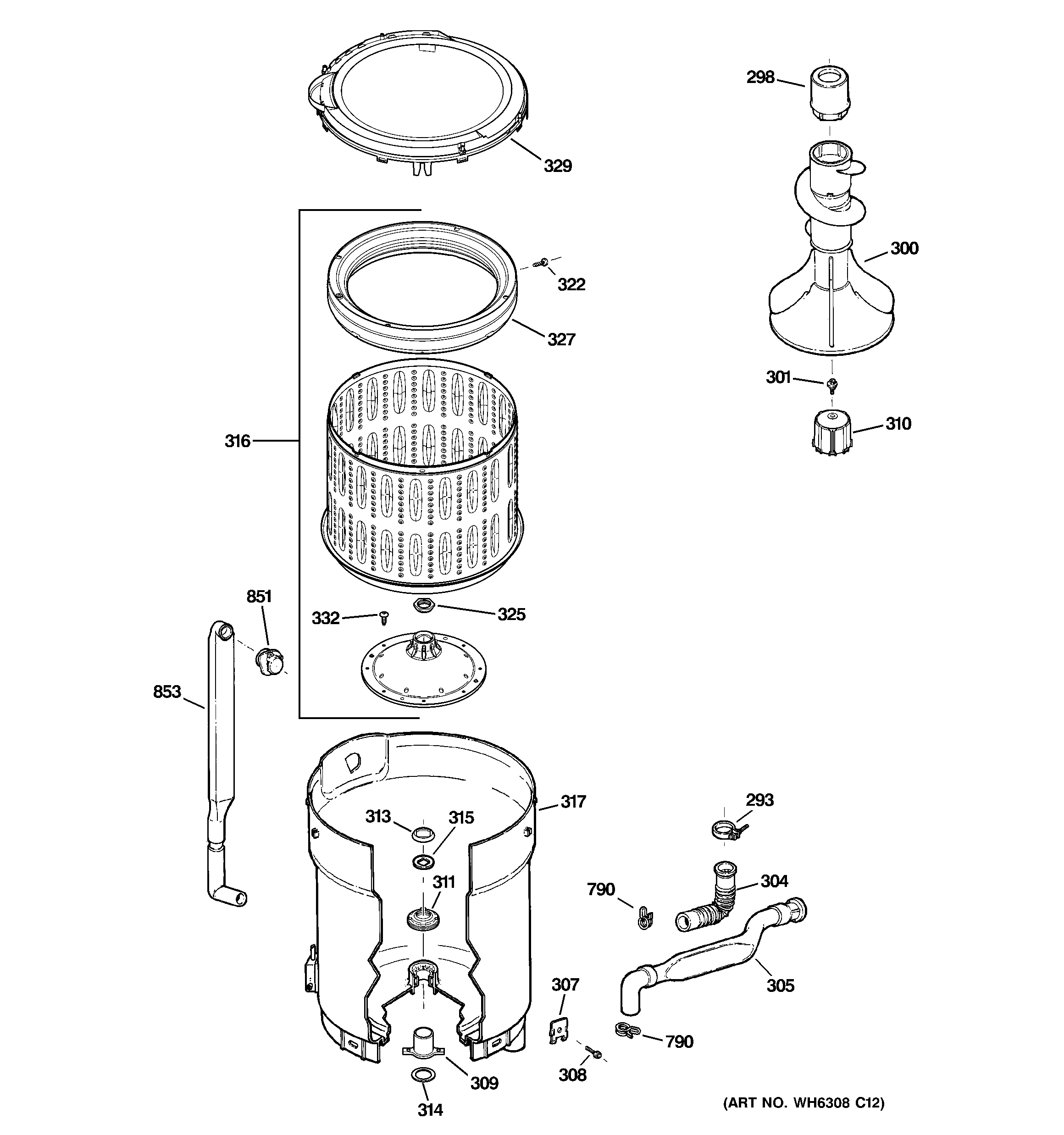

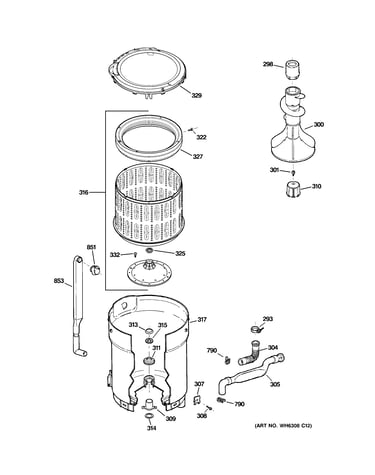

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Washer Tub Seal WH02X10032
#311

Tub, basket & agitator diagram

Washer tub seal

Part #WH02X10032

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH02X10032. Substitute parts can look different from the original.
BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Hub Washer WH02X1199
#315

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Extra Large Tub Assembly WH45X10024
#317

Tub, basket & agitator diagram

Extra large tub assembly

Part #WH45X10024

Replaced by #WH45X20473

?
Manufacturer substitution
This part replaces WH45X10024. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$100.87 |
11% OFF Phone Price : $112.87
In Stock
Washer Suspension Rod And Spring Assembly WH16X10057
#414

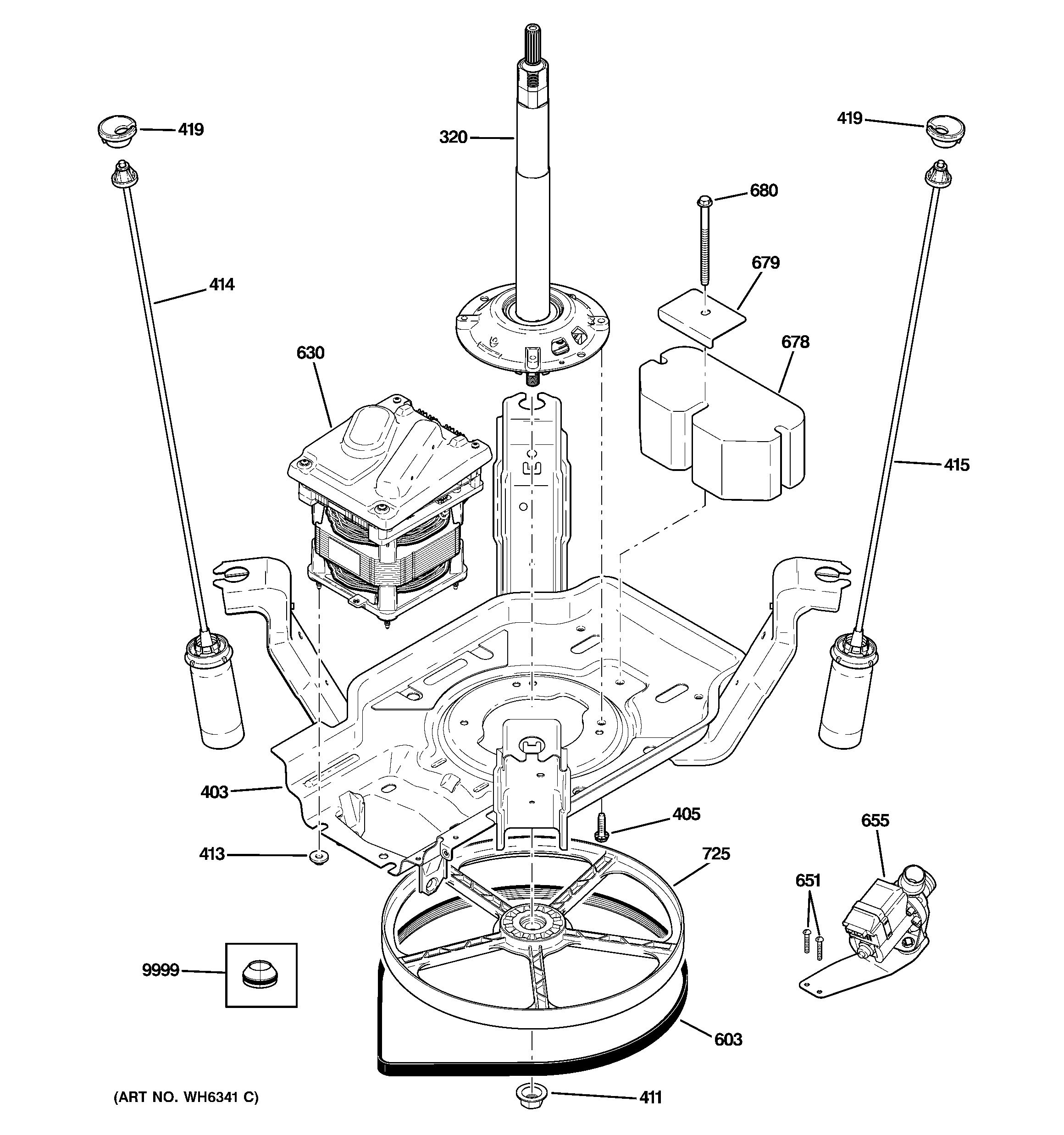

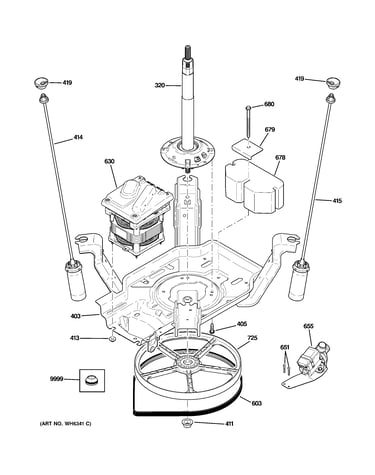

Suspension, pump & drive components diagram

Washer suspension rod and spring assembly

Part #WH16X10057

BEST SELLER
$27.23 |
18% OFF Phone Price : $33.23
In Stock
Washer Drain Pump Assembly WH23X10013
#655

Suspension, pump & drive components diagram

Washer drain pump assembly

Part #WH23X10013

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X10013. Substitute parts can look different from the original.
BEST SELLER
$67.97 |
8% OFF Phone Price : $73.97
In Stock
Motor And Inverter WH20X10030
#630

Suspension, pump & drive components diagram

Motor and inverter

Part #WH20X10030

Replaced by #WH20X10093

?
Manufacturer substitution
This part replaces WH20X10030. Substitute parts can look different from the original.
BEST SELLER
$294.66 |
$12.00 OFF Phone Price : $306.66
In Stock
Washer Water Inlet Valve (replaces Wh13x86) WH13X10024
#805

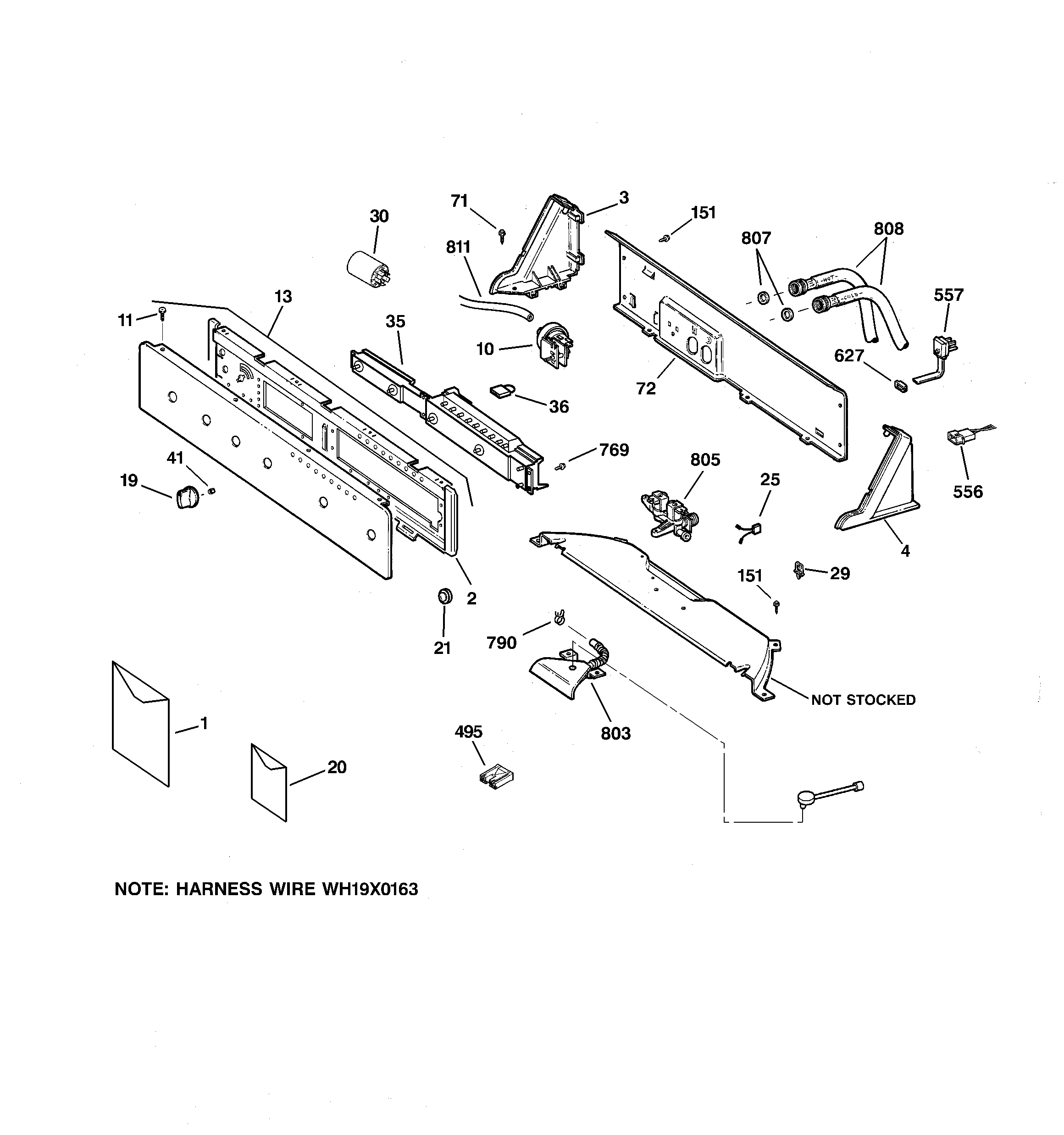

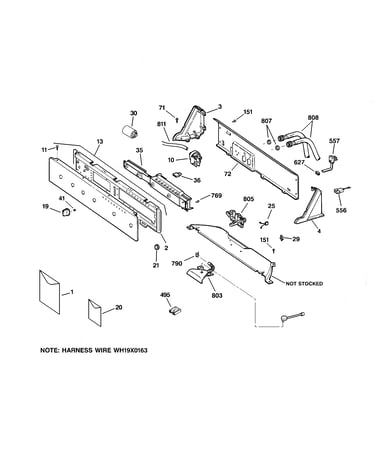

Controls & backsplash diagram

Washer water inlet valve (replaces wh13x86)

Part #WH13X10024

BEST SELLER
$68.35 |
8% OFF Phone Price : $74.35
In Stock
Rod Spring WH16X0545
#415

Suspension, pump & drive components diagram

Rod spring

Part #WH16X0545

Replaced by #WH16X10141

?
Manufacturer substitution
This part replaces WH16X0545. Substitute parts can look different from the original.
BEST SELLER
$30.80 |
16% OFF Phone Price : $36.80
In Stock
Washer Top WH44X10027
#391

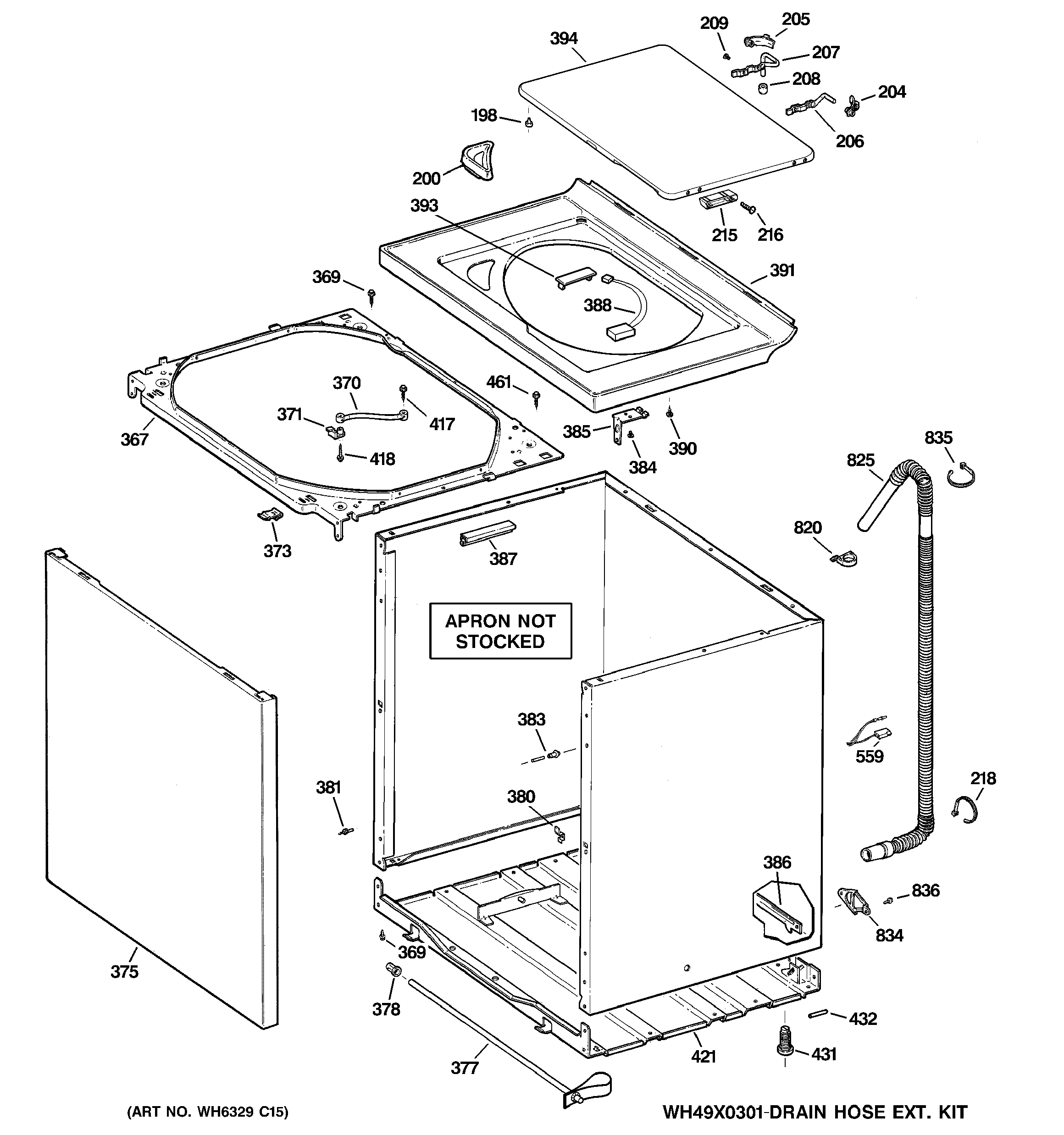

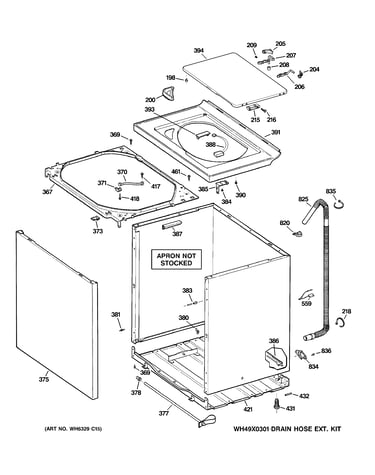

Cabinet, cover & front panel diagram

Washer top

Part #WH44X10027

Replaced by #WH44X21834

?
Manufacturer substitution
This part replaces WH44X10027. Substitute parts can look different from the original.
BEST SELLER
$62.35 |
9% OFF Phone Price : $68.35
In Stock
