Model # WRT108FFDM01 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRT108FFDM01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

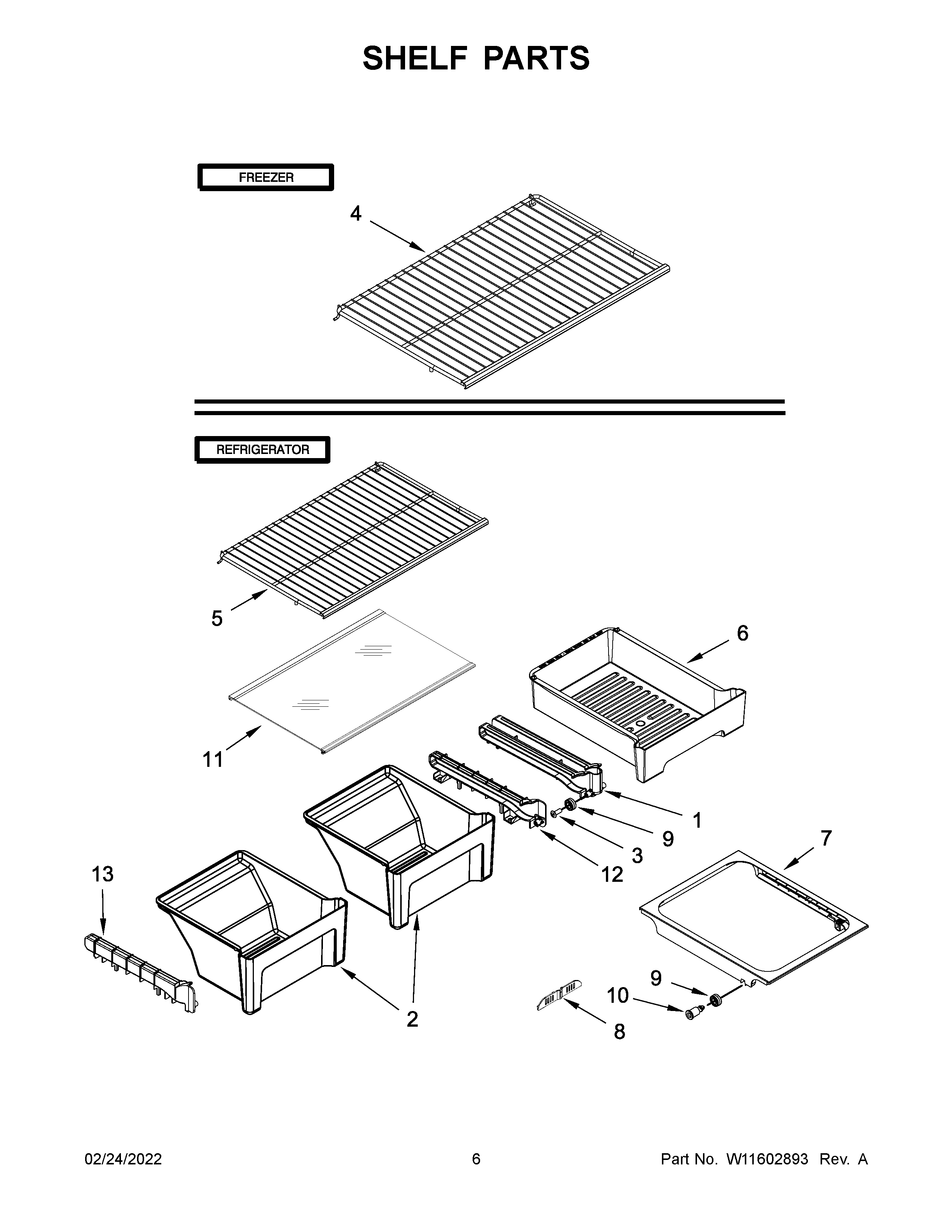

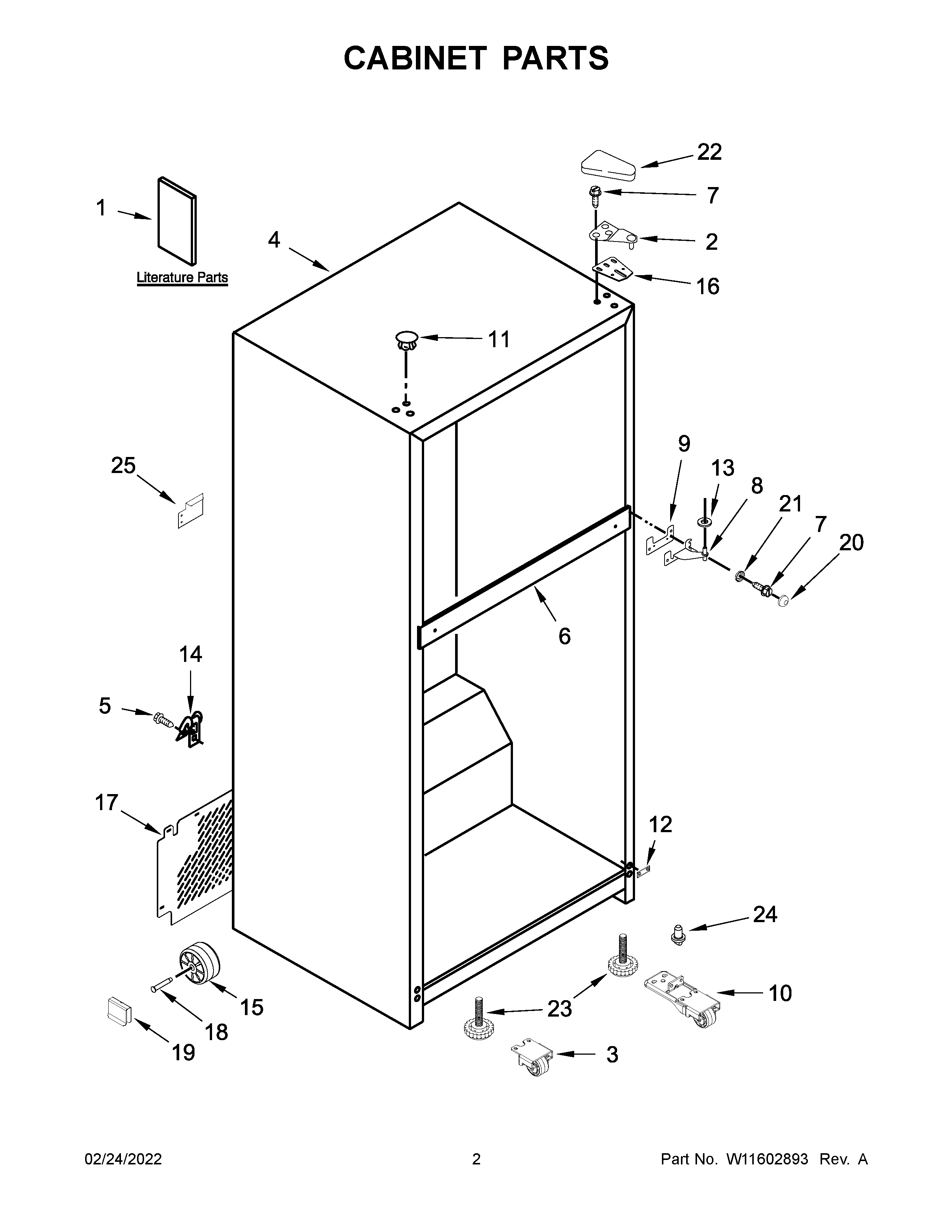

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Refrigerator Thermistor W10384183
#15

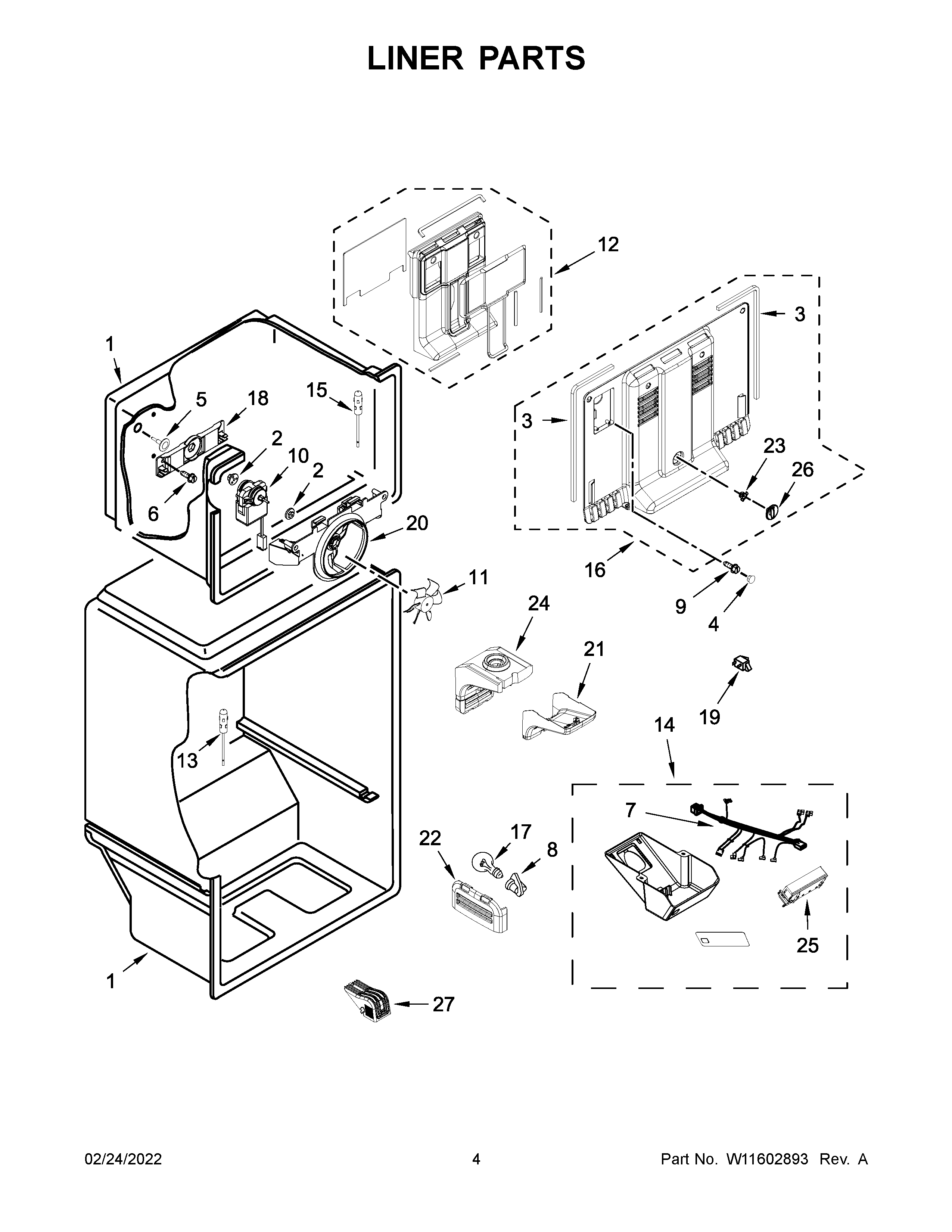

Liner parts diagram

Refrigerator thermistor

Part #W10384183

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Evaporator Fan Motor 2315539
#10

Liner parts diagram

Refrigerator evaporator fan motor

Part #2315539

Replaced by #WP2315539

?
Manufacturer substitution
This part replaces 2315539. Substitute parts can look different from the original.
BEST SELLER
$57.37 |
9% OFF Phone Price : $63.37
In Stock
Refrigerator Capacitor W10590083
#19

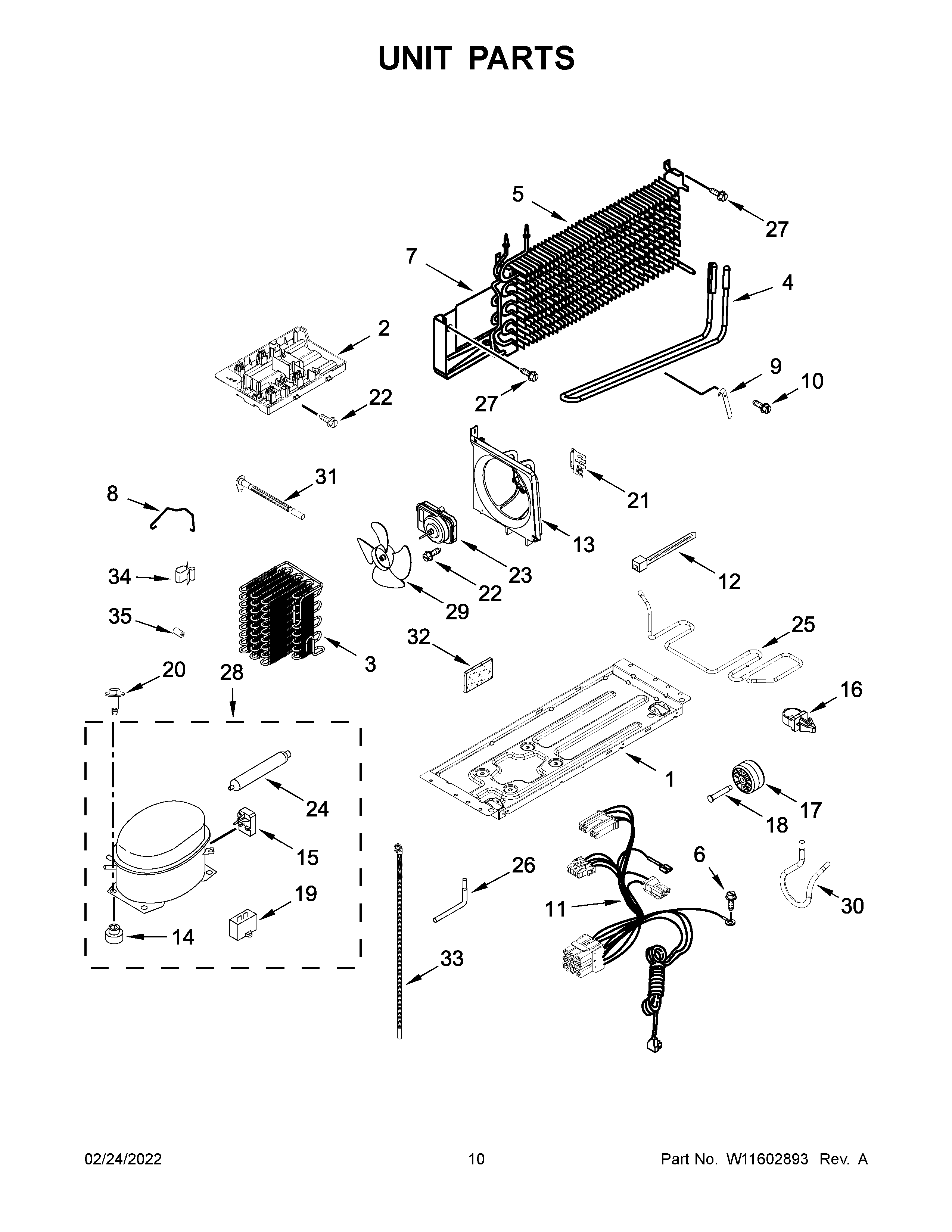

Unit parts diagram

Refrigerator capacitor

Part #W10590083

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces W10590083. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Refrigerator Ice Maker Kit (replaces W11534202, Wpw10715708) W11510803
#NI

Optional parts diagram

Refrigerator ice maker kit (replaces w11534202, wpw10715708)

Part #W11510803

BEST SELLER
$108.60 |
10% OFF Phone Price : $120.60
Back Order
Compressor T W11332033
#28

Unit parts diagram

Compressor t

Part #W11332033

Replaced by #W11580057

?
Manufacturer substitution
This part replaces W11332033. Substitute parts can look different from the original.
BEST SELLER
$273.33
In Stock
Refrigerator Screw 489357
#4

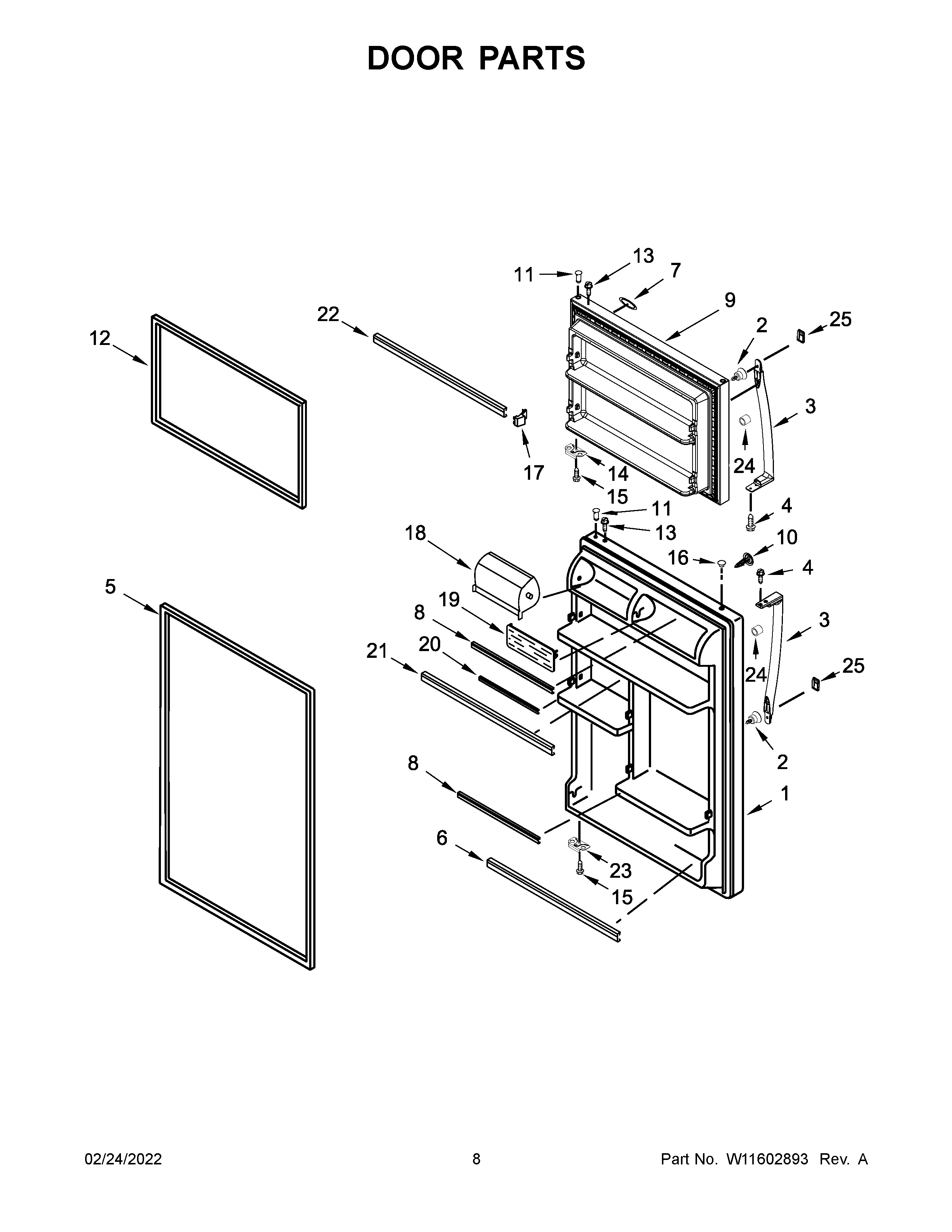

Door parts diagram

Refrigerator screw

Part #489357

Replaced by #WP489357

?
Manufacturer substitution
This part replaces 489357. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Appliance Silicone Lubricant 542638
#NI

Optional parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Thermistor, Refrigerator W11108173
#13

Liner parts diagram

Thermistor, refrigerator

Part #W11108173

Replaced by #W11438736

?
Manufacturer substitution
This part replaces W11108173. Substitute parts can look different from the original.
BEST SELLER
$48.07 |
11% OFF Phone Price : $54.07
In Stock
Refrigerator Door Gasket W10678768
#5A

Door parts diagram

Refrigerator door gasket

Part #W10678768

Replaced by #W11240749

?
Manufacturer substitution
This part replaces W10678768. Substitute parts can look different from the original.
BEST SELLER
$90.07 |
6% OFF Phone Price : $96.07
In Stock
Light Socket 2162085
#8

Liner parts diagram

Light socket

Part #2162085

Replaced by #4387478

?
Manufacturer substitution
This part replaces 2162085. Substitute parts can look different from the original.
$62.74 |
9% OFF Phone Price : $68.74
In Stock
