Sharp
Countertop Microwave

Model # R-320DQ Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-320DQ microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

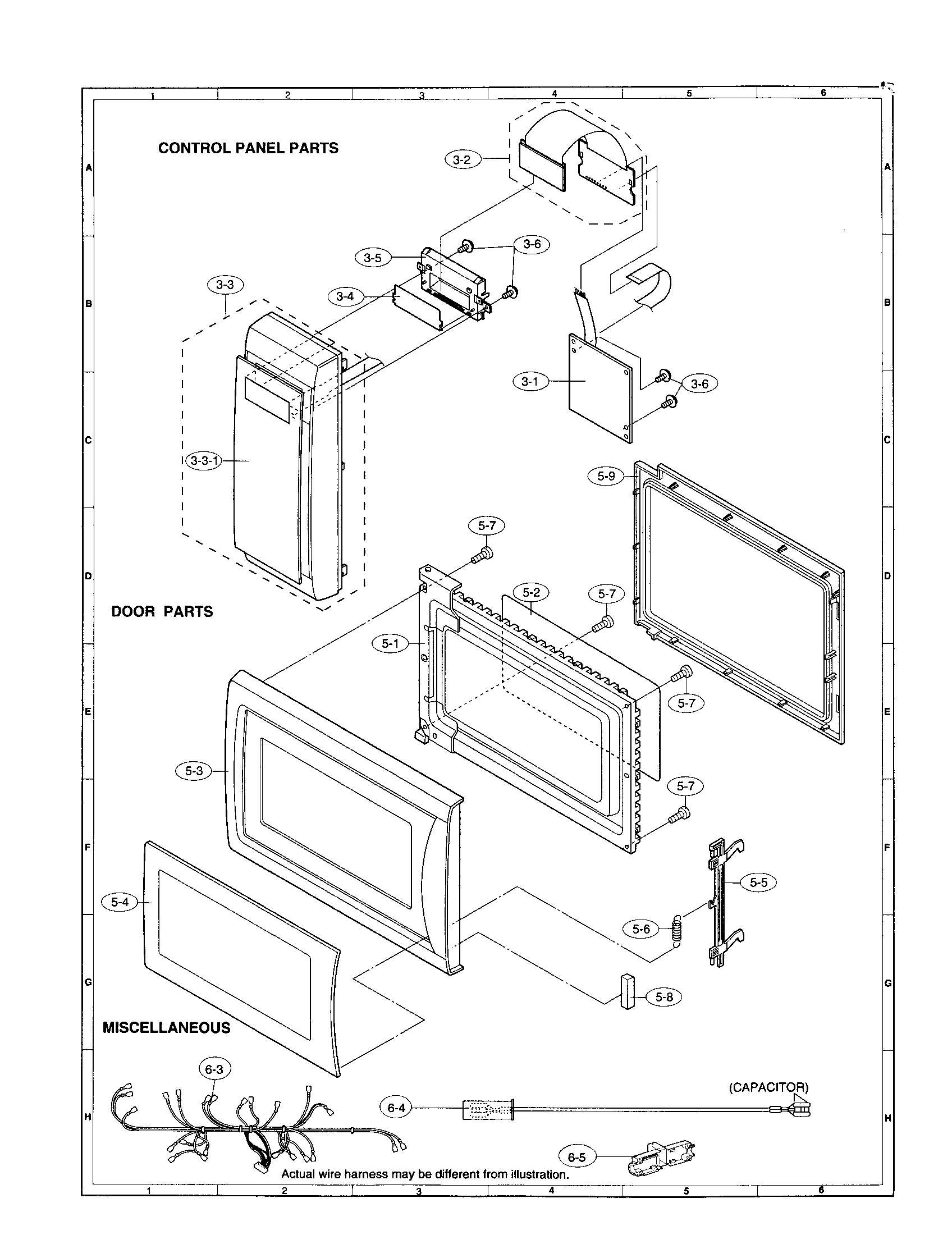

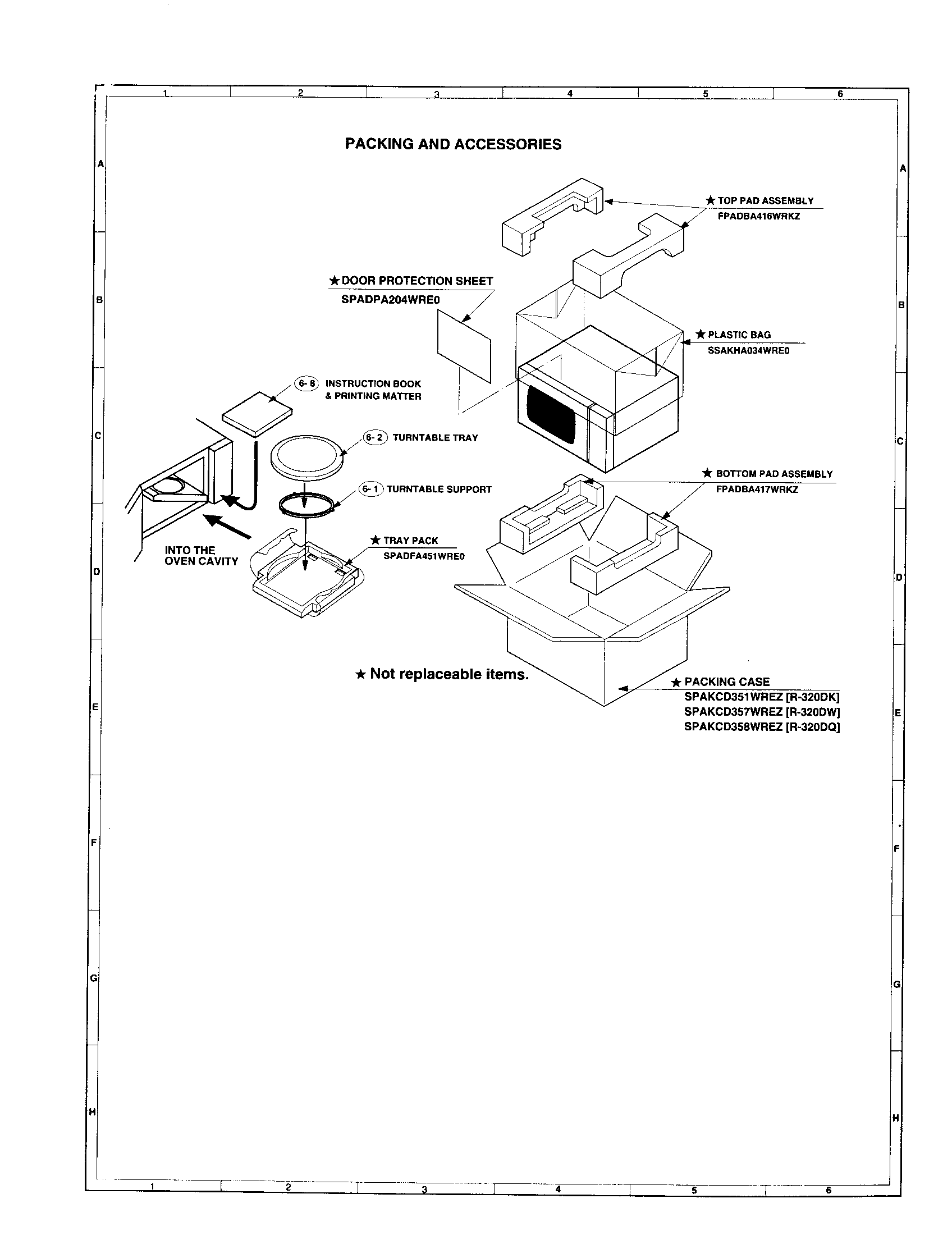

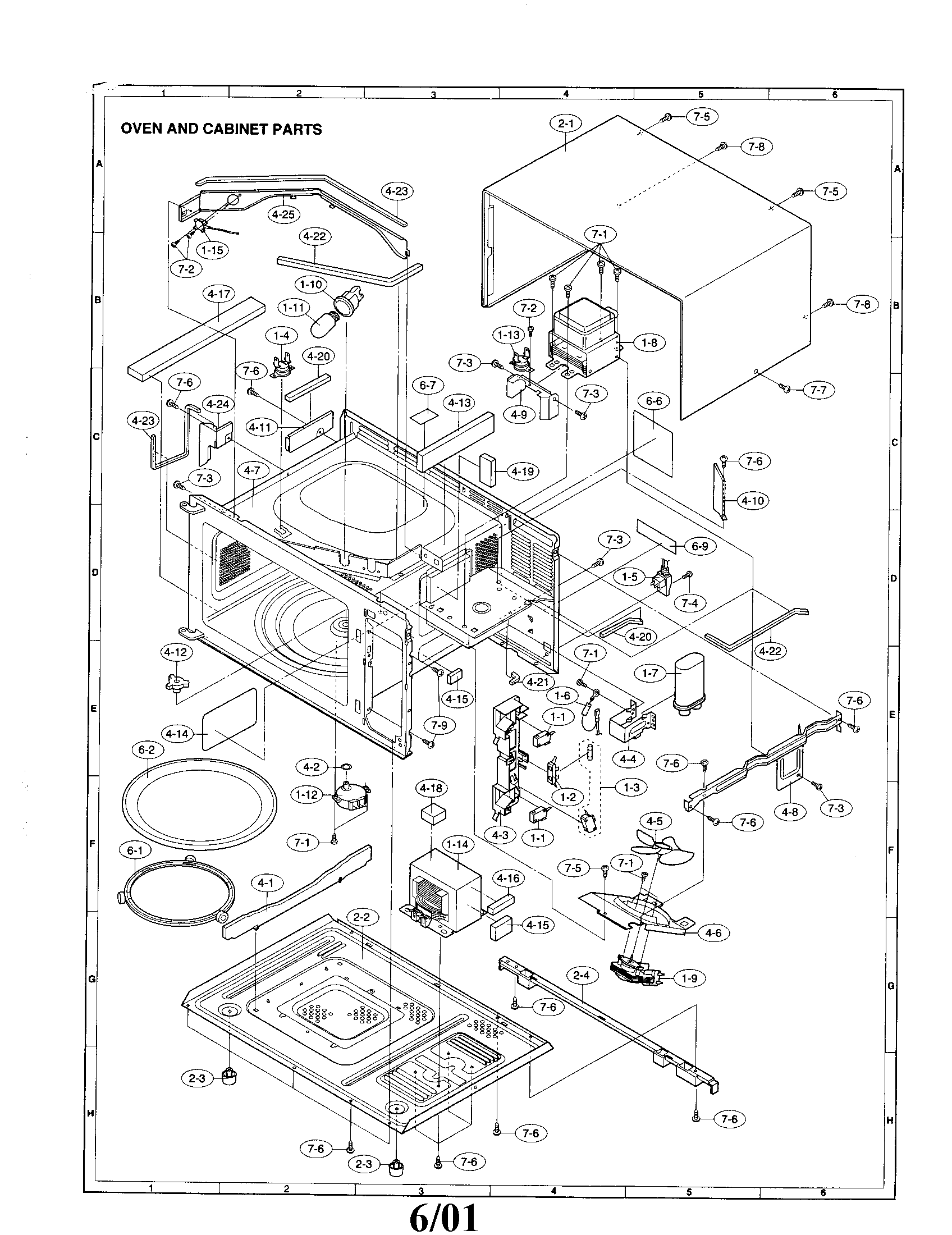

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Power Cord FACCDA083WRE0

#1-05A

All parts diagram

Power cord

Part #FACCDA083WRE0

The manufacturer no longer makes this part, and there's no substitute part

Connector QCNCMA446DRE0

#3-01A

All parts diagram

Connector

Part #QCNCMA446DRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse Kit FFS-BA021WRK0

#1-03

All parts diagram

Fuse kit

Part #FFS-BA021WRK0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZA234WRE0

#1-07

All parts diagram

Capacitor

Part #RC-QZA234WRE0

The manufacturer no longer makes this part, and there's no substitute part

Thermal Cu RTHM-A078WRE0

#1-04

All parts diagram

Thermal cu

Part #RTHM-A078WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder QFSHDA009WRE0

#1-02

All parts diagram

Fuse holder

Part #QFSHDA009WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fan NFANJA029WRE0

#4-05

All parts diagram

Fan

Part #NFANJA029WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sheet PSHEPA588WRE0

#3-04

All parts diagram

Sheet

Part #PSHEPA588WRE0

The manufacturer no longer makes this part, and there's no substitute part

Cover PCOVPA349WRE0

#4-14

All parts diagram

Cover

Part #PCOVPA349WRE0

The manufacturer no longer makes this part, and there's no substitute part

Cushion PCUSUA461WRP0

#5-08

All parts diagram

Cushion

Part #PCUSUA461WRP0

The manufacturer no longer makes this part, and there's no substitute part
