Model # 315111340 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315111340 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

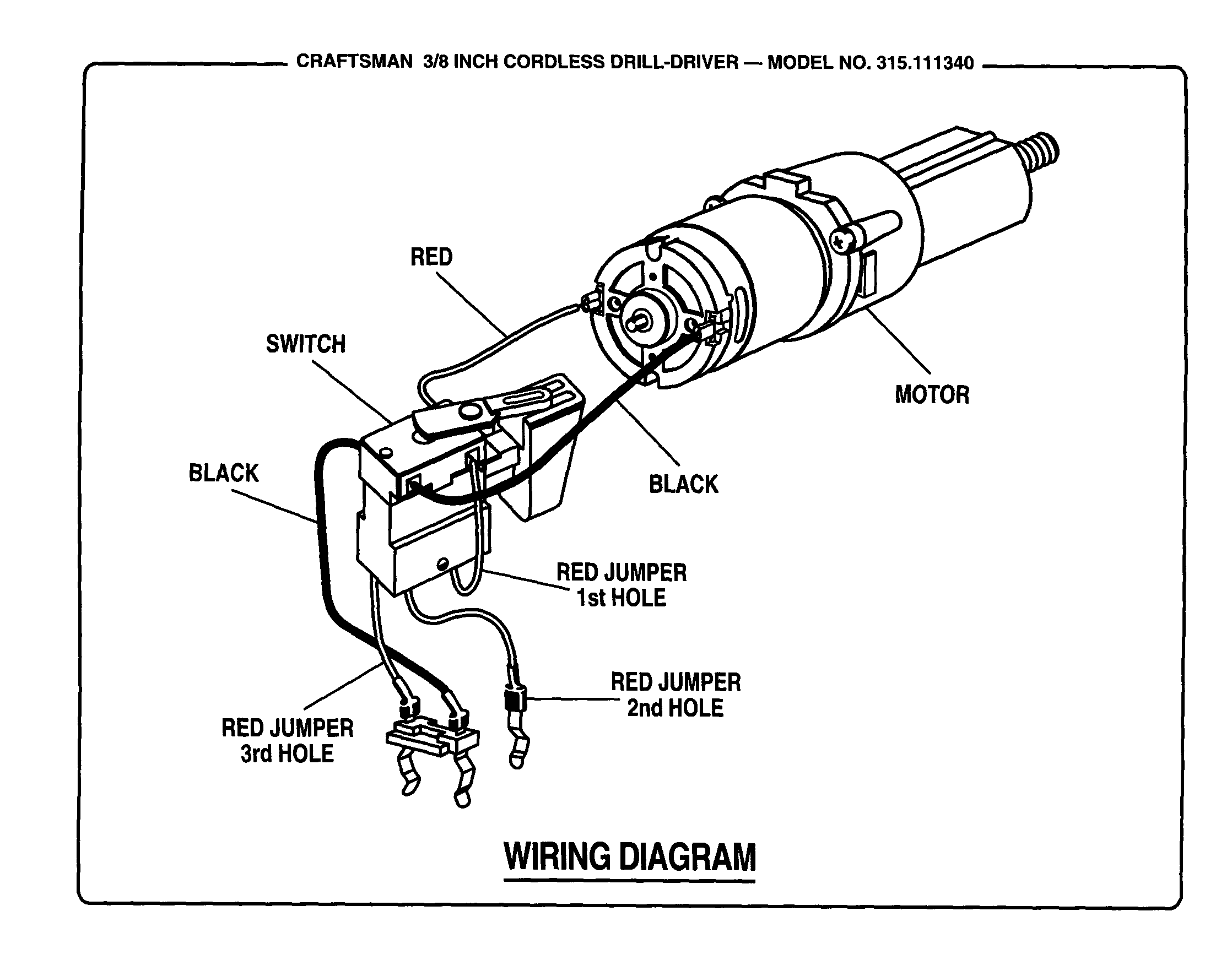

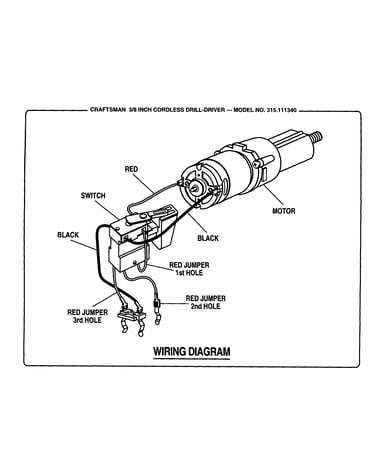

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Chuck 973094-001
#2

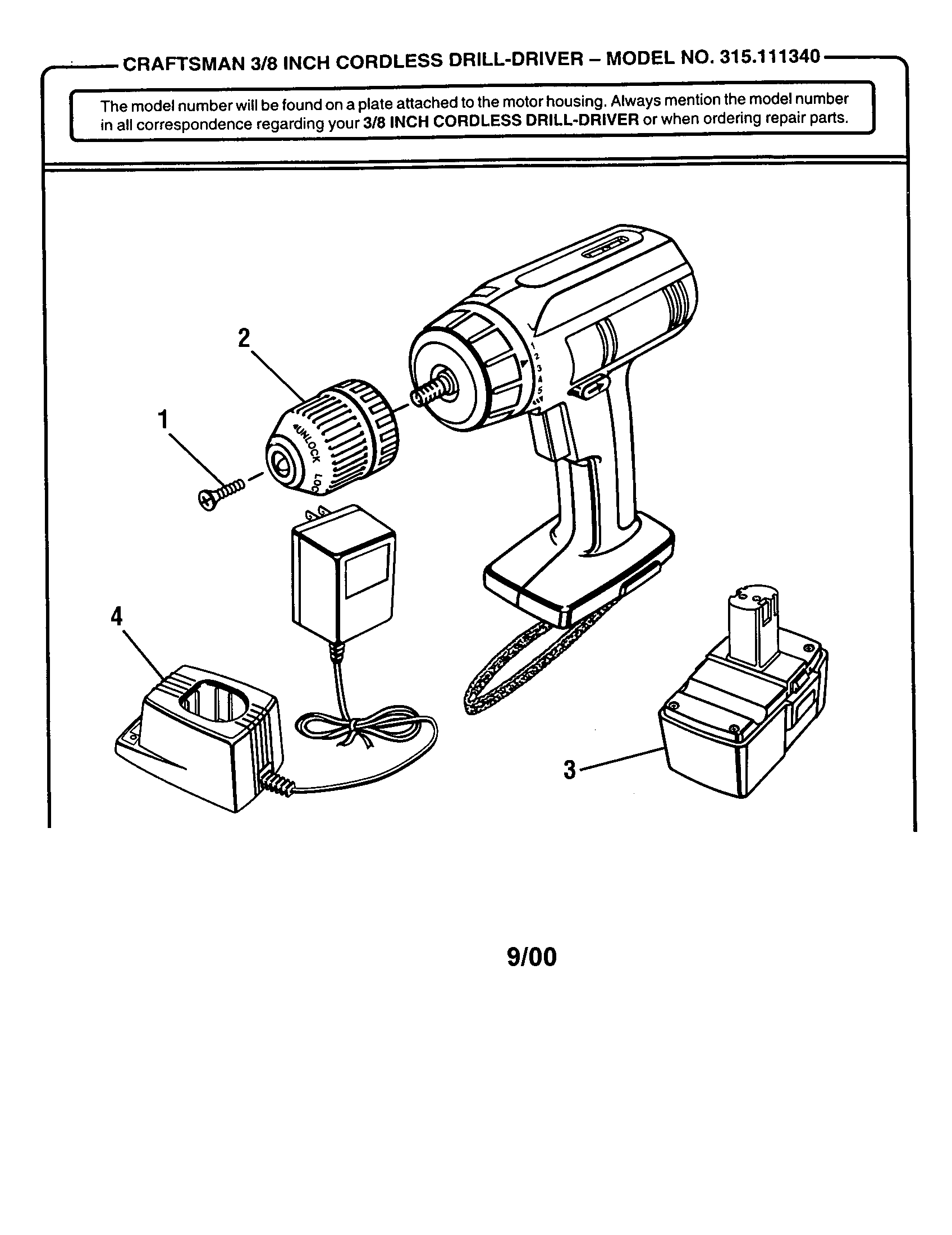

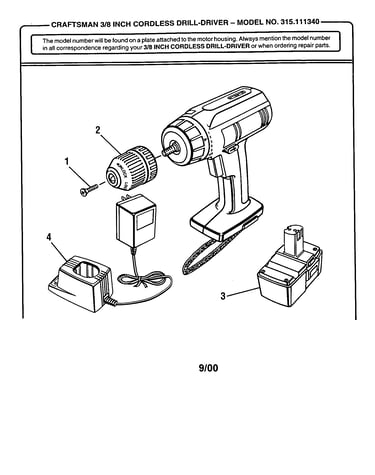

3/8" cordless drill-driver diagram

Chuck

Part #973094-001

The manufacturer no longer makes this part, and there's no substitute part

Top Plate 977376-000
#2

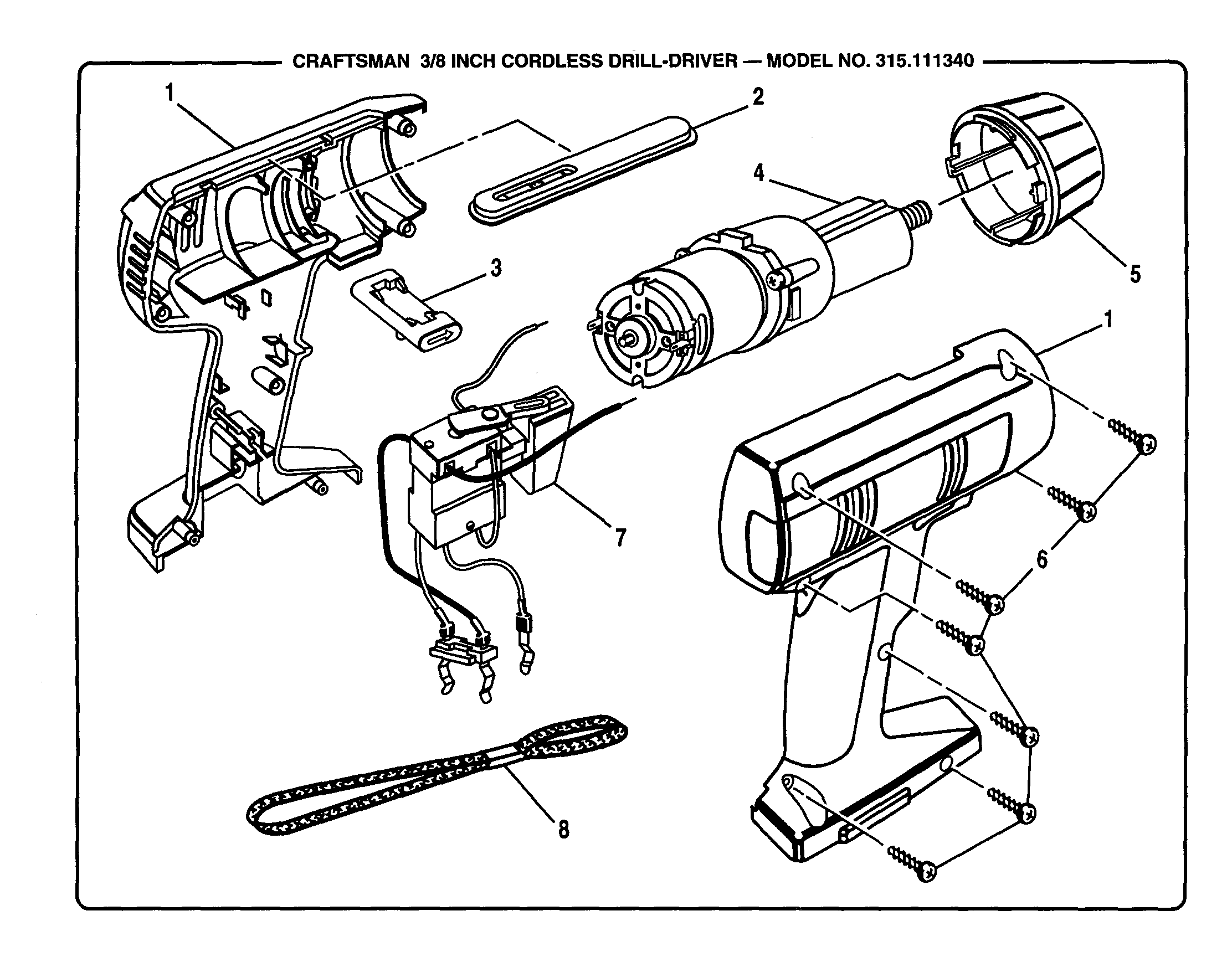

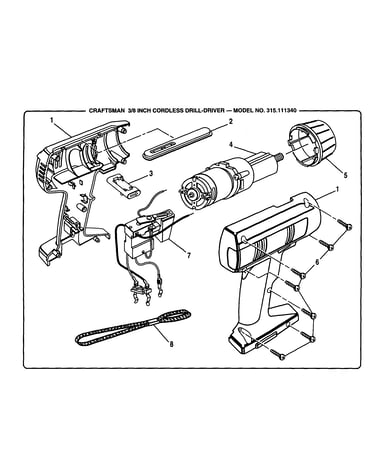

Housing/motor diagram

Top plate

Part #977376-000

The manufacturer no longer makes this part, and there's no substitute part

Glamor Cap 977844-000
#5

Housing/motor diagram

Glamor cap

Part #977844-000

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 616478-003
#1

3/8" cordless drill-driver diagram

Drill chuck screw

Part #616478-003

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 9-11015
#3

3/8" cordless drill-driver diagram

Battery pack

Part #9-11015

The manufacturer no longer makes this part, and there's no substitute part

Switch 977412-000
#3

Housing/motor diagram

Switch

Part #977412-000

The manufacturer no longer makes this part, and there's no substitute part

Housing 982041-001
#1

Housing/motor diagram

Housing

Part #982041-001

The manufacturer no longer makes this part, and there's no substitute part

Charg/stand 9-11070
#4

3/8" cordless drill-driver diagram

Charg/stand

Part #9-11070

The manufacturer no longer makes this part, and there's no substitute part

Chuck 9-20988
#2A

3/8" cordless drill-driver diagram

Chuck

Part #9-20988

The manufacturer no longer makes this part, and there's no substitute part

Motor W/ge 977375-000
#4

Housing/motor diagram

Motor w/ge

Part #977375-000

The manufacturer no longer makes this part, and there's no substitute part
