Top-Mount Refrigerator

Model # SNR10TFPA Official Sunbeam refrigerator

Here are the diagrams and repair parts for Official Sunbeam SNR10TFPA refrigerator, as well as links to manuals and error code tables, if available.

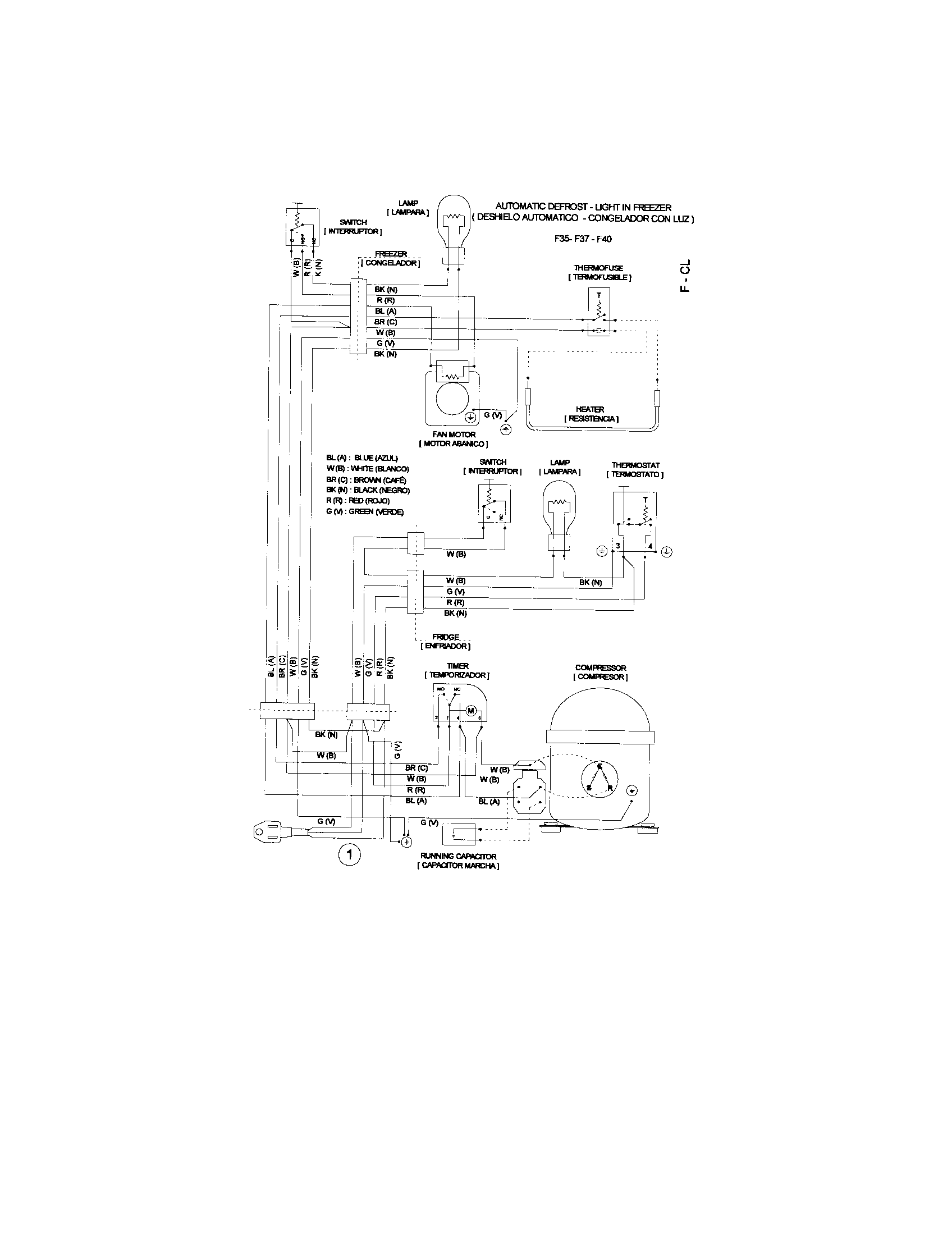

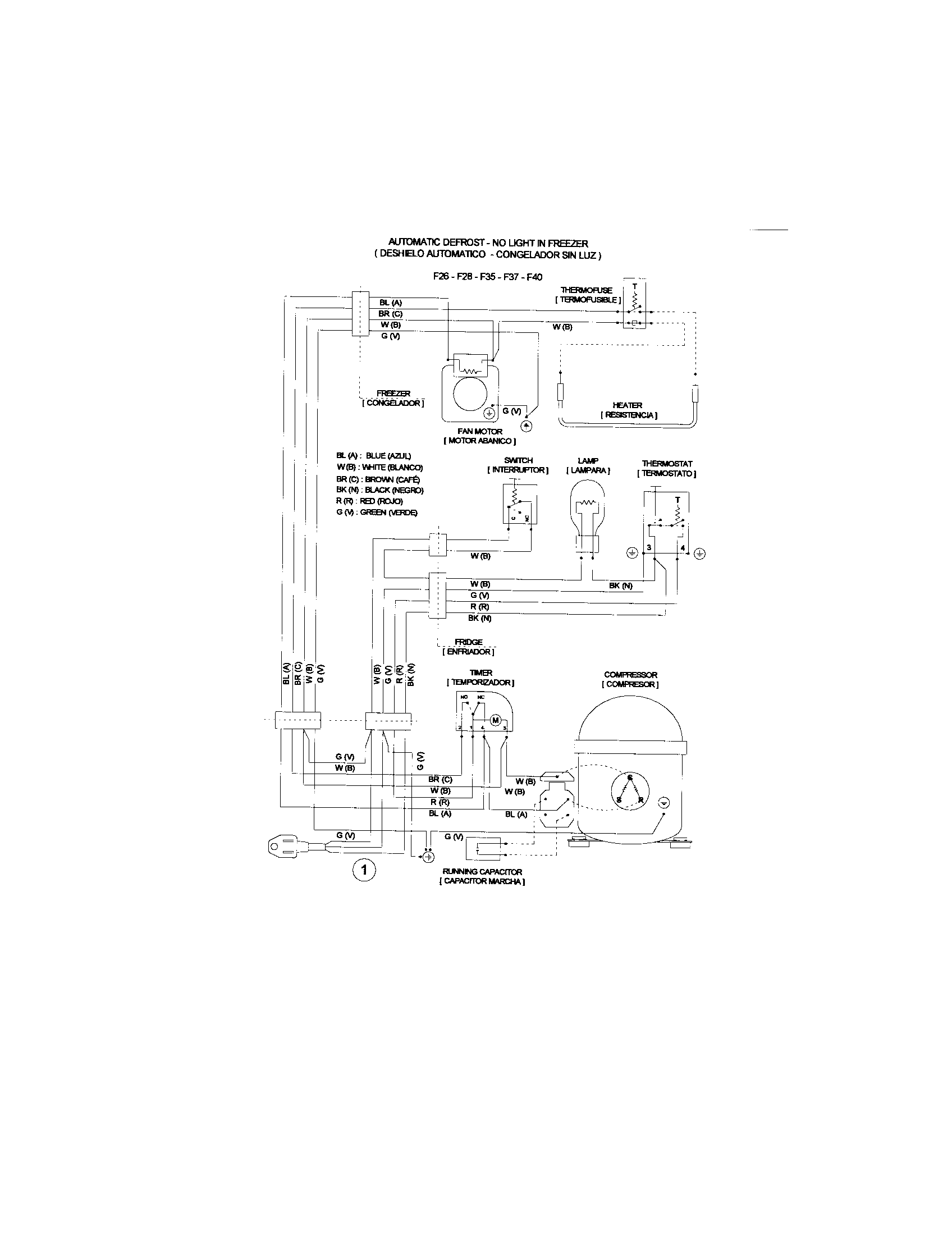

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forSNR10TFPA Refrigerators

  • Trim,bisct SB194827RSC
    #4

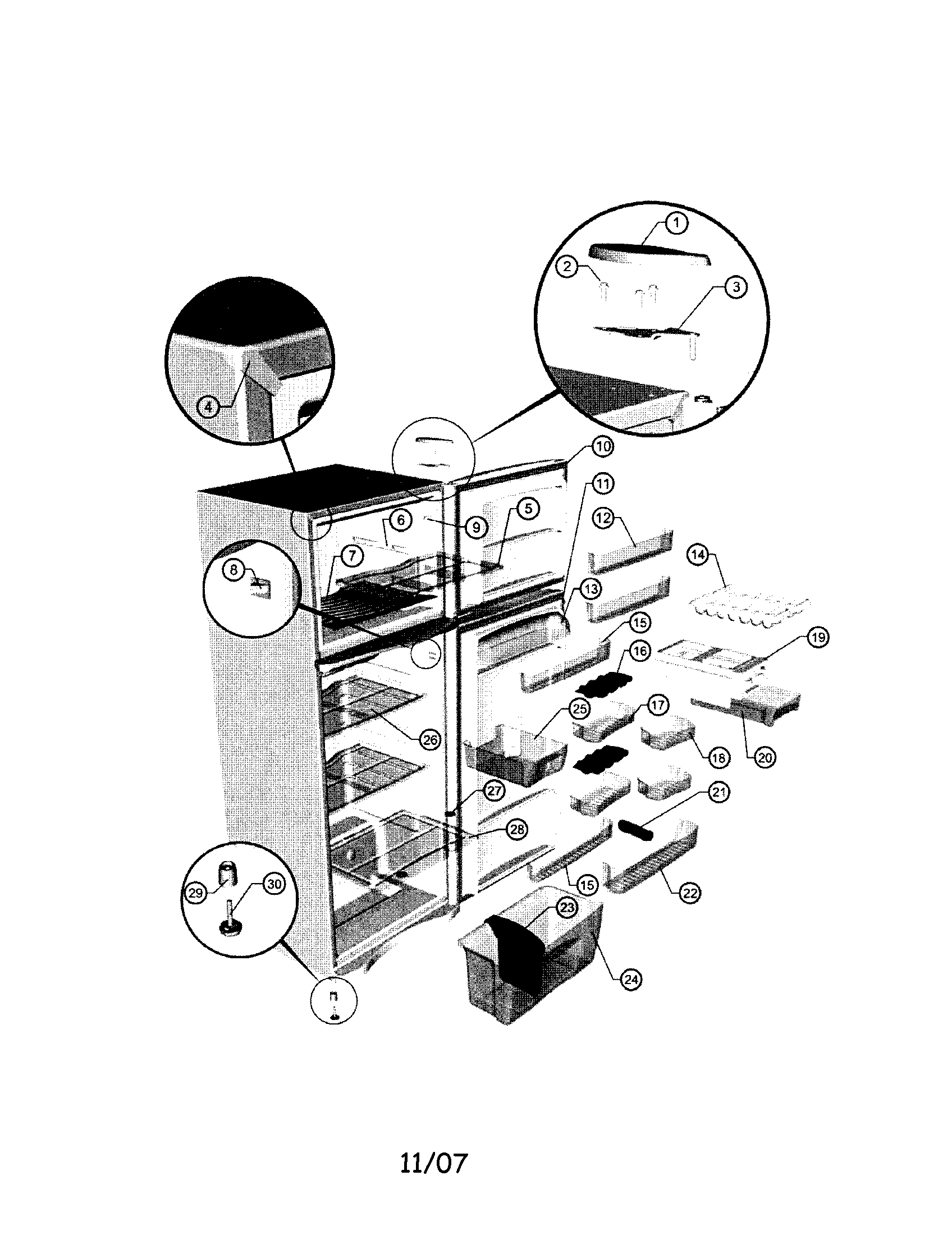

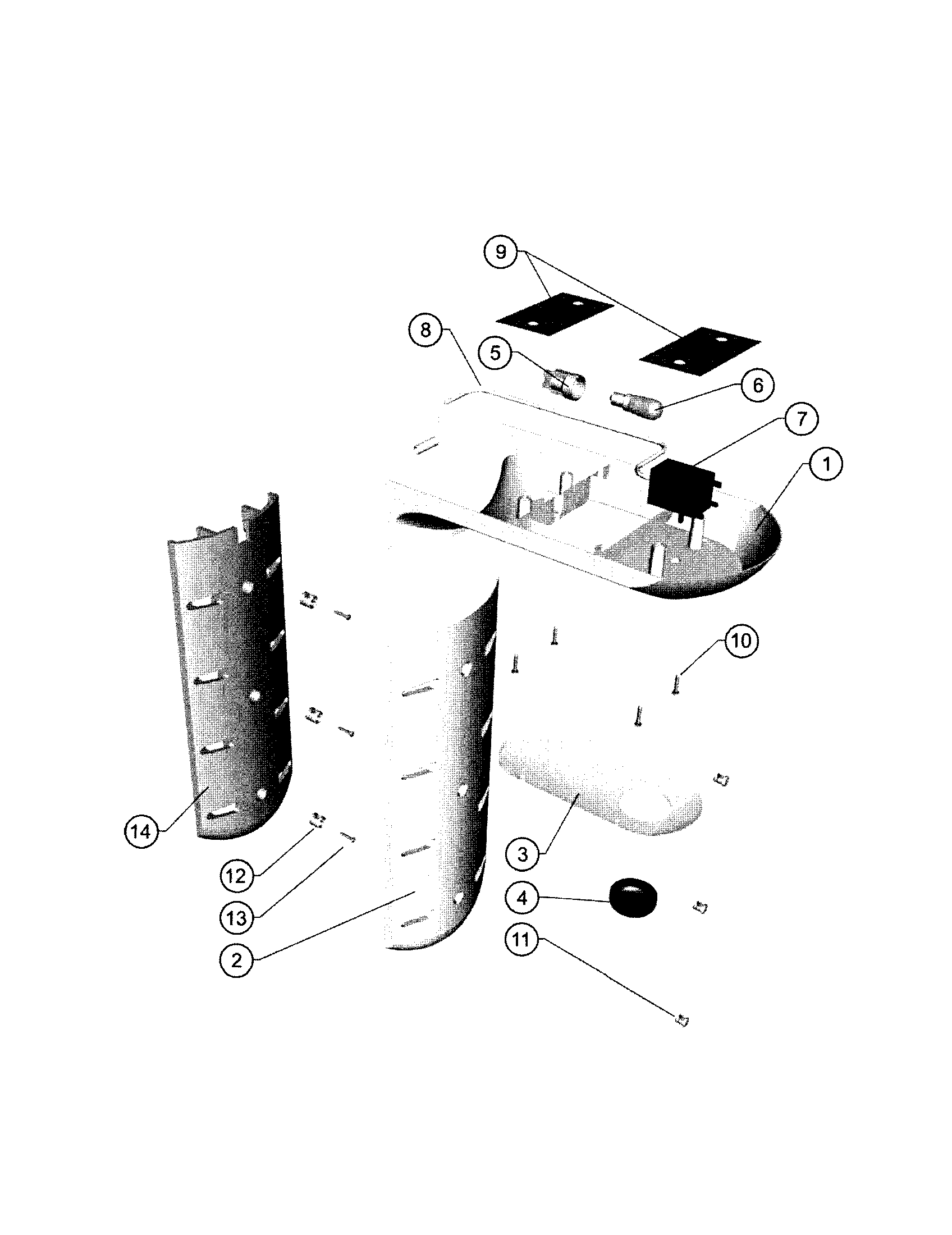

    Internal accessories diagram

    Trim,bisct

    Part #SB194827RSC

    In Stock
  • Refrigerator Display Cover SB197014RSC
    #20C

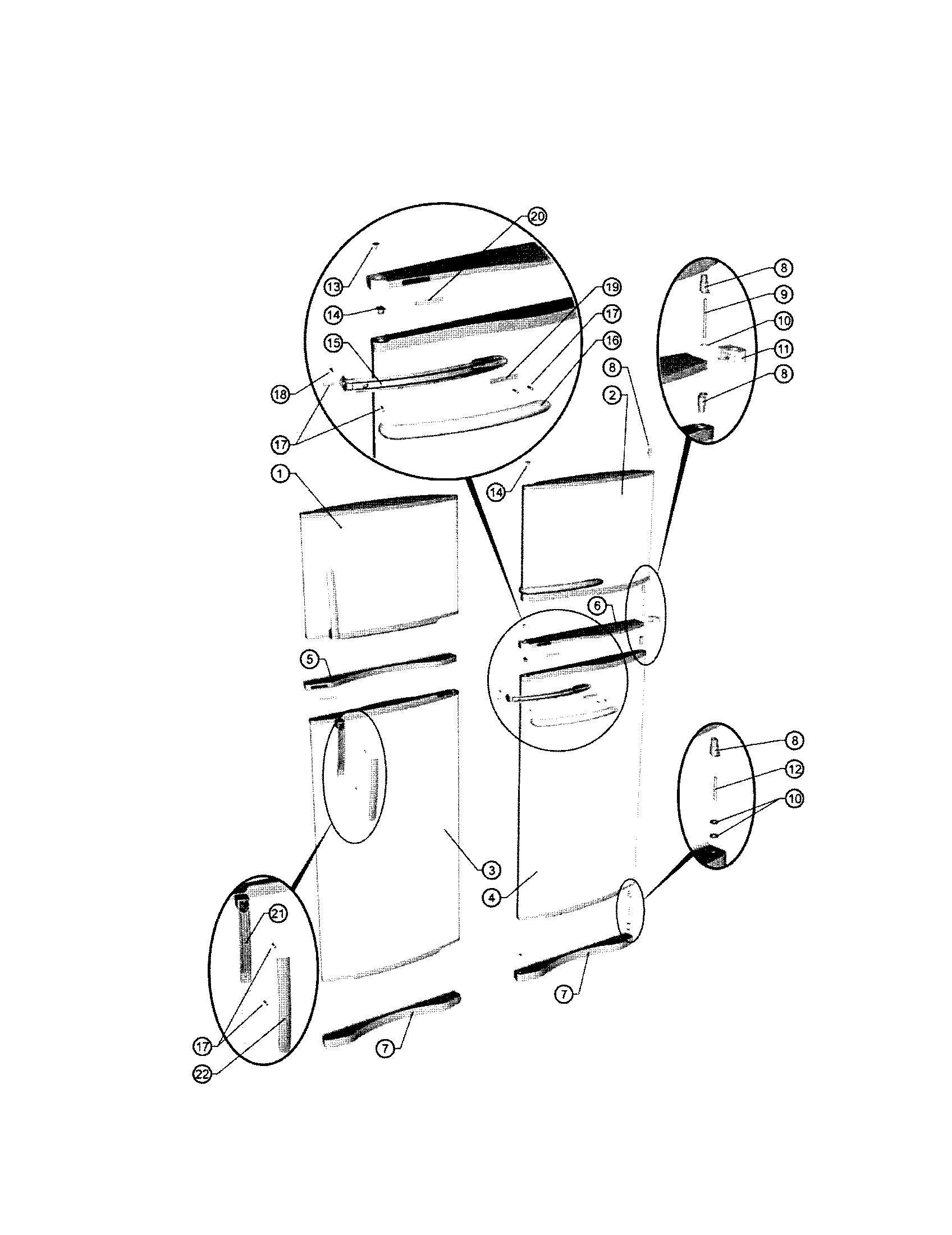

    Door accessories diagram

    Refrigerator display cover

    Part #SB197014RSC

    In Stock
  • Refrigerator Plate SB197217RSC
    #19

    Door accessories diagram

    Refrigerator plate

    Part #SB197217RSC

    In Stock
  • Refrigerator Screw SB191277RSC
    #30

    Internal accessories diagram

    Refrigerator screw

    Part #SB191277RSC

    In Stock
  • Washer SB913506
    #5

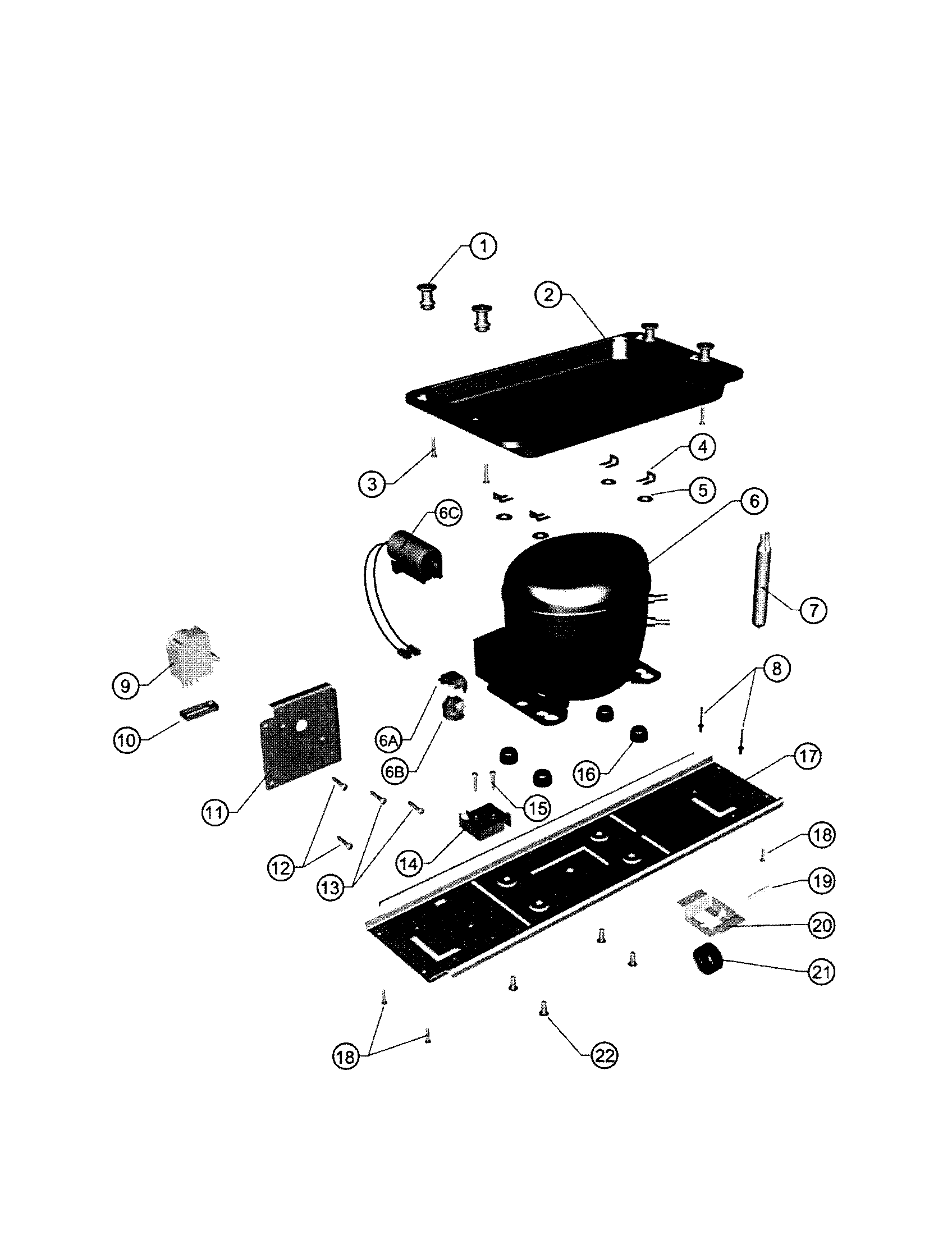

    Compressor and support diagram

    Washer

    Part #SB913506

    This item is not returnable
    In Stock
  • Refrigerator Humidity Control SB196745RSC
    #27

    Internal accessories diagram

    Refrigerator humidity control

    Part #SB196745RSC

    This item is not returnable
    In Stock
  • Refrigerator Pin SB924016
    #22

    Compressor and support diagram

    Refrigerator pin

    Part #SB924016

    In Stock
  • Refrigerator Condenser SB901218
    #3B

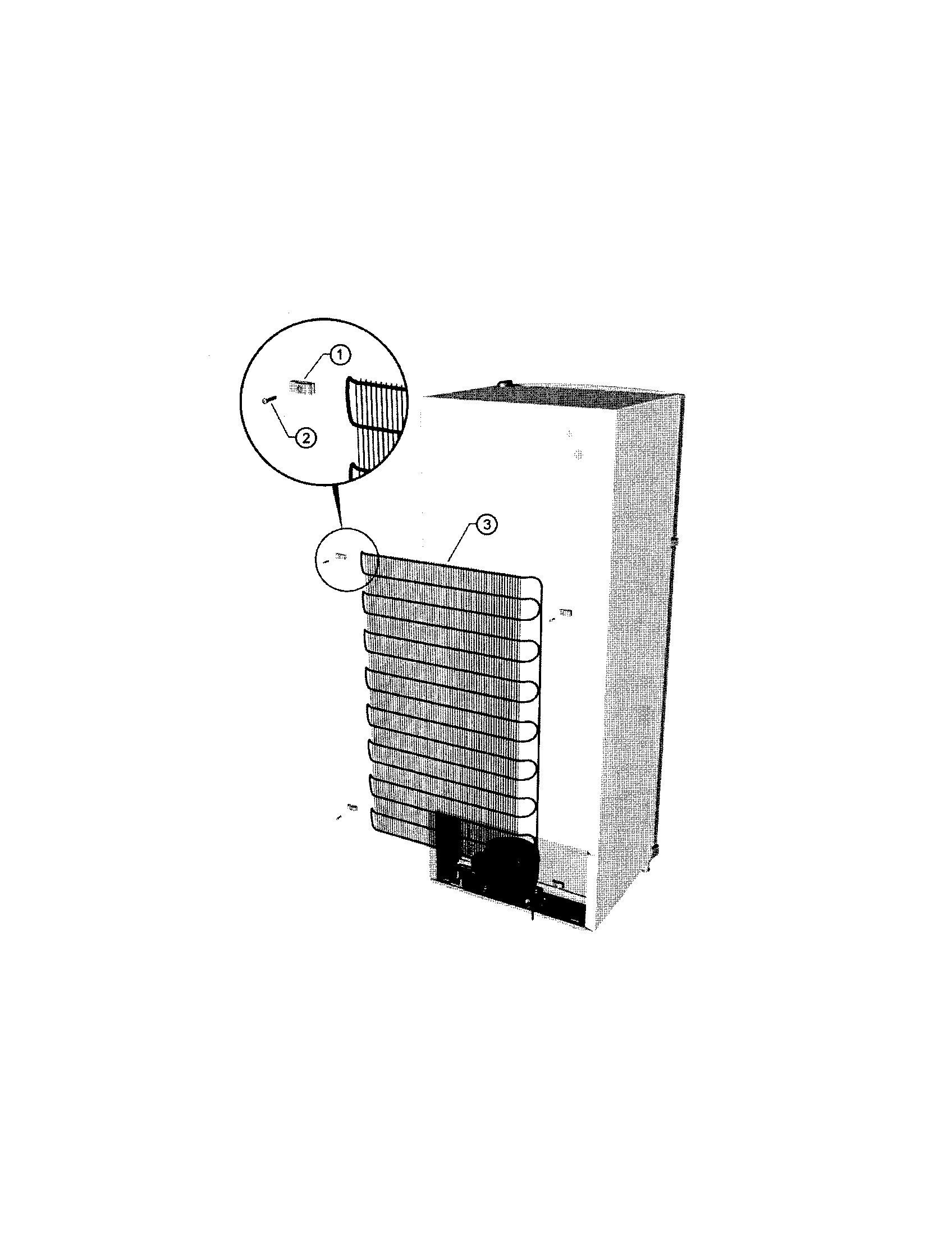

    Condenser diagram

    Refrigerator condenser

    Part #SB901218

    In Stock
  • Refrigerator Drain Filter SB191081RSC
    #4

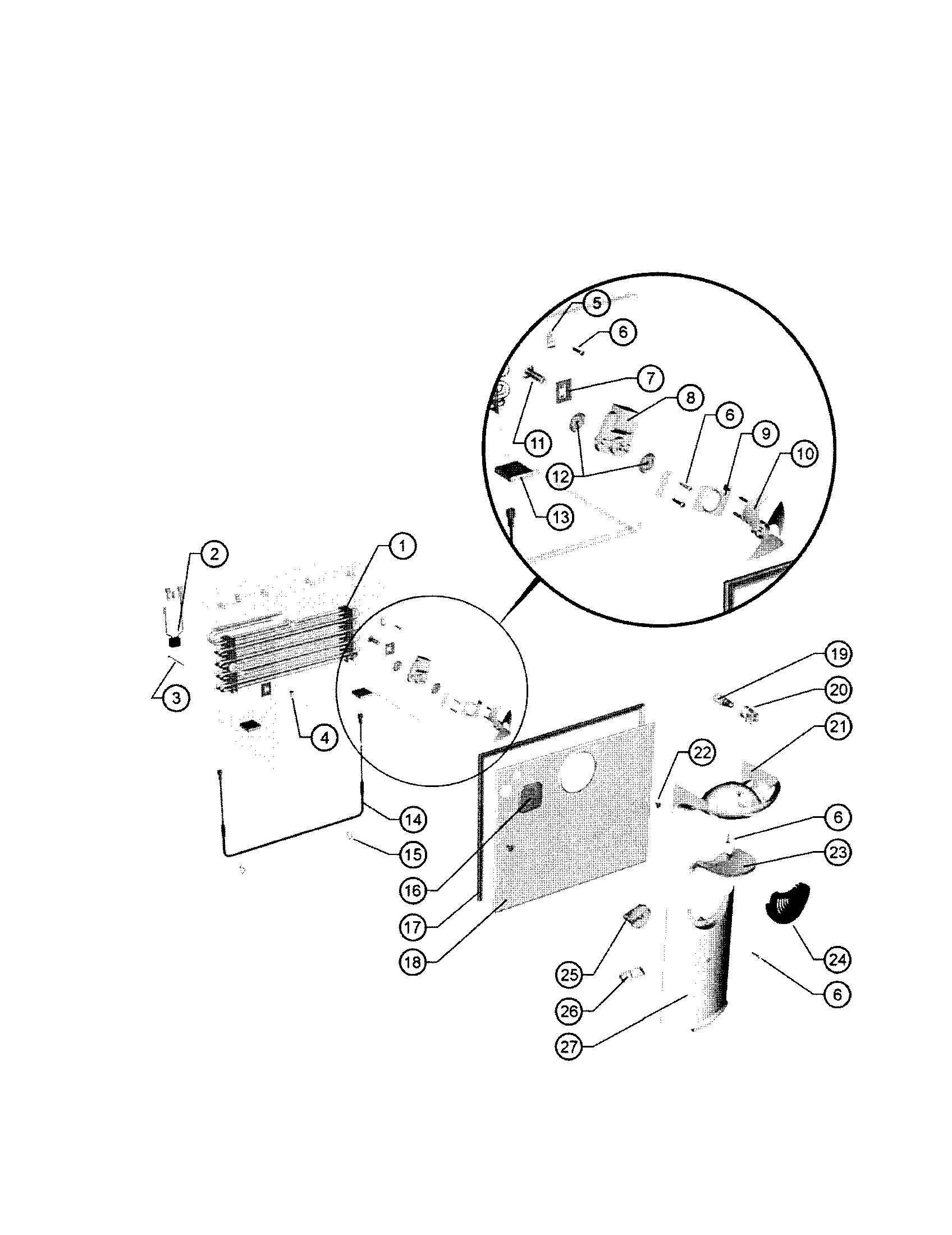

    Freezer compartment diagram

    Refrigerator drain filter

    Part #SB191081RSC

    This item is not returnable
    In Stock
  • Refrigerator Bracket SB191314RSC
    #1

    Compressor and support diagram

    Refrigerator bracket

    Part #SB191314RSC

    In Stock

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Most common repair guides to help fix your refrigerators

These step-by-step repair guides will help you safely fix what’s broken on your refrigerator.

How to replace a refrigerator water valve

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair difficulty
Time required
 15 minutes or less
How to clean refrigerator condenser coils

How to clean refrigerator condenser coils

Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.…

Repair difficulty
Time required
 15 minutes or less
How to replace a refrigerator temperature control board

How to replace a refrigerator temperature control board

If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature cont…

Repair difficulty
Time required
 30 minutes or less

Effective articles & videos to help repair your refrigerators

Use the advice and tips in these articles and videos to get the most out of your refrigerator.

When your fridge gets loud: What’s normal and what’s not

When your fridge gets loud: What’s normal and what’s not

Wondering if a noisy refrigerator is dangerous? Find out what causes loud fridge noises, when to worry, and how to troub…

How to Replace the Water Filter in an Estate Refrigerator

How to Replace the Water Filter in an Estate Refrigerator

Fresh tasting ice and water from your ‘fridge starts with a fresh water filter. Take a look at how to replace the water …

Can’t get rid of refrigerator smells? Try this air filter!

Can’t get rid of refrigerator smells? Try this air filter!

If your refrigerator doesn't smell as fresh as you'd like, learn how adding an air filter starter kit can help.…
