Craftsman
Lawn Tractor Attachment

Model # 101290681 Official Craftsman til-row attachment

Here are the diagrams and repair parts for Official Craftsman 101290681 til-row attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
(g) 1/4" X 3/4" Bolt COMM
(g) 1/4" x 3/4" bolt

Part #COMM

The manufacturer no longer makes this part, and there's no substitute part

Lh Bed Brckt JT-2LN
#4

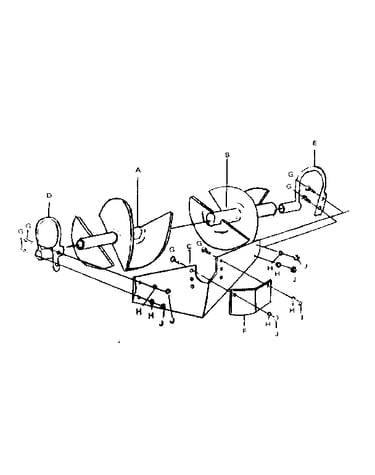

Replacement parts diagram

Lh bed brckt

Part #JT-2LN

The manufacturer no longer makes this part, and there's no substitute part

Rh Bed Brckt JT-2RN
#5

Replacement parts diagram

Rh bed brckt

Part #JT-2RN

The manufacturer no longer makes this part, and there's no substitute part

Bedder Plate JT-3N
#3

Replacement parts diagram

Bedder plate

Part #JT-3N

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Plate JT-4
#6

Replacement parts diagram

Adjustment plate

Part #JT-4

The manufacturer no longer makes this part, and there's no substitute part

(b) Right Hand Cultivator Blade JT-IR
#2

Replacement parts diagram

(b) right hand cultivator blade

Part #JT-IR

The manufacturer no longer makes this part, and there's no substitute part

(a) Left Hand Cultivator Blade JT-IL
#1

Replacement parts diagram

(a) left hand cultivator blade

Part #JT-IL

The manufacturer no longer makes this part, and there's no substitute part
