Front-Engine Lawn Tractor

Model # 917259130 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917259130 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

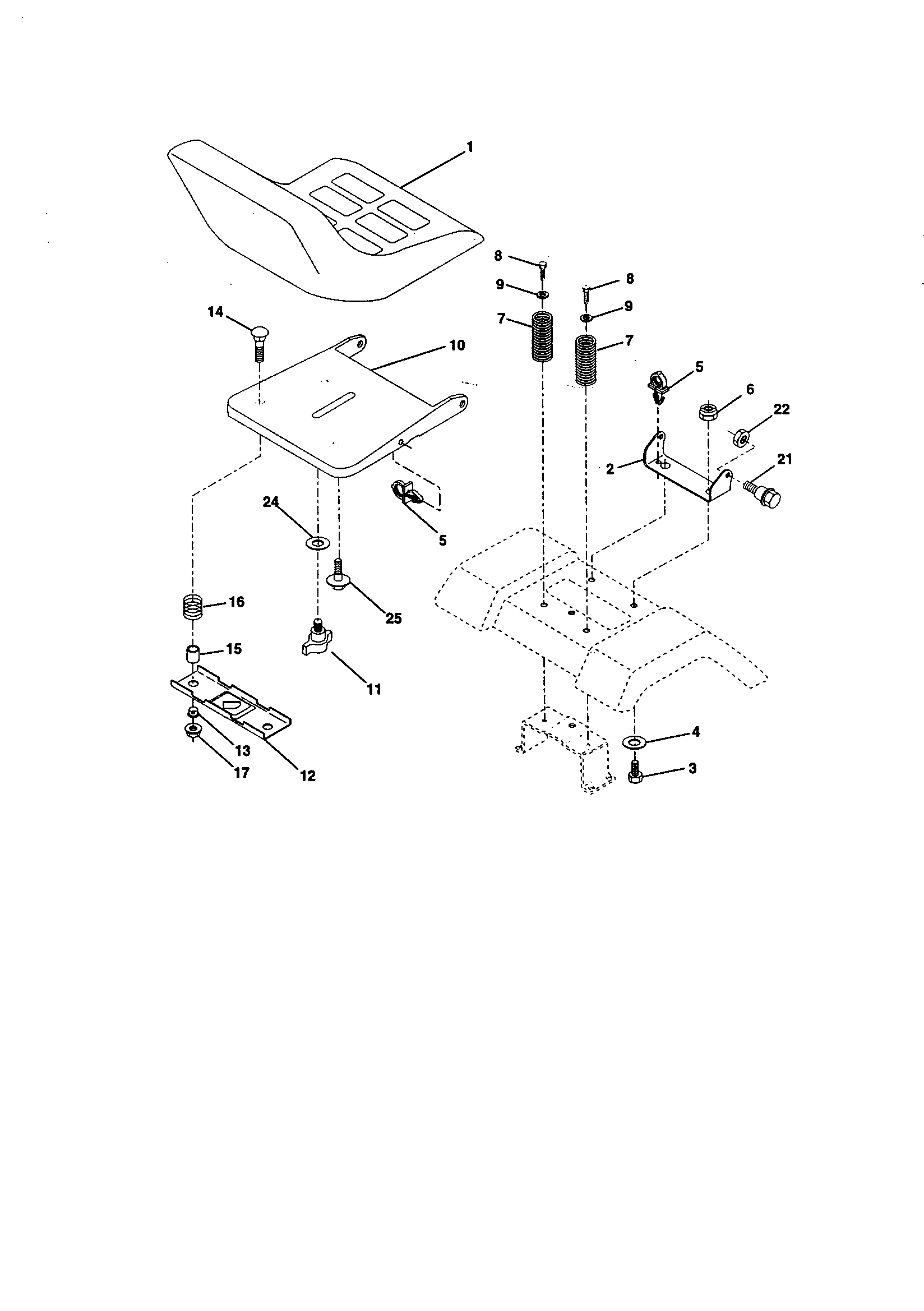

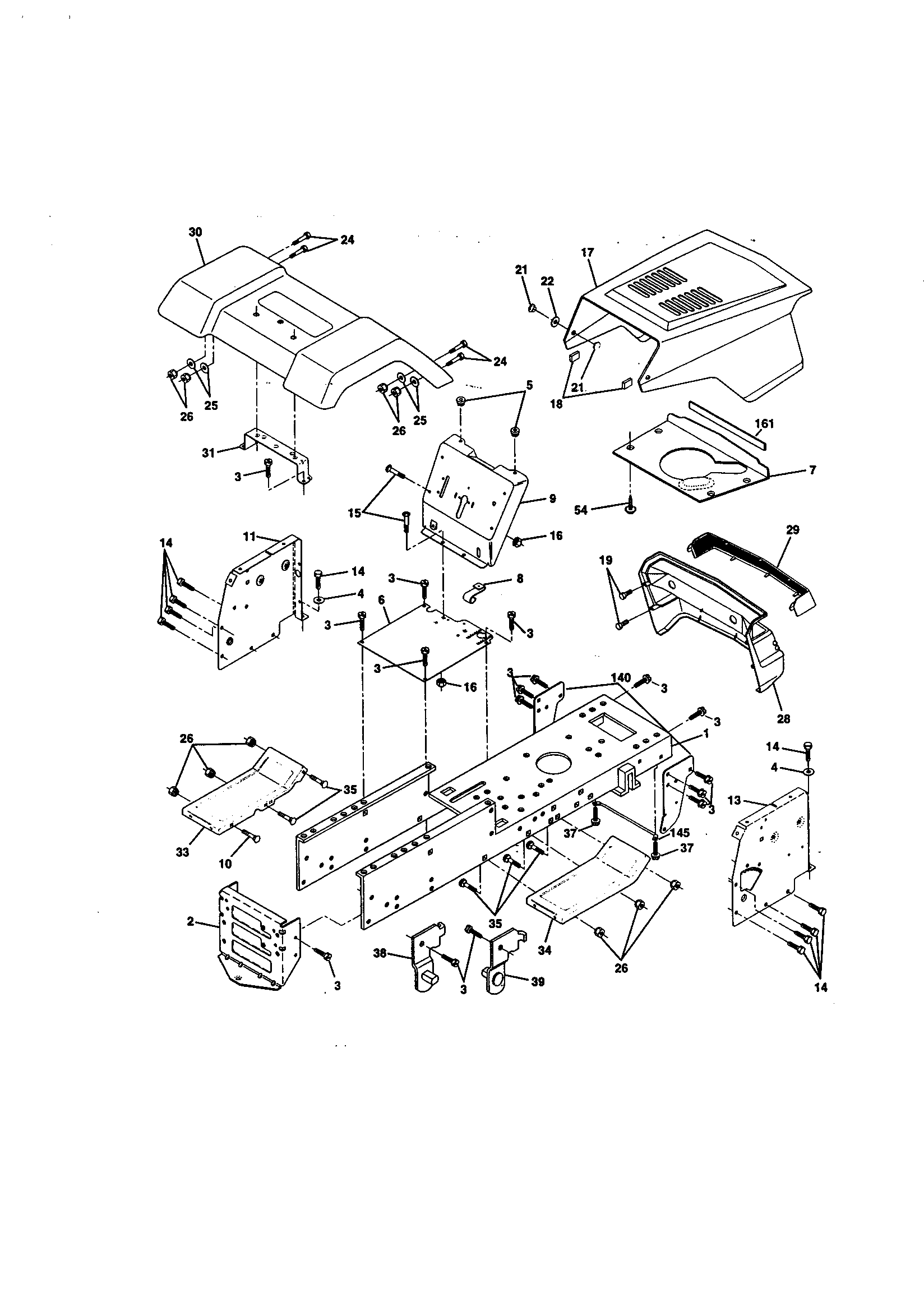

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 412 parts  |
V-belt 130801
#57

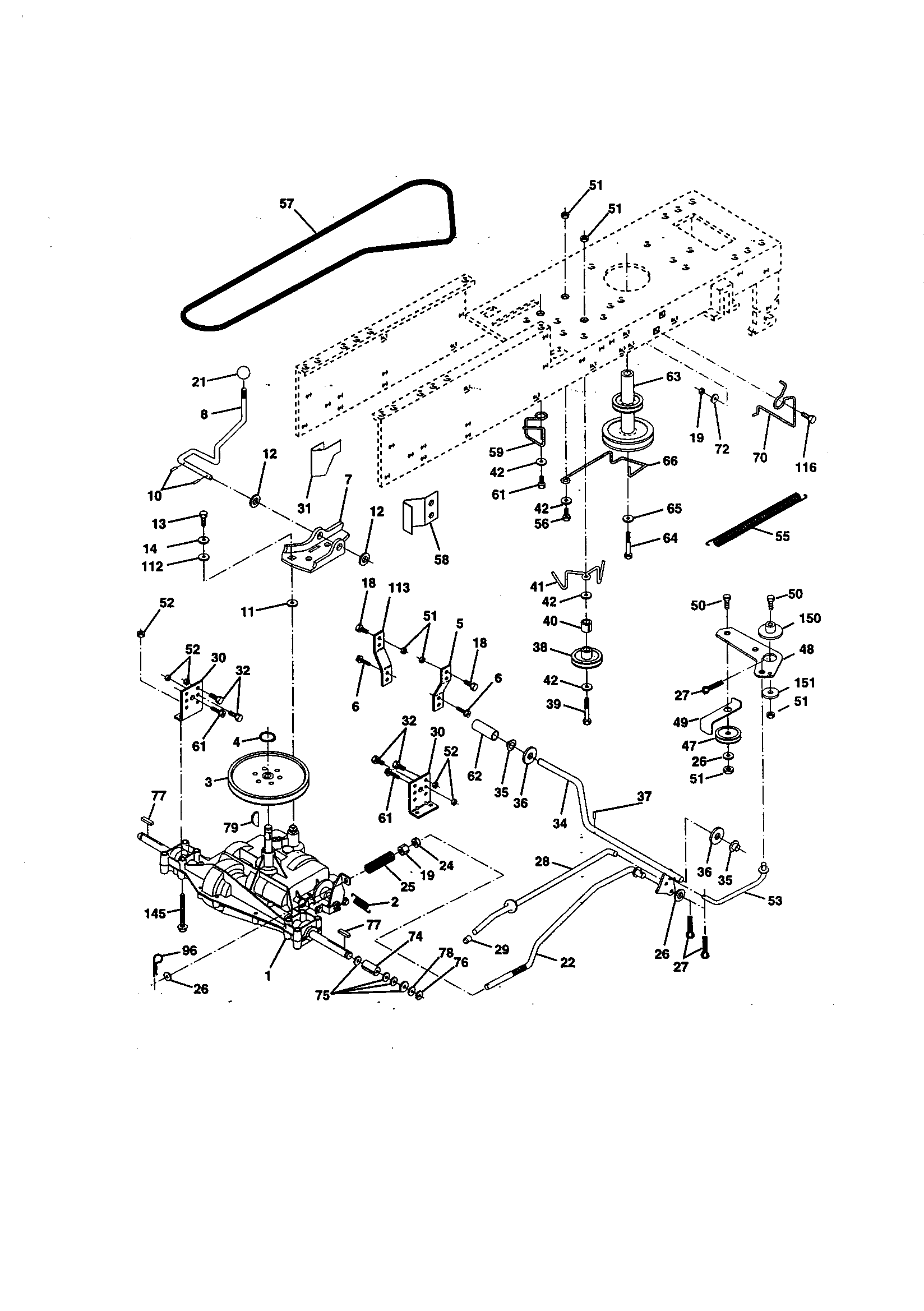

Ground drive diagram

V-belt

Part #130801

Replaced by #532138255

?
Manufacturer substitution
This part replaces 130801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.30 |
16% OFF Phone Price : $38.30
In Stock
Washer Head Thread Rolling Screw 157722
#30

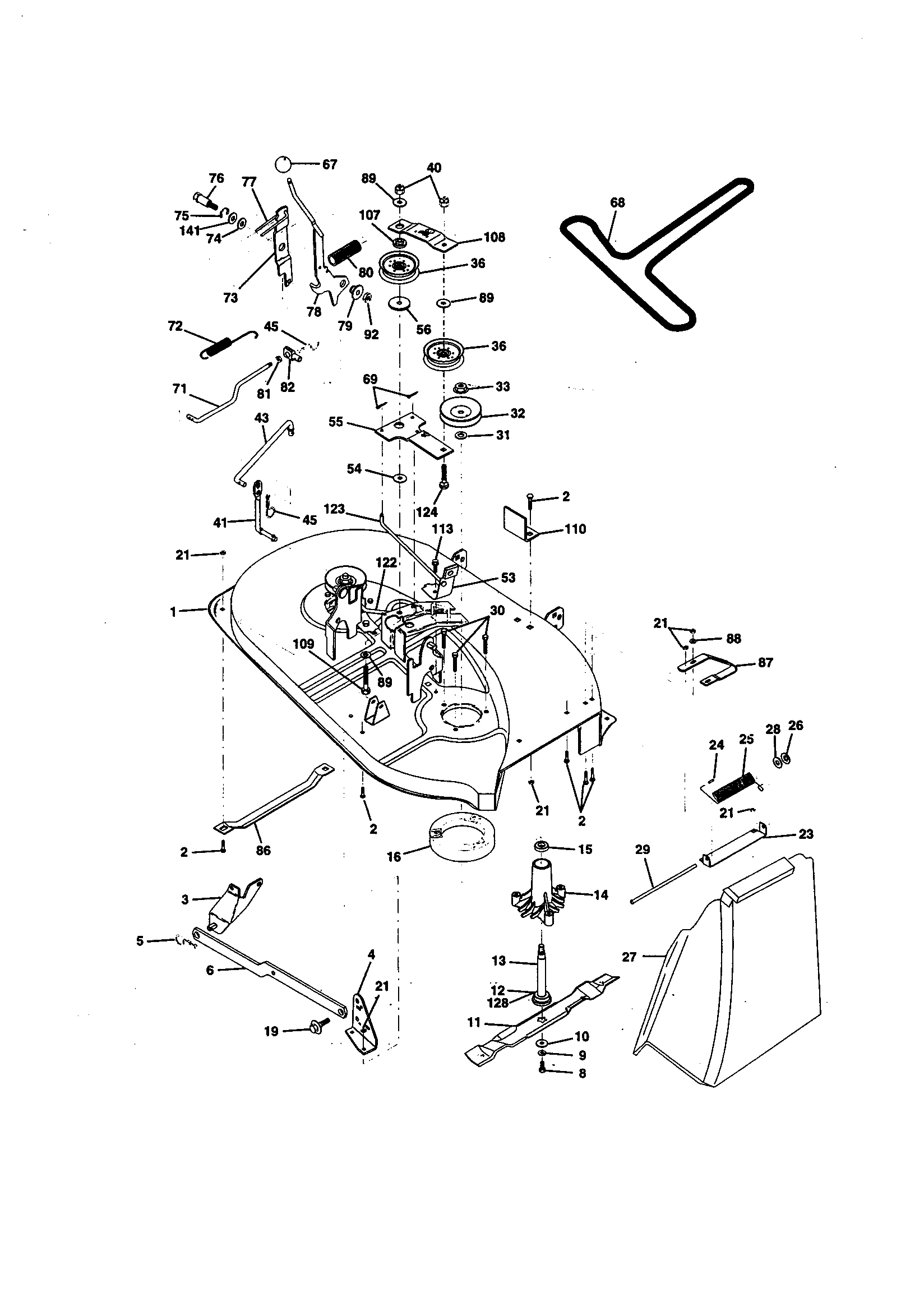

Mower deck diagram

Washer head thread rolling screw

Part #157722

Replaced by #584953901

?
Manufacturer substitution
This part replaces 157722. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Solenoid 145673
#43

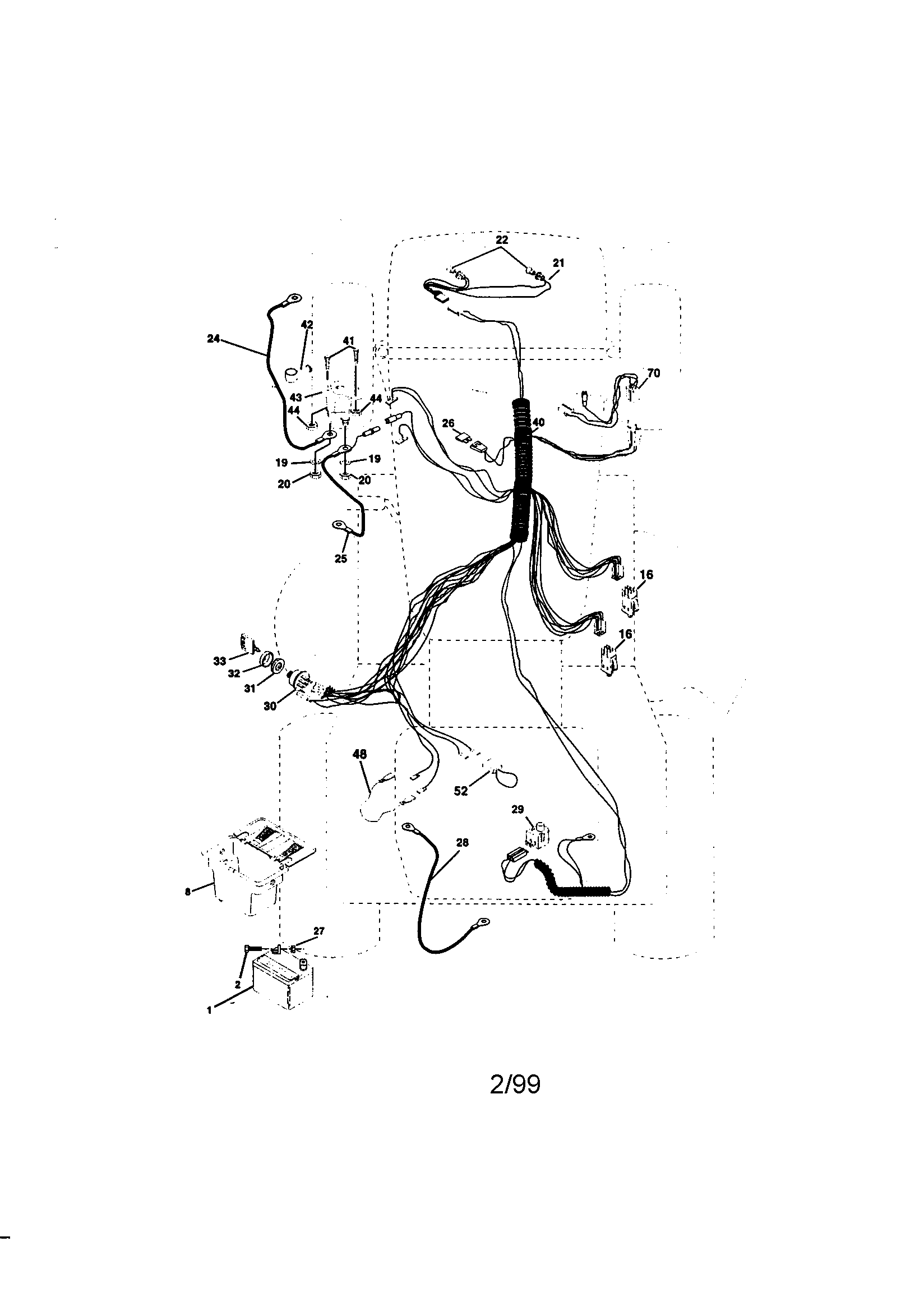

Electrical diagram

Solenoid

Part #145673

Replaced by #532146154

?
Manufacturer substitution
This part replaces 145673. Substitute parts can look different from the original.
BEST SELLER
$24.60 |
20% OFF Phone Price : $30.60
In Stock
Molded Ignition Key 140403
#33

Electrical diagram

Molded ignition key

Part #140403

Replaced by #532140403

?
Manufacturer substitution
This part replaces 140403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Axle Assembly 154427
#2

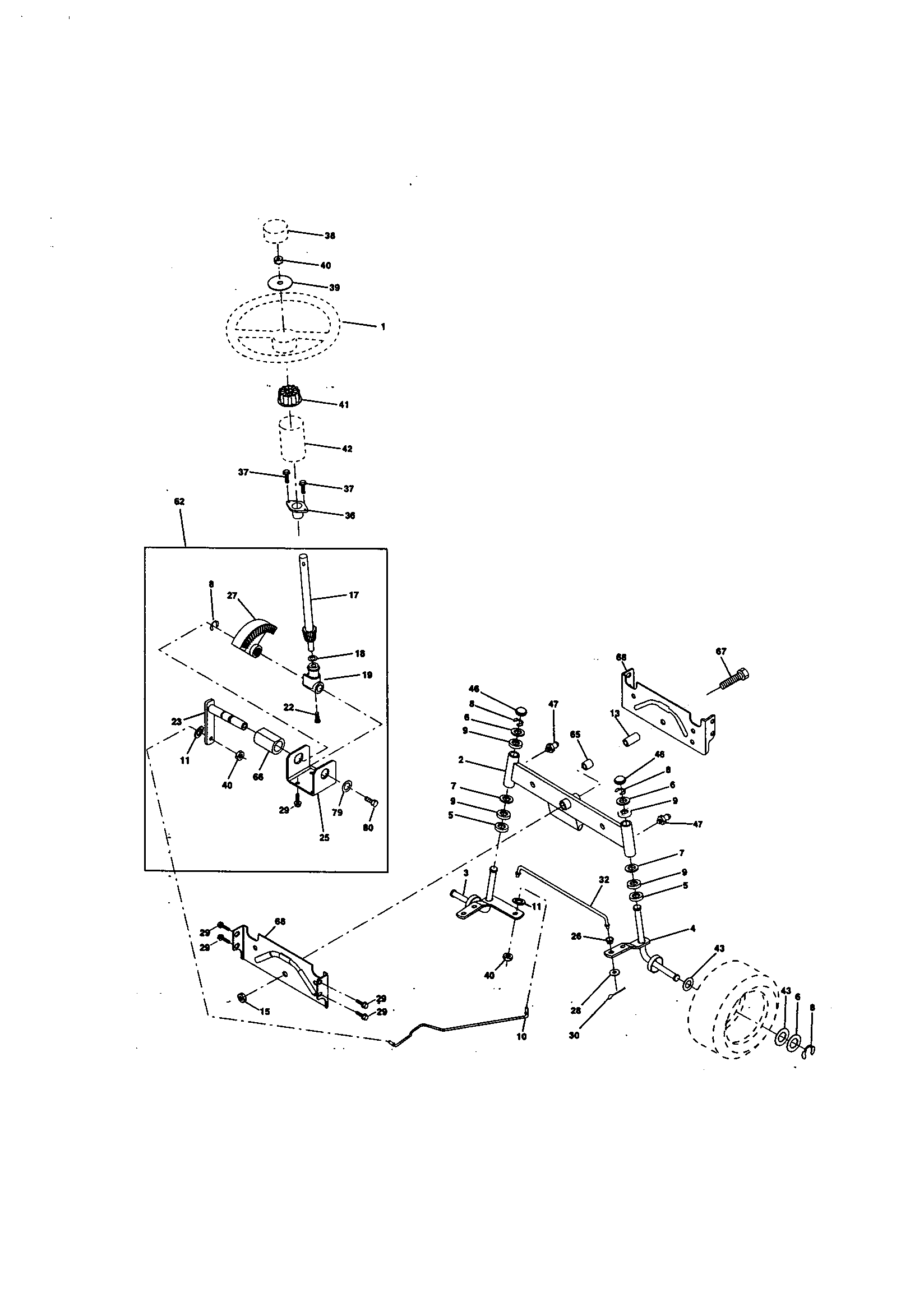

Steering assembly diagram

Axle assembly

Part #154427

Replaced by #531171101

?
Manufacturer substitution
This part replaces 154427. Substitute parts can look different from the original.
BEST SELLER
$55.37 |
10% OFF Phone Price : $61.37
In Stock
Washer, 13/32 X 1-1/4 X 12 19132012
Washer, 13/32 x 1-1/4 x 12

Part #19132012

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19132012. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Vented Mandrel Shaft Assembly 137645
#13

Mower deck diagram

Vented mandrel shaft assembly

Part #137645

Replaced by #532137646

?
Manufacturer substitution
This part replaces 137645. Substitute parts can look different from the original.
BEST SELLER
$28.51 |
17% OFF Phone Price : $34.51
In Stock
Lawn Tractor Bearing 3366R
#9

Steering assembly diagram

Lawn tractor bearing

Part #3366R

Replaced by #532003366

?
Manufacturer substitution
This part replaces 3366R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Blade Idler Pulley 127783
#47

Ground drive diagram

Lawn tractor blade idler pulley

Part #127783

Replaced by #532139245

?
Manufacturer substitution
This part replaces 127783. Substitute parts can look different from the original.
BEST SELLER
$30.45 |
16% OFF Phone Price : $36.45
In Stock
Zinc Retainer Spring 163552
#20

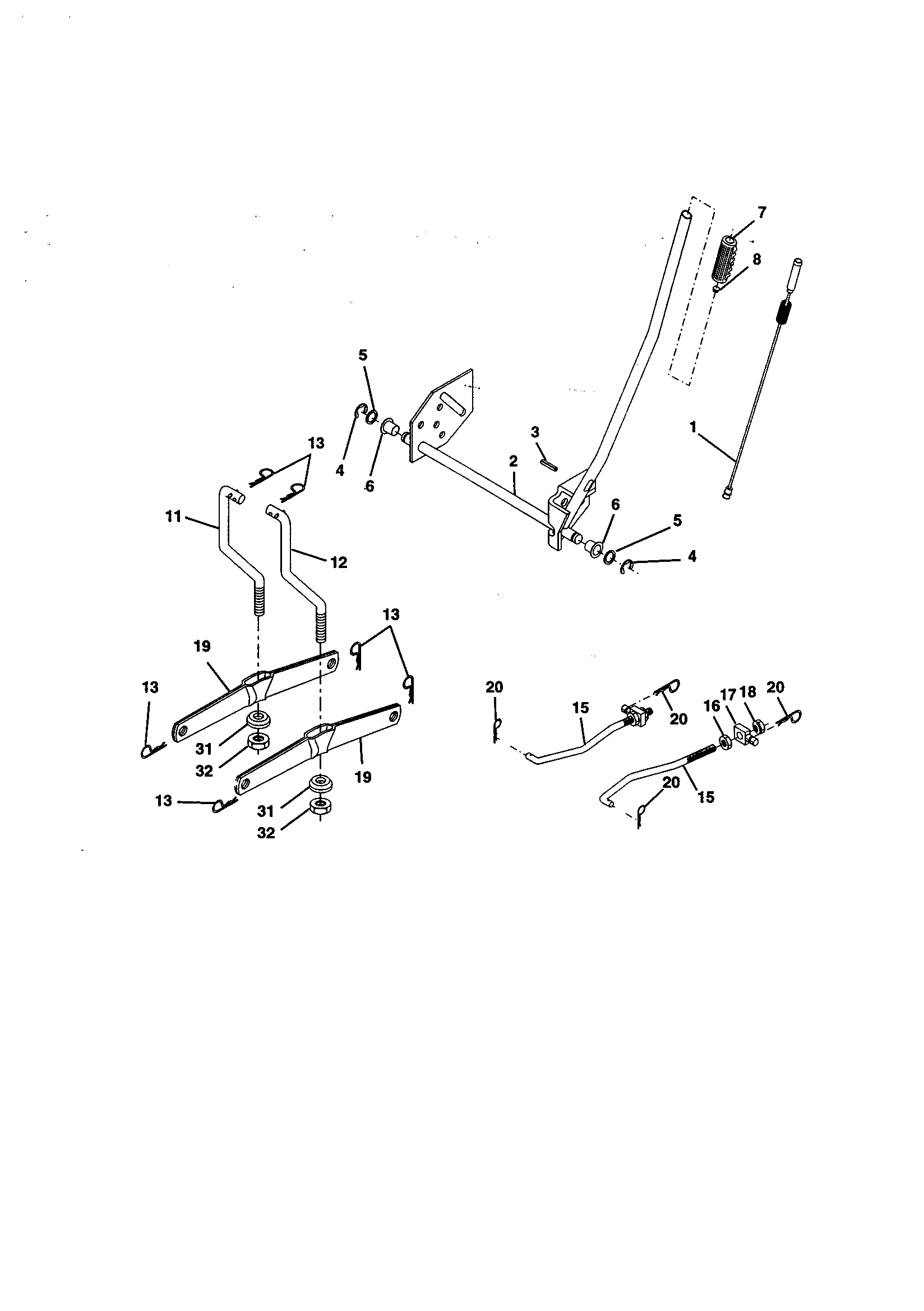

Lift assembly diagram
