Caloric
Electric Wall Oven

Model # EKD289 Official Caloric wall oven

Here are the diagrams and repair parts for Official Caloric EKD289 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

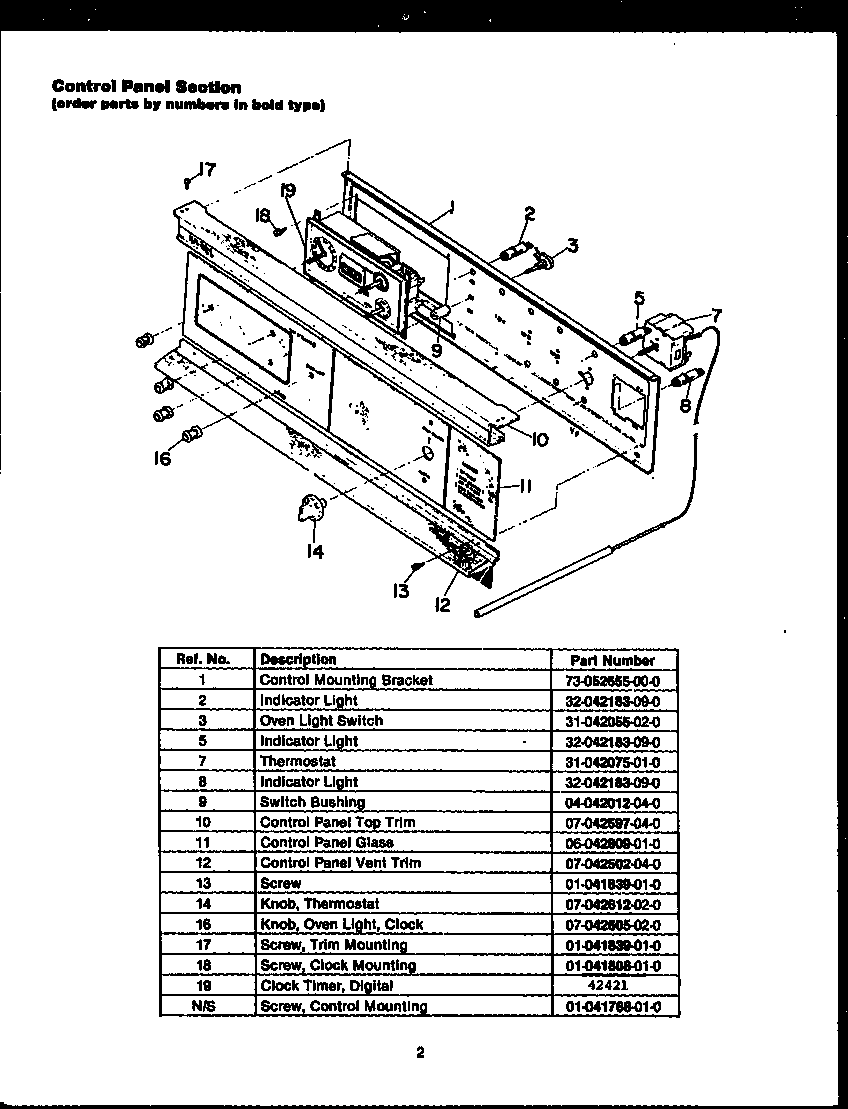

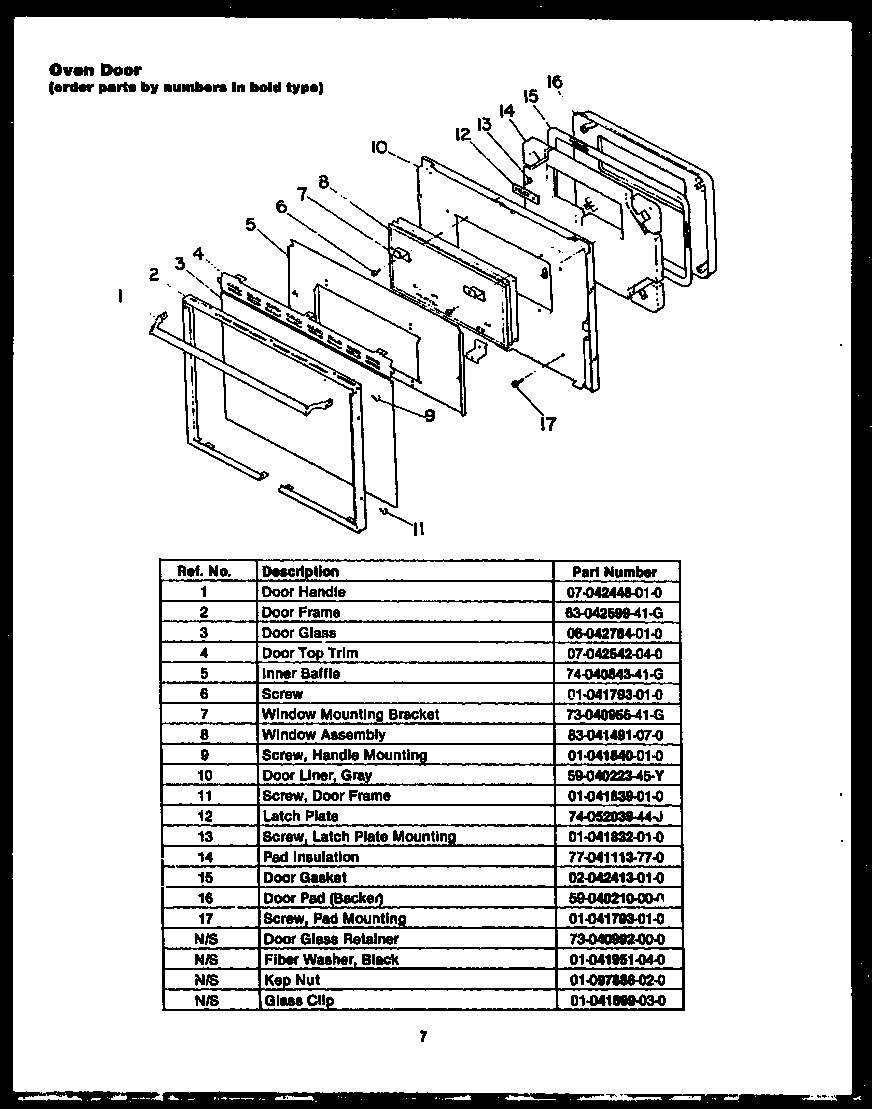

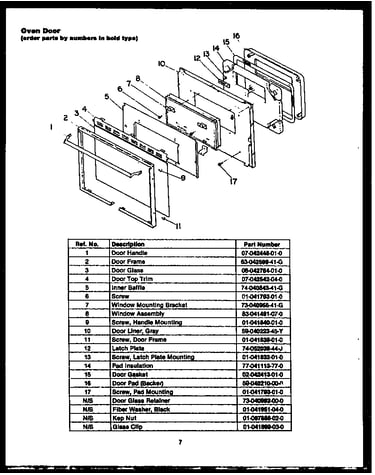

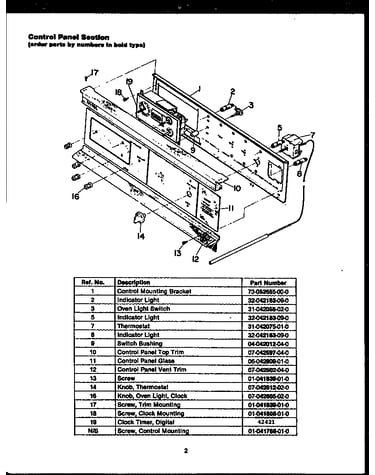

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Hex Nut, Handle Mounting 01-097886-02-0

#NI

All parts diagram

Hex nut, handle mounting

Part #01-097886-02-0

The manufacturer no longer makes this part, and there's no substitute part

Broil Pan 70-011161-45-Y
#13

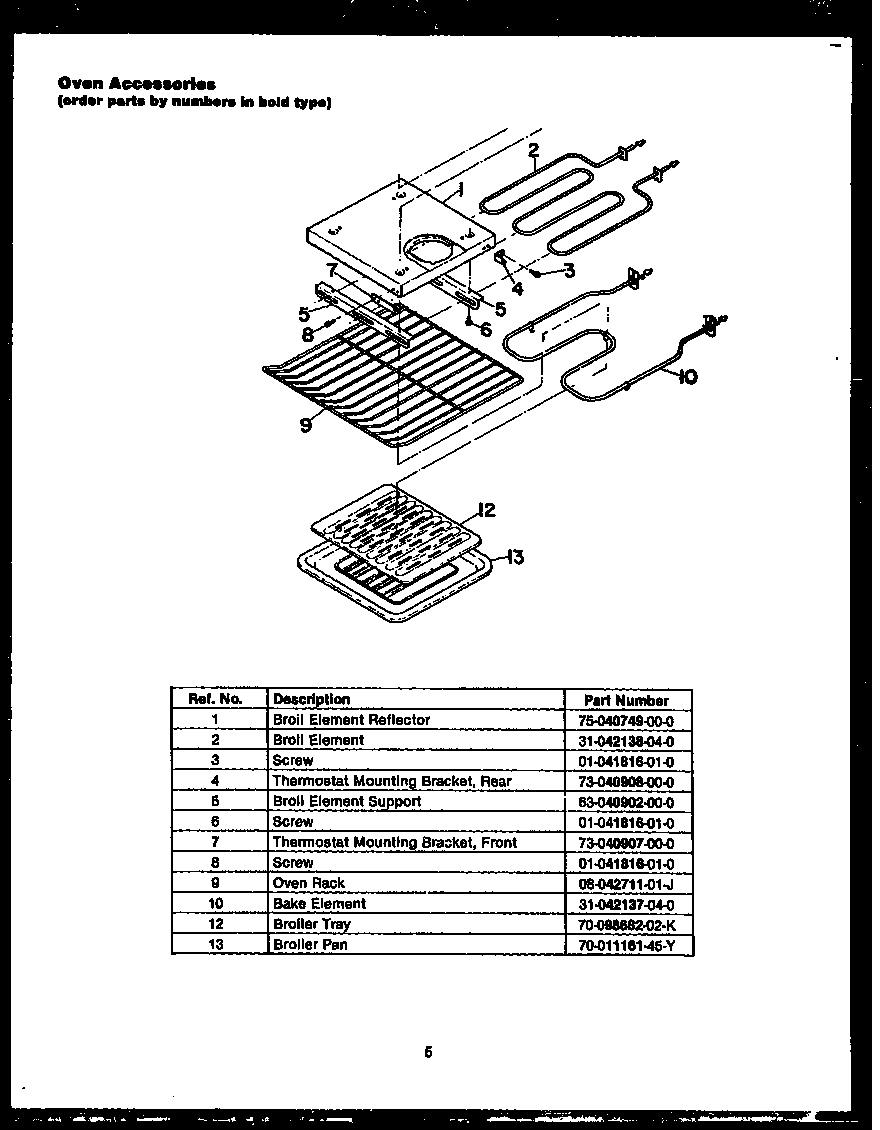

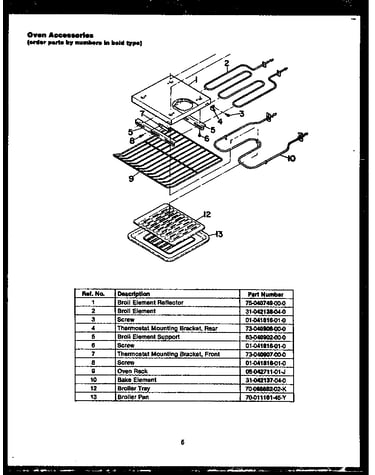

Oven accessories diagram

Broil pan

Part #70-011161-45-Y

The manufacturer no longer makes this part, and there's no substitute part

Capillary Hole Cover 75-063351-00-0
#47

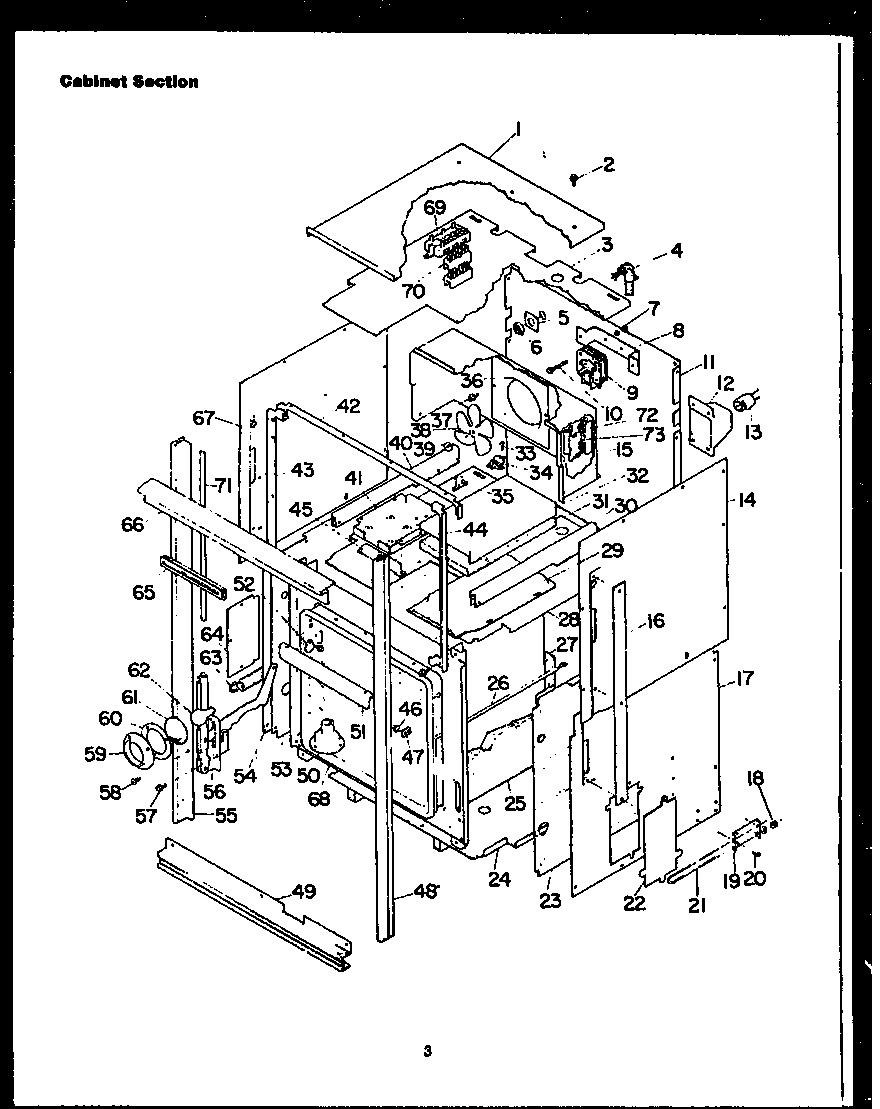

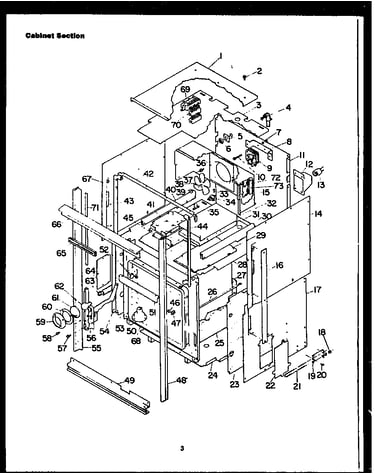

Cabinet section diagram

Capillary hole cover

Part #75-063351-00-0

The manufacturer no longer makes this part, and there's no substitute part

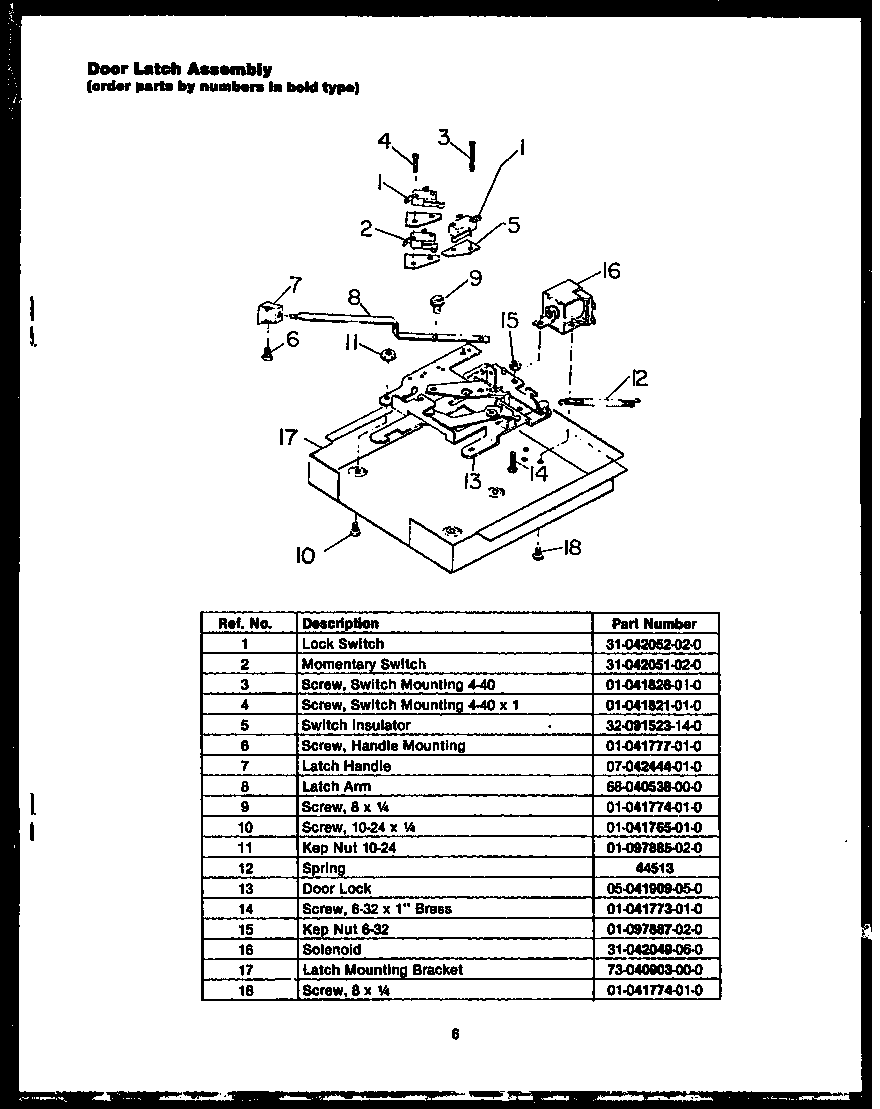

Latch Mounting Bracket 73-040903-00-0
Latch mounting bracket

Part #73-040903-00-0

The manufacturer no longer makes this part, and there's no substitute part

Cover Stirrer 87062
#1450

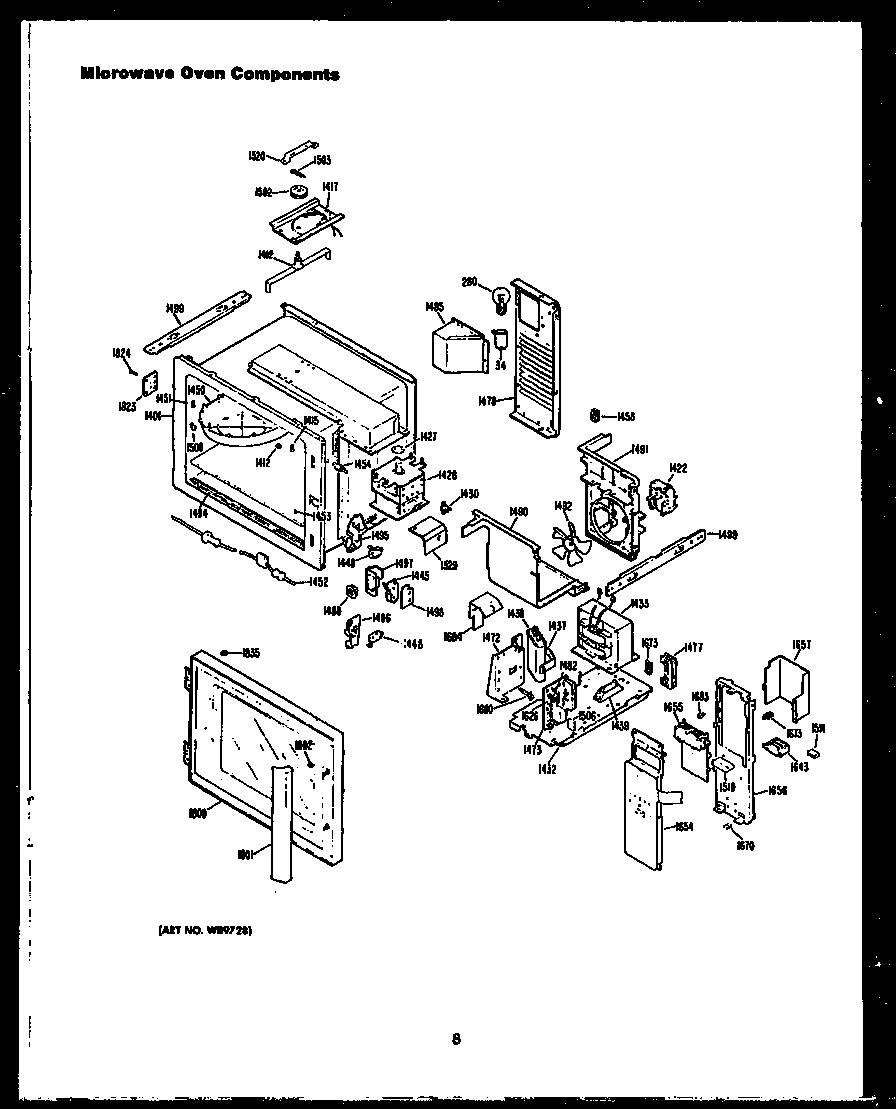

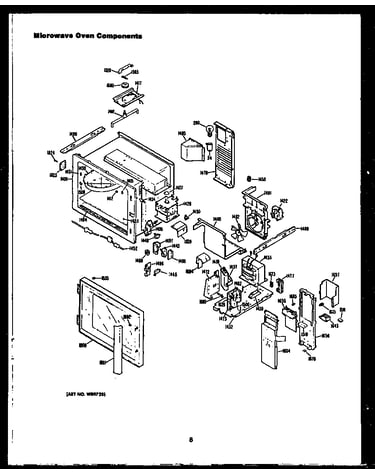

Microwave oven components diagram

Cover stirrer

Part #87062

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 01-041853-02-0
#18

Cabinet section diagram

Hex nut

Part #01-041853-02-0

The manufacturer no longer makes this part, and there's no substitute part

Barrier 86403
#1433A

Microwave oven components diagram

Barrier

Part #86403

The manufacturer no longer makes this part, and there's no substitute part

Chip Cover 75-040398-00-0

#NI

All parts diagram

Chip cover

Part #75-040398-00-0

The manufacturer no longer makes this part, and there's no substitute part

Upper Oven Top 55-053065-00-0
#3

Cabinet section diagram

Upper oven top

Part #55-053065-00-0

The manufacturer no longer makes this part, and there's no substitute part

Side Support L.h. 87161
#1494B

Microwave oven components diagram

Side support l.h.

Part #87161

The manufacturer no longer makes this part, and there's no substitute part
