Model # U4471--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U4471- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Vacuum Wheel 38522011
#13

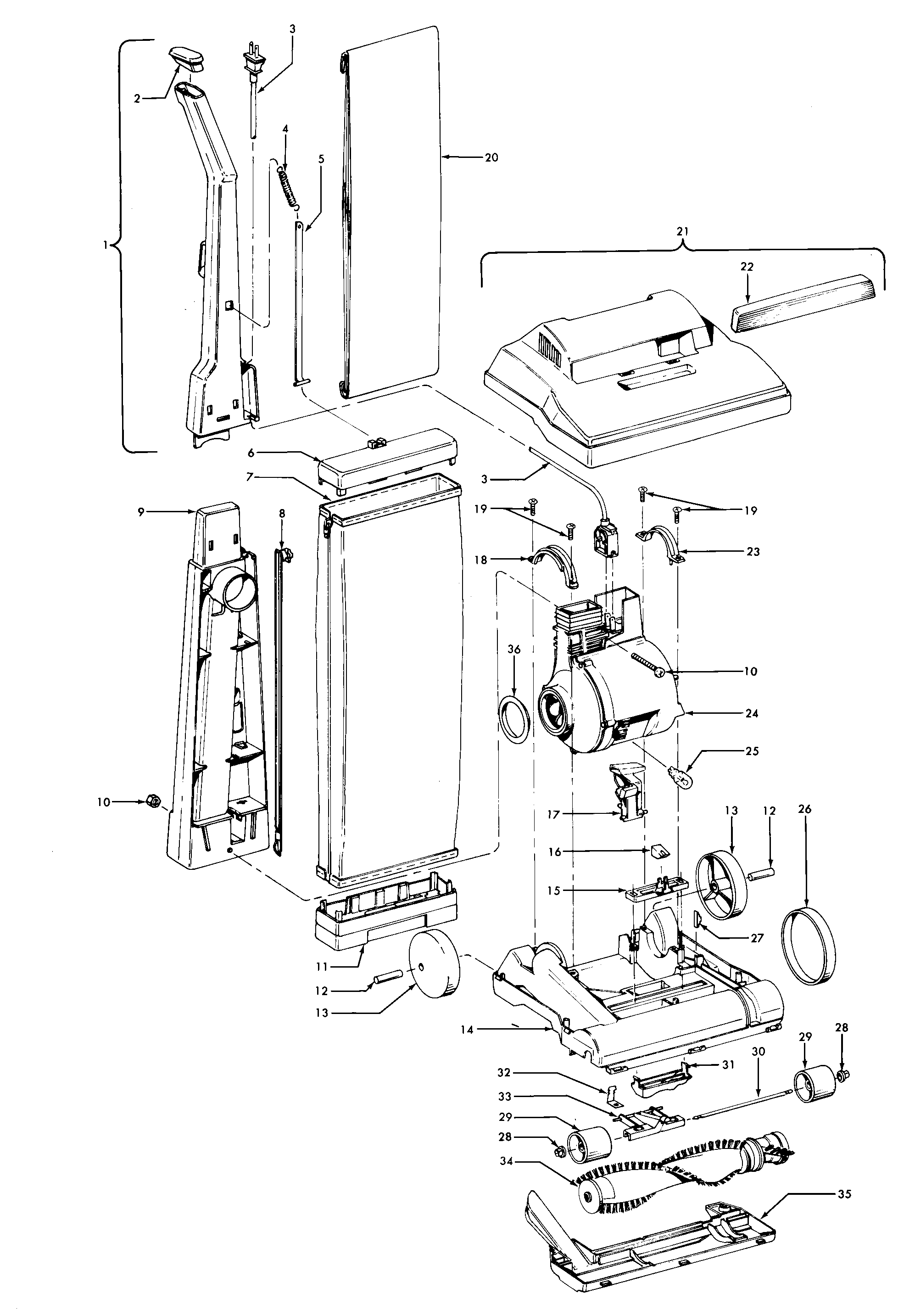

Handle, mainbody, outerbag, hood diagram

Vacuum wheel

Part #38522011

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#3

Agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Retainer 36131056
#28

Handle, mainbody, outerbag, hood diagram

Vacuum wheel retainer

Part #36131056

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring 36153009
#9

Cleaningtools diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Spring 34572002
#32

Handle, mainbody, outerbag, hood diagram

Vacuum spring

Part #34572002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap, Left 36423017
#7

Agitator diagram

Vacuum beater bar housing end cap, left

Part #36423017

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap, Right 36423016
#1

Agitator diagram

Vacuum beater bar housing end cap, right

Part #36423016

The manufacturer no longer makes this part, and there's no substitute part

Release Lever Handle 38458022
#17

Handle, mainbody, outerbag, hood diagram

Release lever handle

Part #38458022

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hoover Vacuum Bag, Type A, 3-pack 4010001A
#20

Handle, mainbody, outerbag, hood diagram

Kenmore hoover vacuum bag, type a, 3-pack

Part #4010001A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Assembly 48414081
#34A

Handle, mainbody, outerbag, hood diagram

Vacuum beater bar assembly

Part #48414081

The manufacturer no longer makes this part, and there's no substitute part
