DeWalt
Miter Saw

Model # DW703 Official DeWalt miter saw

Here are the diagrams and repair parts for Official DeWalt DW703 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

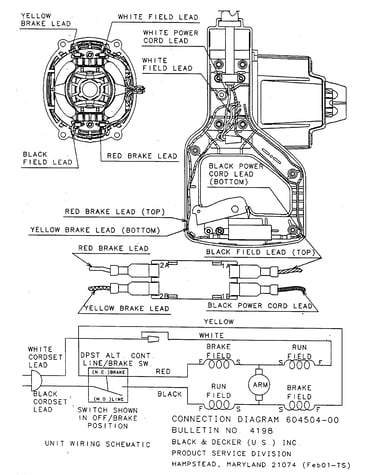

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Screw 330019-19
#202

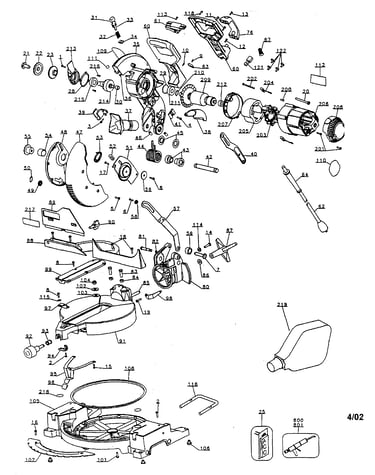

Saw diagram

Screw

Part #330019-19

The manufacturer no longer makes this part, and there's no substitute part

Clamp 391357-00
#94

Saw diagram

Clamp

Part #391357-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Screw 330045-23
#2

Saw diagram

Black & decker screw

Part #330045-23

The manufacturer no longer makes this part, and there's no substitute part

Screw 98025-25
#101

Saw diagram

Screw

Part #98025-25

The manufacturer no longer makes this part, and there's no substitute part

M8x1.25x20mm 330045-33
#14

Saw diagram

M8x1.25x20mm

Part #330045-33

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer 153781-00
#103

Saw diagram

Plain washer

Part #153781-00

The manufacturer no longer makes this part, and there's no substitute part

Handle 396375-00
#76

Saw diagram

Handle

Part #396375-00

The manufacturer no longer makes this part, and there's no substitute part

Terminal-f 450213-00
#121

Saw diagram

Terminal-f

Part #450213-00

The manufacturer no longer makes this part, and there's no substitute part

Plate 399139-00
#51

Saw diagram

Plate

Part #399139-00

The manufacturer no longer makes this part, and there's no substitute part

Pointer 391631-00
#98

Saw diagram

Pointer

Part #391631-00

The manufacturer no longer makes this part, and there's no substitute part
