Model # CHP95302M5SS Official GE electric cooktop

Here are the diagrams and repair parts for Official GE CHP95302M5SS electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

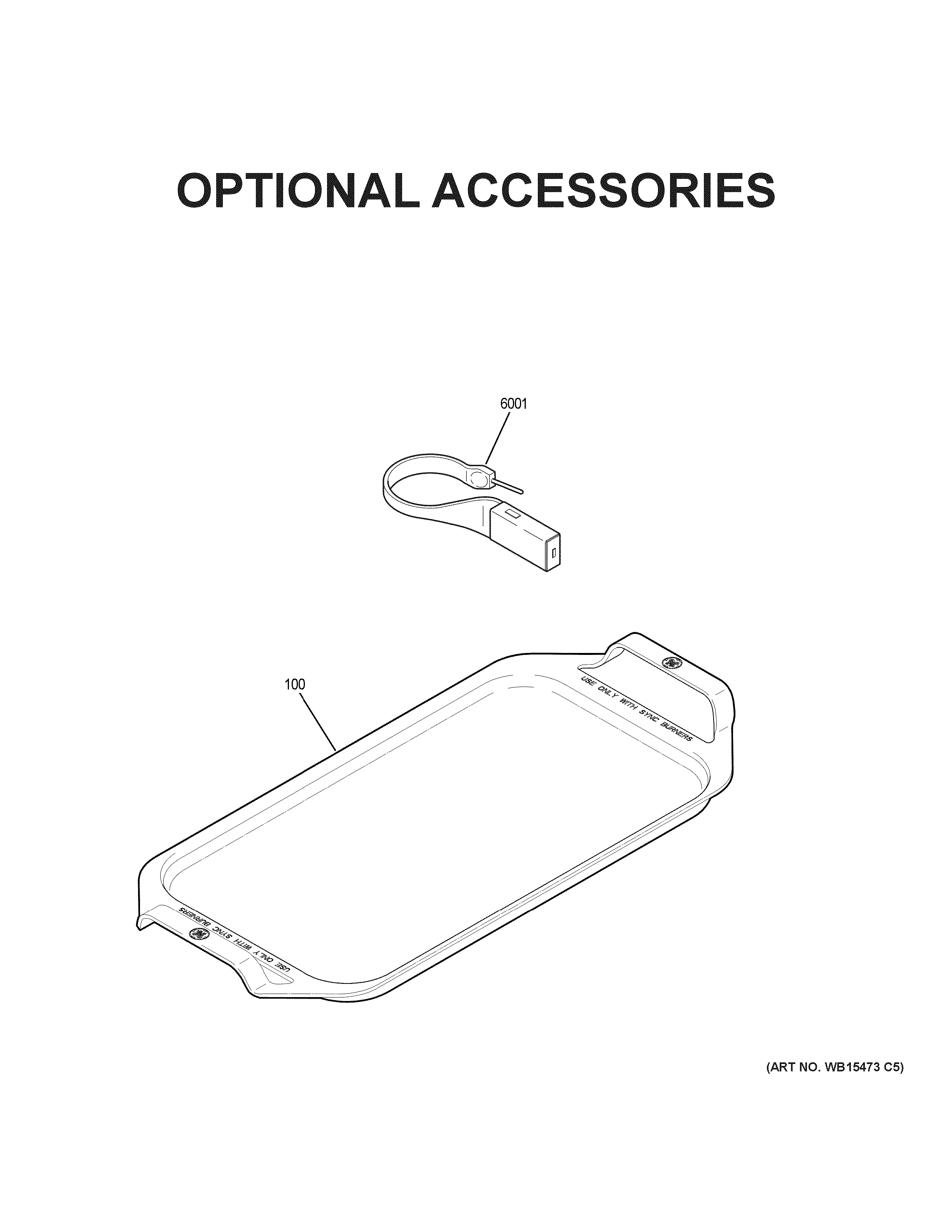

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Cooktop Main Top Seal (replaces Wb2x9902) WB02X26088
#20

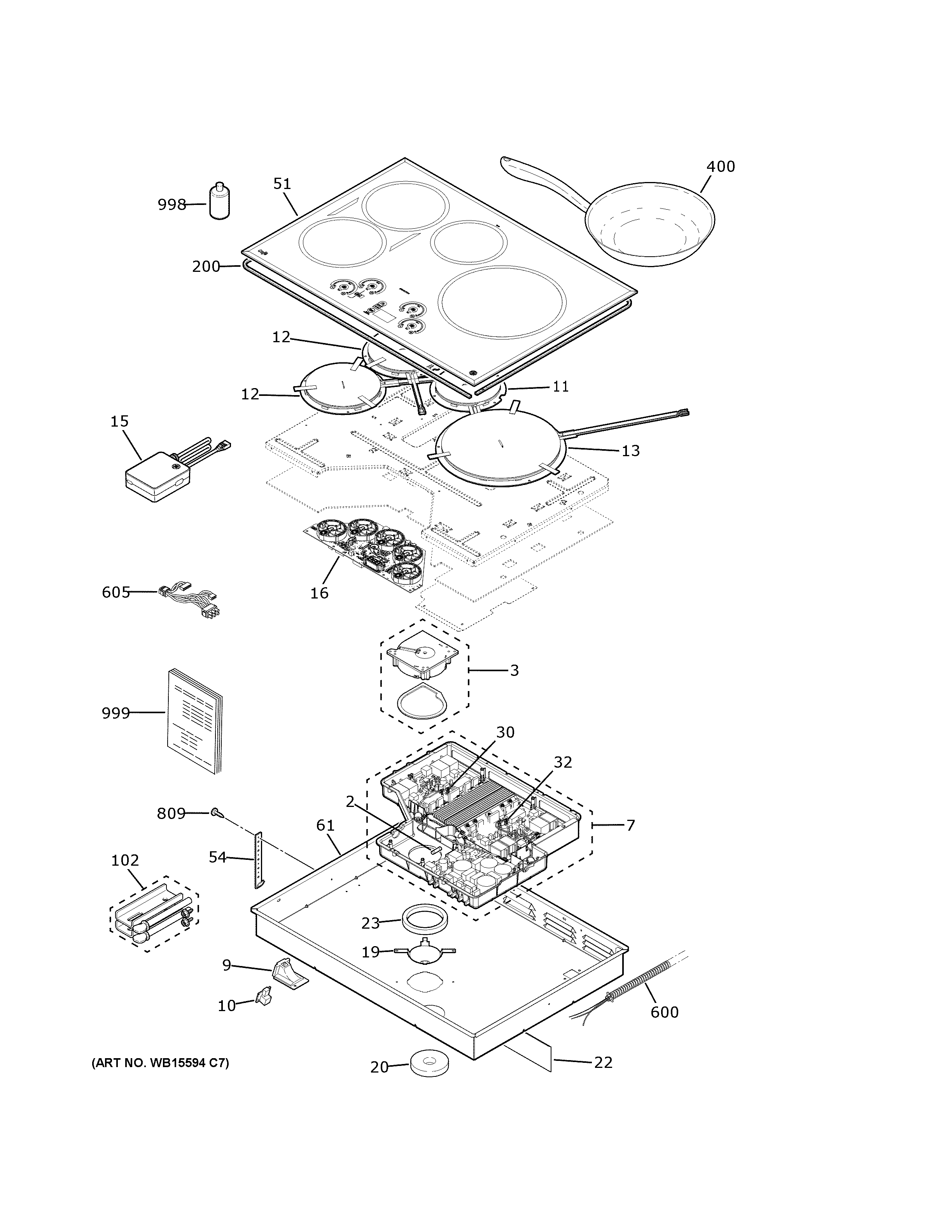

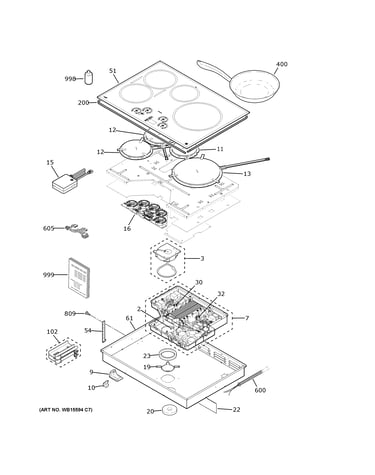

Control panel & cooktop diagram

Cooktop main top seal (replaces wb2x9902)

Part #WB02X26088

$51.24 |
10% OFF Phone Price : $57.24
In Stock
Element Induction 2500w WB30X38226
#12

Control panel & cooktop diagram

Element induction 2500w

Part #WB30X38226

$100.60
In Stock
Fuse 250v, 20a Fb WB27X27316
#2

Control panel & cooktop diagram

Fuse 250v, 20a fb

Part #WB27X27316

$22.54 |
21% OFF Phone Price : $28.54
In Stock
Induction Assembly WB27X42894
#7

Control panel & cooktop diagram

Induction assembly

Part #WB27X42894

$477.93
In Stock
Brkt Hold Dn WB02K5328
#54

Control panel & cooktop diagram

Brkt hold dn

Part #WB02K5328

Replaced by #WB2K5328

?
Manufacturer substitution
This part replaces WB02K5328. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Generator Board Assembly Right WB27X42899
#32

Control panel & cooktop diagram

Generator board assembly right

Part #WB27X42899

$288.27
In Stock
Cooktop Main Top Foam Tape WB02X21898
#200

Control panel & cooktop diagram

Cooktop main top foam tape

Part #WB02X21898

$127.52 |
9% OFF Phone Price : $139.52
In Stock
Display Board WB27X42892
#16

Control panel & cooktop diagram

Display board

Part #WB27X42892

$270.71
In Stock
Board Rj45 C WB27X24119
#10

Control panel & cooktop diagram

Board rj45 c

Part #WB27X24119

$28.71 |
17% OFF Phone Price : $34.71
In Stock
Element Induction 1800w WB30X38625
#11

Control panel & cooktop diagram

Element induction 1800w

Part #WB30X38625

$68.84
In Stock
