Model # GTWN4250D0WS Official GE washer

Here are the diagrams and repair parts for Official GE GTWN4250D0WS washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

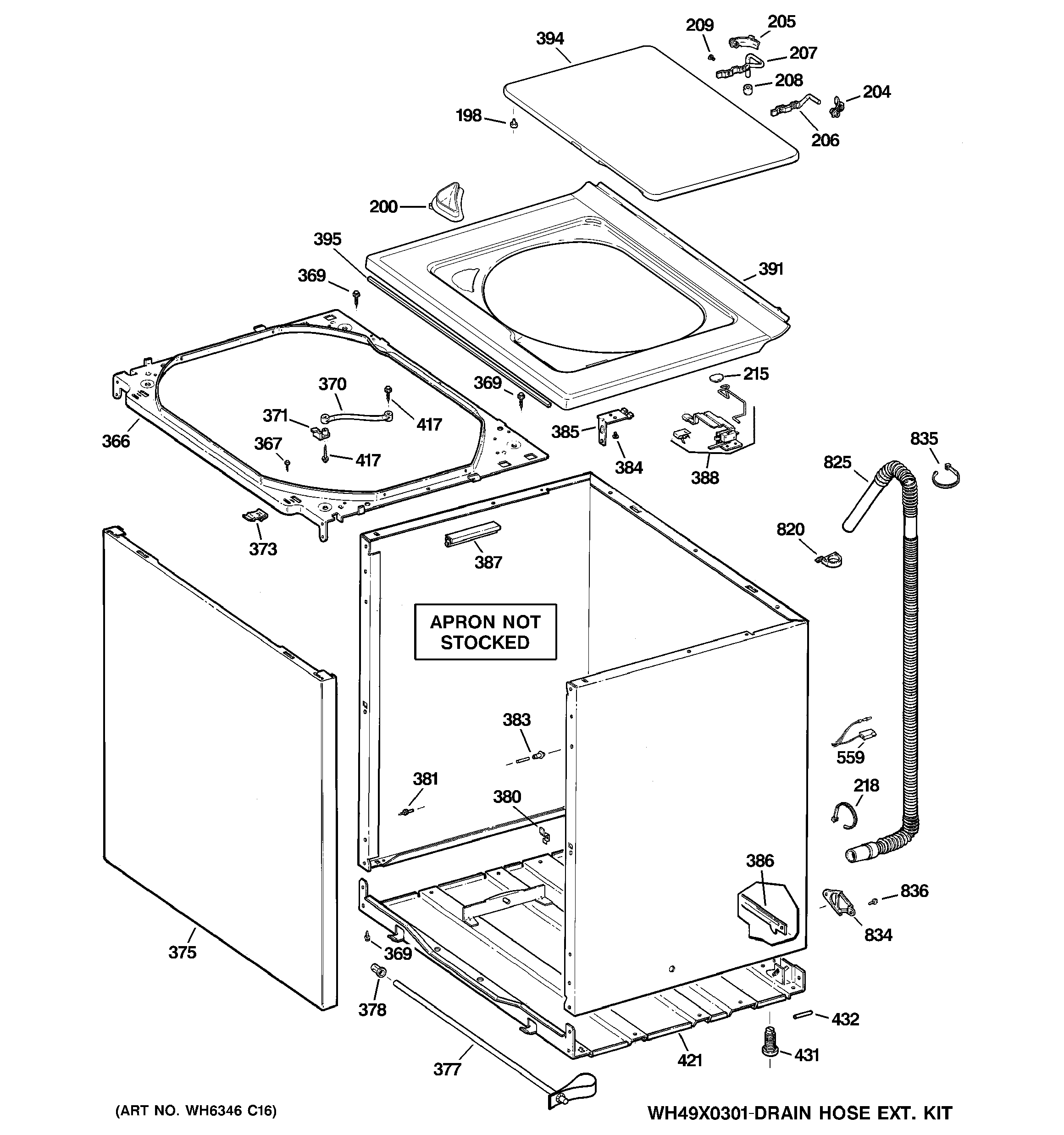

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Hub Nut WH02X1193
#325

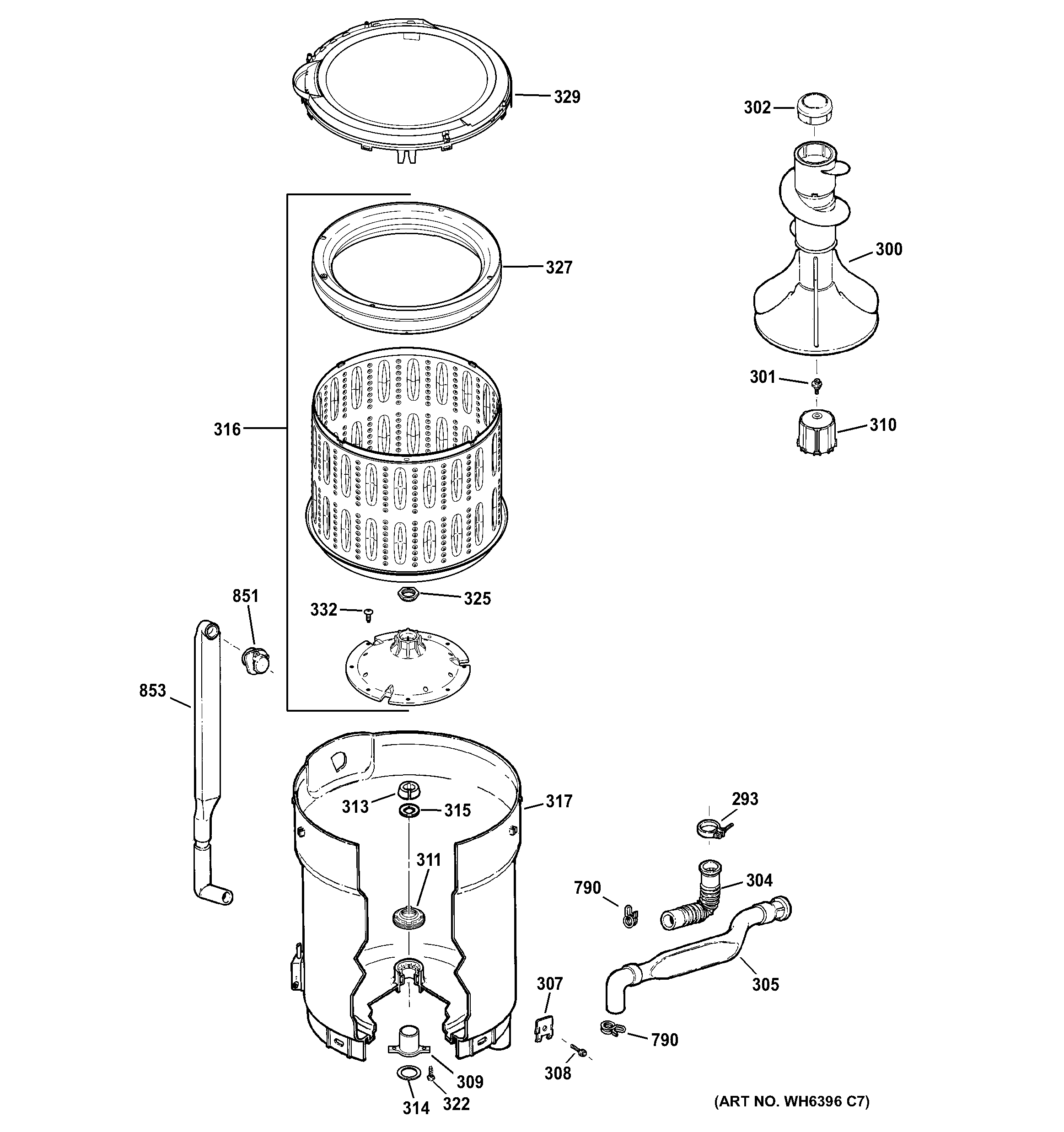

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Split Ring WH02X1195
#313

Tub, basket & agitator diagram

Split ring

Part #WH02X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH02X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Tub Seal Assembly (replaces Wh02x10032) WH02X10383
#311

Tub, basket & agitator diagram

Washer tub seal assembly (replaces wh02x10032)

Part #WH02X10383

BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Washer Suspension Rod And Spring Assembly WH16X10158
#414

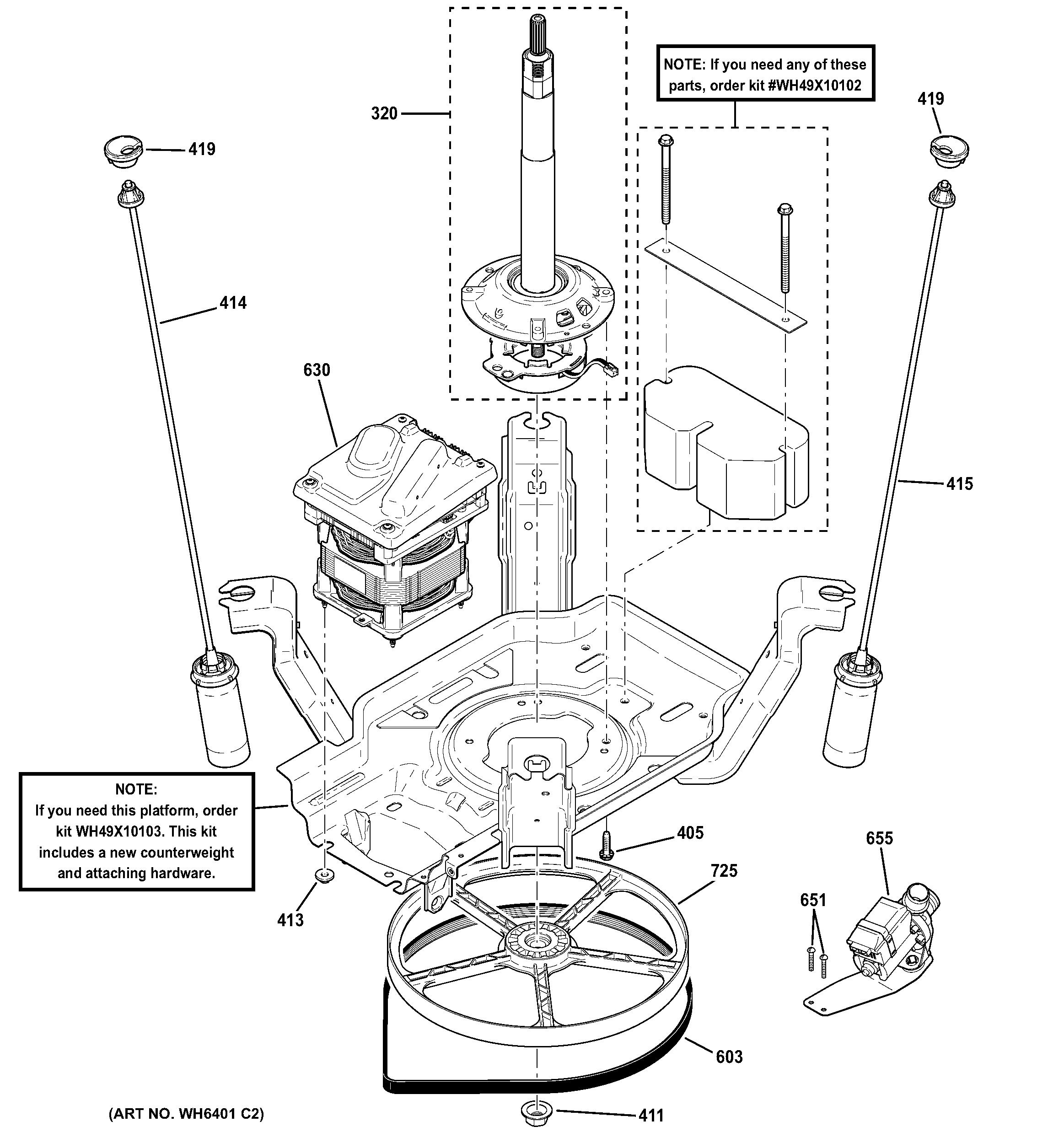

Suspension, pump & drive components diagram

Washer suspension rod and spring assembly

Part #WH16X10158

BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Washer Drive Shaft And Shifter Assembly WH38X10019
#320

Suspension, pump & drive components diagram

Washer drive shaft and shifter assembly

Part #WH38X10019

BEST SELLER
$213.37 |
5% OFF Phone Price : $225.37
In Stock
Hub Washer WH02X1199
#315

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Drain Pump WH23X10043
#655

Suspension, pump & drive components diagram

Washer drain pump

Part #WH23X10043

BEST SELLER
$58.27 |
9% OFF Phone Price : $64.27
In Stock
Washer Drive Belt (replaces Wh01x10353) WH01X10302
#603

Suspension, pump & drive components diagram

Washer drive belt (replaces wh01x10353)

Part #WH01X10302

BEST SELLER
$22.18 |
21% OFF Phone Price : $28.18
In Stock
Motor Board Assembly WH12X10538
#35

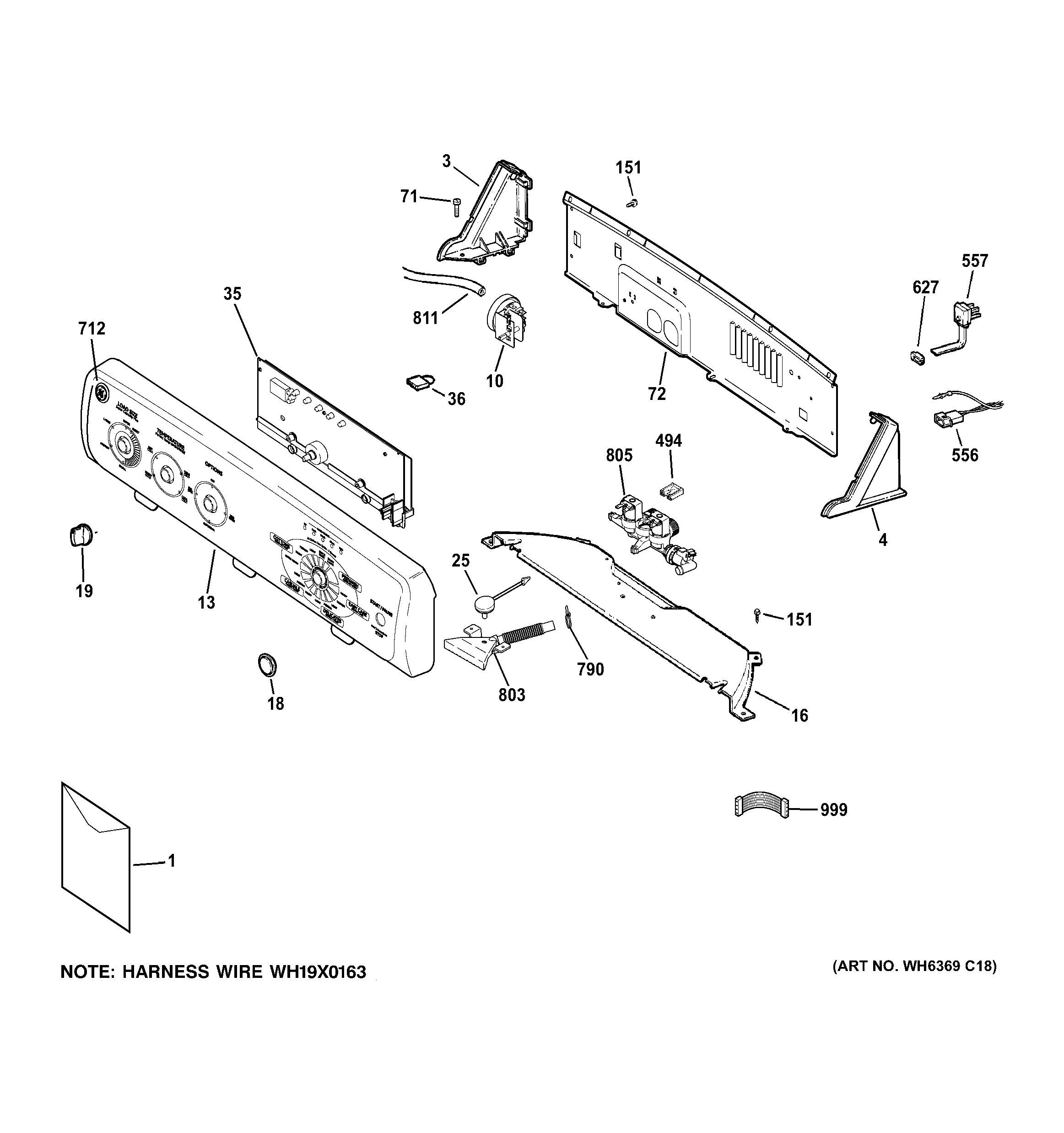

Controls & backsplash diagram

Motor board assembly

Part #WH12X10538

Replaced by #WH12X10614

?
Manufacturer substitution
This part replaces WH12X10538. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$142.18 |
8% OFF Phone Price : $154.18
In Stock
Washer Agitator (replaces Wh43x25442) WH43X10034
#300

Tub, basket & agitator diagram

Washer agitator (replaces wh43x25442)

Part #WH43X10034

BEST SELLER
$62.69 |
9% OFF Phone Price : $68.69
In Stock
