Model # YWMH31017HZ06 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool YWMH31017HZ06 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

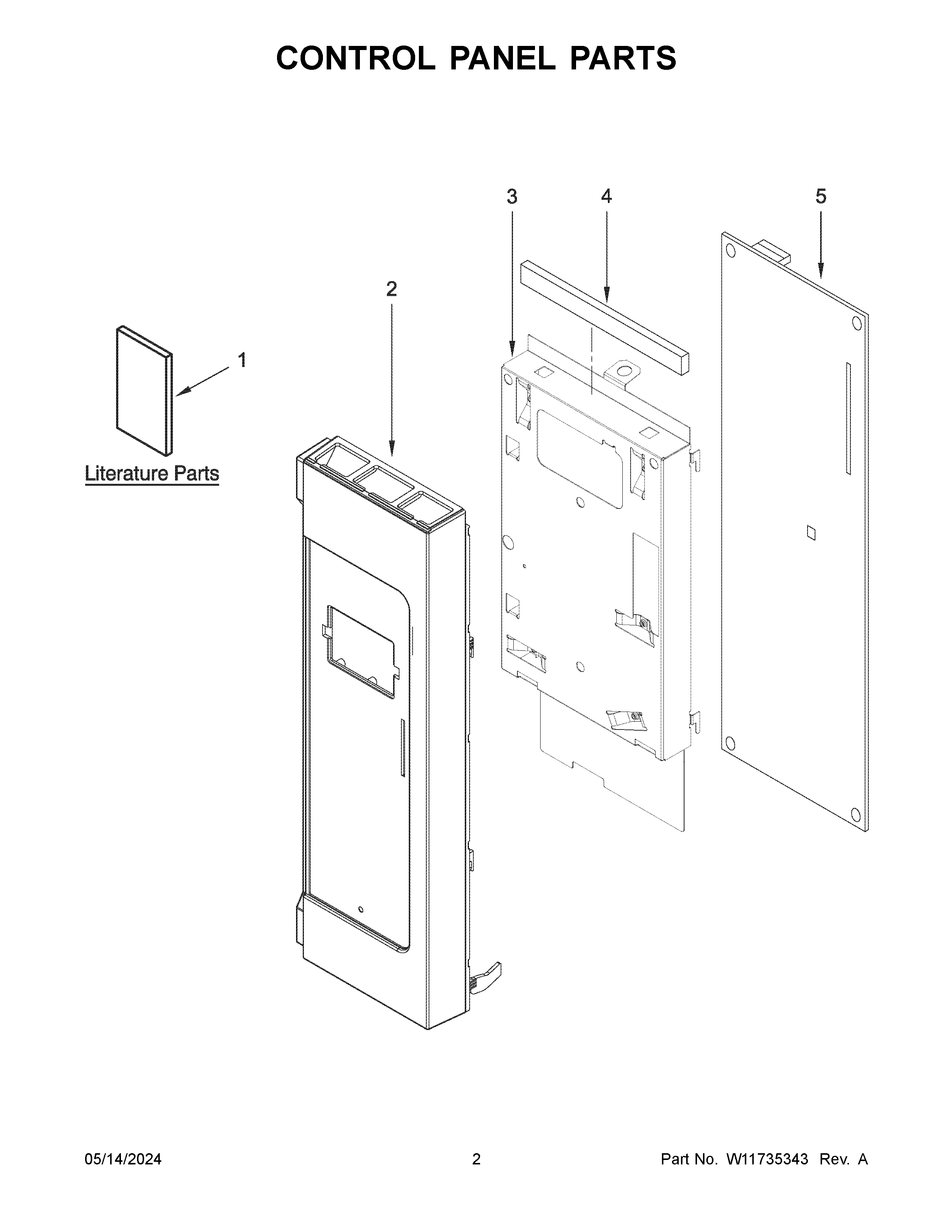

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Microwave/hood Light Bulb 8206232
#3

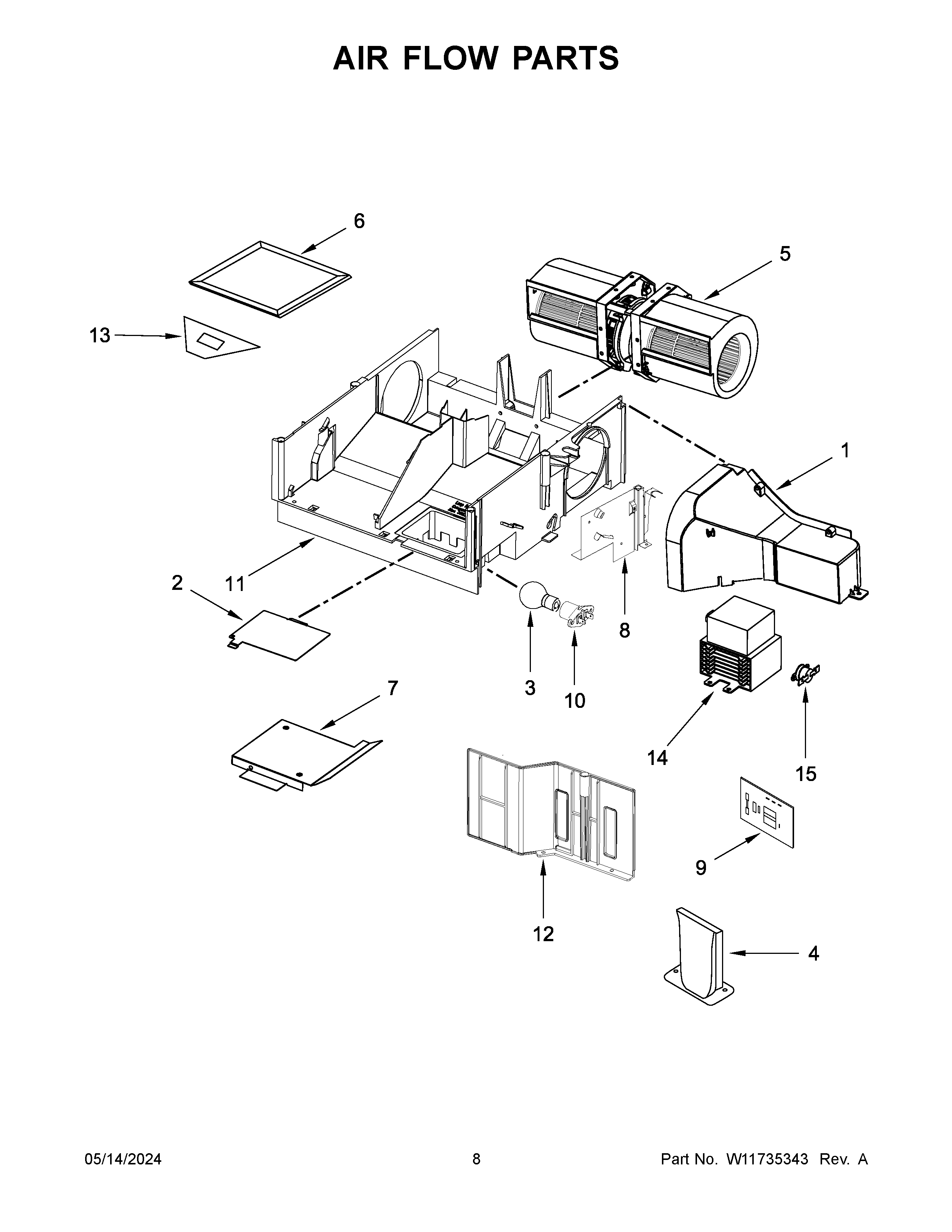

Air flow parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$8.91 |
10% OFF Phone Price : $9.91
In Stock
Hood Lamp 12 W11521888
#2

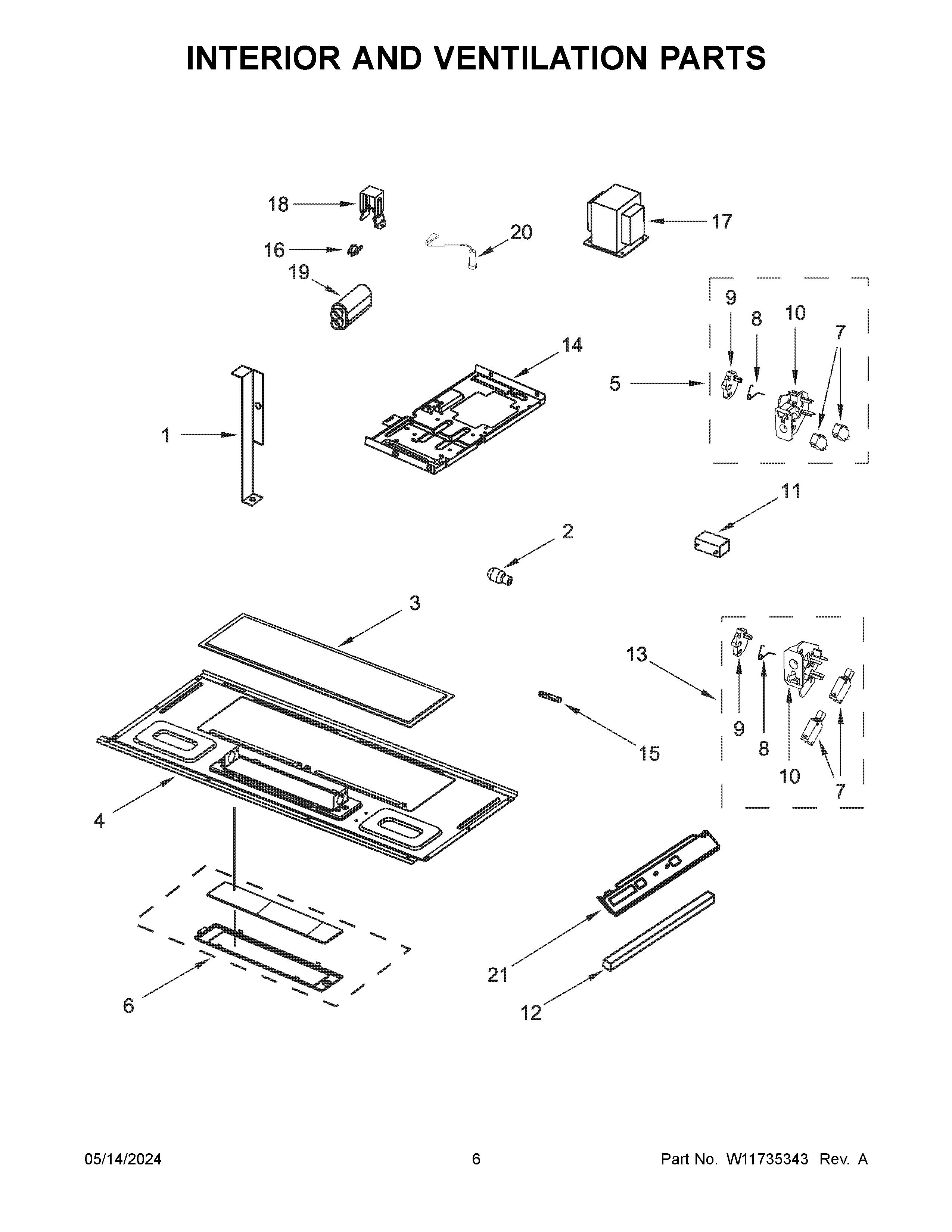

Interior and ventilation parts diagram

Hood lamp 12

Part #W11521888

Replaced by #8206232A

?
Manufacturer substitution
This part replaces W11521888. Substitute parts can look different from the original.
BEST SELLER
$8.91 |
10% OFF Phone Price : $9.91
In Stock
Interlock W10156813
#10A

Interior and ventilation parts diagram

Interlock

Part #W10156813

Replaced by #WPW10156813

?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
BEST SELLER
$7.56 |
12% OFF Phone Price : $8.56
In Stock
Microwave Vent Louver Motor Cam Plate (replaces W10508437) W10562613
#9

Interior and ventilation parts diagram

Microwave vent louver motor cam plate (replaces w10508437)

Part #W10562613

BEST SELLER
$11.59 |
15% OFF Phone Price : $13.59
In Stock
Microwave Magnetron (replaces W10210845, W10216360, W10496310) W10754299
#14

Air flow parts diagram

Microwave magnetron (replaces w10210845, w10216360, w10496310)

Part #W10754299

BEST SELLER
$183.60 |
6% OFF Phone Price : $195.60
In Stock
Microwave Door Interlock Spring W10156812
#8

Interior and ventilation parts diagram

Microwave door interlock spring

Part #W10156812

BEST SELLER
$7.73 |
11% OFF Phone Price : $8.73
In Stock
Microwave Light Socket W10210871
#10

Air flow parts diagram

Microwave light socket

Part #W10210871

BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Microwave Turntable Motor (replaces 8183954) W10642989
#6

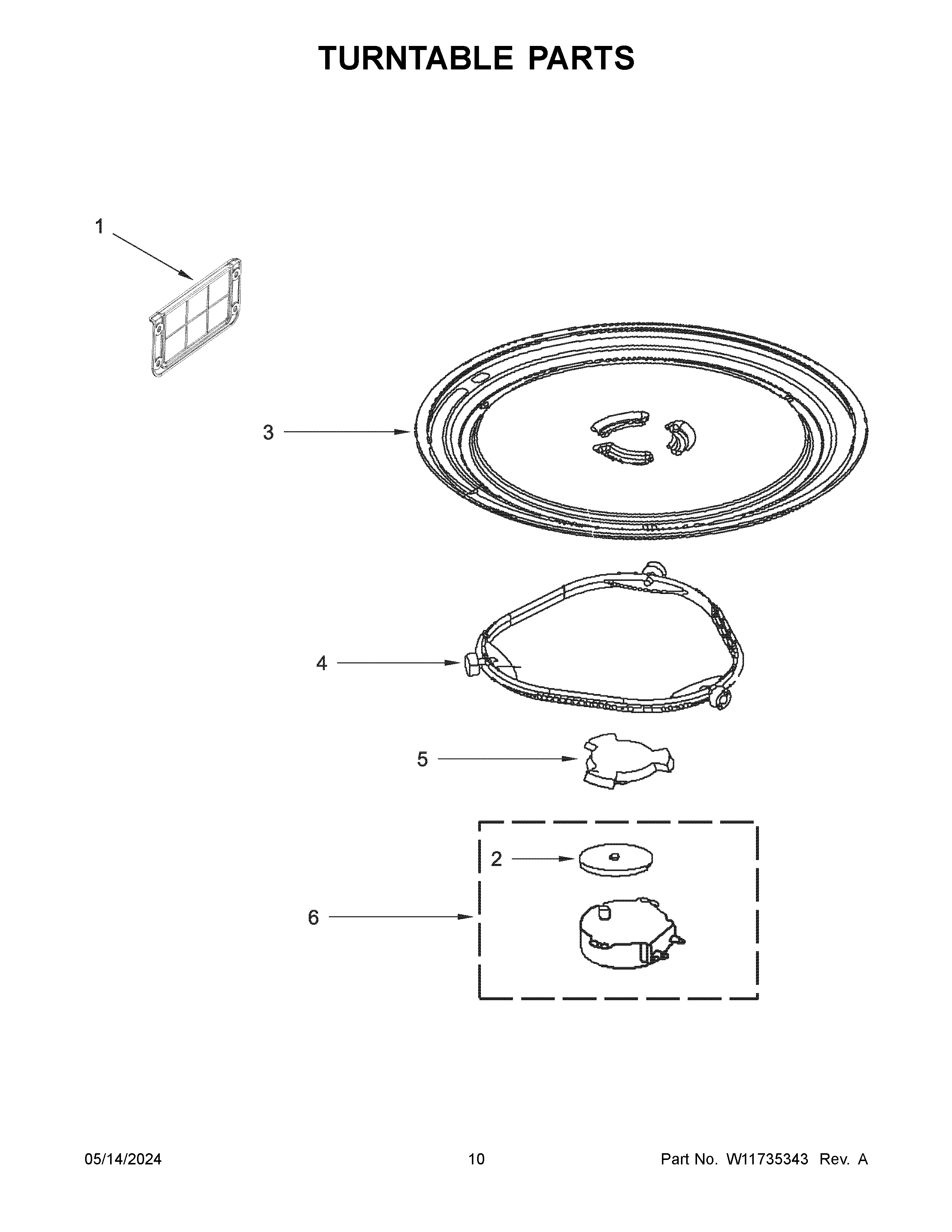

Turntable parts diagram

Microwave turntable motor (replaces 8183954)

Part #W10642989

$69.48 |
8% OFF Phone Price : $75.48
In Stock
Microwave Mounting Plate (replaces W10440498) W11025649
#1

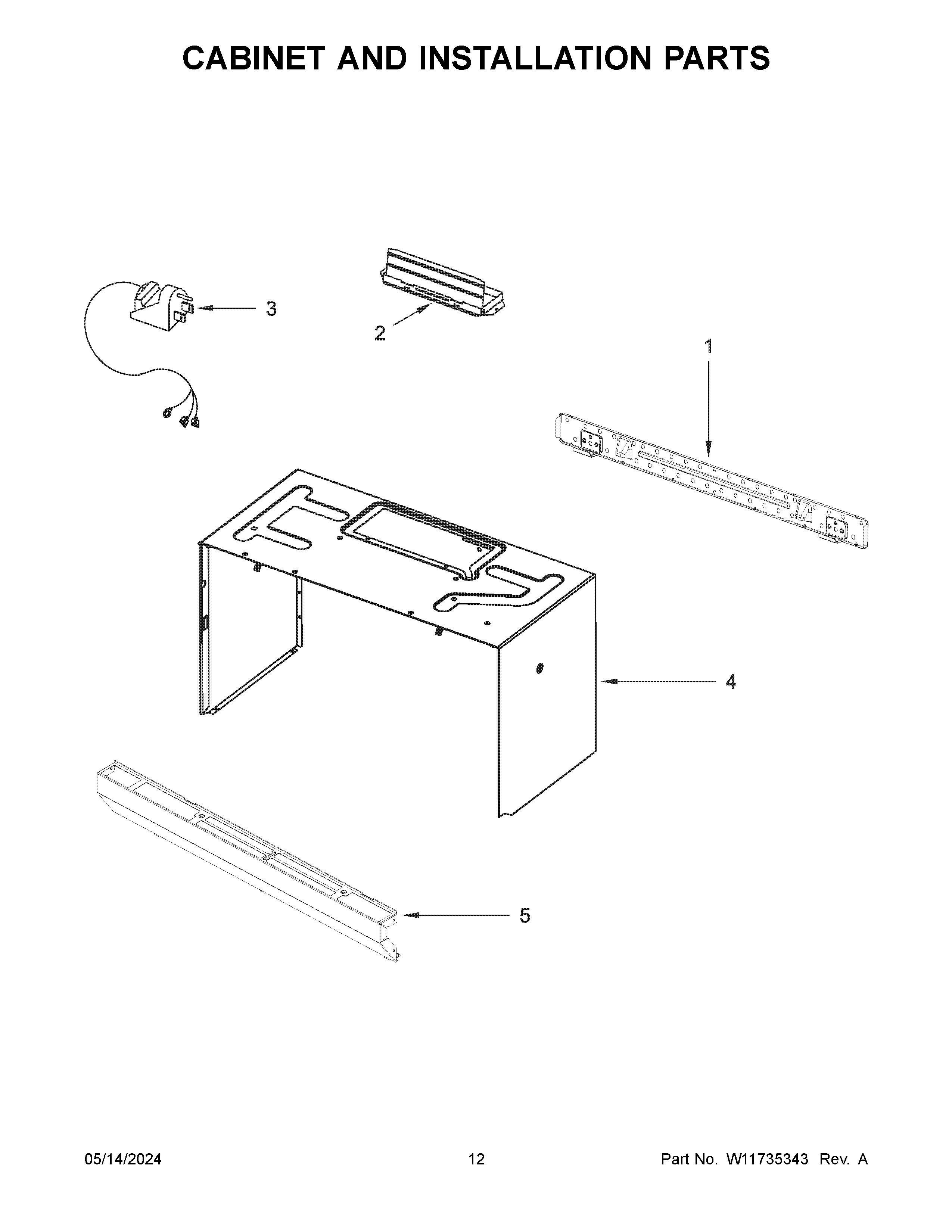

Cabinet and installation parts diagram

Microwave mounting plate (replaces w10440498)

Part #W11025649

$12.77 |
14% OFF Phone Price : $14.77
In Stock
Appliance Nameplate W10481433
#3

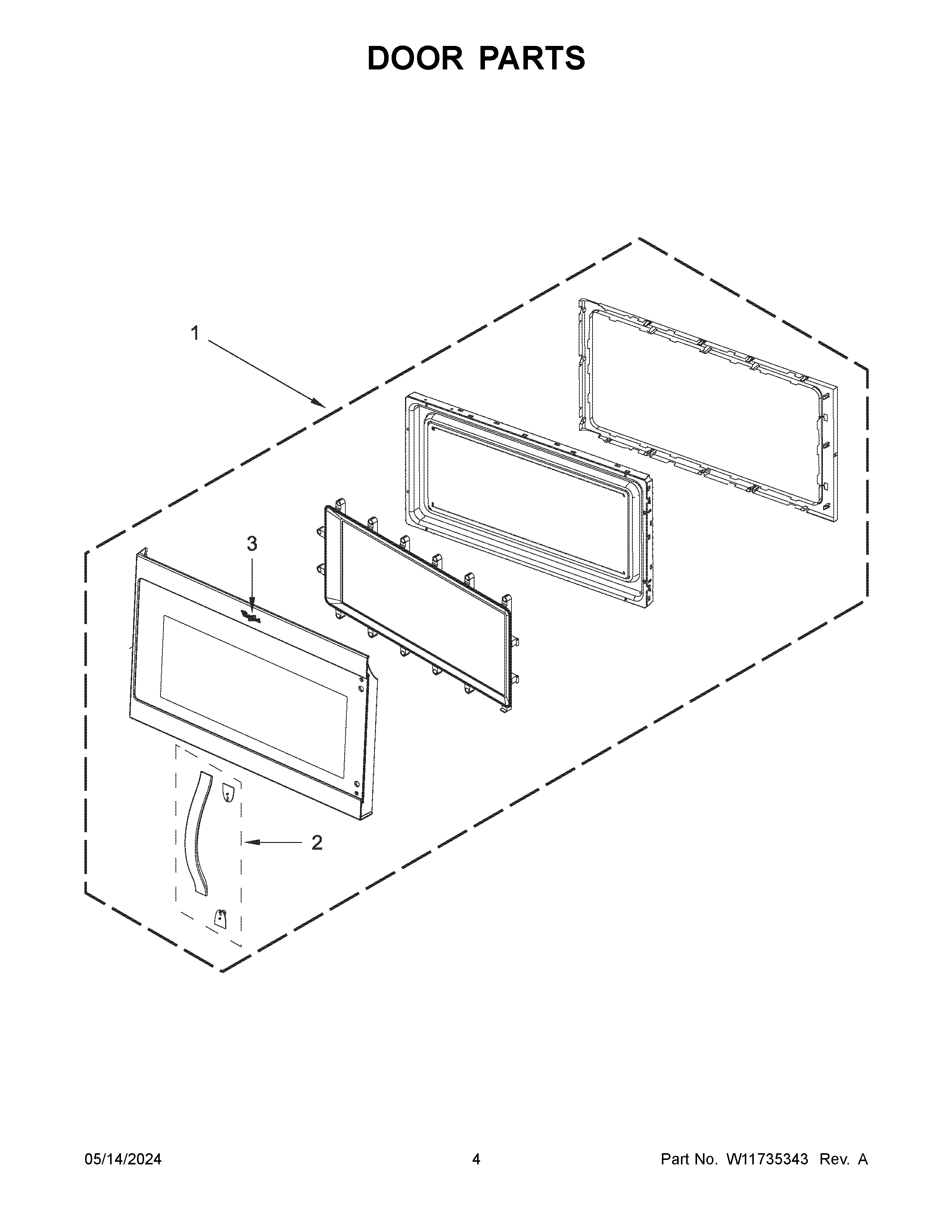

Door parts diagram

Appliance nameplate

Part #W10481433

Replaced by #W11178521

?
Manufacturer substitution
This part replaces W10481433. Substitute parts can look different from the original.
$33.73 |
15% OFF Phone Price : $39.73
In Stock
