Model # JVB93SA Official GE range hood

Here are the diagrams and repair parts for Official GE JVB93SA range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Jvb34s + Uc/ 49-8904-3
#999

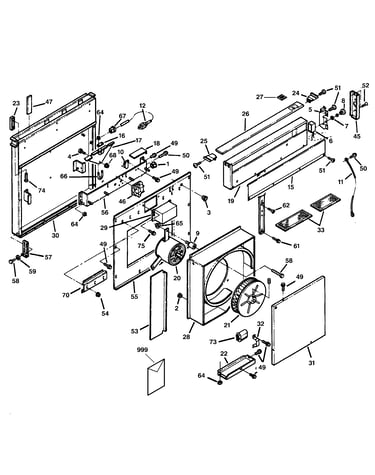

Range hood diagram

Jvb34s + uc/

Part #49-8904-3

Replaced by #49-8904-1

?
Manufacturer substitution
This part replaces 49-8904-3. Substitute parts can look different from the original.
$8.49
In Stock
Bushing WB02X8325
#1

Range hood diagram

Bushing

Part #WB02X8325

The manufacturer no longer makes this part, and there's no substitute part

Hex Keps Nut WC01X5148
#64

Range hood diagram

Hex keps nut

Part #WC01X5148

The manufacturer no longer makes this part, and there's no substitute part

Screw,#5 Ph WB01X5885
#52

Range hood diagram

Screw,#5 ph

Part #WB01X5885

The manufacturer no longer makes this part, and there's no substitute part

Scroll Box WB02X8336
#22

Range hood diagram

Scroll box

Part #WB02X8336

The manufacturer no longer makes this part, and there's no substitute part

Filter Kit WB02X8344
#33

Range hood diagram

Filter kit

Part #WB02X8344

The manufacturer no longer makes this part, and there's no substitute part

Strain Relef WB02X8349
#67

Range hood diagram

Strain relef

Part #WB02X8349

The manufacturer no longer makes this part, and there's no substitute part

Air Box WB49X5550
#30

Range hood diagram

Air box

Part #WB49X5550

The manufacturer no longer makes this part, and there's no substitute part

Air Bx Cover WB49X5553
#53

Range hood diagram

Air bx cover

Part #WB49X5553

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover WB02X8332
#18

Range hood diagram

Switch cover

Part #WB02X8332

The manufacturer no longer makes this part, and there's no substitute part
